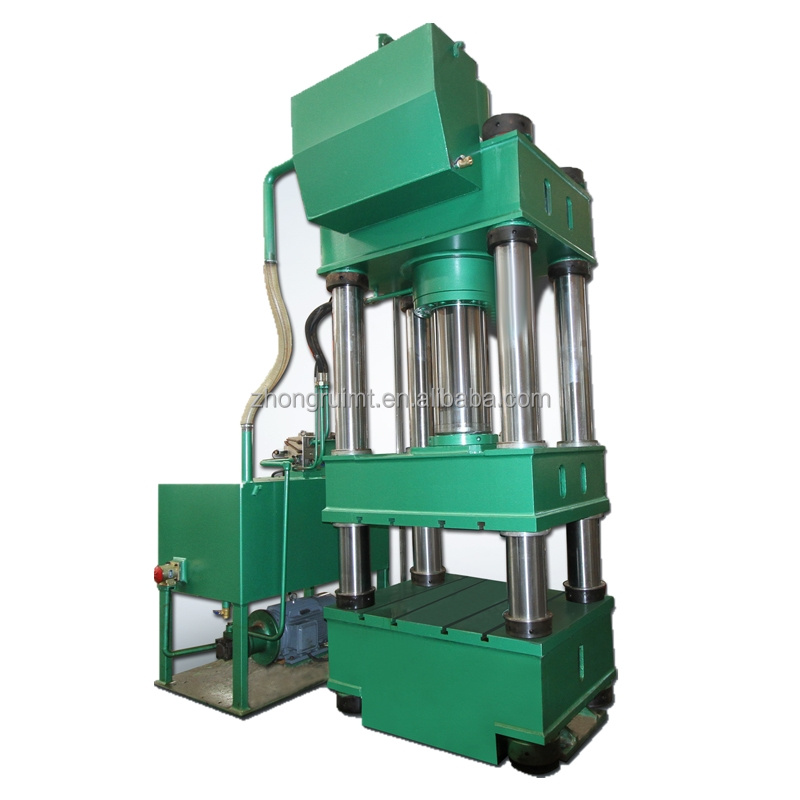

Product Application
This series press has the black-white controland PLC controls two kind of electrical thecontrol system. Has theadjustment, manual and the semiautomatic three operating mode may realize the constant pressure and decide there gulation two craft ways. When constant pressure formation, after suppression has guarantees when the rolling and automatic return trip movement. In the work table is loaded with goes against the installment, besides goes against the product. Still permissible use in as fluid pressure pad instead stretching workpiece formation craft, its working pressure and the traveling schedule, may accord-inq to the craft need, adjust in the stipulation scope.
Technical Data | |||||||
Name | Unit | Y32-200 | Y32-315 | Y32-500 | Y32-630 | Y32-1600 | |
Nominal pressure | KN | 2000 | 3150 | 5000 | 6300 | 2*8000 | |
Ejecting pressure | KN | 280 | 630 | 1000 | 1000 | 1000*2 | |
Retum force | KN | 240 | 600 | 900 | 850 | 2*270 | |
Slipper stroke | mm | 710 | 800 | 900 | 900 | 1200 | |
Eject stroke | mm | 200 | 300 | 350 | 350 | 350 | |
Max. Daylight | mm | 1120 | 1250 | 1500 | 1500 | 1800 | |
Slipper stroke speed | Idle stroke down | mm/s | 120 | 100 | 100 | 100 | 120 |
Pressing | mm/s | 5~12 | 5~12 | 7~15 | 5~12 | 4~9 | |
Return | mm/s | 95 | 60 | 80 | 85 | 95 | |
Knock out speed | Knock out | mm/s | 80 | 55 | 75 | 75 | 70 |
Return | mm/s | 145 | 145 | 170 | 170 | 160 | |
Table size | L-r | mm | 1000 | 1260 | 1400 | 1600 | 2800 |
F-b | mm | 940 | 1160 | 1400 | 1600 | 2000 | |
Dimension | L-r | mm | 2650 | 3500 | 3900 | 4510 | 5600 |
F-b | mm | 1350 | 1500 | 2150 | 2250 | 2600 | |
Height | mm | 3800 | 4600 | 5200 | 5400 | 6200 | |
General power | KW | 15 | 22 | 2*22 | 2*22 | 3*30 |
Details
- Slide Stroke (mm): 1000
- Return Force (kN): 500
- Condition: New
- Place of Origin: Anhui, China
- Voltage: 380V
- Dimension(L*W*H): 3500*1600*4850
- Weight (T): 6.8
- Model Number: Y32-400
- Motor Power (kw): 15
- Key Selling Points: Automatic
- Warranty: 1 Year
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Printing Shops, Construction works , Energy & Mining
- CNC or Not: CNC
- After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
- Power Source: Hydraulic
- Nominal Force (kN): 4000
- Certification: CE, ISO9001: 2008
- Application: steel
- Function: Hydraulic Pounching
- Color: Customized
- Usage: Pressing Metal Products
- Hydraulic System: Bosch-Rexroth Form Germany
- Type: Y32-160T
- Model: horizontal hydraulic press
- Motor: Siemens Main Motor
- Control system: Simens System
