Product Description

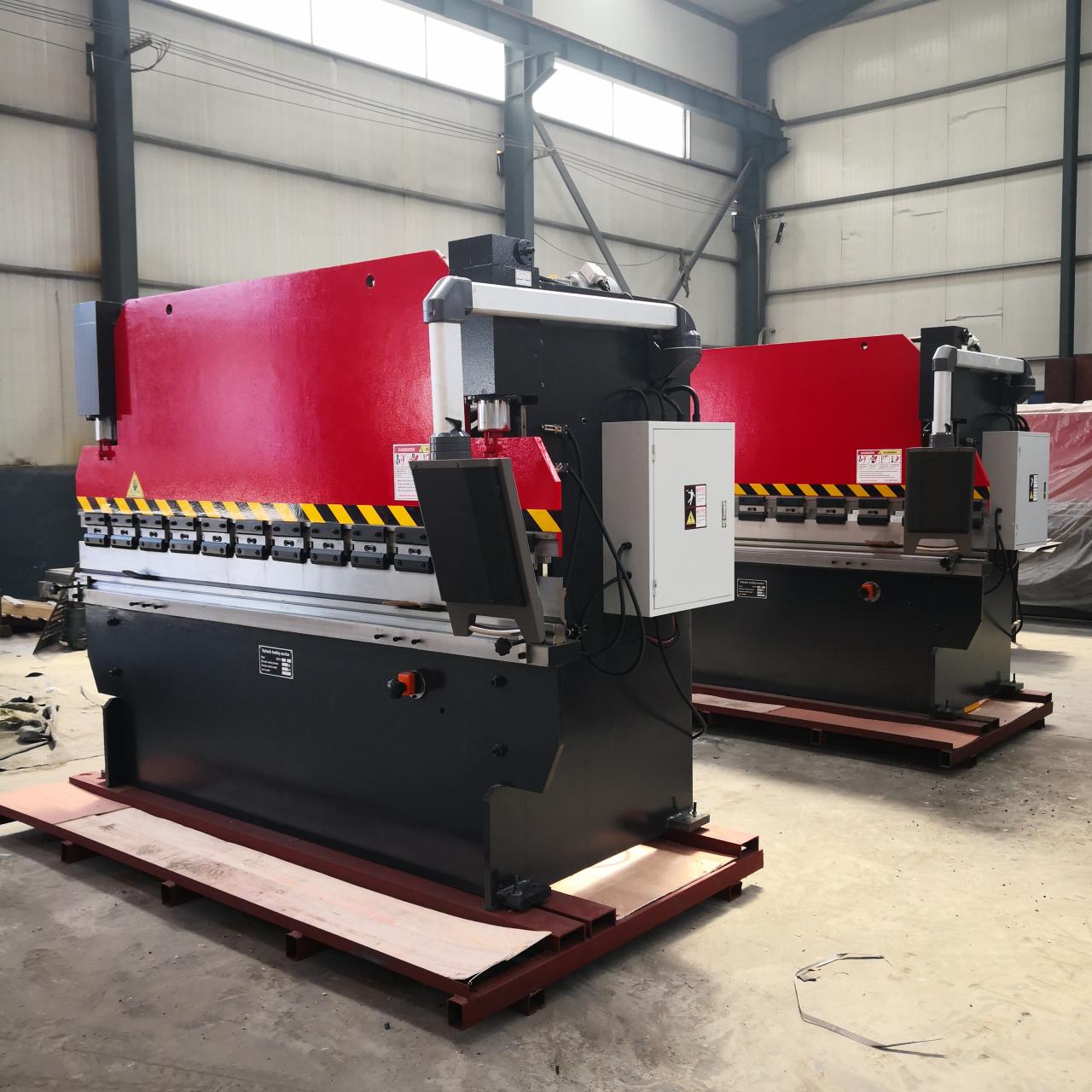

Torsion axis CNC bending machine
This machine is economical and easy to operate. It can be equipped with Estan E21 or e200p system，It can be used for the bending of sheet metal.
Detailed Images

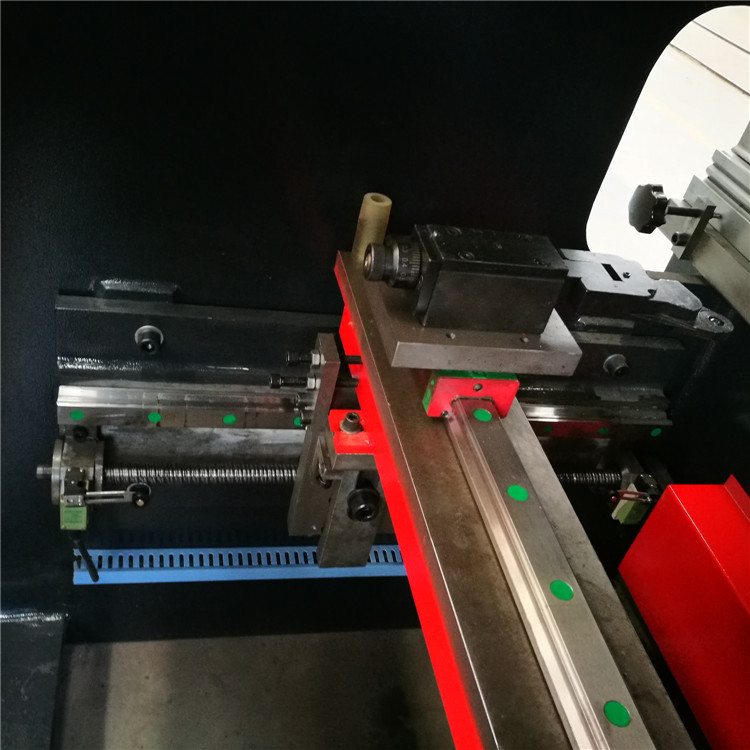

Ball screw and linear guide (Optional)
High precise backguage,equipped with Taiwan HIWIN ball screw and polishedrod structure.

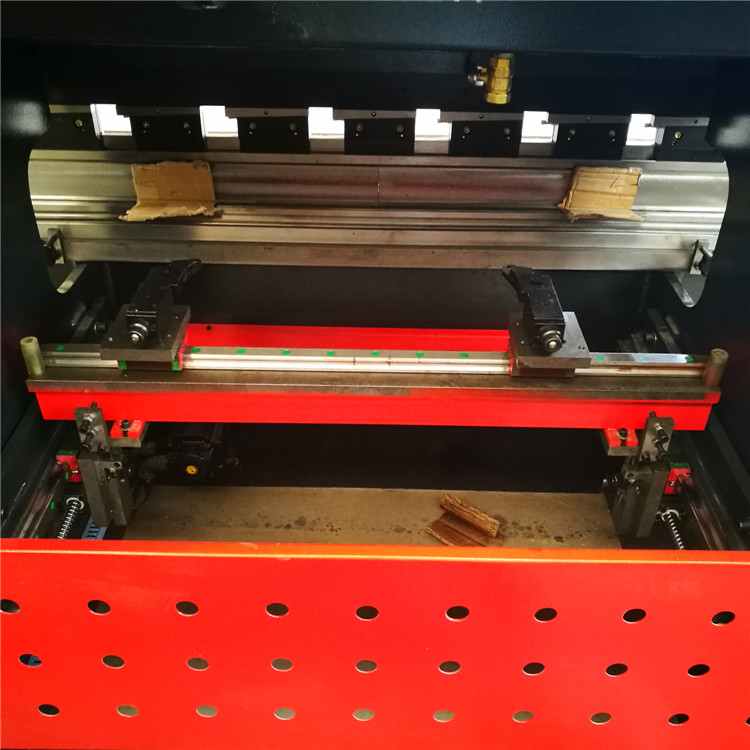

Back Stop
After the block material is divided into ordinary type and precision type
It can be selected according to the needs
Precision back stop is equipped with ball screw and linear guide
It is controlled by servo motor

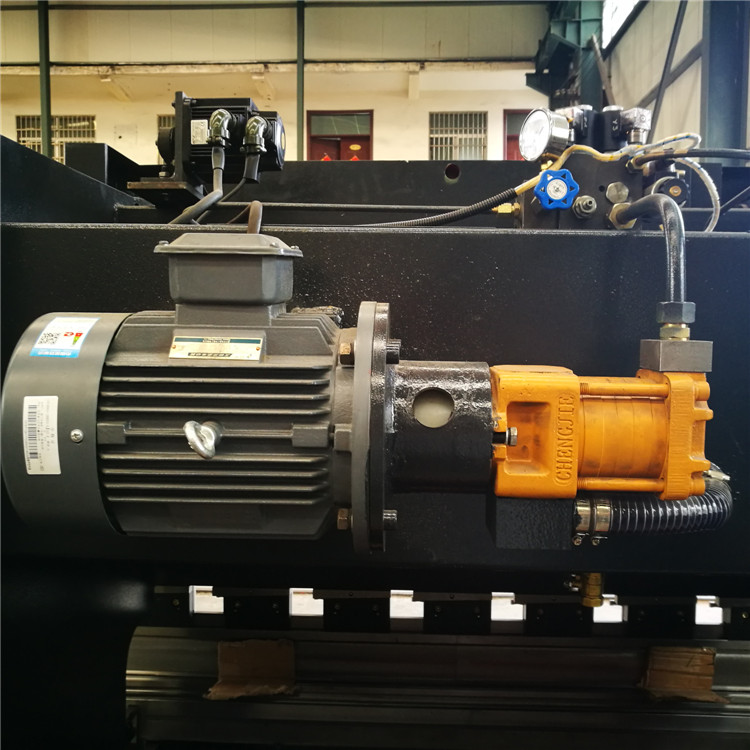

Oil pump and Motor
Guarantees the machine service life, and reduce the noise when working. Oil pump guarantees the oil service life and reduce the working noise

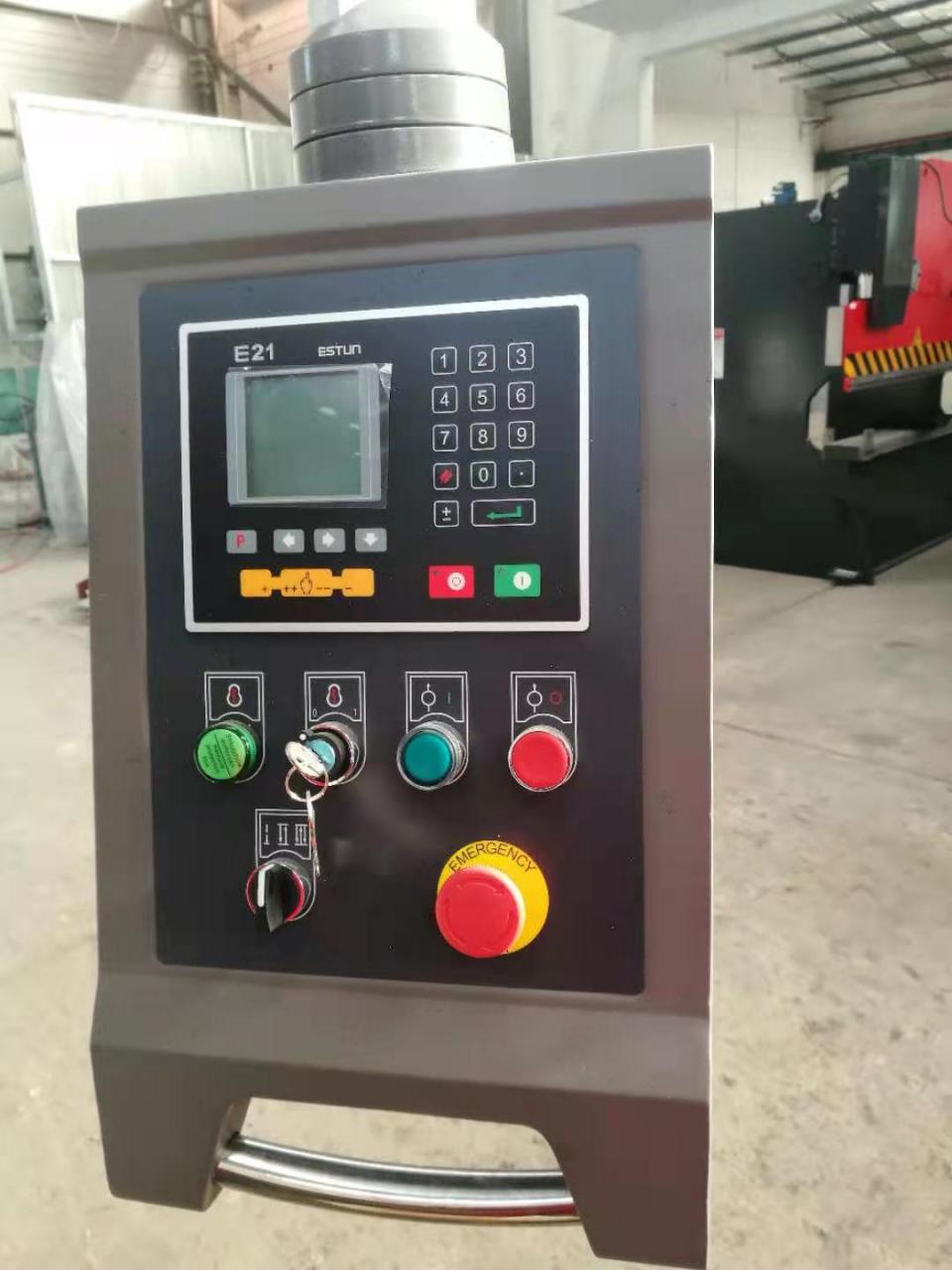

ESTUN SYSTEM (E21 OR E200P OPTIONAL)
■ HD LCD display, with both Chinese and English language options, a display programming parameters, faster and more convenient programming
■ Backgauge control：Smart positioning, can also be manually adjusted as needed to remove the mechanical hand positioning device.
■ Cut Stroke: Built-shearing time relay, simple operation, cost savings
■ Shear angle: Built shear angle adjustment function, eliminating the angle indicators and buttons

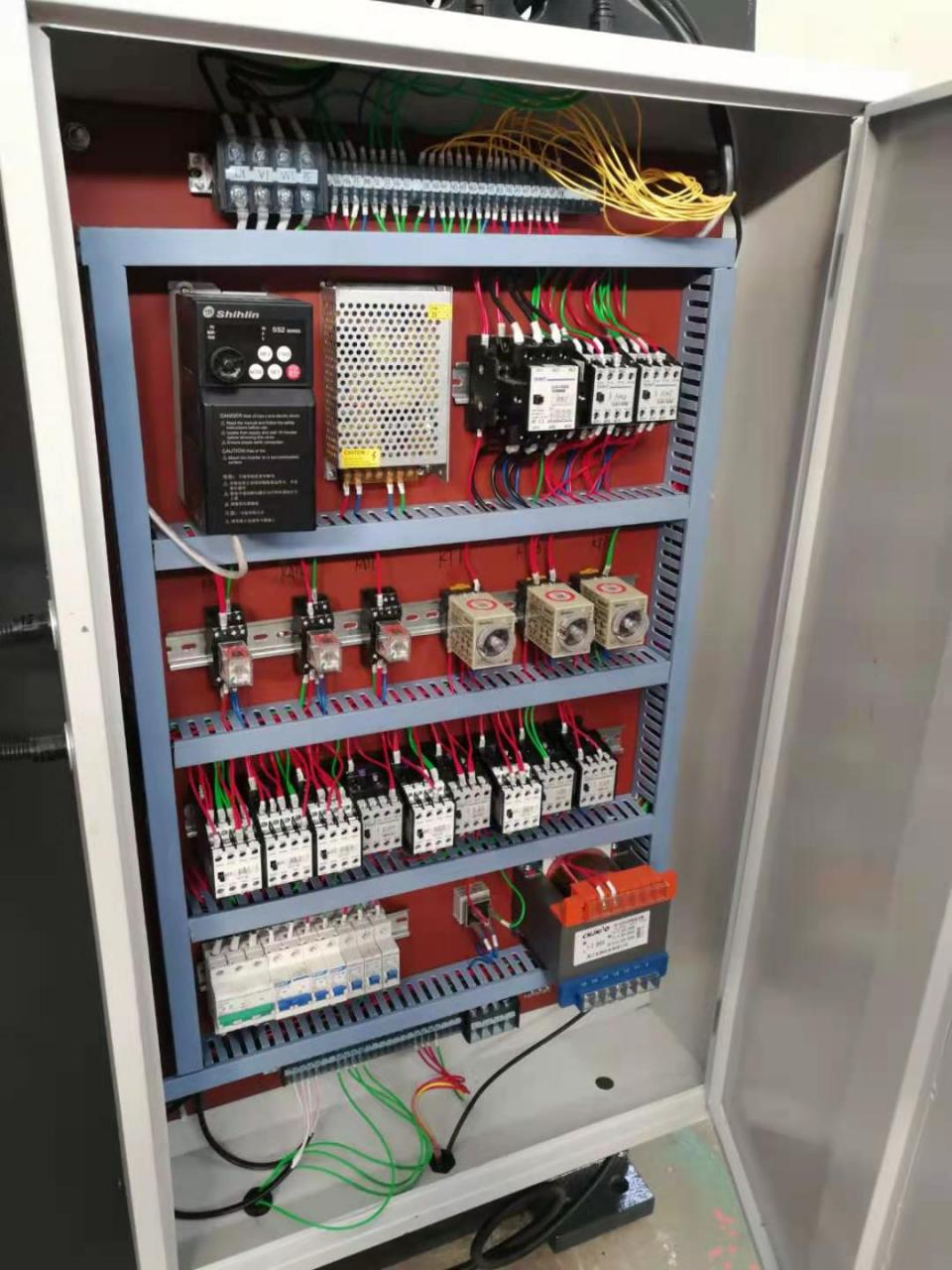

Electrical Box
■ Electric control system of bending machine
■ Integration E series, DA series CNC system.
■ Through EMC, high temperature, vibration and other rigorous testing to ensure product stability and service life
■ CE certified to meet the needs of overseas markets.

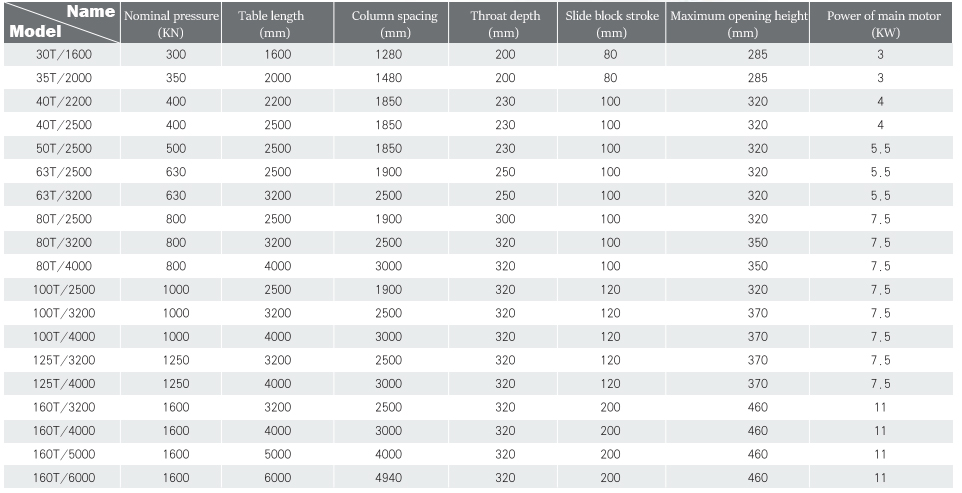

| Product Model | WC67Y-160/4000 | |
| Nominal Pressure | KN | 1600 |
| Table length | mm | 4000 |
| Throat depth | mm | 320 |
| Slide block stroke | mm | 200 |
| Maximum opening height | mm | 320 |
| Power of main motor | KW | 11 |

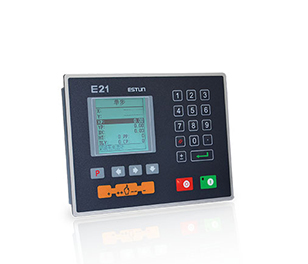

E21
Estun E21 cnc It can be used to control the setting of back stop
E200P
Estun E200P cnc Including 3-axis CNC, servo motor, linear guide, ball screw
A52
Delem A52 CNC It can be used for NC programming and angle control Product Presentation
FAQ
Q: Are you a factory or trade company?
A：We are a factory.
Q: Can we visit your factory before order?
A: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at station if needed.
Q: Do you have a stock?
A: Sorry, most of our machines don't have stock, we always produce according to order.
Q. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
Q: Is OEM acceptable to your factory?
A: Yes, OEM production is one of our advantages.
Q: How about your after-sale service?
A: Most questions during operation can be solved with our help with pictures, videos and Instructions. Our engineers are available to service overseas to provide professional technical support if needed.
Details
- Slider Stroke (mm): 200 mm
- Automatic Level: Manual
- Throat Depth (mm): 320 mm
- Machine Type: Torsion Bar
- Length of Working Table (mm): 4000
- Width of Working Table (mm): 200 mm
- Condition: New
- Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
- Automation: Manual
- Extra Services: Machining
- Year: 2021
- Weight (KG): 4800
- Motor Power (kw): 11 kw
- Key Selling Points: Competitive Price
- Warranty: 1 Year
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other
- Showroom Location: None
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Other
- Raw Material: Q235 Steel
- Product name: Hydraulic Cnc Bending Machine
- MOQ: 1
- Keyword: Hydraulic CNC Plate Press Brake
- Machine name: Steel Cnc Hydraulic Press Brake
- Key word: price bending machine
- Name: sheet bending machines
- USE FOR: metal sheet bending machine
- Application: Metal Sheet Bending Processing Machine
- Type: sheet metal bending machine
- Certification: ISO 9001:2000
- After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
