Cnc Metal Steel Hydraulic Bending Machine Cnc Press Brake Machine

Products Description

Product parameters

Model	Nominal pressure(KN)	Length of table(mm)	Distance between columns(mm)	Throat depth(mm)	Stroke(mm)	Open height(mm)	Main motor(KW)	Overall dimensions L×W×H(mm)
63t/2500	630	2500	1905	300	150	420	5.5	270017002300
63t/3200	630	3200	2700	300	150	420	5.5	340017002300
80t/2500	800	2500	1900	300	150	420	5.5	270017002400
80t/3200	800	3200	2700	300	150	420	5.5	340017002300
100t/3200	1000	3200	2700	350	180	420	7.5	340018002600
100t/4000	1000	4000	3100	350	180	420	7.5	420018002600
125t/3200	1250	3200	2700	350	200	420	11	340019002600
125t/4000	1250	4000	3090	350	200	420	11	420019002600
160t/3200	1600	3200	2600	350	200	450	15	340020002800
200t/3200	2000	3200	2600	400	200	450	18.5	340022002850
250t/3200	2500	3200	2600	400	250	520	22	350021003800
300t/4000	3000	4000	3200	400	250	580	22	430025003900
300t/6000	3000	6000	4600	400	250	580	22	630025004800
400t/4000	4000	4000	3200	400	250	580	30	420027004200
400t/6000	4000	6000	4600	400	250	600	30	630027004300
500t/4000	5000	4000	3200	400	250	600	37	430027004200
500t/6000	5000	6000	5050	400	300	600	37	360033004800
600t/5000	6000	5000	3800	500	320	640	45	530033004500
700t/6000	7000	6000	4900	500	320	700	55	630035005500
800t/6000	8000	6000	4600	500	320	800	55	630035006000
The above parameters and configuration is for reference only,specific configuration by mutual agreement shall prevail.

Characteristic:

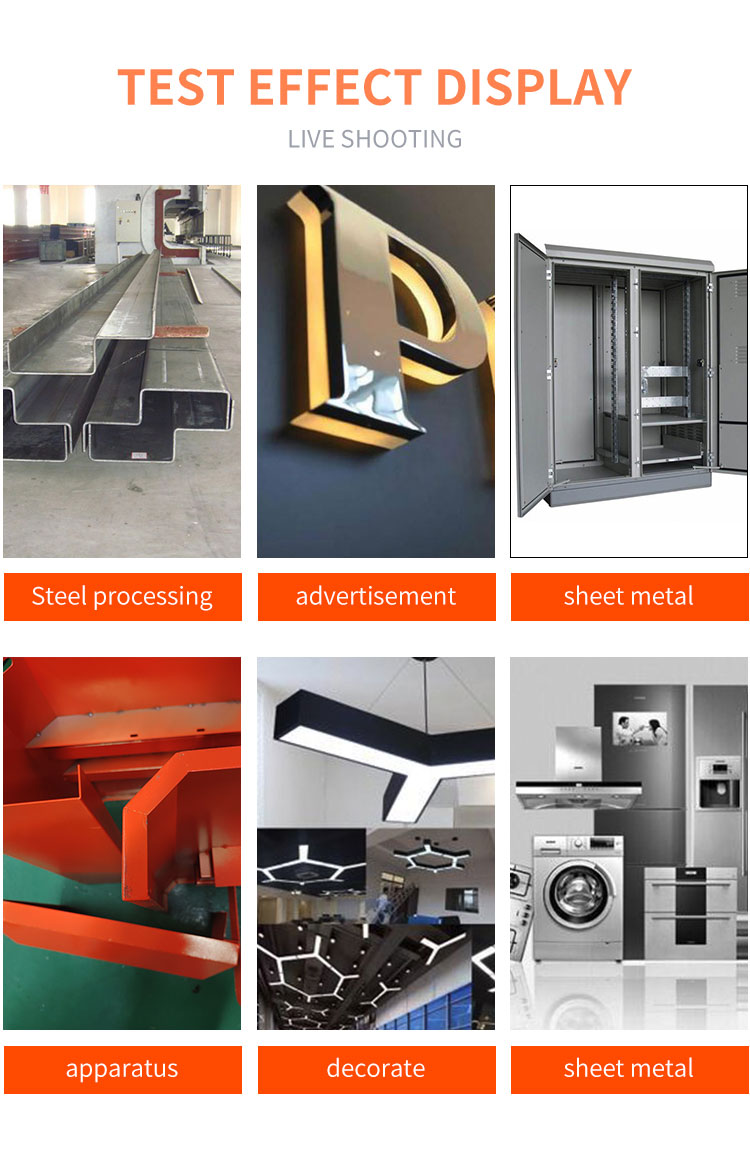

The CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.

1. High bending precision,fast working speed, and efficient,operational safety,performance stably.

2. Good antiknock frame(welded-steel plate construction),whole frame is been tempering,reduce modification,using large-scale CNC milling machine,process in one time,insure high-precision.

3. Using international brand parts and cnc.

4. Visual operating system,easy operation,convenient,multi-functions and practical.

5. Power safeguard design,with light curtain protection,open door power-off function,more safety when operating.

6. All parts are produced by cnc produce center,according to standard drawing.

7. High executive force,high standard and high professional machine assembled team.

8. Replaceable worktable and the upper and lower mound,no welding,forging and precision grinding.

9. Fashion outlook,delicate,and beautiful,machines are compact design,small floor space,easy operation.

10. Providing comprehensive bending program for all press brake,shearing machine user.

11. In time fast delivery.

12. Thickening the slider and the vertical plate, to ensure the stability of the machine tool and reduce the elasticity.

13. Rational layout of the oil pipeline design, to prevent the oil temperature rise quickly.

Why Choose Us

1. CE certified product and test machine with materials before delivery

CE certified products, Before leaving the factory, all machines must be debugged with materials to reach the normal trialproduction status, and the goods can be delivered only after the customer's remote video acceptance .

2. Provide equipment drawings

We will provide electrical drawings, installation drawings for equipment placement, videos and documents for solving common machine failures, so as to facilitate customers' later installation and debugging.

3. Good after-sales service

In addition to providing equipment installation videos for customers, we will set up a service team for customers aboutafter-sales needs, including the company's manager, sales manager, engineers, customers and other relevant personnel, so that we can answer customers' any questions at any time. These online guidance services are completely free.

FAQ

1. Do you have it in stock?

We have standard size in stock.

2. How long do you make the order product?

Common products for 7 days, big qty and none standard products for 15-25 days.

3. How about the quality?

We have export to many other customers from all over the world, the feed back is good,quality is the first of our company.

4. Could you do OEM?

Yes, of course. We can produce according customers' requirement, just send us your requirements and design of drawing and sample.

5. Delivery?

1-2 units we could
send by EXPRESS(DHL, UPS, FEDEX, TNT, EMS), heavy weight more than 50kg,we suggest to use sea freight CIF or by air.

6. Q:How do your factory carry out quality control?

A:Skillful workers take care of every details through production to packing.

Details

Slider Stroke (mm): 170 mm
Automatic Level: Fully Automatic
Throat Depth (mm): 350 mm
Machine Type: Synchronized, Torsion Bar
Length of Working Table (mm): 3200
Width of Working Table (mm): 1450 mm
Dimension: 3100*1450*2050

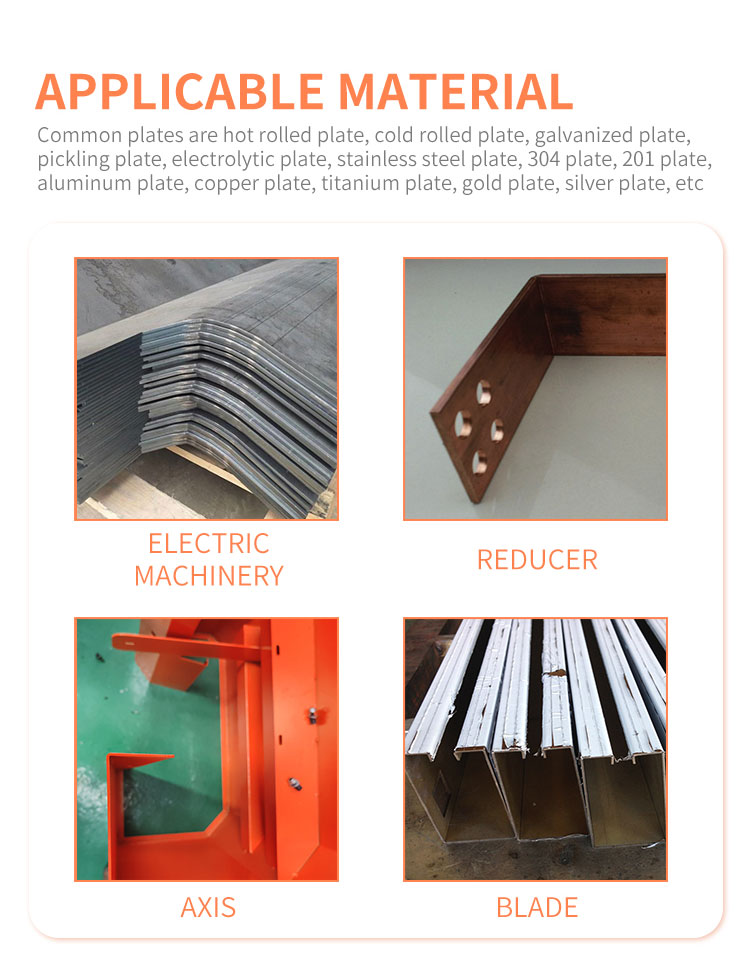

Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum, Plastic, PVC
Automation: Automatic
Extra Services: Welding / Brazing
Weight (KG): 8500
Motor Power (kw): 5.5 kw
Key Selling Points: High Productivity
Warranty: 1 Year
Applicable Industries: Other
Showroom Location: None
Marketing Type: Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 6 months
Core Components: Bearing, Motor, PLC
Product name: Hydraulic Cnc Bending Machine
Name: Steel Plate Bending Machine
Raw Material: Sheet
Type: Hydraulic Bending Tools
Application: Stainless Plate Bending
Usage: Metal Sheet Rolling Cutting Bending
Keyword: Hydraulic Press Break
Power: 7.5kw
After-sales Service Provided: Online support
