| Type | Nominal Force | Worktable Length | Poles Distance | Throat Septh | Slider Travel | Max Open | Power | Dimension |
| (KN) | (mm) | (mm) | (mm) | (mm) | (mm) | (KW) | L*W*H(mm) | |
| 30T/1600 | 300 | 1600 | 1280 | 200 | 80 | 285 | 3 | 1600*1000*1600 |
| 35T/2000 | 350 | 2000 | 1480 | 200 | 80 | 285 | 4 | 2000*1100*1800 |
| 40T/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 5.5 | 2200*1200*1910 |
| 40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500*1200*1910 |
| 50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500*1200*2000 |
| 63T/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 5.5 | 2500*1300*2210 |
| 63T/2500 | 630 | 3200 | 2500 | 250 | 100 | 320 | 5.5 | 3200*1300*2210 |

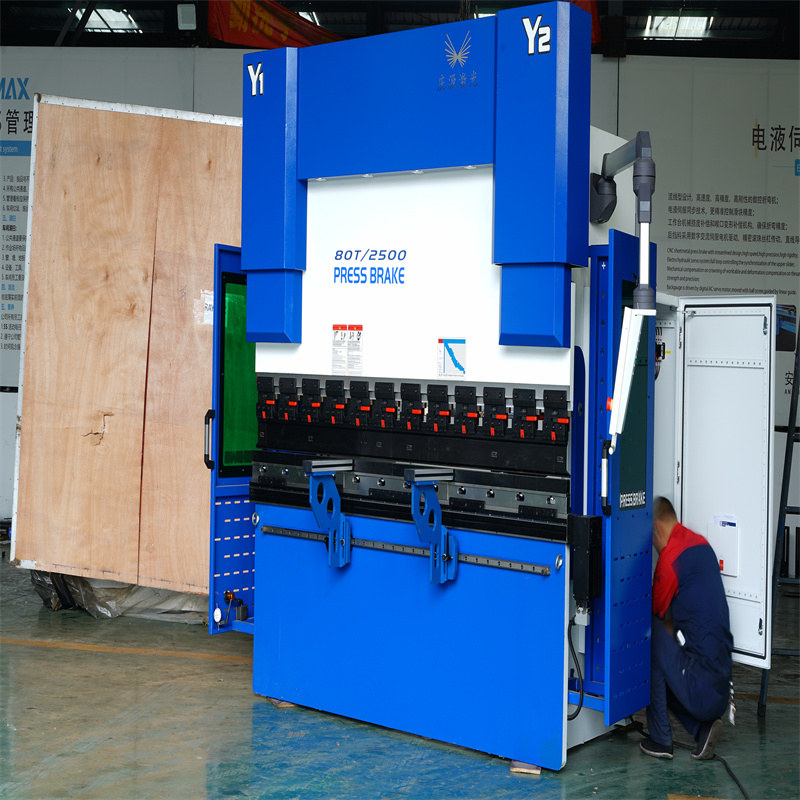

| 80T/2500 | 800 | 2500 | 1900 | 300 | 100 | 320 | 7.5 | 2500*1400*2300 |
| 80T/3200 | 800 | 3200 | 2500 | 320 | 100 | 350 | 7.5 | 3200*1500*2300 |
| 100T/3200 | 1000 | 2500 | 1900 | 320 | 100 | 350 | 7.5 | 4000*1500*2400 |
| 100T/4000 | 1000 | 3200 | 2500 | 320 | 120 | 370 | 7.5 | 2500*1600*2400 |
| 100T/3200 | 1000 | 4000 | 3000 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
| 125T/3200 | 1250 | 3200 | 2500 | 320 | 120 | 370 | 7.5 | 4000*1600*2700 |
| 125T/4000 | 1250 | 4000 | 3000 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
| 160T/3200 | 1600 | 3200 | 2500 | 320 | 200 | 460 | 11 | 4000*1600*2700 |
| 160T/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 | 3200*1600*2600 |
| 160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 | 4000*1600*2700 |
| 160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 3200*1700*2700 |
| 200T/3200 | 2000 | 3200 | 2500 | 320 | 200 | 460 | 11 | 4000*1700*2800 |
| 200T/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 11 | 5000*1900*3100 |
| 200T/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 11 | 6000*1900*3200 |
| 200T/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 11 | 3200*1950*2800 |
| 250T/3200 | 2500 | 3200 | 2500 | 400 | 250 | 590 | 18.5 | 4000*1950*2800 |
| 250T/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 | 5000*1950*3000 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 | 6000*1950*3300 |
| 250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 | 3200*2000*3200 |
| 300T/3200 | 3000 | 3200 | 2500 | 400 | 250 | 590 | 22 | 4000*2000*3400 |
| 300T/4000 | 3000 | 4000 | 4000 | 400 | 250 | 590 | 22 | 5000*2000*3400 |
| 300T/5000 | 3000 | 5000 | 5000 | 400 | 250 | 590 | 22 | 6000*2000*3400 |
| 300T/6000 | 3000 | 6000 | 2530 | 400 | 250 | 590 | 22 | 3200*2000*3450 |
| 400T/4000 | 4000 | 4000 | 3000 | 400 | 250 | 590 | 30 | 4000*2000*3450 |
| 400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 590 | 30 | 5000*2000*3450 |
| 400T/6000 | 4000 | 6000 | 5000 | 400 | 250 | 590 | 30 | 6000*2000*3450 |
| 500T/5000 | 5000 | 5000 | 4000 | 400 | 250 | 590 | 45 | 5050*3500*3700 |
| 500T/6000 | 5000 | 6000 | 5000 | 400 | 320 | 590 | 45 | 6050*3500*3700 |
| 600T/4000 | 6000 | 4000 | 3000 | 400 | 320 | 590 | 55 | 4050*4500*3700 |
| 600T/6000 | 6000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6050*4500*3700 |
| 800T/6000 | 8000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6300*4500*6000 |
1. The frame adopts steel structural parts, the left and right vertical plates, the workbench and the pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the overall rigidity is high and the stability is high.
2. The main components such as the fuselage and the slider are analyzed by ANSYS finite element analysis software to ensure the stability of the machine tool.
3. Hydraulic upper transmission, stable and firm.
4. The mechanical block and the torsion shaft are synchronized with high precision.

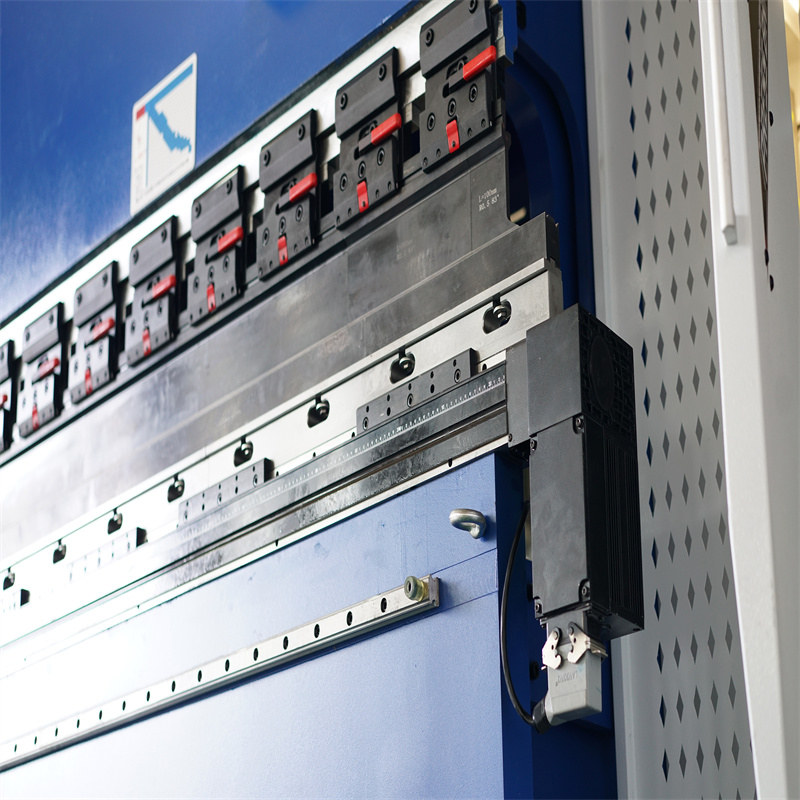

5. Taiwan Shangyin ball screw and linear guide can have an accuracy of 0.02mm. The backgauge distance and slider stroke are controlled by the CNC system, which is convenient and quick.
6. Jining Taifeng cylinders undergo forging, quenching and tempering, fine grinding, hard chrome plating and other processes, and are equipped with foreign seals to overcome oil leakage.
7. The hydraulic system adopts the German Bosch Rexroth oil circuit integrated hydraulic system, which reduces pipeline installation and has a beautiful and simple appearance.
8. The hydraulic components are selected from Germany to ensure the stability of the machine tool operation.
9. This machine adopts German Siemens three-phase system power supply (380V) for power supply, the control circuit voltage (220V) is provided by the control transformer Schneider, and the DC power supply required for the solenoid valve of the implementation circuit.
Details
- Slider Stroke (mm): 320 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 400 mm
- Machine Type: Synchronized
- Length of Working Table (mm): 6000
- Width of Working Table (mm): 4000 mm
- Condition: New
- Material / Metal Processed: Stainless Steel, ALLOY, Aluminum
- Automation: Automatic
- Year: 2021
- Weight (KG): 6800
- Motor Power (kw): 7.5 kw
- Key Selling Points: Automatic
- Warranty: 1 Year
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Construction works , Other
- Showroom Location: None
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor, Engine, Other
- After-sales Service Provided: Video technical support, Online support
- After Warranty Service: Video technical support, Online support
