Products Description
| TYPE | Nominal Force(KN) | Worktable Length(mm) | Throat Depth(mm) | Slider Travel(mm) | Power(kw) |
| 63T/3200 | 630 | 3200 | 300 | 100 | 5.5 |
| 80T/2500 | 800 | 2500 | 320 | 100 | 7.5 |
| 80T/3200 | 800 | 3200 | 320 | 100 | 7.5 |
| 80T/4000 | 800 | 4000 | 320 | 100 | 7.5 |
| 100T/2500 | 1000 | 2500 | 320 | 120 | 7.5 |
| 100T/3200 | 1000 | 3200 | 320 | 150 | 7.5 |
| 100T/4000 | 1000 | 4000 | 320 | 150 | 7.5 |
| 125T/3200 | 1250 | 3200 | 320 | 150 | 11 |
| 125T/4000 | 1250 | 4000 | 320 | 150 | 11 |
| 160T/3200 | 1600 | 3200 | 320 | 200 | 11 |
| 160T/4000 | 1600 | 4000 | 320 | 200 | 11 |
| 160T/5000 | 1600 | 5000 | 320 | 200 | 11 |
| 160T/6000 | 1600 | 6000 | 320 | 200 | 11 |
| 200T/3200 | 2000 | 3200 | 320 | 200 | 11 |
| 200T/4000 | 2000 | 4000 | 320 | 200 | 11 |
| 200T/5000 | 2000 | 5000 | 320 | 200 | 11 |
| 200T/6000 | 2000 | 6000 | 320 | 200 | 11 |
| 40T/2500 | 400 | 2500 | 230 | 100 | 5.5 |
| 50T/2500 | 500 | 2500 | 230 | 100 | 5.5 |
| 63T/2500 | 630 | 2500 | 250 | 100 | 5.5 |
Main Features:
1. Machine frame processing: A large floor boring and milling machine is used for overall processing of the bending machine frame.
2. Forced synchronization of mechanical torsion shaft: Forged material shaft body, with high rigidity and good elasticity, with fine adjustment device, weak anti-eccentric load.
3. Double servo control: Double servos each independently control Y1Y2 cylinders. The system automatically detects and corrects the position difference of Y1Y2 to achieve synchronization accuracy equivalent to electric-hydraulic servo.
4. Professional CNC system: Adopt professional CNC system: large touch screen, color display.
5. Electrical deflection compensation: Input the plate thickness and length parameters in the digital system, and the system will automatically perform deflection compensation.
6. High-precision back gauge structure: adopts ball screw and linear guide, driven by a servo motor, the back gauge is positioned quickly and accurately.
7. The height of the finger can be adjusted manually: the height of the finger is designed by the overall adjustment, and the height of the finger can be manually adjusted.
8. Press-in mold quick clamping structure: increase the speed of mold replacement and improve work efficiency.
Product Details

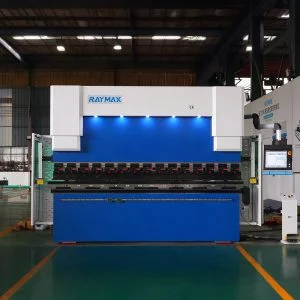

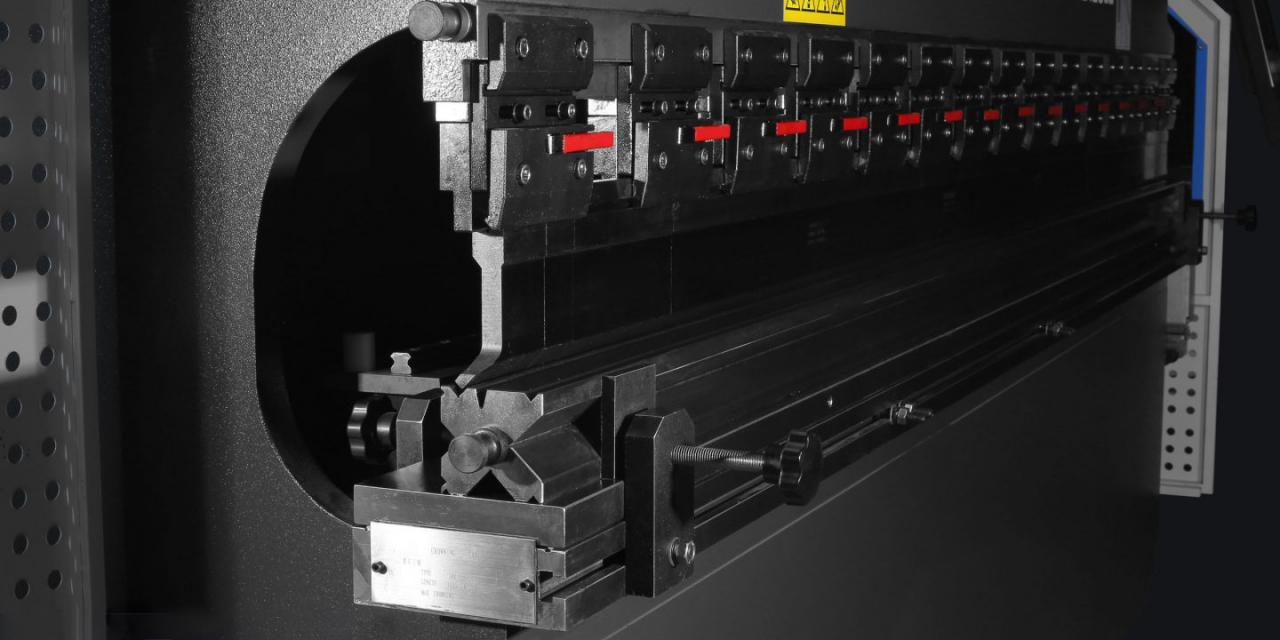

Cost-effective primary CNC bending machine: Adjustable torsion shaft synchronization design, good shaft elasticity, CNC-level precision back gauge

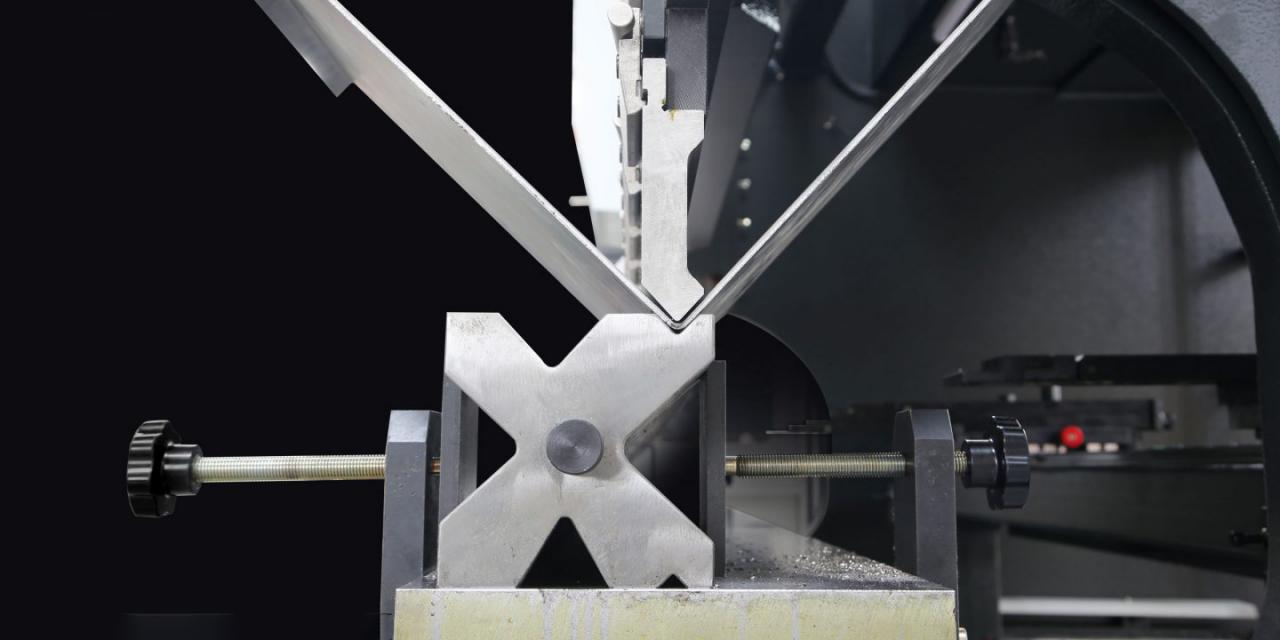

High-quality forging die, high hardness and good toughness: The traditional forging and tempering process is used to remove air bubbles in the steel body material, and the overall hardness is improved by heat treatment.

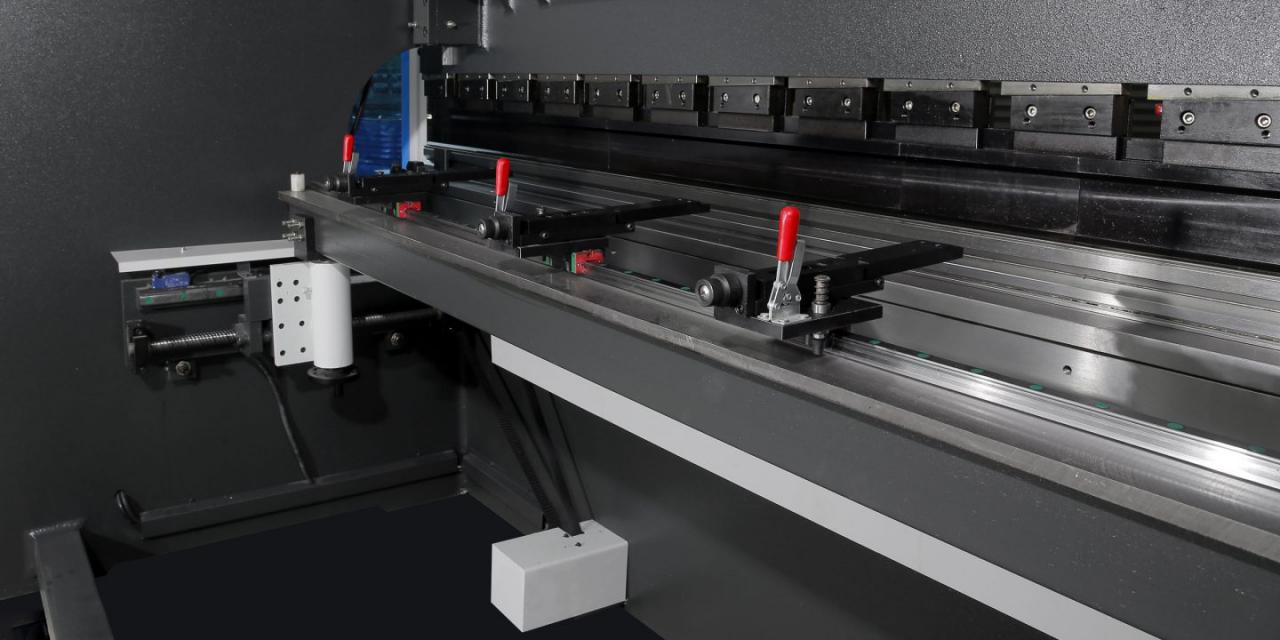

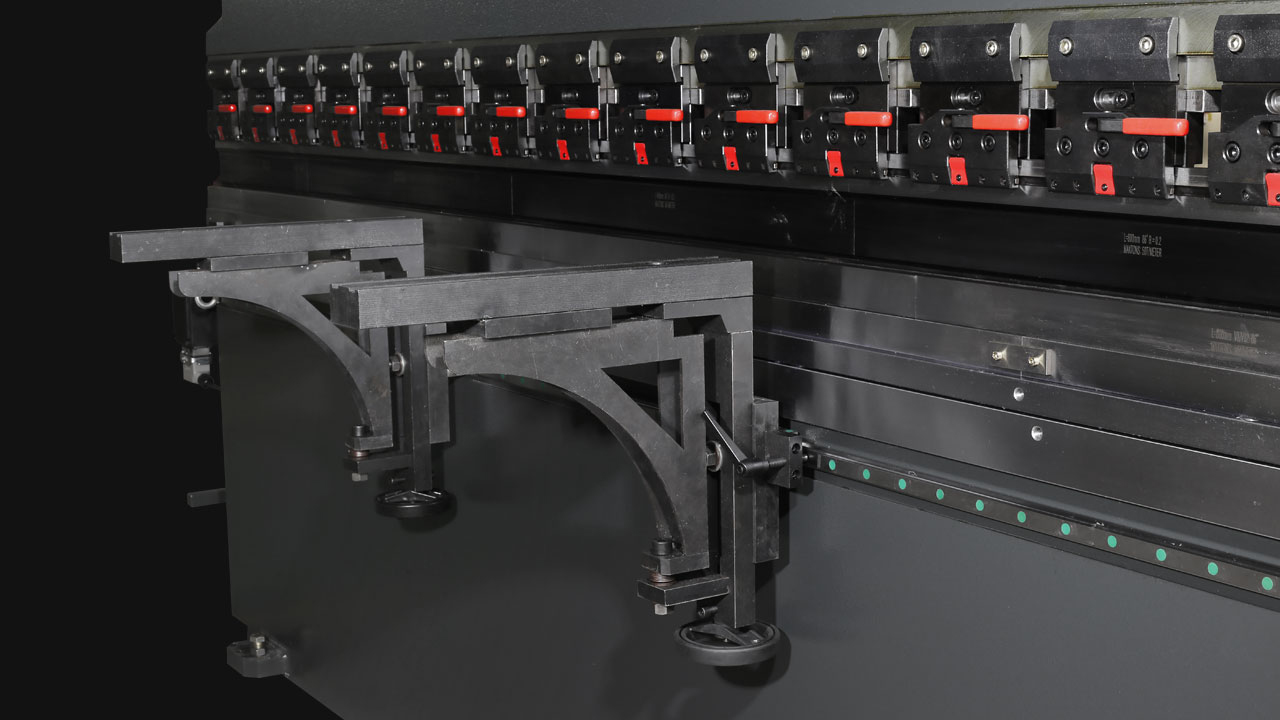

Front pallet: Double track can be moved to improve production efficiency
Backgauge system, fast and precise positioning: It adopts steel structure welding, high rigidity, servo motor drive, ball screw and linear guide to ensure high precision operation. The four-corner mounting positioning screws can be quickly adjusted.
Techical parameters
| Item | Optional model | Manufacturer |
| CNC system | DA-41s/E200P/E300P | Delem/ESTUN |
| Hydraulic system | Pressure valve | Rexroth |
| Number of backgauge shafts | Single axis / dual axis | RAYMAX |
| Oil pump | Single-stage oil pump | Sunny |
| Main power system | AC motor | Simens/NW |
| Front support | Simple fixed type / single track movable type / double track movable type | RAYMAX |
| Security | Side (guardrail) rear (guardrail) / side (guardrail light curtain protection) rear (guardrail) | RAYMAX |
| Deflection compensation | Electrical deflection compensation/manual mechanical deflection compensation | RAYMAX |
| Mold clamping | Hand pressure type upper mold clamping | RAYMAX |
| Electric | Schneider Relay | Schneider |
| Foot switch | Korea Kaikun vertical switch | Kaikun |
| Die | Multi-V die/Dual V co-core die | RAYMAX |
Famous Brand Accessories

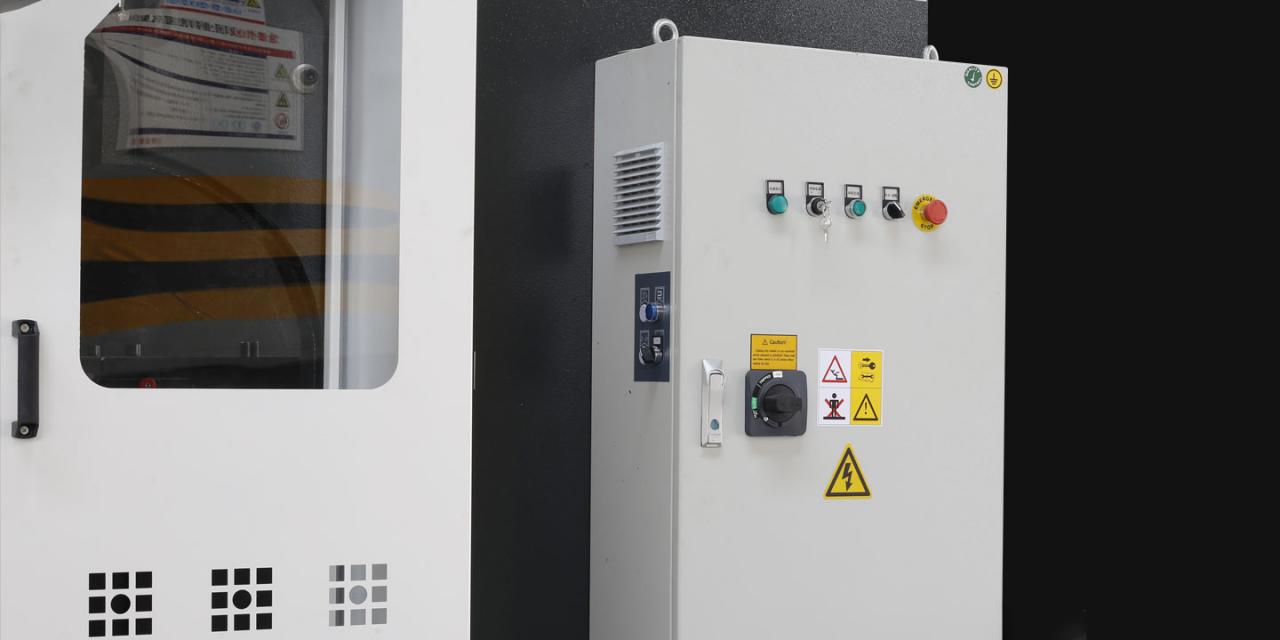

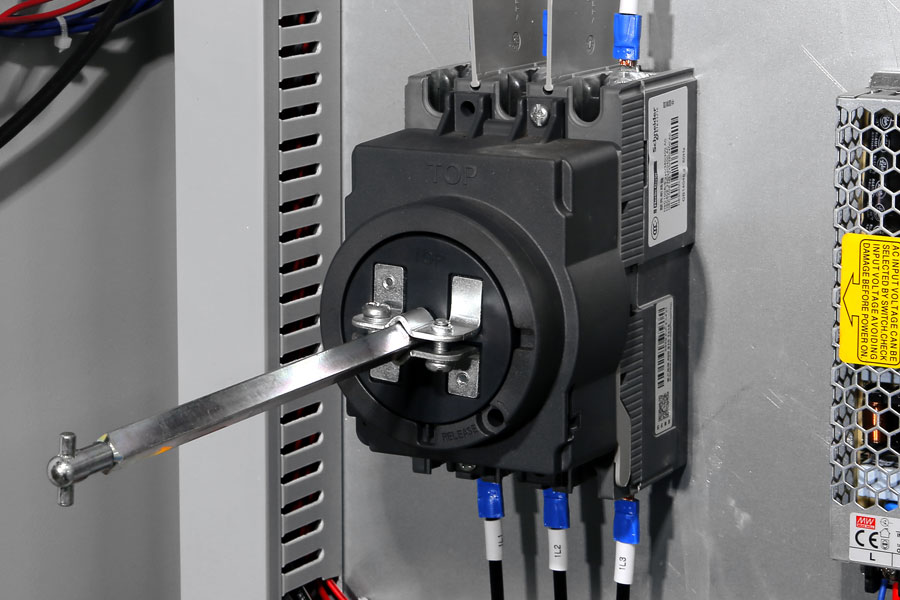

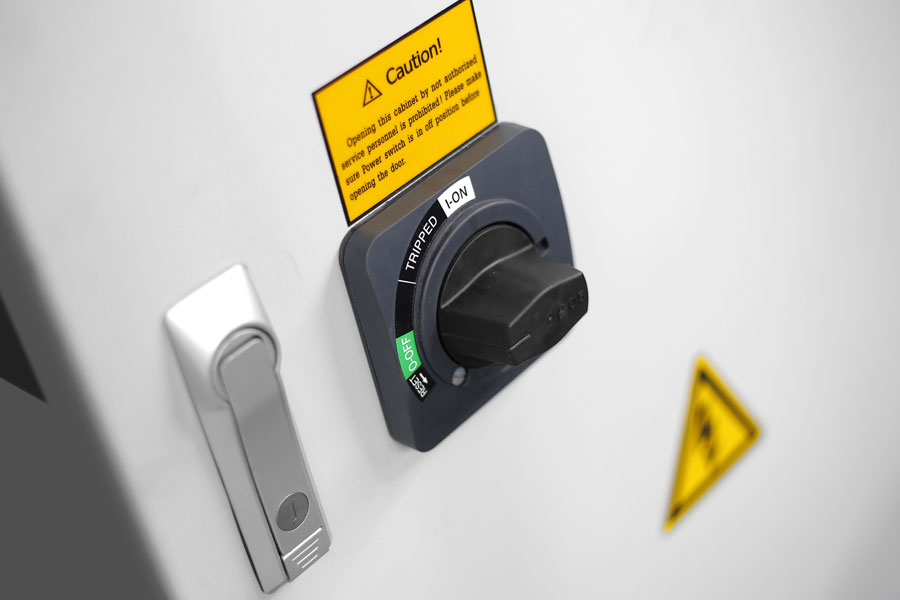

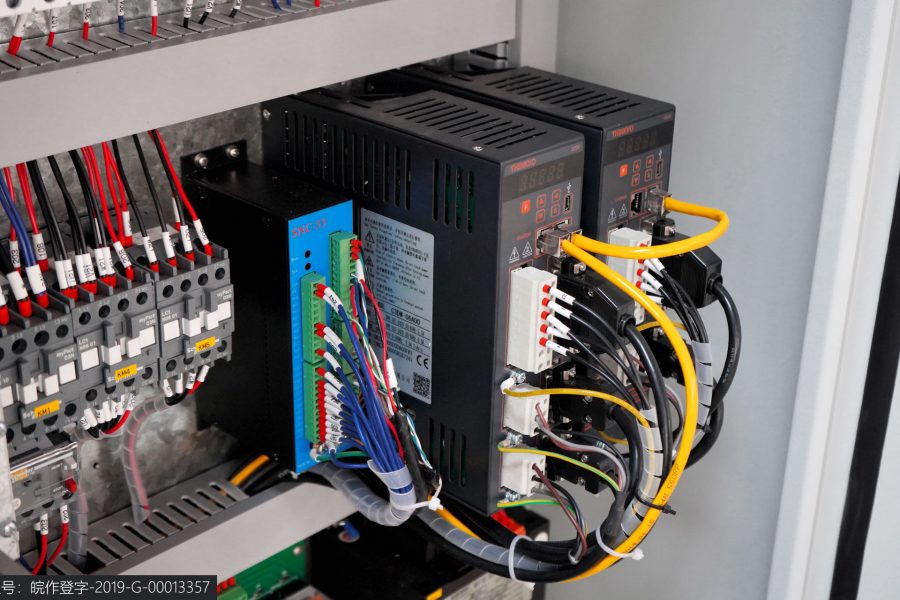

Schneider Electric System: Open the door and power off, high-quality servo motor driver, Schneider Electric components.

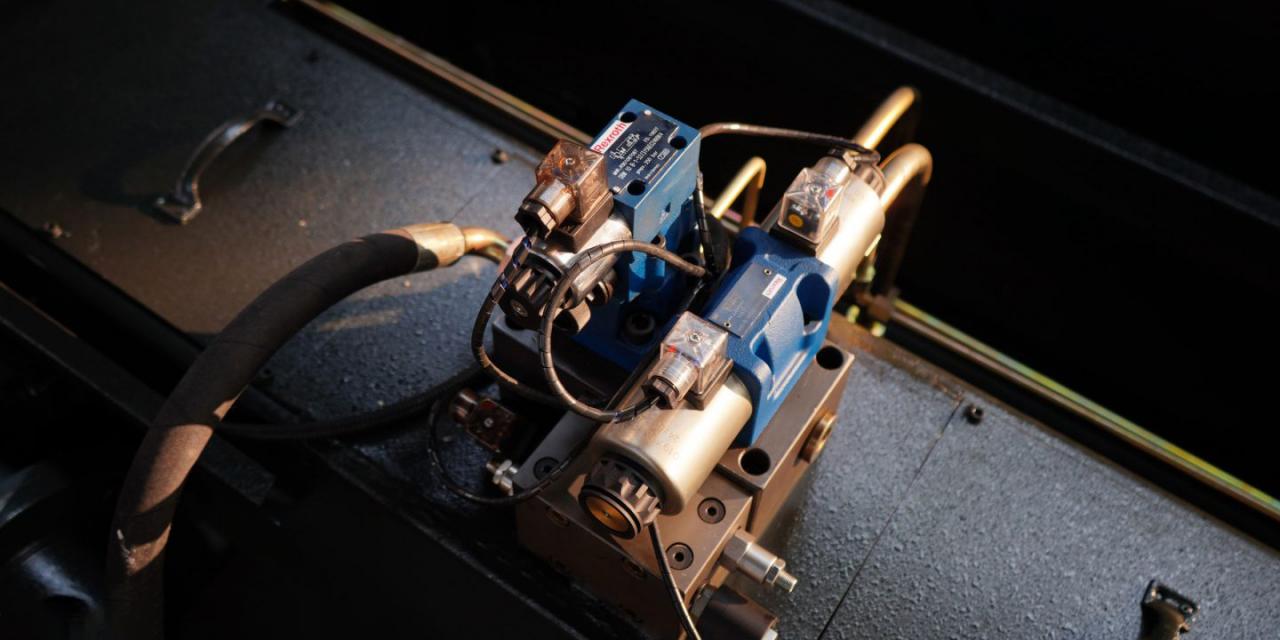

High-quality hydraulic system, durable: Using Siemens motor as the main power source, Sunny oil pump and high-quality hydraulic valve, the hydraulic power is durable and durable.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are professional manufactutrer, have in this machine about 10 years.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-60 days if the goods are not in stock.
Q: What is your terms of payment ?
A: Payment 30% T/T in advance ,70% balance before shippment.
Q: There are so many machine types, which one should I choose?
A: RAYMAX provides machine parameters in each product demopage, please kindly check technical data column. It is important to compare all data before choose the best prototype. Also, our sales team provides online services to resolve your confusion, feel free to contact us.
Q: This is my first time buying your machine; I have no ideas about RAYMAX's machine quality?
A: Each machine is strictly produced based on the standard of ISO9000-2000, ISO14001-2004, GMC global manufacturer, and CE certifications. Our products have CE certifications verified by TÜV SÜD, Bureau Veritas and etc. As china high-power laser cutting machine provider, more than 10,000 machines have been sold in the past ten years. Customer is our first priority. We are confident to tell customers that there is no need to worry about our quality.
Q: When I got this machine, but I don't know how to use it. What should I do?
A: There are video and English manual with the machine. If you still have some doubts, we can talk by telephone or email.
Q: If some problems happen to this machine during the warranty period, what should I do?
A: We will supply free parts during the machine warranty period if the machine has some problems. While we also supply free life long after-sales service. If you have any questions,just contact us freely.
Details
- Slider Stroke (mm): 200 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 400 mm
- Machine Type: Synchronized, Press Brake
- Length of Working Table (mm): 3200-6000
- Width of Working Table (mm): 90 mm
- Condition: New
- Place of Origin: Anhui, China
- Material / Metal Processed: Stainless Steel, ALLOY, Carbon steel
- Automation: Automatic
- Extra Services: End Forming
- Weight (KG): 5000
- Motor Power (kw): 11 kw
- Key Selling Points: High-accuracy
- Warranty: 1 Year, 3 Years
- Applicable Industries: Hotels, Construction works
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor, Pump, Engine
- After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
- Raw Material: Sheet / Plate Rolling
- Power: Hydraulic
- Color: Blue
- Material: Stainess Steel
- Nominal Pressure (kN): 1000KN
- Certification: ce
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
