Performance Features
This machine adopts steel welding structure, has the advantages of simple structure,convenient operation, beautiful appearance, low energy consumption, use gear reducer can be installed or, electromagnet, foot switch can be remote control, apply to metallurgy, light industry, machinery, hardware and other 0.1~6.0mm of ordinary steel plate processing shear.
Main Features
1. the whole machine body uses the integrally weld structure, ensuring the high strength and good rigidity of the machine.
2. The machine hasn't the clutch and the flywheel. It shears the sheet-metal directly drived by the magnetic brake motor. This reduces the idle time of the motor and saves the energy.
3. shearing blade uses 6Cr2Si material, ensuring the good performance and long performance life.
4. the structure of the machine is simple, easy operation and low consumption.
| Model | Cutting thickness(mm) | Cutting width(mm) | Cutting angle（°） | No.of strokes(times/min) | Backstage Range(mm) | Power of motor(kw) | dimensions(mm) |
| Q11G-3*1300 | 3 | 1300 | 1°30′ | 30 | 350 | 4.5 | 1900*1050*1200 |
| Q11G-3*1500 | 3 | 1500 | 1°30′ | 30 | 350 | 4.5 | 2100*1050*1200 |
| Q11G-3*1600 | 3 | 1600 | 1°30′ | 30 | 350 | 4.5 | 2200*1050*1200 |
| Q11G-3*2000 | 3 | 2000 | 1°30′ | 30 | 350 | 5.5 | 2600*1050*1200 |
| Q11G-3*2500 | 3 | 2500 | 1°30′ | 30 | 400 | 5.5 | 3100*1050*1200 |
| Q11G-4*1300 | 4 | 1300 | 1°30′ | 30 | 400 | 5.5 | 1900*1100*1200 |
| Q11G-4*1500 | 4 | 1500 | 1°30′ | 30 | 400 | 5.5 | 2100*1100*1200 |
| Q11G-4*1600 | 4 | 1600 | 1°30′ | 30 | 400 | 5.5 | 2200*1100*1200 |
| Q11G-4*2000 | 4 | 2000 | 1°30′ | 30 | 400 | 7.5 | 2600*1100*1200 |
| Q11G-4*2500 | 4 | 2500 | 1°30′ | 30 | 450 | 7.5 | 3100*1100*1200 |
| Q11G-6*1300 | 6 | 1300 | 1°30′ | 30 | 450 | 7.5 | 1900*1100*1200 |
| Q11G-6*1600 | 6 | 1600 | 1°30′ | 30 | 450 | 7.5 | 2200*1100*1200 |
Details Images
Machine parts
Name:cnc system
Model:MD11-Ⅰ
Original:Hong Kong
MD11-1 cnc system, human interface, intuitive, easy to operate; super-large capacity can maintain 10 programs, only need one programming to complete, all by the foot control machine running independently.
machine parts
Name: Feeding ball
Material:Stainless steel
Original:china
Stainless steel feeding ball can help operators to easily feed, prevent friction between sheet metal and worktable, protect sheet metal and worktable surface, and prevent scratches.

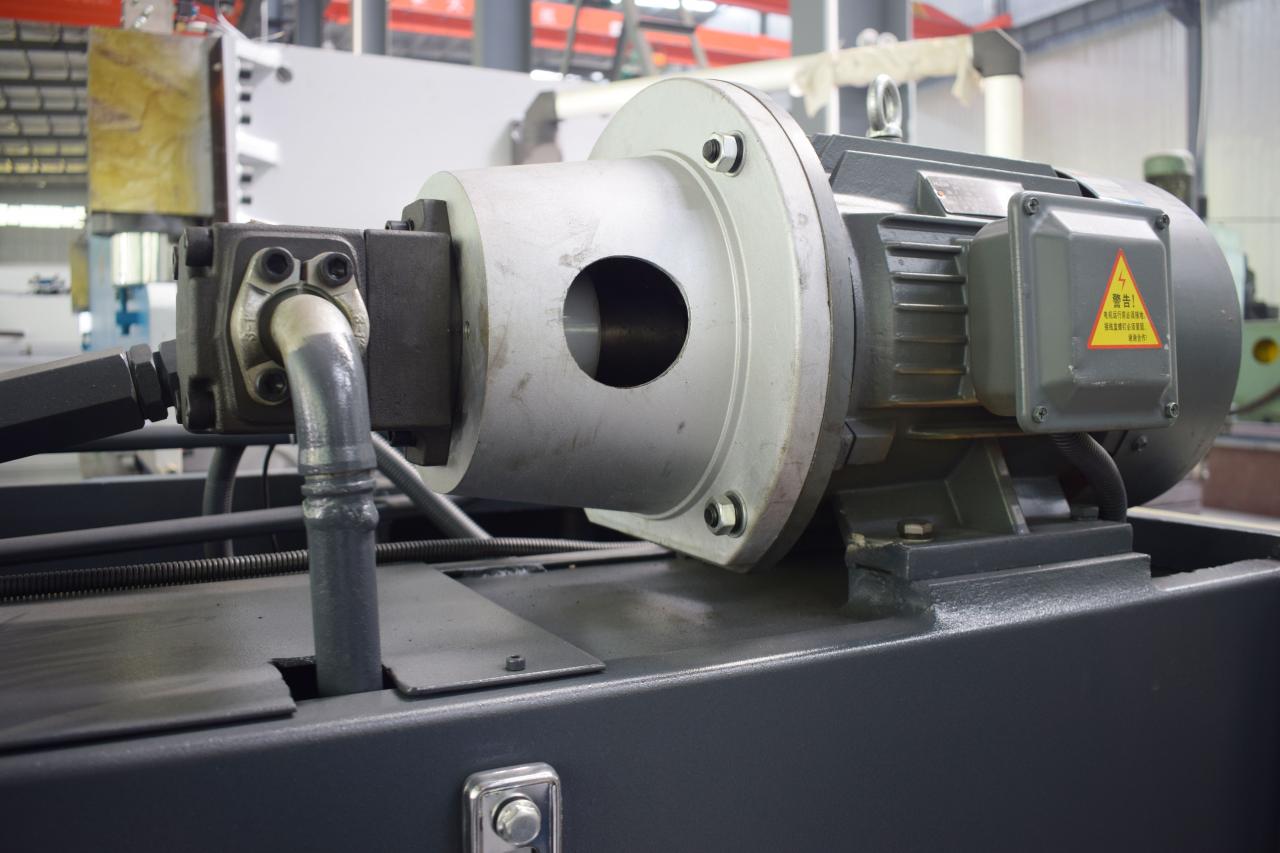

Name: motor&reducer
Brand: TCG
Original: Taiwan china
Optimizing the power output structure and connecting the motor reducer directly to provide continuous power for shearing. The new structure helps to reduce the power loss during the operation of the equipment. machine parts

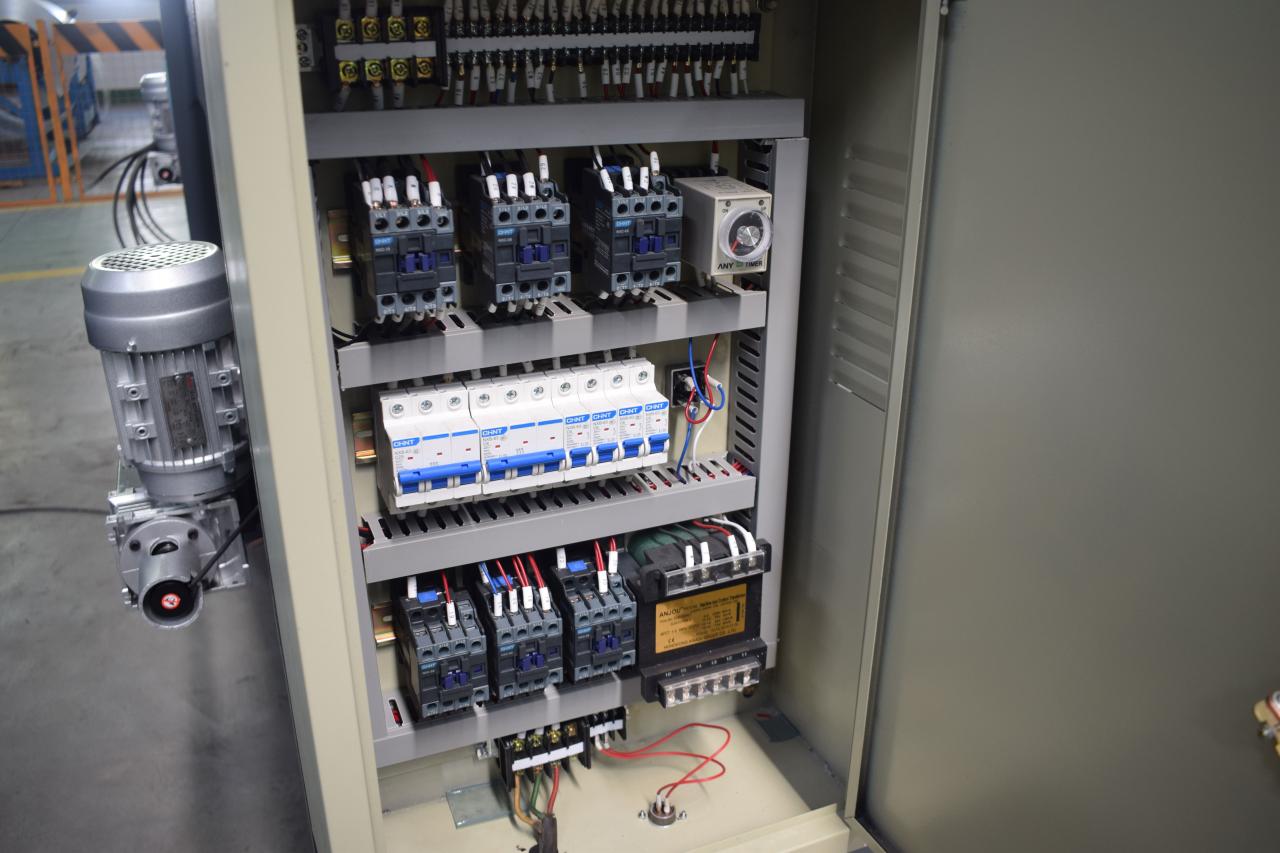

Name: electrics
Brand:Schneider
Original:France
It adopts high quality Schneider Electric with high stability and long service life.Electric shearing machine an also change the voltage according to your country's voltage to meet the actual voltage produced in your country.
Packing & Delivery
| Packaging | ||
| Dimensions(mm) | 1980(L)*1130(W)*1280(H) | |
| Weight | 900kg | |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
FAQ
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.
3. How about your machine quality?
RAYMAX company is a mature brand in CHINA, through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly, and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
Details
- Max. Cutting Width (mm): 1600
- Max. Cutting Thickness (mm): 6 mm
- Automatic Level: Semi-automatic
- Shearing Angle: 1.30"
- Blade Length (mm): 1600 mm
- Backgauge Travel (mm): 20 - 500 mm
- Throat Depth (mm): 100 mm
- Condition: New
- Brand Name: RAYMAX
- Power (kW): 7.5 kW
- Weight (KG): 2000 KG
- Place of Origin: Anhui, China
- Voltage: 220V/380V/Customized
- Dimension(L*W*H): 2200*1500*1600 mm
- Year: 2020
- Warranty: 2 years
- Key Selling Points: High-accuracy
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant
- Showroom Location: None
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Bearing, Motor, Pump, Gear, PLC, Gearbox
- Model: QC11K-6*1600
- Cutting thickness: 6mm
- Cutting Length: 1600mm
- Cutting Angle: 1.30"
- Material strength: 450KN/CM
- Backgau
ge range: 20-500mm - Travel times: 12
- Power: 7.5kw
- Weight: 2000kg
- Dimension: 2200*1500*1600mm
- After-sales Service Provided: Online support, Video technical support
- After Warranty Service: Video technical support, Online support
- Local Service Location: None
- Certification: CE SGS BV CQC
