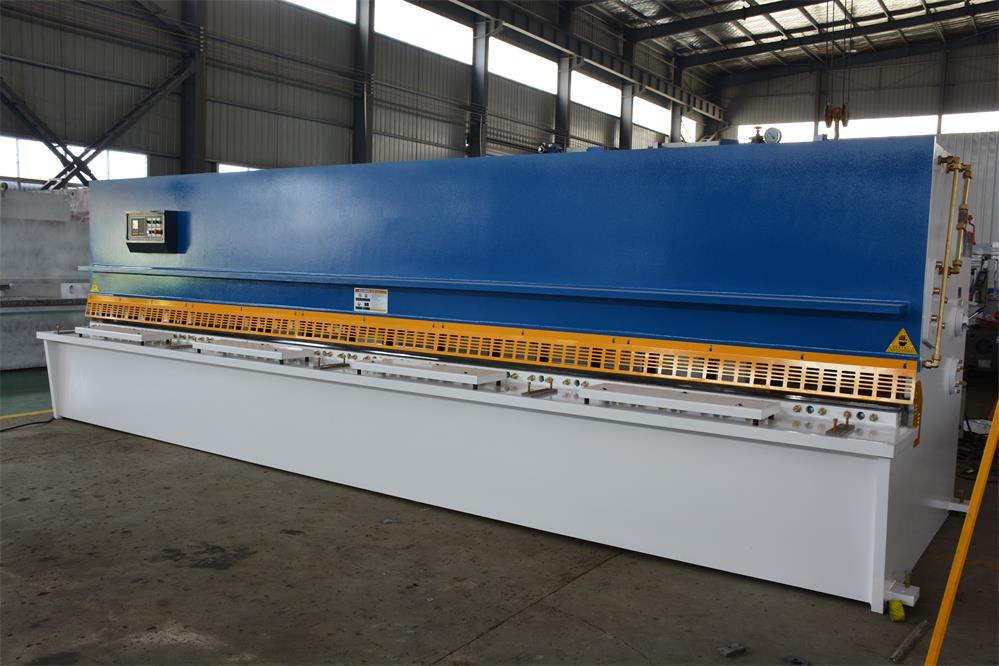

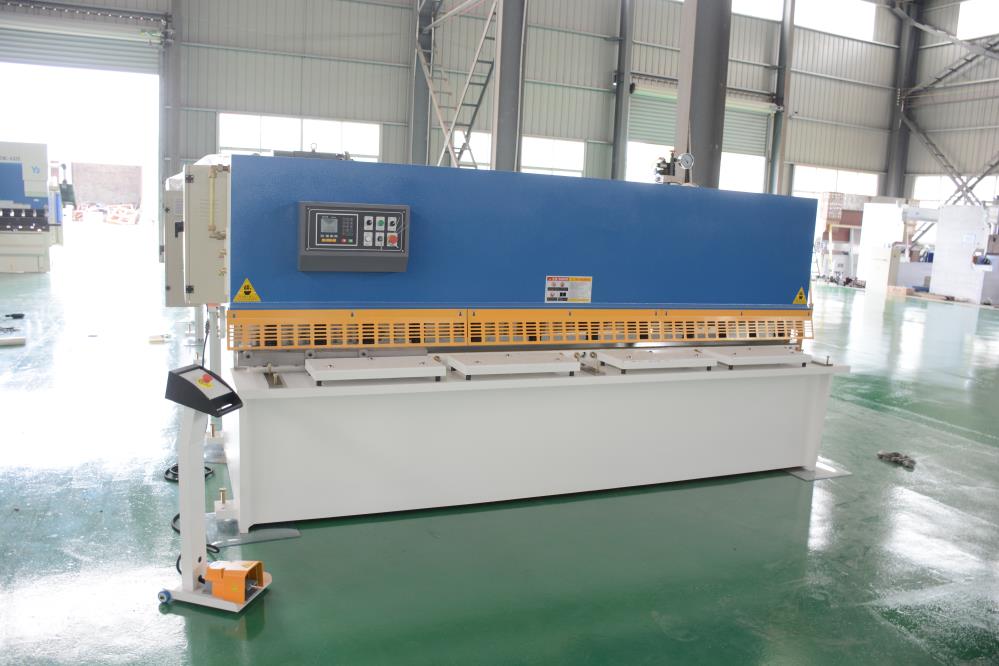

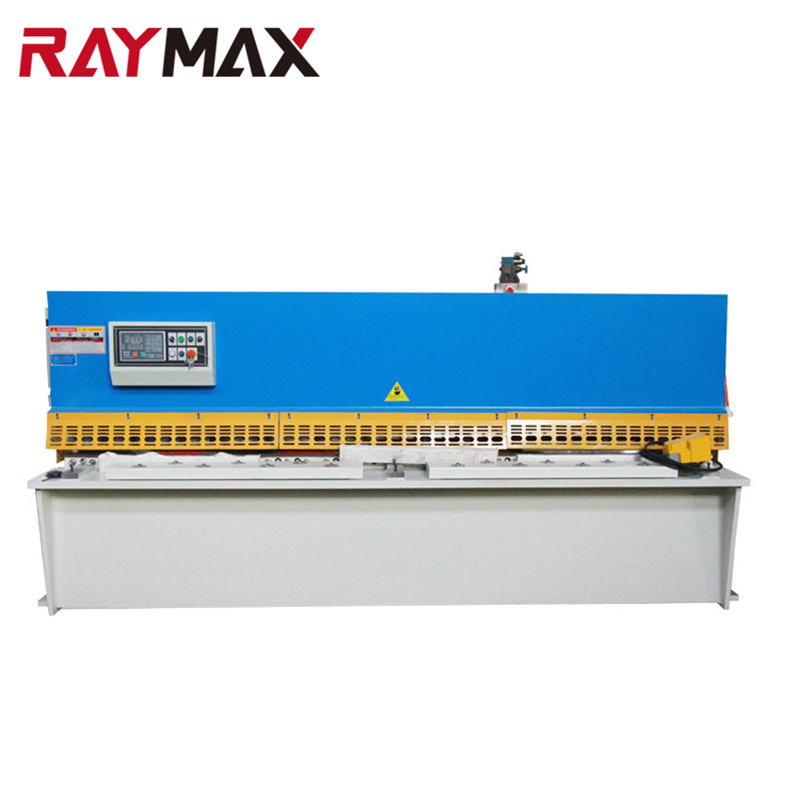

Hydraulic Pendulum Shearing Machine Cnc Automatic Guillotine Shearing Machine

Specification

Type	Cutting Thickness （mm）	Cutting Length （mm）	Cutting Angle	Material Strength	Back-gauge Range	Travel Times （cycle/min）	Power （kw）	Dimension（LWH）（mm）
4x2500	4	2500	1°30’	≤ 450	20-500	14	5.5	300016001600
4x3200	4	3200	1°30’	≤ 450	20-500	12	5.5	390016001600
4x4000	4	4000	1°30’	≤ 450	20-550	10	5.5	460018001700
4x6000	4	6000	1°30’	≤ 450	20-800	5	7.5	646023002400
6x2500	6	2500	1°30’	≤ 450	20-500	14	7.5	304017101650
6x3200	6	3200	1°30’	≤ 450	20-500	12	7.5	384017101650
6x4000	6	4000	1°30’	≤ 450	20-500	9	7.5	462018501700
6x5000	6	5000	1°30’	≤ 450	20-600	8	7.5	314017101620
6x6000	6	6000	1°30’	≤ 450	20-800	5	11	648021002300
8x2500	8	2500	1°30’	≤ 450	20-500	11	7.5	304017001700
8x3200	8	3200	1°30’	≤ 450	20-500	8	11	386017001700
8x4000	8	4000	1°30’	≤ 450	20-500	8	11	464019001750
8x5000	8	5000	1°30’	≤ 450	20-600	8	11	540024002000
8x6000	8	6000	1°30’	≤ 450	20-800	8	15	648021002350
10x2500	10	2500	1°30’	≤ 450	20-500	10	15	304018001700
10x3200	10	3200	1°30’	≤ 450	20-500	10	15	386020001700
10x4000	10	4000	1°30’	≤ 450	20-600	10	15	465021002000
10x6000	10	6000	1°30’	≤ 450	20-800	10	18.5	650021002300
12x2500	12	2500	1°40’	≤ 450	20-600	12	18.5	314020502000
12x3200	12	3200	1°40’	≤ 450	20-600	10	18.5	38802150200
12x4000	12	4000	1°40’	≤ 450	20-600	10	18.5	324519001900
12x5000	12	5000	2°	≤ 450	20-600	6	18.5	690026002700
12x6000	12	6000	2°	≤ 450	20-1000	5	22	314021502000
16x2500	16	2500	2°	≤ 450	20-600	10	22	388021502000
16x3200	16	3200	2°	≤ 450	20-600	10	22	465024002200
16x4000	16	4000	2°	≤ 450	20-600	10	22	468022302150
16x5000	16	5000	2°	≤ 450	20-1000	6	22	590026002600
16x6000	16	6000	2°	≤ 450	20-1000	5	30	690027002600
20x2500	20	2500	2°30’	≤ 450	20-700	8	37	344024002350
20x3200	20	3200	2°30’	≤ 450	20-700	8	37	415024502350
20x4000	20	4000	3°	≤ 450	20-1000	5	37	485026002400
20x6000	20	6000	3°	≤ 450	20-1000	4	37	670030003000
25x2500	25	2500	3°	≤ 450	20-900	8	45	320026502650
25x3200	25	3200	3°	≤ 450	20-900	5	45	420027002800
30x2500	30	2500	3°	≤ 450	20-1000	4	45	330029003000
30x3200	30	3200	3°30’	≤ 450	20-1000	4	45	420025002600
40x2500	40	2500	4°	≤ 450	20-1000	3	75	320033003200
40x3200	40	3200	4°	≤ 450	20-1000	3	90	430033003000

Main Feature:

●Sheet plate welded structure is adopted , with hydraulic transmission and accumulator return , typical of an easy operation , reliable performance,and nice appearance,fitted with digital display system.

●Indication by indicator is provided for adjustment of blade clearance,for a handy and prompt adjustment.

●Alignment device with lighting and control device for shearing stroke are set,with a handy and prompt adjustment.

●Rolling material support ball is provided , to minimize fish tall with sheet bar and to reduce frictional resistance.

●The machine tool is provided with the functions of digital display, soft limit,as well as prompt for one-way positioning clearance , and automatic counting for shearing.

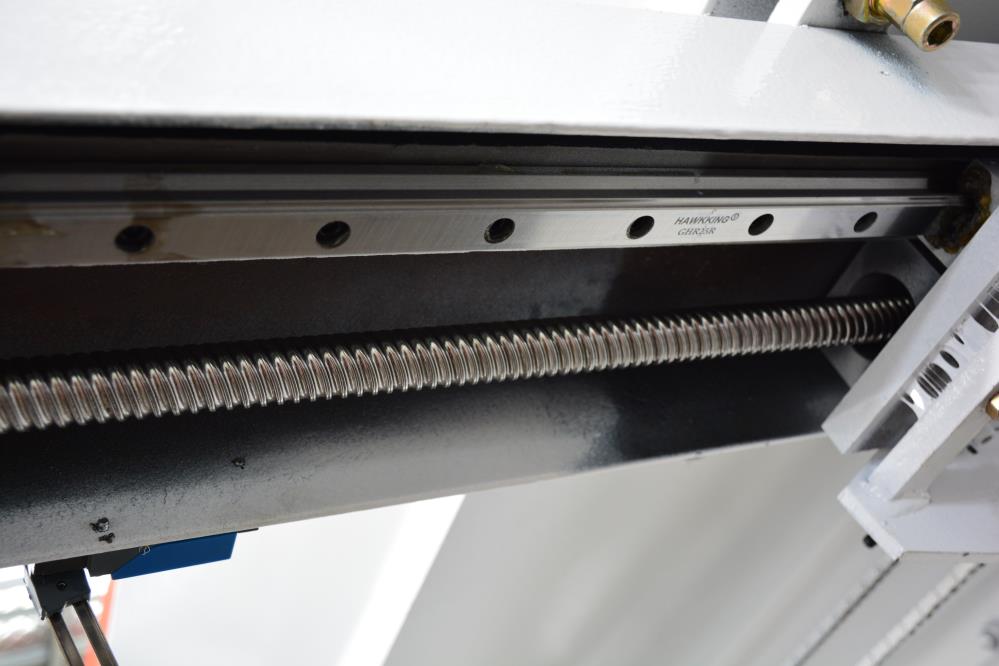

●The rear stopper is fitted with coder and digital system,so that the position of rear stopper is displayed more accurately , thus to further enhance the shearing precision of this machine

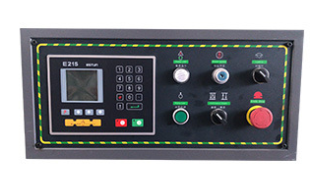

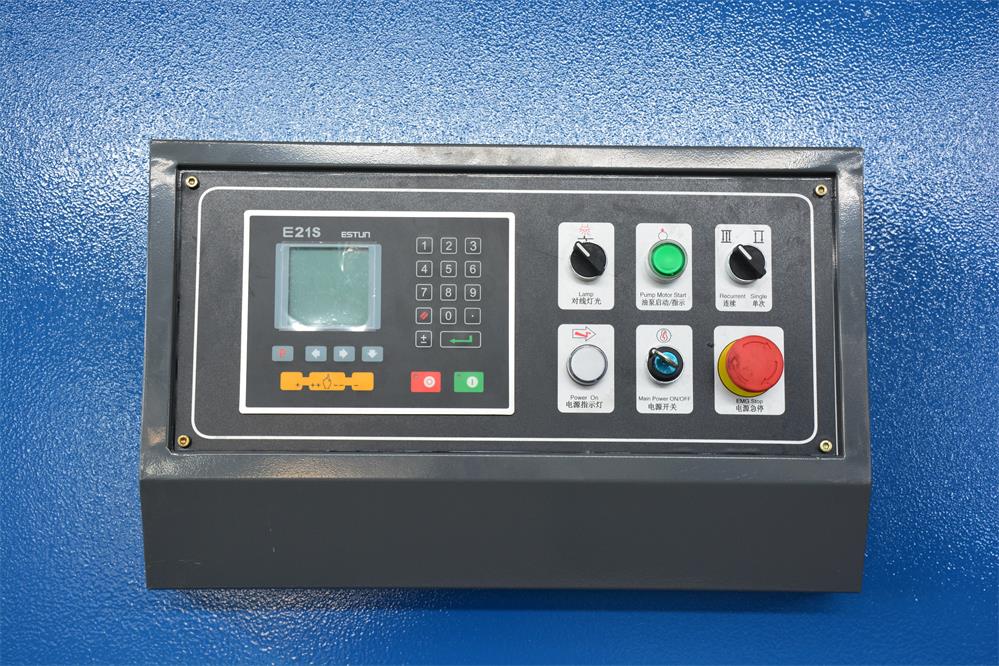

E21S

● Back-gauge control;

● Control for general AC motors , frequency inverter;

● Intelligent positioning;

● Double programmable digital output;

● Stock counter;

● Program memory of up to 40 programs up to 25 steps per program;

● One side positioning;

● Retract function;

● One key backup / restore of parameters;·mm / Inch;

● Chinese / English;

Other CNC systems can be selected

MD11-1

● Using servo-control technology;

● Electrically operated rear bumper material previous slide automatic positioning;

● Entire Chinese operation contact surface,direct-viewing simple;

● The muti-channel procedure moves automatically;

● Keeps off the material to make concessions automatically;

E200-S

● Back-gauge control;

● BUS mode control servo system;

● Stock length limitation;

● Double programmable digital output;

● Program memory of up to 40 programs up to 25 steps per program;

● One side positioning;

● Retract function;

● mm / Inch;

● Chinese / English;

DAC-310

● Using servo-control technology;

● 275×48 picture element Gao Liang liquid crystal display monitor;

● The electrically operated rear bumper material previous slide automatic positioning,makes concessions automatically;

● The cutting counting,cuts the regulation to define that the power failure remembered, male/British system transformation;

● The muti-channel moves auto magically,procedure and procedure step link;

FAQ

Q: Are you trading company or manufacturer?

A: We are factory.

Q: How to choose the model of the shearing machine?

A: Pls inform us following details:- The thickness of your sheet?- The width of your sheet?- The material of your sheet?

Q: How about your machine quality?

A: RAYMAX is a mature brand in China. Through our over ten years research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the standard or more strict standard.

Details

Max. Cutting Width (mm): 3200
Max. Cutting Thickness (mm): 4 mm
Automatic Level: Fully Automatic
Shearing Angle: 1.5
Blade Length (mm): 3300 mm
Backgauge Travel (mm): 20 - 600 mm
Throat Depth (mm): 100 mm
Condition: New
Power (kW): 5.5 kW
Weight (KG): 5000 KG
Place of Origin: China
Voltage: Customized, 220V/380V/400V
Dimension(L*W*H): 3900*1600*1600
Year: 2020
Warranty: 1 Year
Key Selling Points: High-accuracy
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location: None
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump, Pressure vessel, Engine
Name: Shearing machine
Color: Customized
Application: Plate sheet processing
Material: Mild Steel
Cutting length: 3200mm
Control system: ESTUN E21S
Cutting thickness: 4mm
