Products Description

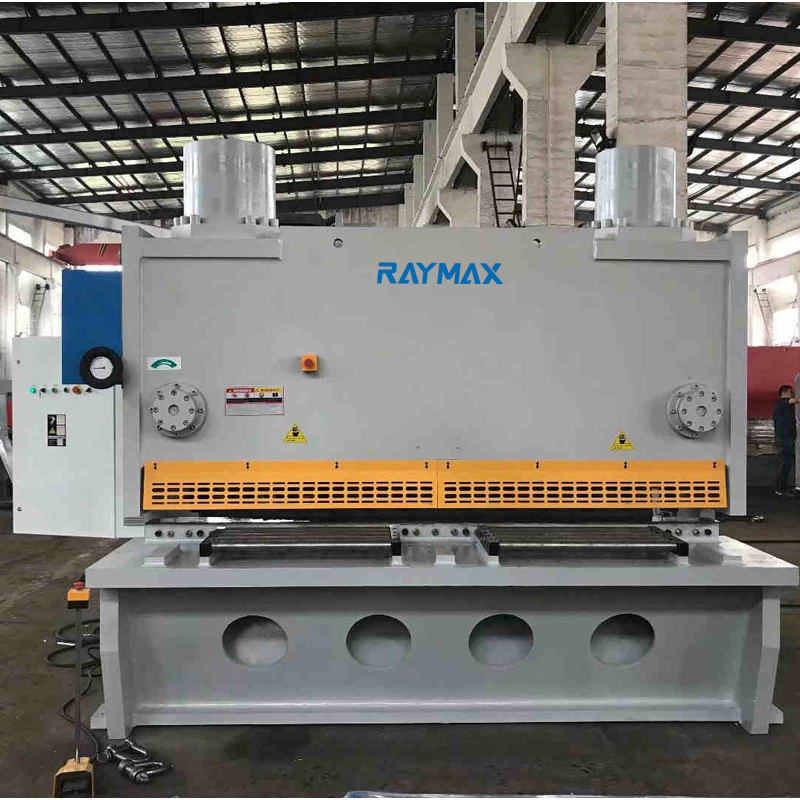

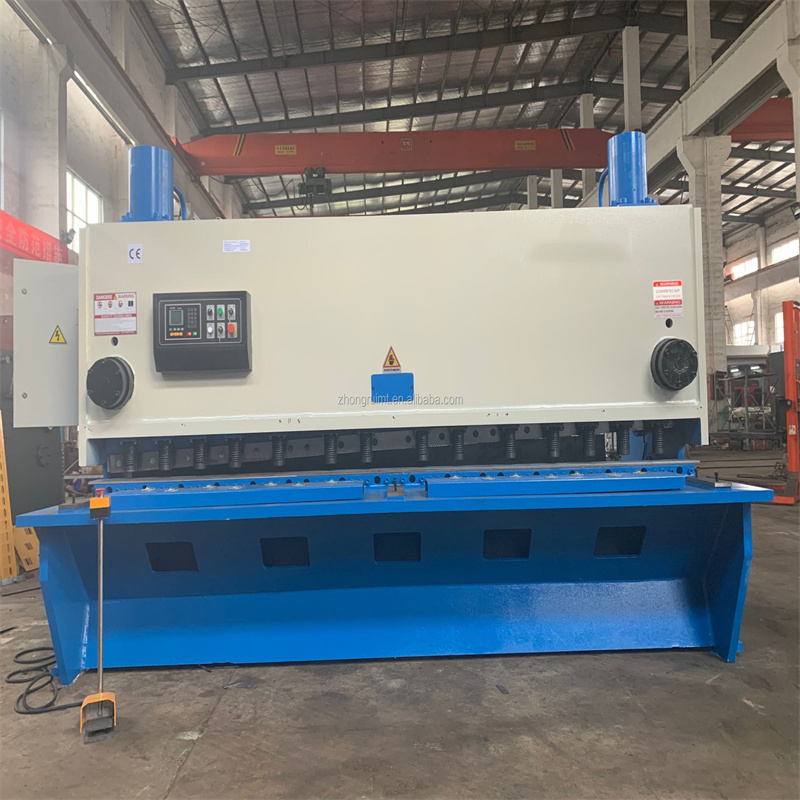

CNC hydraulic guillotine shearing Machine
1. The all-steel welded structure of the second generation of hydraulic shear adopts heat treatment to eliminate.
2. Internal stress, and has good rigidity and stability Advanced integrated hydraulic system, good reliability.
3. Three-point support rolling guide, to eliminate bearing clearance, and improve shearing quality.
4. Blade clearances are adjusted by motor, rapid, accurate and convenient.
5. Rectangular blades; all four cutting edges are usable; long life.
6. Adjustable shearing angles, to reduce deformation of plates.
7. Upper tool rest adopts the introversion structure, to facilitate blanking, and improve the accuracy of the workpiece.
8. Sectional shearing function, and light alignment function.
9. Mechanical rear stoppers, digital display.
10. Back carrier ( or choose other configurations).
| Model | Shearing thicknessmm | Shearing width mm | Strokes mm¯¹ | Backgauge range mm | Height of working table ( º ) | Main power kw |
| QC11Y/K-6×2500 | 6 | 2500 | 8~16 | 20-600 | 30'~1º30 | 7.5 |
| QC11Y/K-6×3200 | 6 | 3200 | 8~16 | 20-600 | 30'~1º30 | 7.5 |
| QC11Y/K-6×4000 | 6 | 4000 | 8~16 | 20-600 | 30'~1º30 | 7.5 |
| QC11Y/K-6×6000 | 6 | 6000 | 8~16 | 20-600 | 30'~1º30 | 11 |
| QC11Y/K-8×2500 | 8 | 2500 | 8~16 | 20-600 | 30'~1º45 | 7.5 |
| QC11Y/K-8×3200 | 8 | 3200 | 8~16 | 20-600 | 30'~1º45 | 7.5 |
| QC11Y/K-8×4000 | 8 | 4000 | 8~16 | 20-600 | 30'~1º45 | 7.5 |
| QC11Y/K-8×6000 | 8 | 6000 | 8~16 | 20-800 | 30'~2º | 15 |
| QC11Y/K-12×2500 | 12 | 2500 | 8~12 | 20-800 | 30'~2º | 15 |
| QC11Y/K-12×3200 | 12 | 3200 | 8~12 | 20-800 | 30'~2º | 15 |
| QC11Y/K-12×4000 | 12 | 4000 | 8~12 | 20-800 | 30'~2º | 15 |
| QC11Y/K-12×6000 | 12 | 6000 | 8~12 | 20-800 | 30'~2º | 30 |
| QC11Y/K-16×2500 | 16 | 2500 | 8~12 | 20-800 | 30'~2º30 | 18.5 |
| QC11Y/K-16×3200 | 16 | 3200 | 7~10 | 20-800 | 30'~2º30 | 18.5 |
| QC11Y/K-16×4000 | 16 | 4000 | 7~10 | 20-800 | 30'~2º30 | 22 |
| QC11Y/K-16×6000 | 16 | 6000 | 7~10 | 20-1000 | 30'~2º30 | 37 |
| QC11Y/K-20×2500 | 20 | 2500 | 7~10 | 20-800 | 1º30'~3º | 30 |
| QC11Y/K-20×3200 | 20 | 3200 | 6~10 | 20-800 | 1º30'~3º | 30 |
| QC11Y/K-20×4000 | 20 | 4000 | 6~10 | 20-800 | 1º30'~3º | 30 |
| QC11Y/K-20×6000 | 20 | 6000 | 6~9 | 20-1000 | 1º30'~3º | 37 |
| QC11Y/K-25×2500 | 25 | 2500 | 6~9 | 20-800 | 1º30'~3º30 | 37 |
| QC11Y/K-25×3200 | 25 | 3200 | 6~9 | 20-800 | 1º30'~3º30 | 37 |
| QC11Y/K-25×4000 | 25 | 4000 | 6~8 | 20-1000 | 1º30'~3º30 | 37 |
| QC11Y/K-25×6000 | 25 | 6000 | 6~8 | 20-1000 | 1º30'~4º | 55 |
| QC11Y/K-32×2500 | 32 | 2500 | 6~8 | 20-1000 | 1º30'~4º | 55 |
| QC11Y/K-32×3200 | 32 | 3200 | 6~8 | 20-1000 | 1º30'~4º | 55 |
| QC11Y/K-32×6000 | 32 | 6000 | 4~6 | 20-1000 | 1º30'~4º | 55 |
| QC11Y/K-40×2500 | 40 | 2500 | 4~6 | 20-1000 | 1º30'~4º | 55 |
| QC11Y/K-40×3200 | 40 | 3200 | 4~6 | 20-1000 | 1º30'~4º | 55 |
Details
- Max. Cutting Width (mm): 1300
- Max. Cutting Thickness (mm): 12 mm
- Automatic Level: Fully Automatic
- Shearing Angle: 0.5°-2°
- Blade Length (mm): 2500 mm
- Backgauge Travel (mm): 10 - 800 mm
- Throat Depth (mm): 80 mm
- Condition: New
- Brand Name: RAYMAX
- Power (kW): 15 kW
- Weight (KG): 6000 KG
- Voltage: 380V
- Dimension(L*W*H): 3140*1850*1900
- Warranty: 1 Year
- Key Selling Points: Automatic
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
- Showroom Location: Pakistan, India, Kenya
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Motor, PLC
