Products Description
The RAYMAX Hydraulic press, engineered with great care for details, is a high quality machine tool. The studies made on the framework flections have allowed us to design a product that reacts in the most appropriate and responsive way to the mechanical solicitations, therefore guaranteeing a stable structure, thus a higher precision in deep drawing.
RAYMAX Hydraulic press designs and manufactures 2 or 4 Uprights Type Hydraulic Drawing Presses from 600 kN to 30000 kN for deep drawing, reverse drawing, embossing, bending, hydroforming and hot forging processes, both for steel / stainless steel production in the automotive, household white, thermo-hardening, try-out/ toolmaking and other industrial applications.
Customized for your Production:
- In addition our Presses are produced on the basis of Accurl china standard or, alternatevely, on technical specifications agreed with customers.
- User-friendly control
Versatility:
- Configuration on demand
Precision:
- Force from 100 to 30.000 kN
- Monolithic and composite structures
- Customizable Table dimensions
- Customizable Stroke
- Safety Standards: CAT3 e CAT4
- Mold Change systems available
- Software: Siemens touch screen
Safety:
RAYMAX has a strict policy for the choice of its components, on the basis of an extensive experience acquired over decades. All components are certified in accordance with European standards and their main sources are Germany, USA, Holland, Italy and Switzerland. All structural parts are calculated by the finite element method and only high quality steel S275 and S355 JR namely J2 ( N) is used.
Main Features
The frame is heavy-duty as well as compact and it assures precise results.It is made of high quality mild steel and it has
undergone systematicmechanical processes.
• Electric welding of high precision
• Usage of high-tech boring machines for extreme precision parts
RAYMAX chooses the best products to guarantee long-lasting and high-techmachines.
RAYMAX selects the best components.
APPLICATIONS:
Graphic color CNC
The composite series has been designed for applications in which structural rigidity and lexibility in terms of production are the particular rerogatives required. Machines with several actions from the top or bottom or pecial solutions enable complex shapes and large dimensions to be achieved in a number of different industries, such as:
• domestic appliances
• car and vehicle bodies
• structural elements
• stainless steel sinks
• cooker tops Laser beam safety photocells
• Silent and reliable internal gear pump
• High precision optical lines

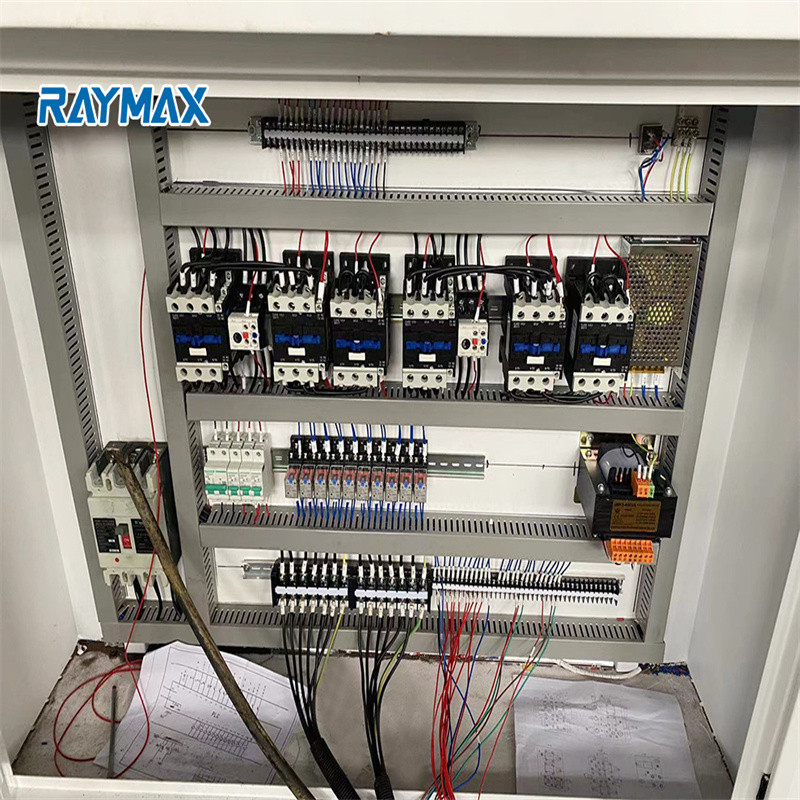

• Electrical panel with high quality components
• Start&Stop system
Standard Execution:
Heavy, one-piece welded steel frame is designed to resist deflection, providing more accurate stampings and longer die life.
Fast-response hydraulic overload relieves the pressure of a tonnage overload in milliseconds, stopping the press immediately and protecting press and dies from damage.
Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.
• JIS I accuracy.
• Steel welded frame with high rigidity.
• Motor with inverter.
• Combined wet friction clutch.
• Imported dual solenoid valve.
• Elec.forced grease lubrication.
• Integrated panel (elec.cam included).
• PLC control of international brand.
• Contactor and button of international brand.
• CE safety specifications
• Optional: air cushion, light curtain, automotive device..
Our Service
Pre-Sales Service
* Technical solution.
* Online video authentication machine work.
* Cutting samples provided by DHL.
After-Sales Service
* Supplier will provide detail manual for software, hardware and trouble shooting, also supplier should give necessary guidance online if Buyer need. If it's necessary, Buyer should send regular his technical staff to Supplier for technical training.
Details
- Slide Stroke (mm): 1000
- Machine Type: Four-column Three-beam Hydraulic Press
- Return Force (kN): 400 kN
- System: Servo
- Condition: New
- Year: NEW
- Voltage: 380V /480V /220V
- Dimension(L*W*H): 2000X1800X3200 mm
- Weight (T): 1 T
- Motor Power (kw): 7.5 kw
- Key Selling Points: High-accuracy
- Warranty: 3 years
- Applicable Industries: Farms, Building Material Shops, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Advertising Company, Restaurant, Hotels, Printing Shops, Retail, Home Use, Energy & Mining, Construction works
- Showroom Location: Kenya
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Pump
- Power Source: Hydraulic
- Product name: Hydraulic Press Machine
- Structure Type: Four Pillars Structure
- Color: Customizable
- Nominal Pressure: Hydraulic Press Machine
- Bolster area: 650 x 1100mm
- CNC or Not: CNC
- Advantage: Servo System
- Weight (KG): 6000
- Nominal Force (kN): 1000
- After-sales Service Provided: Field installation, commissioning and training, Online support, Free spare parts, Video technical support, Field maintenance and repair service
- After Warranty Service: Video technical support, Online support
- Local Service Location: Malaysia
- Certification: CE ISO
