Product Description
Suggestion: The machine is tailored for sheet metal processing enterprises. please kindly tell us the material thickness & Material size you need cut, then we will recommend the suitable fiber laser cutting machine for metal.
Configuration--Stand-alone electrical cabinet, wireless remote control.
Low consumption--The power is more than 30% lower than the ordinary cutting machine.
Environment friendly--Laser cutting will not create any gases for the special cutting technology for steel sheet.
Maintenance-free--For the fiber laser cutter, the reflect lens is no needed. It will help to save a lot of time when the optical path is adjusted. The laser generator with a longer life which no need maintenance during usage, stable performance.
Specification
| Equipment model | L1530F |
| Laser type | Fiber laser |
| Rated output power | 500W- 12000W optional |
| Effective cutting range | 1500*3000mm 1 2000*4000mm / 2500*6000mm optional |
| Reposition accuracy | 0.02mm |
| Laser wavelength | 1064nm |
| Laser source | Raycus |
| Laser cutting head | Raytools |

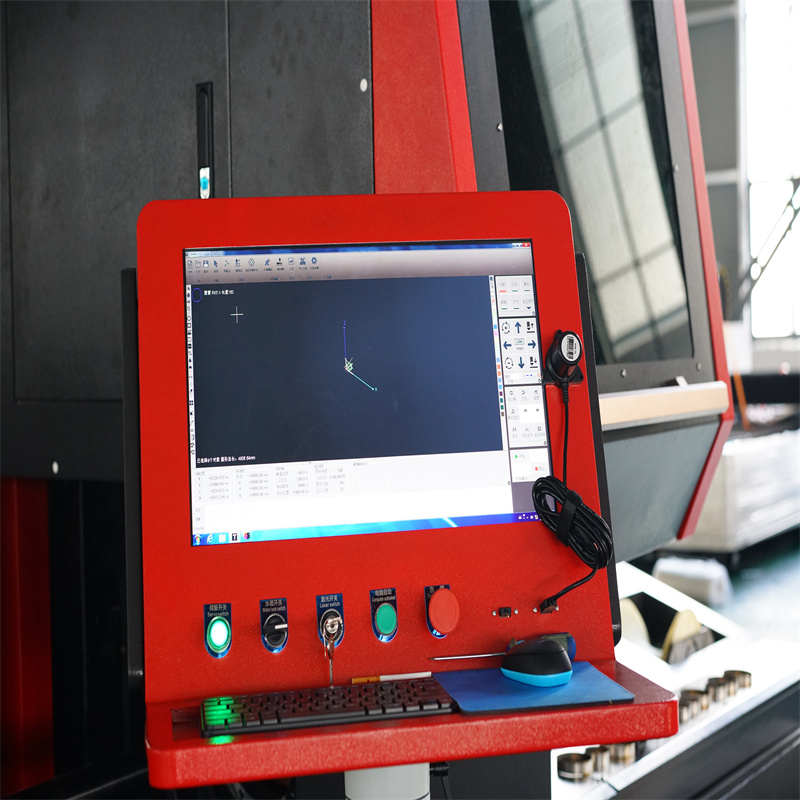

| Control system | Cypcut |
| Reducer | Japan Shimpo |
| Drive system | Japan YASKAWA servo driver and motors |
| Pneumatic elements | Japan SMC |
| Electrical parts | France Schneider |
| Guide rail | Taiwan square guide rail |
| Cooling system | Constant temperature controller water chiller |
| Oiling system | Automatic oiling system |
| Electrical requirement | 3 Phase 380V 10% 50HZ or 3 Phase 220V 10% optional |
Machine Details
Applications
RAYMAX fiber laser systems are capable of processing various metal types and play an essential part in industrial and commercial activities. Widely used in sheet metal processing, electronics, electrical appliances, subway parts, auto parts, hardware machinery, precision components, metallurgical equipment, elevator, gifts and crafts, adornment, advertising and medical device.
FAQ
What materials can fiber laser cut?
All kinds of metals, such as Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, Copper, etc.
What is your Fiber Laser Cutting Machine Advantages?
Top-rated laser source: stable beam quality, long service life;
User-friendly control system: Easy to use, even a green hand can get started quickly;
Exceptional service: quick response, lifelong after-sales service, we are still serving customers’ who have built relationship with us for more than 10 years;
Do You Have Agents or Distributors in Our Country?
We have ender-users all over the world.At present, we have sole agency in USA, Philippines, Romania and Poland agents. If you are interested in agency cooperation, please contact us for detailed agency policy.
Are you a factory or a trading company?
We are a factory.
When I got this machine, but I don’t know how to use it. What should I do?
We will provide user manual and video of the machine. In addition, our engineer can also provide training online. If necessary, we can also provide door-to-door service
If some problems happen to this machine during the warranty period, what should I do?
We will provide 3-Year Warranty, and will supply free parts during the machine warrantyperiod if the machine has some problems. We also supply free life long after-sales service. Thus, any problems, just feel free to let us know, we will provide you solutions.
How to make the payment and how about the delivery time?
We accept to make the payment by T/T, Credit Card ,Online Bank Payment, PAYPAL,Boleto, Pay Later etc.Lead time 7-12 working days for the standard machine;Lead time 15-20 working days for a non-standard machine.
Details
- Application: LASER CUTTING
- Applicable Material: Metal, Steel
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500*3000mm
- Cutting Speed: 80m/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: Depends on material
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut
- Laser Source Brand: RAYCUS
- Laser Head Brand: Raytools
- Servo Motor Brand: Yaskawa
- Guiderail Brand: PMI
- Control System Brand: Cypcut
- Weight (KG): 5000 KG
- Key Selling Points: High-accuracy
- Optical Lens Brand: Wavelength
- Warranty: 5 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 5 years
- Core Components: LASER SOURCE
- Table exchanging time: 10s
- Laser Source: RAYCUS
- Cooling way: Water Chiller 6100
- Working voltage: 220v-380v/50-60HZ
- Control system: CYPCUT control system
- Transmission: Gear rack
- Drive System: Japan YASKAWA
- Cutting materials: Stainless, Carbon steel, Aluminum, Brass
- After-sales Service Provided: Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
- Keyword: Fiber Laser Cutting Machiens
- Certification: ce, ISO
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: United Kingdom, United States, Germany, Spain, Thailand, Colombia, Romania, South Africa
- Showroom Location: United Kingdom, United States, Germany, Thailand, Colombia, Romania, South Africa, None
- Marketing Type: Hot Product 2019","attrValueId":190064002}
