Hydraulic Ironworkers are designed with multiple functions to save labor, time, energy and cost. This allowsAccurl Ironworkers to meet the diversified needs of the metal fabricating industry. Maximum efficiency and long life is guaranteed by using the latest manufacturing methods, including powerful CAD design, modern production line with CNC equipment and continuous quality control.

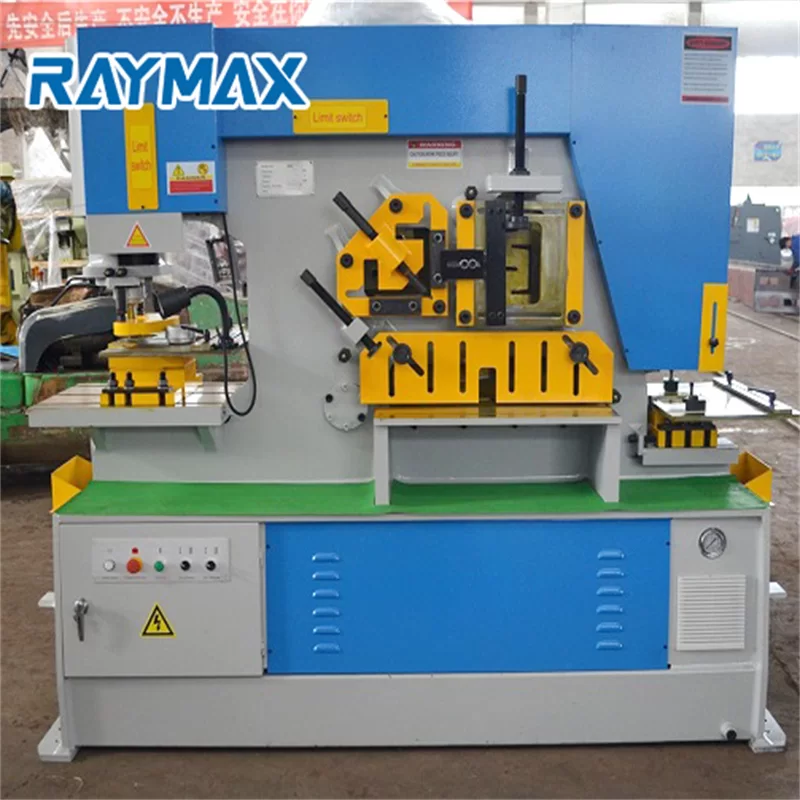

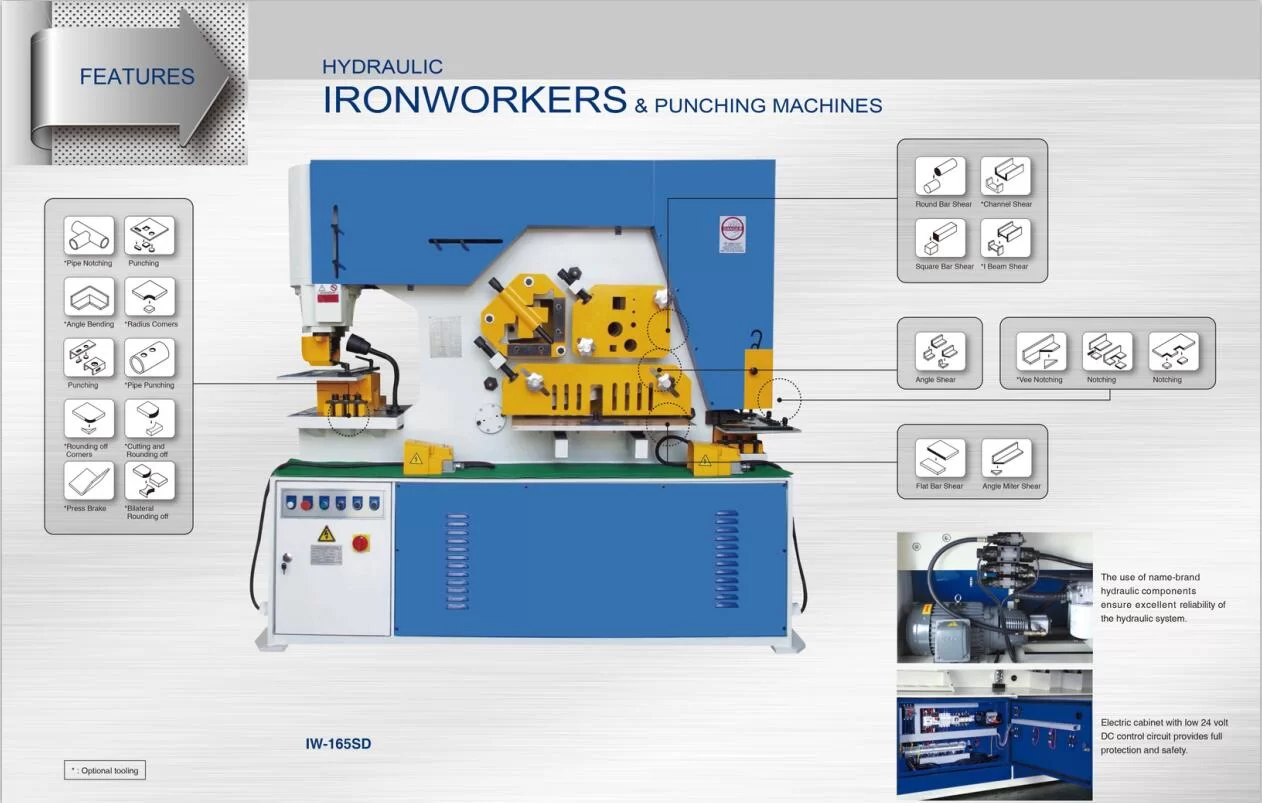

WORK STATIONS

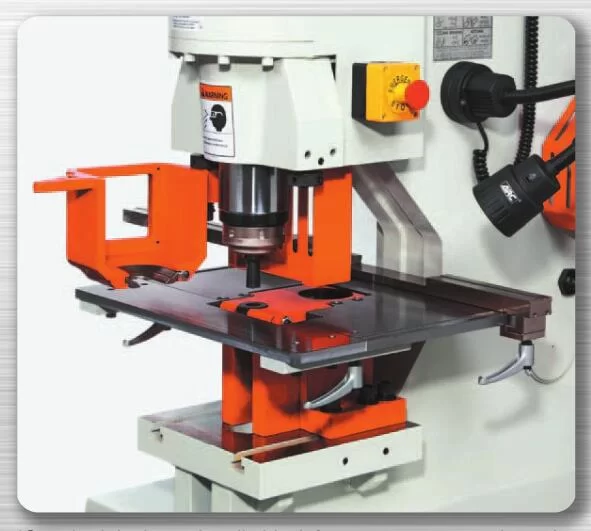

Punching Station
1. A full range of punches and dies are available for various punching needs.
2. Quick change retaining nut system for fast punch tooling change.
3. Thoughtfully designed stripper for visibility, safety and ease of use.
4. A large 2-piece table with scales and gauging stops is standard on all models.
5. Stripper with interchangeable plates of various openings to minimize deformation is standard on all models.
| PUNCHINGMODEL | IW-60S IW-60SD | IW-80S IW-80SD | IW-100S IW-100SD | IW-125S IW-125SD | IW-165SD |
| Punching Force | 60 Ton | 80 Ton | 100 Ton | 125 Ton | 165 Ton |
| Punch Capacity S | ø22 x 20 | ø26 x 22 | ø28 x 26 | ø33 x 27 | ø37 x 32 |
| Punch Capacity SD | ø50 x 9 | ø50 x 12 | ø50 x 15 | ø50 x 18 | ø50 x 24 |
| Throat Depth S | 310 | 310 | 310 | 310 | -- |
| Throat Depth SD | 510 | 510 | 510 | 510 | 510 |
| Maximum Stroke Length | 100 | 100 | 100 | 100 | 100 |
| Cycles / Min. (20mm stroke) | 30 | 29 | 28 | 28 | 29 |
| Working Height Up to Die | 1010 | 1050 | 1044 | 1069 | 1050 |

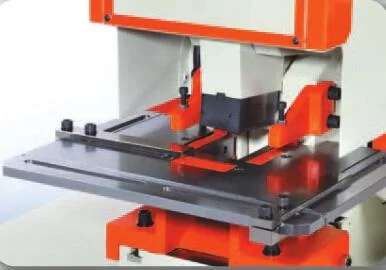

Flat Bar Shearing Station
1. Specially machined upper blade to give a clean shear with minimum distortion.
2. Lower blade has four usable cutting edges.
3. Variable degree miter-cutting on angle flange.
4. Easily adjustable hold-down.
5. Support table with guides for accurate positioning.
| FLAT SHEARINGMODEL | IW-60S IW-60SD | IW-80S IW-80SD | IW-100S IW-100SD | IW-125S IW-125SD | IW-165SD |
| Flat Bar Shear S | 350 x 15 | 460 x 15 | 610 x 16 | 125 Ton | 760 x 20 |
| Flat Bar Shear SD | 240 x 20 | 300 x 20 | 400 x 20 | 400 x 25 | 400 x 30 |
| Blade Length | 360 | 465 | 620 | 620 | 770 |
| Angle Flange Trim | 100 | 100 | 100 | 100 | 120 |
| Working Height | 910 | 926 | 954 | 920 | 920 |

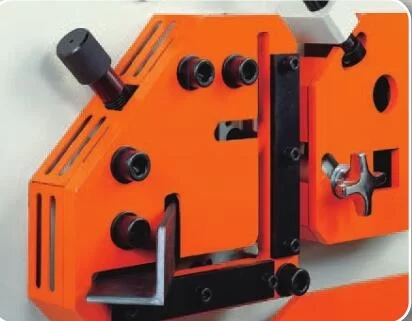

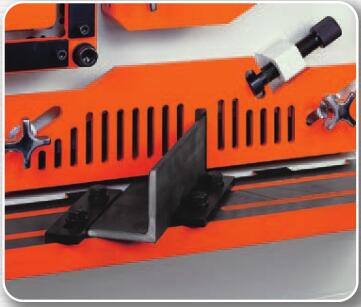

Angle Shearing Station
1. Single shear with no material loss and minimal deformation.
2. 45° miter-cut is easy and clean.
3. Stationary blades with four usable cutting edges.
4. Selectable corner radii on moving blades for optimum results on small or large angles.
| ANGLE SHEARINGMODEL | 60S IW-60SD | 80S IW-80SD | 100S IW-100SD | 125S IW-125SD | IW-165SD |
| At 90° Shearing | 130 x 130 x 12 | 150 x 150 x 12 | 150 x 150 x 15 | 150 x 150 x 15 | 150 x 150 x 20 |
| At 45° Miter Shearing | 65 x 65 x 8 | 75 x 75 x 9 | 75 x 75 x 9 | 75 x 75 x 9 | 75 x 75 x 9 |
| Working Height | 1115 | 1165 | 1216 | 1185 | 1185 |

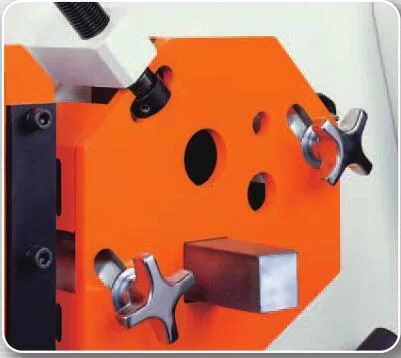

Bar Shearing Station
1. One hold-down for various sizes of square bar shearing and round bar shearing.
2. Optional channel and section bar shear tooling is available for most models. (See specification chart for details)
| BAR SHEARINGMODEL | 60S IW-60SD | 80S IW-80SD | 100S IW-100SD | 125S IW-125SD | 165SD |
| Round Bar Shear | ø40 | ø45 | ø45 | ø50 | ø60 |
| Square Bar Shear | 38 x 38 | 300 x 20 | 400 x 20 | 50 x 50 | 60 x 60 |
| Channel Shear (H x B) | 125 x 65* | 150 x 75* | 150 x 75* | 150 x 75* | 200 x 90* |
| IBeam Shear (H x B) | 100 | 150 x 75* | 150 x 75* | 150 x 75* | 200 x 100* |
| Working Height | 1220 | 1270 | 1332 | 1310 | 1370 |
Notching Station
1. Ideal for notching of flat bars and angles.
2. Electrically interlocked safety guard for maximum safety and visibility.
3. Gauging table included with stops for precise positioning.
| NOTCHINGMODEL | 60S IW-60SD | 80S IW-80SD | 100S IW-100SD | 125S IW-125SD | 165SD |
| Rectangular Notcher (W x D x T) | 50.8 x 90 x 9 | 50.8 x 90 x 12 | 63.5 x 90 x 12 | 63.5 x 90 x 13 | 63.5 x 90 x 16 |
| Vee-Notcher (Side x Side x T) | 90 x 90 x 10* | 90 x 90 x 12* | 105 x 105 x 12* | 105 x 105 x 13* | 105 x 105 x 16* |
| Working Height | 910 | 926 | 954 | 920 | 920 |
Details
- CNC or Not: CNC
- Condition: New
- Nominal Force (kN): 125
- Power Source: Hydraulic
- Place of Origin: Anhui, China
- Voltage: 380V50HZ
- Motor Power (kW): 7.5HP
- Weight (T): 4.2
- Key Selling Points: Competitive Price
- Warranty: 1 Year
- Showroom Location: Australia, Canada, United Kingdom
- Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction works , Energy & Mining
- Machine Type: Hydraulic Press
- Keyword: Metal Punching Machine
- Product name: Hydraulic metal sheet iron worker punching and shearing machine
- Throat depth: 500MM
- Color: Blue White Grey
- Punch Force: 125ton
- Purpose: Save cost and energy
- After-sales Service Provided: Online support, Video technical support
- After Warranty Service: Video technical support, Field maintenance and repair service, Spare parts
- Local Service Location: Mexico, Australia, United States, Morocco, Russia, Canada
- Certification: CE ISO
