Products Description
Hydraulic Punching and Shearing Machineround hole punching, square hole punching, oblong hole punching, steel plate punching, flat bar punching, angle steel punching, C-channel punching,H-beam punching, I-beam punching,steel plate bending, angle steel ,notching and bending, angle steel shearing / cutting, flat shearing/cutting, round/square bar shearing/cutting, C-channel shearing/cutting, I-beam shearing/cutting, T-bar shearing/cutting, angle bending and pipe notching!

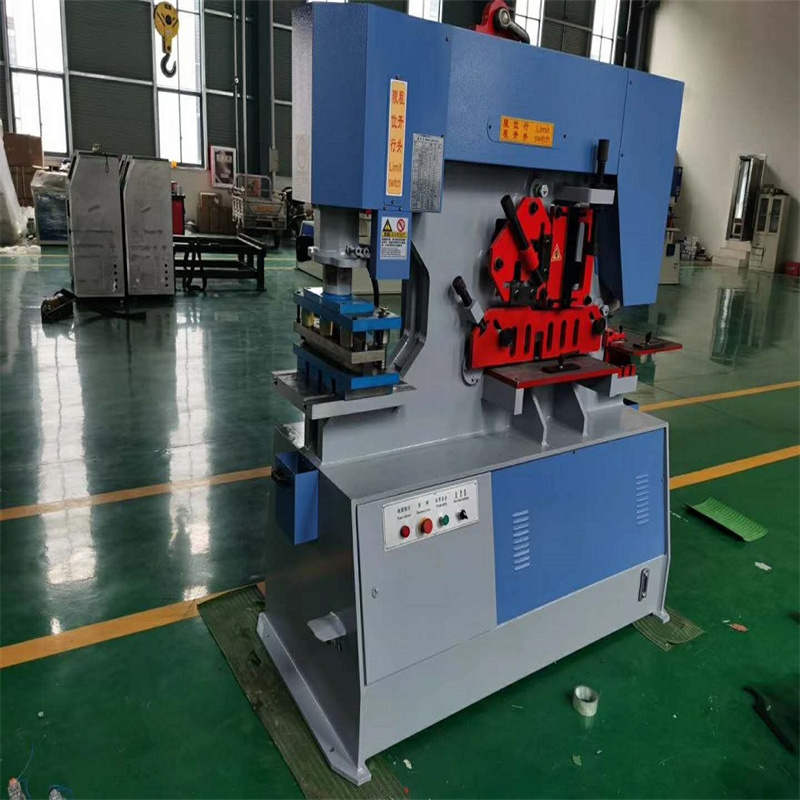

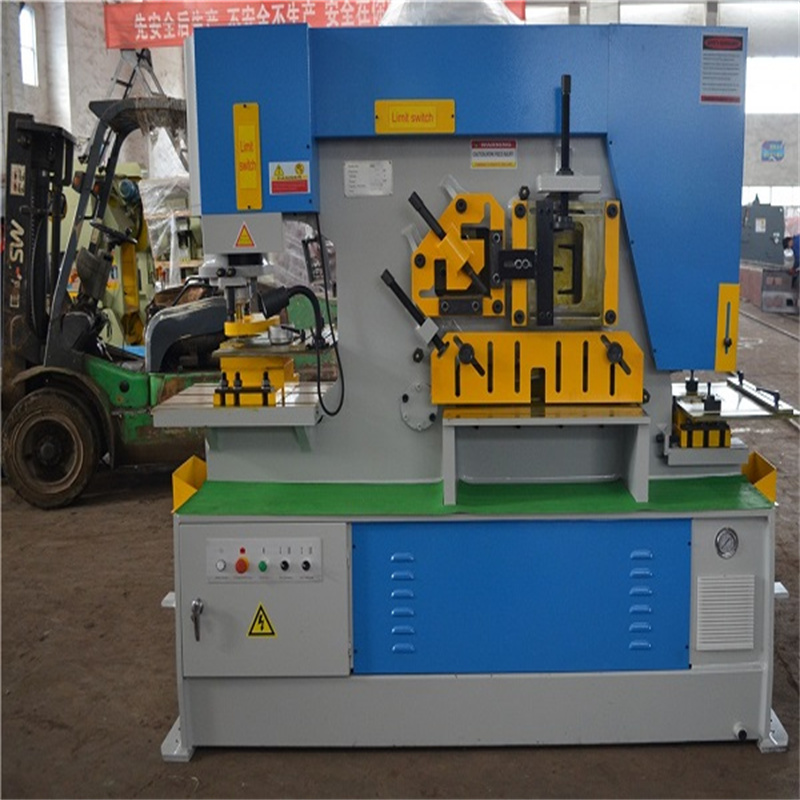

Whole structure of the hydraulic iron worker
1. Q35Y Series Hydraulic Iron Worker, Totally European design,The machine are strong and easy to use machines which are able to can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.
2. RAYMAX Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come.
Hydraulic system
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.
2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance.
3. Being able to work under rated load continuously,stable working and high precision.
Electrical system and the safety interlock
1. Electrical components are from European, in accordance with international standards,reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
3. Emergency stops on machine and foot switch for safety, Foot pedal conforming to CE regulation.
Product Paramenters
| Type | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
| Pressure (ton) | 60 | 90 | 120 | 140 |
| Max cutting Thickness (mm) | 16 | 20 | 25 | 30 |
| Plate Strength (N/mm) | 450 | 450 | 450 | 450 |
| Cutting angle (degree) | 7 | 8 | 8 | 8 |
| Cutting size of one stroke (mm) | 16x250 8x400 | 20x330 10x480 | 25x330 16x600 | 20x355 20x600 |
| Ram strokes(mm) | 80 | 80 | 80 | 80 |
| Number of stroke (cpm) | 8 | 8 | 6 | 6 |
| Throat depth (mm) | 300 | 355 | 400 | 600 |
| Punching thickness (mm) | 16 | 20 | 25 | 30 |
| Max punching diameter (mm) | 25 | 30 | 35 | 38 |
| Power of main motor (KW) | 4 | 5.5 | 7.5 | 11 |
| Over dimension (mm) | 1640x730x1770 | 1860x800x2090 | 2355x960x2090 | 2680x1040x2300 |
| Weight (kgs) | 1600 | 2000 | 4800 | 6800 |
Details
- CNC or Not: CNC
- Condition: New
- Nominal Force (kN): 60
- Power Source: Hydraulic
- Voltage: 220V/380V/415V/600V
- Dimension(L*W*H): 1640x730x1770mm
- Motor Power (kW): 4
- Weight (T): 1600
- Key Selling Points: Competitive Price
- Warranty: 1 Year
- Showroom Location: United States, Peru
- Applicable Industries: Manufacturing Plant, Machinery Repair Shops
- After-sales Service Provided: Free spare parts, Online support, Field maintenance and repair service, Video technical support, Field installation, commissioning and training
- After Warranty Service: Video technical support, Field maintenance and repair service, Spare parts, Online support
- Local Service Location: United States, Kenya
- Certification: CE
