Product Description
Double cylinders hydraulic punch & shear machine

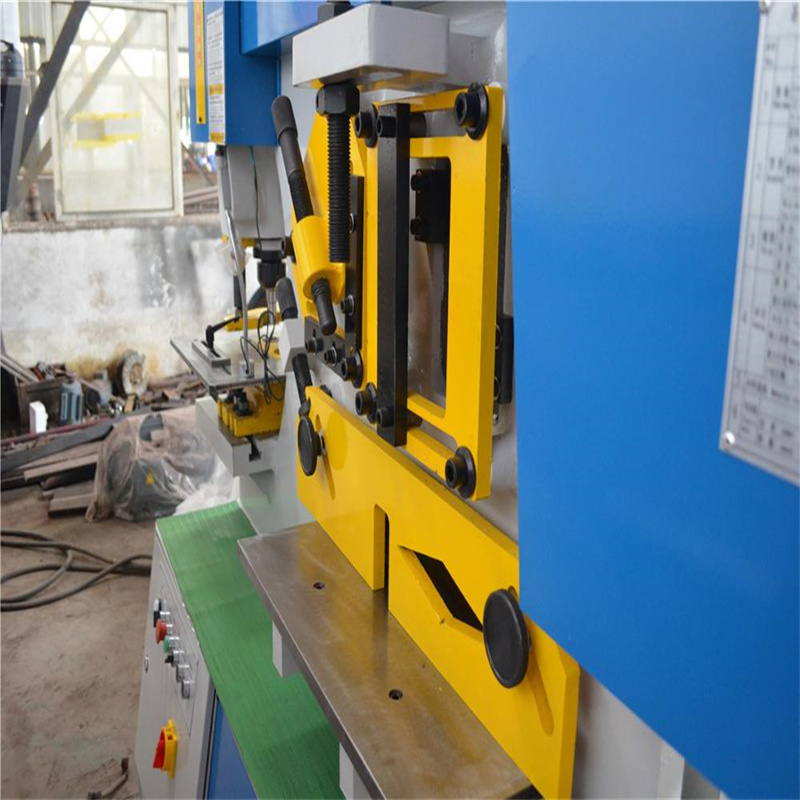

Five independent stations for punch, shear, notcher, section cut
Large punch table with multi-purpose bolster

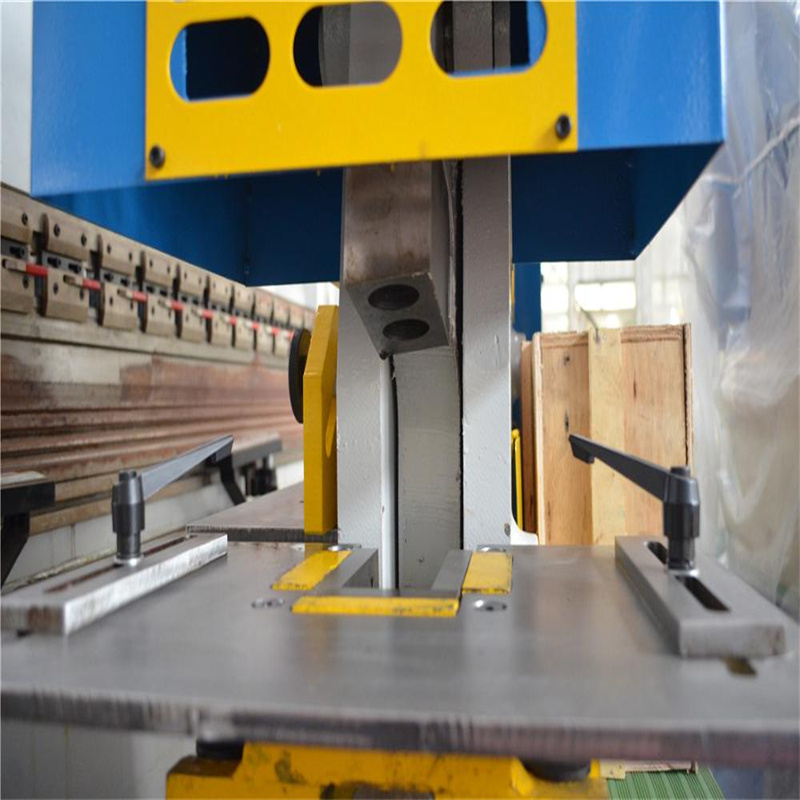

Removable table block for overhang channel / joist flange punching applications
Universal die bolster, easy change punch holder fitted, punch adapters supplied
Angle, round & square solid monoblock crop station
Rear notching station, Low power inching and adjustable stroke at punch station
Centralised pressure lubrication system
Electric panel with overload protaction elements and ingetrated controls
Safety movable foot pedal
Parameters
| Model | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 | ||
| Processing Capacity (KN) | 900 | 1200 | 1600 | 2000 | 2500 | ||
| Material Tensile Strength (Mpa) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ||
| Flat Shearing | Max. Shearing Capacity | 20×330 | 25×330 | 30×355 | 35×400 | 40×450 | |
| (thickness* width) (mm) | 10×480 | 16×600 | 20×600 | 25×700 | 30×750 | ||
| Bar Shearing | Square Bar(mm) | 45 | 50 | 55 | 60 | 65 | |
| Round Bar (mm) | 50 | 60 | 65 | 70 | 80 | ||
| C-channel (mm) | 160 | 200 | 280 | 300 | 320 | ||
| I-beam (mm) | 160 | 200 | 280 | 300 | 320 | ||
| Angle shearing | 90° shearing (mm) | 140×12 | 160×14 | 180×16 | 200X18 | 200×20 | |
| 45° shearing (mm) | 70x10 | 80x7 | 80x10 | 80x10 | 80x10 | ||
| Hole Punching | Max. Punching Capacity (diameter* thickness) (mm) | Φ30*20 | Φ35*25 | Φ38*26 | Φ40*35 | Φ40*40 | |
| Motor (KW) | 5.5 | 7.5 | 11 | 15 | 18.5 | ||
| Dimension(mm) | Length | 1950 | 2350 | 2680 | 2800 | 3200 | |
| Width | 900 | 980 | 1060 | 1260 | 1440 | ||
| Height | 1930 | 2100 | 2380 | 2420 | 2450 | ||
| Weight | 2600 | 4400 | 6600 | 7500 | 10800 | ||
Our Mission, Your Solution
1. Our guarantee time is 5 years from B/L date. If any component is damaged during guarantee time, we can deliver the component to the customer by courier without any extra charge .
2. Our factory provide oversea engineer service training freely. The customer provide the double trip tickets, engineer salary ,
and accommodation for our engineer. The customer also can send the engineer to our factory for learning .
3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by wechat, Skype, Email , whatsapp and Telephone at any time, we provide 24 hours on-line service.
Details
- CNC or Not: Normal
- Condition: New
- Nominal Force (kN): 60
- Power Source: Hydraulic
- Year: 2020
- Voltage: 380V or customized
- Dimension(L*W*H): 1640*730*1770
- Motor Power (kW): 4KW
- Weight (T): 1.6
- Key Selling Points: mult-function
- Warranty: 5 years
- Showroom Location: India, Argentina, Australia, Viet Nam, Japan, South Africa
- Applicable Industries: Manufacturing Plant, Construction works , Advertising Company, Machinery Repair Shops, Building Material Shops
- Model: Q35y-16 Ironworker
- Max cutting thickness: 16 mm
- Plate Strength: 450 N//mm2
- Cutting angle: 7 °
- Shearing size of one stroke: 16x250mm /8x400
- Ram stroke: 80 mm
- Number of strokes: 8 times /min
- Throat depth: 300 mm
- Punching thickness: 16mm
- Max punching diameter: 25 mm
- After-sales Service Provided: Free spare parts, Online support, Field maintenance and repair service, Video technical support, Field installation, commissioning and training
- After Warranty Service: Video technical support, Field maintenance and repair service, Spare parts, Online support
- Local Service Location: Philippines, Indonesia
- Certification: CE, ISO
