1. Hydraulic drive,swing tool carrier,Durable welded frame as a whole,the use nitrogen return,stable quickly.
2. With non-polar travel adjustment function,upper and lower blade edge clearance volume adjustment with handle,easy to adjust the blade gap uniformity;

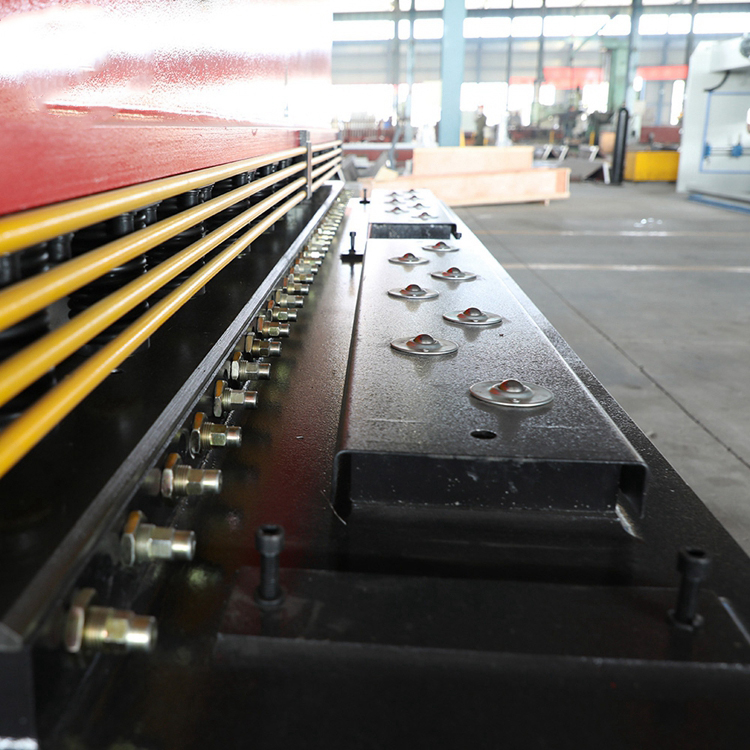

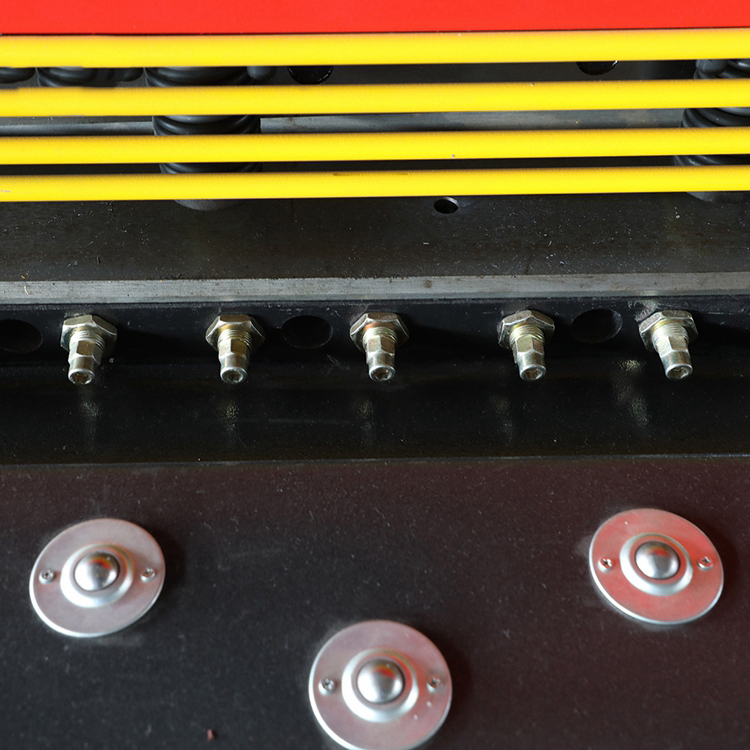

3. The protective fence ensures safe operation;
4. After the block ABBA ball screw with TaiWan to improve positioning accuracy of the latter.

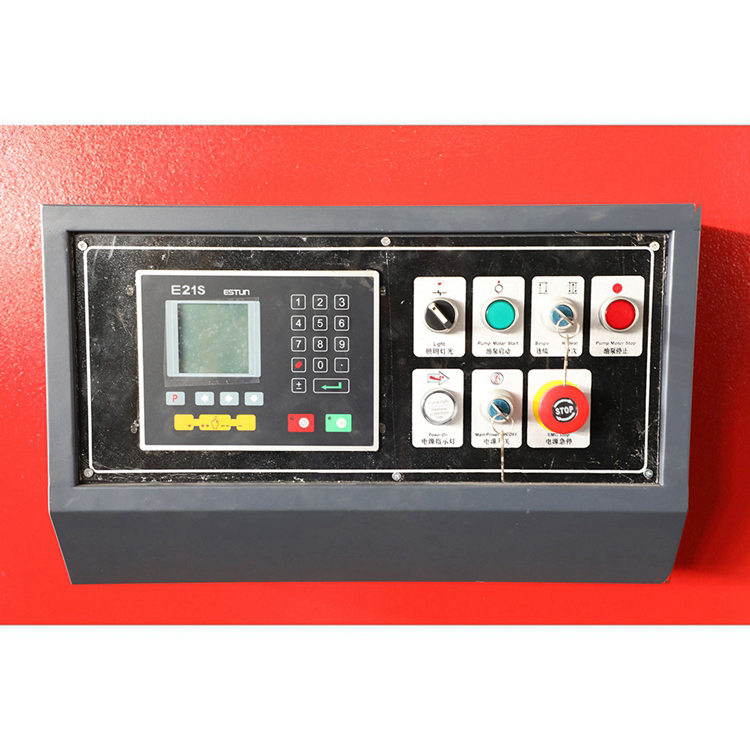

5. The numerical control system adopts NanJing Eston E21S system, controls the backstop material, the intelligent positioning, the frequency changer control, the unidirectional, the two-way positioning function, effectively eliminates the screw gap, the concession function, avoids the rear block device interference with the workpiece, 40 Multi-step program storage space, each program has 25 steps, multi-step automatic operation.
| Type | Cutting Thickness | Cutting Width | Cutting Angle | Material Strength | Stopper Adjust Range | Travel Times | Power | Dimension |
| (mm) | (mm) | (°) | (KN/cm) | (mm) | (Min﹣¹) | （KW) | L×W×H(mm) | |
| 4×2500 | 4 | 2500 | 1°30´ | ≤450 | 20～500 | 14 | 5.5 | 3040×1550×1550 |
| 4×3200 | 4 | 3200 | 1°30´ | ≤450 | 20～500 | 12 | 5.5 | 3840×1550×1550 |
| 4×4000 | 4 | 4000 | 1°30´ | ≤450 | 20～600 | 10 | 5.5 | 4600×1700×1700 |
| 4×6000 | 4 | 6000 | 1°30´ | ≤450 | 20～800 | 5 | 7.5 | 6460×2100×2200 |
| 6×2500 | 4 | 2500 | 1°30´ | ≤450 | 20～500 | 14 | 7.5 | 3040×1710×1620 |
| 6×3200 | 6 | 3200 | 1°30´ | ≤450 | 20～500 | 12 | 7.5 | 3840×1710×1620 |
| 6×4000 | 6 | 4000 | 1°30´ | ≤450 | 20～600 | 9 | 7.5 | 4620×1850×1700 |
| 6×5000 | 6 | 5000 | 1°30´ | ≤450 | 20～600 | 8 | 7.5 | 3140×1710×1620 |
| 6×6000 | 6 | 6000 | 1°30´ | ≤450 | 20～800 | 5 | 11 | 6480×2100×2300 |
| 8×2500 | 8 | 2500 | 1°30´ | ≤450 | 20～500 | 11 | 7.5 | 3040×1700×1700 |
| 8×3200 | 8 | 3200 | 1°30´ | ≤450 | 20～500 | 8 | 7.5 | 3860×1700×1700 |
| 8×4000 | 8 | 4000 | 1°30´ | ≤450 | 20～600 | 8 | 7.5 | 4640×1700×1700 |
| 8×5000 | 8 | 5000 | 1°30´ | ≤450 | 20～600 | 8 | 7.5 | 5400×2400×2000 |
| 8×6000 | 8 | 6000 | 1°30´ | ≤450 | 20～800 | 8 | 11 | 6480×2100×2350 |
| 10×2500 | 10 | 2500 | 1°30´ | ≤450 | 20～500 | 10 | 11 | 3040×1800×1700 |
| 10×3200 | 10 | 3200 | 1°30´ | ≤450 | 20～500 | 10 | 11 | 3860×2000×1700 |
| 10×4000 | 10 | 4000 | 1°30´ | ≤450 | 20～600 | 10 | 11 | 4650×2100×2000 |
| 10×6000 | 10 | 6000 | 1°30´ | ≤450 | 20～800 | 10 | 15 | 6500×2100×2300 |
| 12×2500 | 12 | 2500 | 2° | ≤450 | 20～600 | 12 | 18.5 | 3140×2050×2000 |
| 12×3200 | 12 | 3200 | 2° | ≤450 | 20～600 | 10 | 18.5 | 3880×2150×2000 |
| 12×4000 | 12 | 4000 | 2° | ≤450 | 20～600 | 10 | 18.5 | 4680×2150×2100 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 20～600 | 6 | 18.5 | 3240×1900×1900 |
| 12×6000 | 12 | 6000 | 2° | ≤450 | 20～1000 | 5 | 18.5 | 6900×2600×2700 |
| 16×2500 | 16 | 2500 | 2°30´ | ≤450 | 20～600 | 10 | 18.5 | 3140×2150×2000 |
| 16×3200 | 16 | 3200 | 2°30´ | ≤450 | 20～600 | 10 | 18.5 | 3880×2150×2000 |
| 16×4000 | 16 | 4000 | 2°30´ | ≤450 | 20～800 | 10 | 18.5 | 4650×2150×2200 |
| 16×5000 | 16 | 5000 | 2° | ≤450 | 20～1000 | 6 | 18.5 | 5900×2600×2700 |
| 16×6000 | 16 | 6000 | 2° | ≤450 | 20～1000 | 5 | 22 | 6900×2700×2700 |
| 20×2500 | 20 | 2500 | 3° | ≤450 | 20～800 | 8 | 22 | 3440×2300×2500 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 20～800 | 8 | 22 | 4150×2350×2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 20～1000 | 5 | 22 | 4850×2600×2400 |
| 20×6000 | 20 | 6000 | 3° | ≤450 | 20～1000 | 4 | 22 | 6700×3000×3000 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 20～1000 | 8 | 37 | 3200×2700×2900 |
| 25×3200 | 25 | 3200 | 3° | ≤450 | 20～1000 | 5 | 37 | 4200×2400×2500 |
| 30×2500 | 30 | 2500 | 3° | ≤450 | 20～1000 | 4 | 37 | 3300×2900×3000 |
| 30×3200 | 30 | 3200 | 3°30´ | ≤450 | 20～1000 | 4 | 40 | 4200×2500×2600 |
| 40×2500 | 40 | 2500 | 4° | ≤450 | 20～1000 | 3 | 75 | 3200×3300×3200 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 20～1000 | 3 | 90 | 4300×3300×3000 |
FAQ
Q1: After I buy the machine, what will you do if I don't know some of the function?
A1: We will show you how to use the machine perfectly. Technical support and the video is available.
Q2: Will you show me how to install the machine?
A2: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas.
Q3: How about your after sales service?
A3: Our experienced engineers are waiting to make service for you. One-top service term made us survive from fierce competition.
Q4: What's the policy for guarantee and broken parts?
A4: Warranty period of equipment lasts two years, during which the broken parts and spares caused by quality can be offered free.
Details
- Max. Cutting Width (mm): 3200
- Max. Cutting Thickness (mm): 6 mm
- Automatic Level: Fully Automatic
- Shearing Angle: 1°30'
- Blade Length (mm): 3200 mm
- Backgauge Travel (mm): 10 - 600 mm
- Throat Depth (mm): 120 mm
- Condition: New
- Brand Name: DG MACHINE
- Power (kW): 7.5 kW
- Weight (KG): 4800 KG
- Place of Origin: Anhui, China
- Voltage: Customized
- Dimension(L*W*H): 3840*1710*1620
- Year: 2021
- Warranty: 1 Year
- Key Selling Points: High Safety Level
- Applicable Industries: Hotels, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction works
- Showroom Location: None
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox

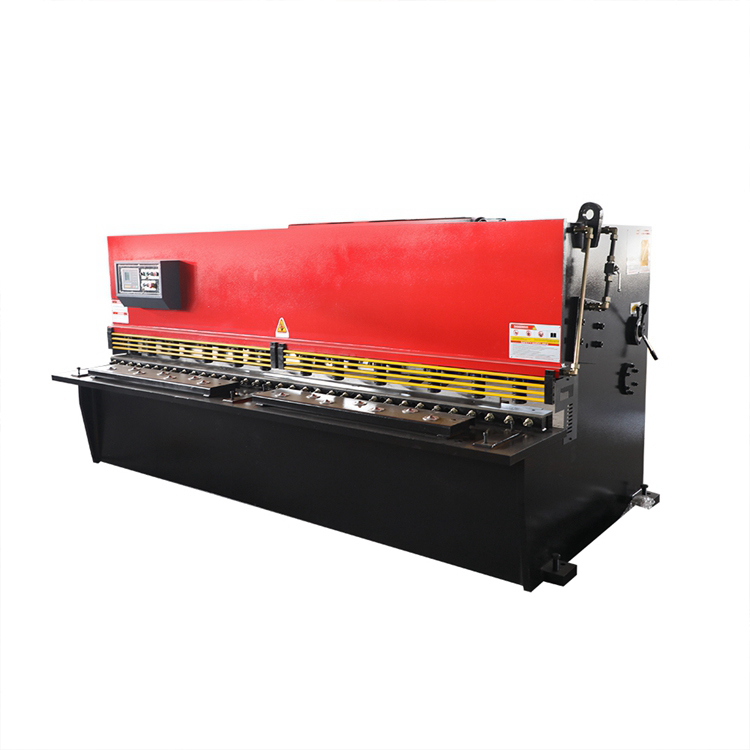

- Product name: QC12K / QC12Y CNC hydraulic swing beam shearing machine
- Stopper Adjust Range: 20-500mm
- Blade material: 9CrSi/6CrW2Si
- Color: Customized
- Type: QC12Y/QC12K-6*3200 mm
- Control system: ESTUN E21S
- Travel Times: ≥12 Times/min
- Cutting mode: Cold Cutting
- Cutting material: Stainless steel/Alloy/Metal /aluminum
- Cutting thickness: 6mm
- After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Online support, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts
- Local Service Location: None
- Certification: CE ISO
