Main Feature
1. Fiber laser cutting machine uses advanced fiber laser to output high energy density laser beam, and gathers on the surface of the work piece, so that the area of the work piece illuminated by the ultra-fine focus spot is instantly melted and vaporized, through the numerical control mechanical system. Automatic cutting is achieved by moving the spot illumination position.
2. Fiber laser cutting machine adopts gantry structure type, bilateral drive with gear rack, with stable structure, good rigidity and high speed.
3. Fiber laser cutting machine is a welded part with multiple aging treatments. The transmission parts such as reducer, guide rail and rack and pinion are all imported well-known brands.
4. The overall structure of the gantry and the transmission mode of the rack and pinion ensure the equipment. High speed positioning, fast dynamic response and good stability
Applicable Fields
The machine is widely applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobile, machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts,tool processing, decoration, advertising, metal processing and other Manufacturing and processing industry.
Applicable Materials
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc. Technical
Parameters
| Modle | RAYMAX-F1530 |
| Max processing range | 3000*1500mm |
| Working table | Sawtooth |
| Laser system | MAX / RAYCUS / IPG |
| Laser power | 1000W/1500W/2000W/3000W |
| Cutting thickness | Depends on materia |
| Drive mode | Servo motor drive , PMI guide rail YYC rack gear and pinion |
| Laser wavelength | 1060-1080nm |
| Positioning accuracy | ±0.03mm |
| Reposition accuracy | ±0.01mm |
| Minimum Line Width | ±0.02mm |
| Cooling ways | Water cooling |
| Power supply | 380V / 50Hz |
| Machine size | 4.4X2.3X1.8M |
| Gross weigh | 2700KG |
Laser Source – MaxMax: fiber laser is the world leader in Fiber Laser which produces 70% of the China’s fiber laser source. The Max. fiber lasers are efficient, reliable and maintenance-free fiber lasers. It has a super compact design with the laser source housed in a hermetically sealed cabinet provides dust proof operation.

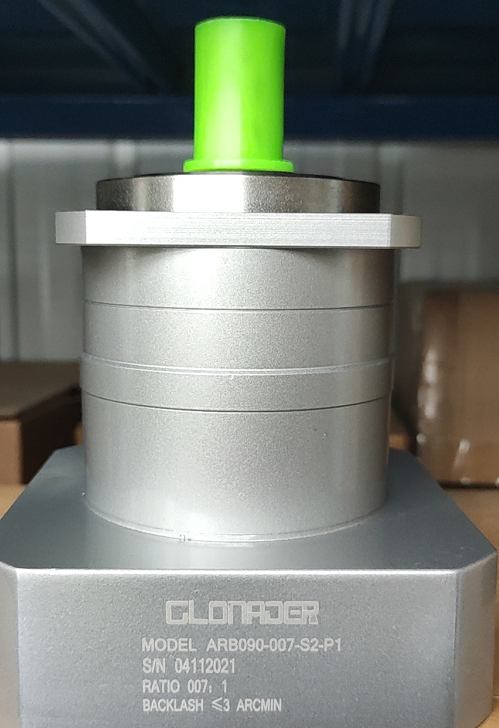

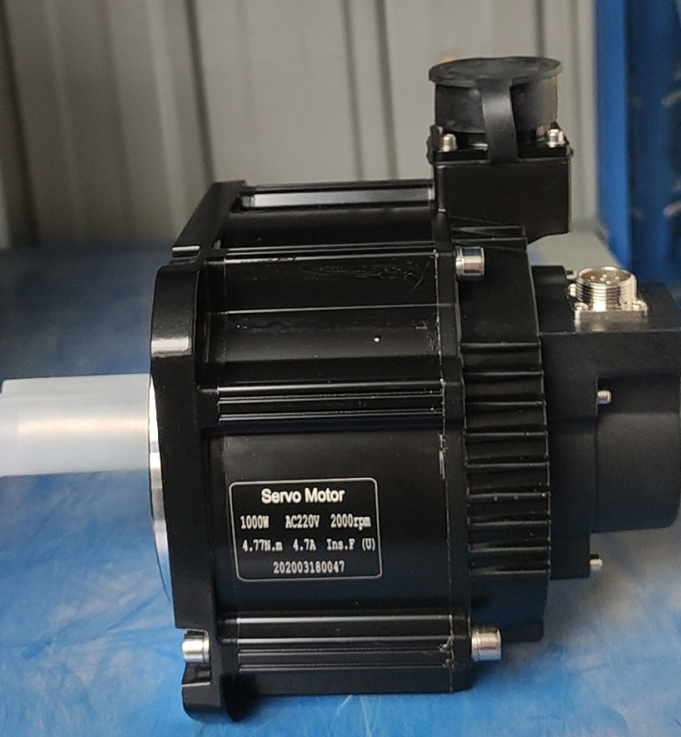

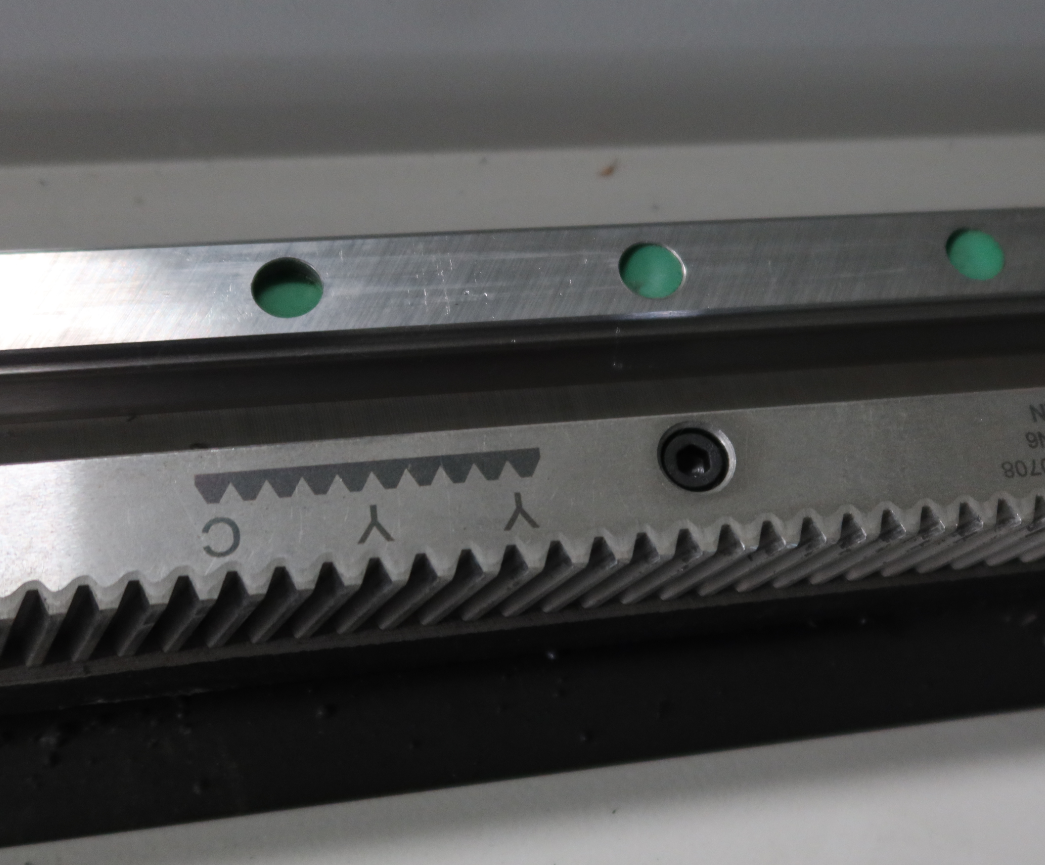

Transmission： Servo motor, Speed reducer, YYC rack gear, PMI guide rail; The Senchuan Servo Motors and Drives with fast speed and performance stability. The Linear Transmission system comprises of from YYC Helical Rack and PMI Linear Guides which improves accuracy and efficiency. Advantage of light weight, high rigidity and modular design offers long term stability and higher efficiency.

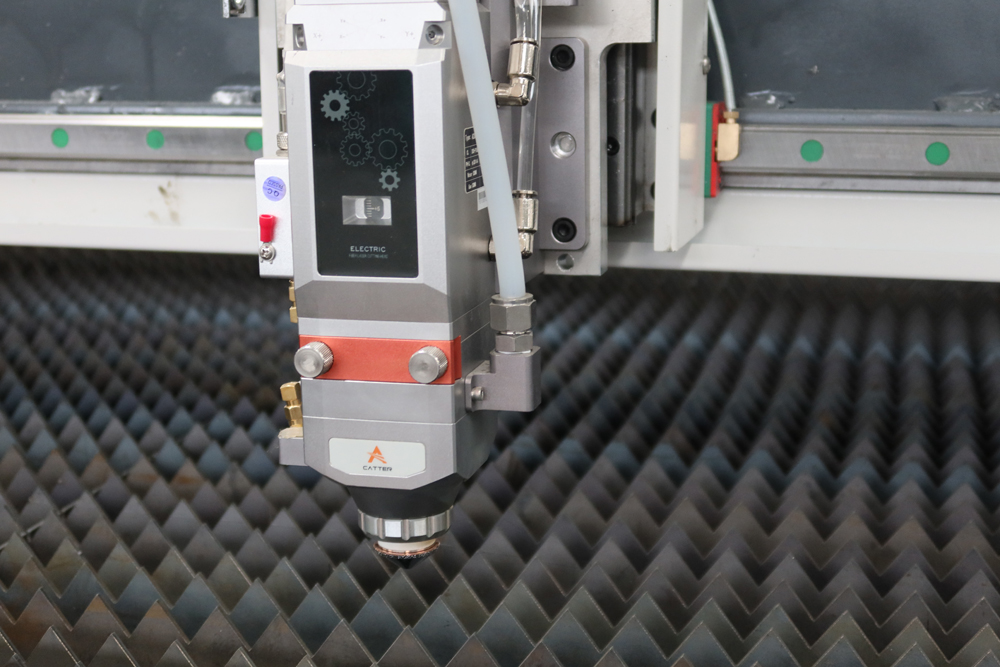

Cutting Head-Au3Tech: A200E desktop auto focus metal laser cutter head, German brand A-cutter series, is designed for laser power within 2000W, which is a wonderful solution for medium power of laser flat auto focus cutting when working with motion control card MCC series and cutting software SC series. High grade dustproof design, precision machined parts.

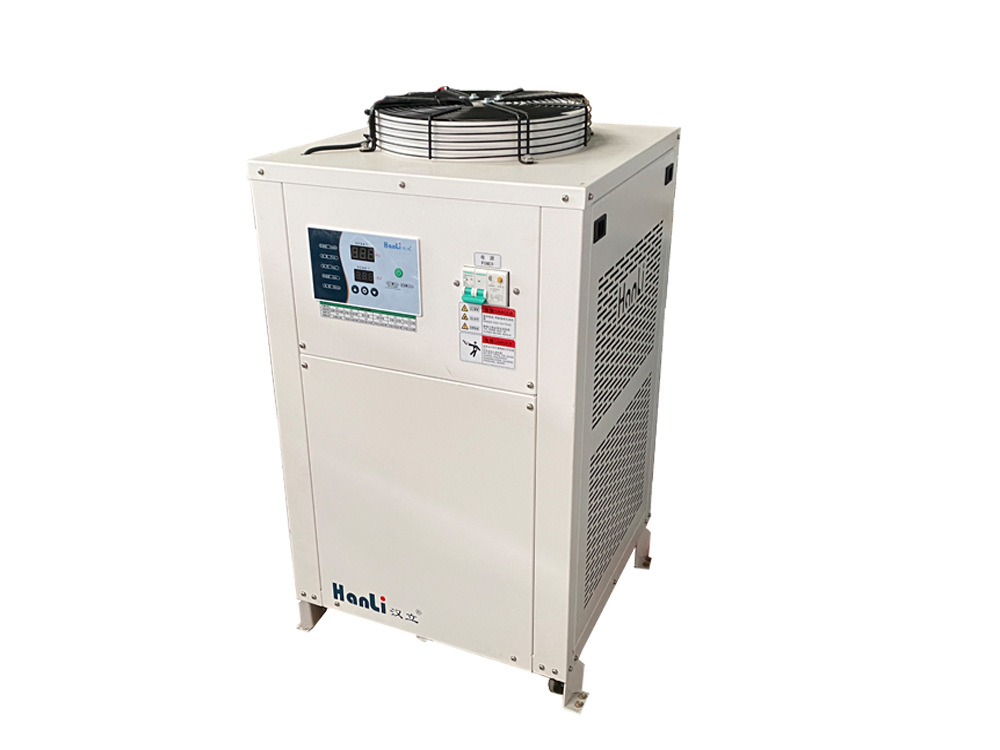

Water Chiller: Wuhan hanli chillerBrand:wuhan hanli chiller Cooling the laser and cuttinghead Dual temperature and dual control

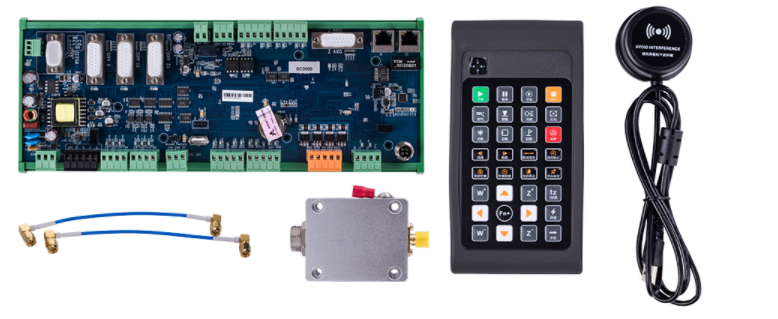

CNC Controller-Au3Tech: Operations are simple, with powerful CAM functions based on auto CAD design, support graphic import, graphic drawings, graphic editing, and so on. Powerful lead line function, support various ways to lead line. Suppoort multylayer cutting or marking, and other sorts of processing ways. Support breakdown position tracking / forward / backward and so on. Rea-time alarm, stable, and reliable, support running error measurement, it can check error between running obit and graphic error.

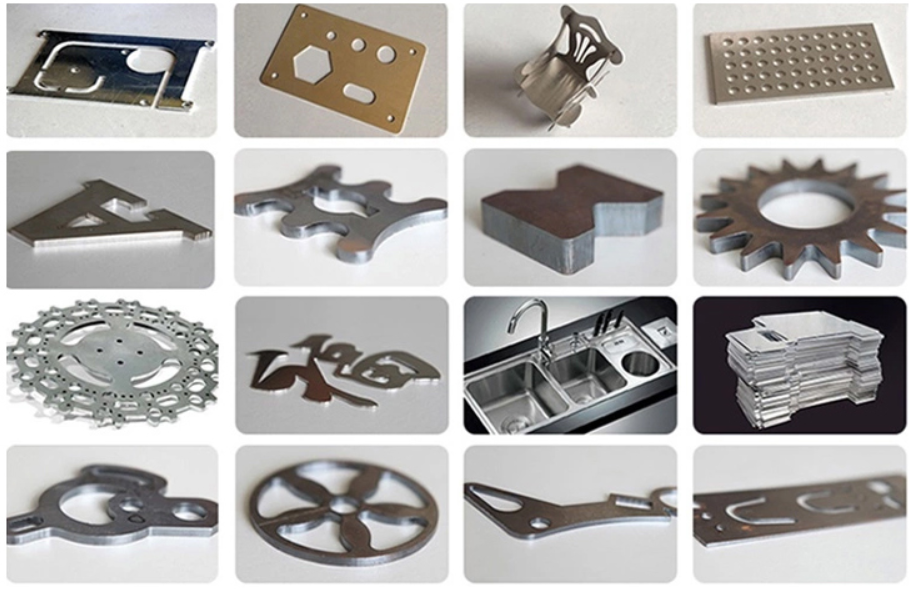

Sample Show
Details
- Application: LASER CUTTING
- Applicable Material: Metal, Other
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 3000*1500mm
- Cutting Speed: Depends on material
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: Depends on material
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: SC2000 software
- Place of Origin: Shandong,China
- Laser Source Brand: MAX
- Laser Head Brand: Au3Tech
- Servo Motor Brand: Delta
- Guiderail Brand: PMI
- Control System Brand: Au3Tech
- Weight (KG): 2700 KG
- Key Selling Points: Automatic
- Warranty: 2 years
- Applicable Industries: Hotels, Building Material Shops, Retail, Other
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Laser Source, Transmission, Cutting Head-Au3Tech, Water Chiller, CNC Controller-Au3Tech
- Laser Mode: fiber laser
- Laser Wave Length: 1060-1080nm
- Positioning Accuracy: ±0.03mm
- Laser Power: 1000W /1500W/ 2000W / 3000W
- Reposition accuracy: ±0.01mm
- Minimum Line Width: ±0.02mm
- Power: 22 KW
- Working Voltage:: 1kw 1.5kw AC220V / 50Hz / 60HZ 2kw AC380V / 50Hz / 60HZ
- MOQ: 1 Set
- Certification: ce, ISO
- After-sales Service Provided: Online support, Field installation, commissioning and training
- After Warranty Service: Video technical support, Online support
- Local Service Location: None
- Showroom Location: None
- Marketing Type: New Product 2021
