Application
Hydraulic press is suitable for the pressing process of deformable materials. Such as powder product forming, plastic product forming, cold (hot) extrusion metal forming, sheet drawing and cross pressing, bending, flanging, correction and other processes. There are four columns and two beams hydraulic press, four columns and three beams hydraulic press, four columns and four beams hydraulic press, etc.
1. Computer optimized structural design, three beams and four columns structure, simple, economical and practical.
2. The hydraulic control adopts the cartridge valve integrated system, which has reliable action, long service life, small hydraulic impact, and reduces the continuous pipeline and leakage point.
3. Independent electrical control system, reliable operation, intuitive action and convenient maintenance.
4. Adopt button centralized control, with three operation modes of adjustment, manual and semi-automatic. Through the selection of operation panel, two forming processes of constant range and constant pressure can be realized, and the functions of pressure maintaining delay can be realized.
5. The working pressure of the slider, the travel range of no-load express down and slow operation can be adjusted according to the process needs.
6. It can be equipped with blanking buffer device, mobile workbench, grating safety protection device, cooling device, PLC touch screen control, etc
Specification
| Model | TPS-63T | TPS-100TA | TPS-160TA | TPS-200TA |
| Capacity (kn) | 630 | 1000 | 1600 | 2000 |
| Pressure (MPa) | 25 | 25 | 25 | 25 |
| Travel ( mm) | 400 | 300 | 500 | 500 |
| Max. opening height (mm) | 600 | 600 | 800 | 900 |
| Column diameter (mm) | 70 | 80 | 80 | 100 |
| Table Size ( mm ) | 520*520 | 640*550 | 700*700 | 800*800 |
| Machine height (mm) | 2300 | 2300 | 3000 | 2835 |
| Motor power(Kw) | 5.5 | 5.5 | 7.5 | 7.5 |
| Weight ( Kg) | 1400 | 1900 | 2700 | 4000 |
| Model | TPS-250TA | TPS-315TA | TPS-400TA | TPS-500T |
| Capacity (kn) | 2500 | 3150 | 4000 | 5000 |
| Pressure (MPa) | 25 | 25 | 25 | 25 |
| Travel ( mm) | 500 | 500 | 600 | 900 |
| Max. opening height (mm) | 900 | 900 | 1000 | 1500 |
| Column diameter (mm) | 110 | 120 | 140 | 160 |
| Table Size ( mm ) | 800*800 | 800*800 | 1000*1000 | 1400*1400 |
| Machine height (mm) | 3200 | 3500 | 3800 | 4350 |
| Motor power(Kw) | 11 | 15 | 18.5 | 15*2 |
| Weight ( Kg) | 5300 | 6200 | 9200 | 18000 |
| Model | TPS-630T | TPS-1000T | TPS-1200T | TPS-1500T |
| Capacity (kn) | 6300 | 10000 | 12000 | 15000 |
| Pressure (MPa) | 25 | 25 | 25 | 25 |
| Travel ( mm) | 900 | 900 | 700 | 1500 |
| Max. opening height (mm) | 1500 | 1500 | 1100 | 2000 |
| Column diameter (mm) | 180 | 220 | 220 | 250 |
| Table Size ( mm ) | 1600*1200 | 2000*1500 | 2100*1600 | 4000*2000 |
| Machine height (mm) | 4550 | 6000 | 5500 | 6400 |
| Motor power(Kw) | 18.5*2 | 30*2 | 30*2 | 37*2 |
| Weight ( Kg) | 23000 | 39000 | 41000 | 98000 |
FAQ
Q: Your company's delivery time?
A: Universal milling machine is batch production, goods can be sent within 10-50days. If your order more than 100 sets please contact our support team for confirmation.
Q: Your payment?
A: We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
Q: How do we get the training for the machines?
A: You can send your people to our factory and we will offer traing free of charge.
Q: How about the quality?
A: First we choose best material for the processing. Being and after processing, we will inspect the finished parts by professional quality inspector.
Q: Your after-sales service?
A: 1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.
Details
- Slide Stroke (mm): 500
- Machine Type: Four-column Four-beam Hydraulic Press, Hydraulic Press
- Return Force (kN): 500 kN
- System: Normal
- Condition: New
- Voltage: 380V
- Weight (T): 6.2 T
- Model Number: TPS-300
- Motor Power (kw): 15 kw
- Key Selling Points: Easy to Operate
- Warranty: 1 Year
- Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Home Use, Retail, Construction works , Energy & Mining
- Showroom Location: None
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Engine
- Color: Customizable

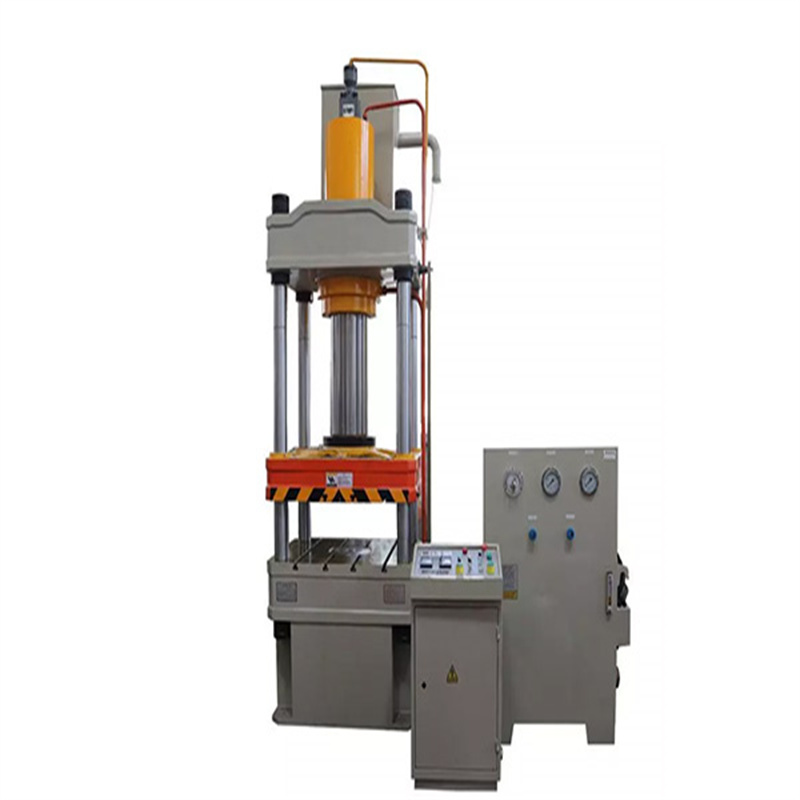

- Product name: Four Column Hydraulic Press
- CNC or Not: Normal
- Power Source: Hydraulic
- Nominal Force (kN): 3000
- After-sales Service Provided: Online support, Video technical support
- After Warranty Service: Video technical support, Online support
- Local Service Location: None
- Certification: CE/ISO 9001
