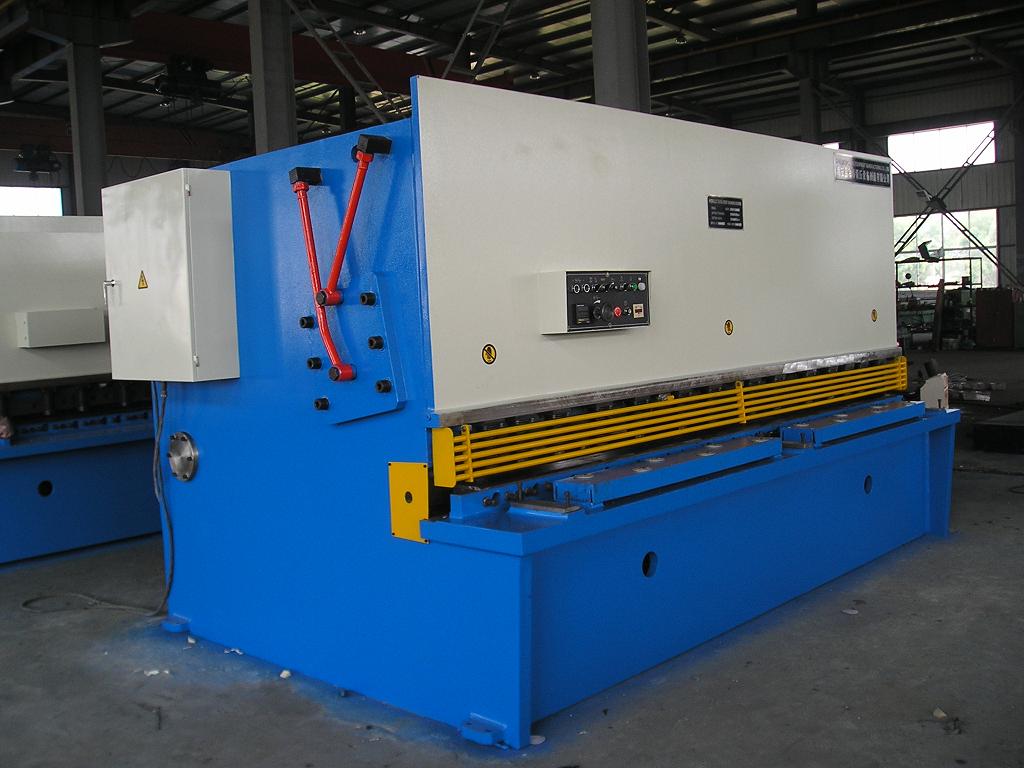

Product Description
This machine adopts hydraulic driving and swing tool carrier,the structure is convenient to operate to operate and maintain.the characteristic of it is that it has complete fuctions mechanical back gauge manually operated trimming and numberical value display structure it also has blade clearnce "Quick set" device,line on the plate E10,SIKO DRO/HT071 NV system Available as optional.
The Machine of Whole structure and Characteristics:
Totally European design,streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of
products can also be guaranteed.
High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
The machine by the European Union CE certification and ISO quality system certification
1. Hydraulic system:
Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.
Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.
All seals in cylinder is imported,the most famous brand,good quality and high performance
Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly
2. Cutting control system:
The cutting times of this machining tool is displayed on a Estun E10 NC and accurately show the cut after the block size and number display.
The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.
Light alignment device eases drawing line for cutting, Standard front support sheet frame, A set of standard blades
System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.
3. Blade adjust and cutting precision :

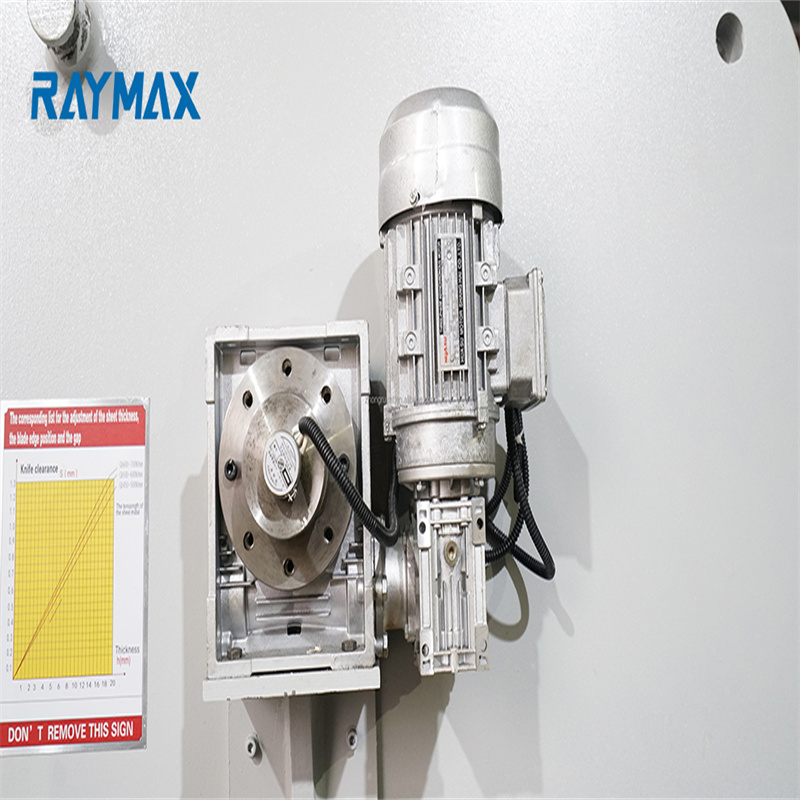

Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.
The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.
Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.
4. Advance technology and procedures:

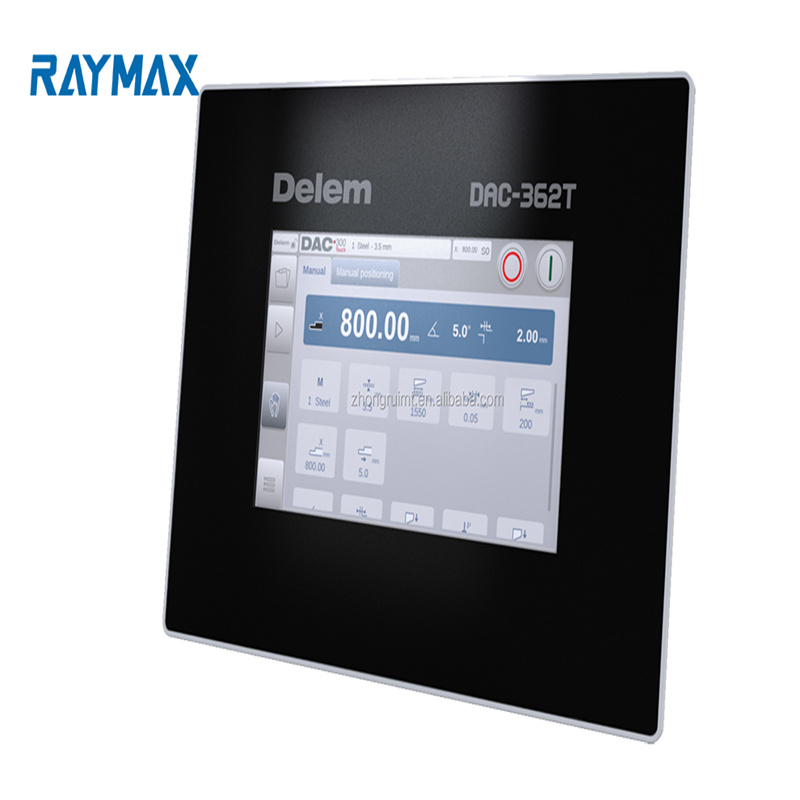

Optional:Holland Delem DAC350, DAC360, DAC310 or Estun E200 cnc controller automatically controls the backgauge, cutting stroke, cutting angle and the blades gap together the numbers of workpieces accurately.
European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany. X axis back gauge clearance are controlled by E10s which ensures a higher cutting accuracy, Backgauge with Optional ball screw and line guide rail,, maximum stroke of backgauge can realize 1000mm.
5. Electrical system and the safety interlock:
Electrical components are imported or from Sino-foreign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light curtain is optional
FAQ
Q. What are your normal lead times?
A. Our company typical lead times range from 3-4weeks after receipt of order.
Q. What are the terms of payments you offer?
A. We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q. What kind of package do you offer?
A. Normally in plywood case, to make sure all goods in good condition.
Q. What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q. Do you have CE certification
A. Yes, we have CE certification, machine quality is one year guaranteed.
Q. How to control the quality of the products?
A. We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service
Details
- Max. Cutting Width (mm): 4000 mm
- Max. Cutting Thickness (mm): 20 mm
- Automatic Level: Fully Automatic
- Blade Length (mm): 4000 mm
- Backgauge Travel (mm): 20 - 600 mm
- Throat Depth (mm): 400 mm
- Condition: New
- Power (kW): 15 kW
- Weight (KG): 12000 KG
- Place of Origin: Jiangsu, China
- Voltage: 380V or as your requirement
- Dimension(L*W*H): 3000*1970*1250
- Warranty: 1 Year
- Key Selling Points: High-accuracy
- Applicable Industries: Manufacturing Plant, Construction works
- Showroom Location: Egypt
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor, Pump
- After-sales Service Provided: Engineers available to service machinery overseas, Field installation, commissioning and training
- number stoke ( spm ): 17
- backaua range ( mm ): 20-600
- Travels times: ≥15 Times/min
- Power Requirement: 220V(380)/3-Phase
- name: SBSH-8*3200 Hydraulic metal swing shear
- Weight: according the product
- After Warranty Service: Video technical support, Spare parts
- Local Service Location: Egypt
- Certification: CE
