Parameter
| Laser type | Fiber laser |
| Laser wavelength | 1070mm |
| Cutting range | 1300*900mm |
| Laser power | 500w/800w/1000w/1500w/2000w |
| Cutting thickness | 0.3-10mm（depends on materials） |
| Minimum line width | 0.1mm |
| X/Y axis positioning accuracy | ±0.02mm |
| Repeated positioning accuracy of X/Y axis | ±0.01mm |
| Maximum speed | ≤70m/min |
| Maximum acceleration | ≤1G |
| Machine weight | 1500kg |
| Loadable weight | 200kg |
| Power Requirements | Single-phase AC 220V,50Hz,32A |
| Size | 2200*1850*1600mm |
Products Description
1. High Precision laser cutting machine
Stable, mature technology, high cutting efficiency, small footprint, flexible application with full-time cutting, high utilization
of the materials, strong expandability , and very flexible
2. High-precision host
Precision linear guide, high precision positioning, less wear; can keep high precision for a long time, easy and interchangeable
3. Laser cutting head
The laser cutting head is equipped with a sensitive bus-type capacitor, which can be adjusted to the ideal focal length to ensure
the cutting efficiency and cutting effect
4. Precise cutting
Realize the precise cutting and nearly without error and the cutting surface is smooth and flat

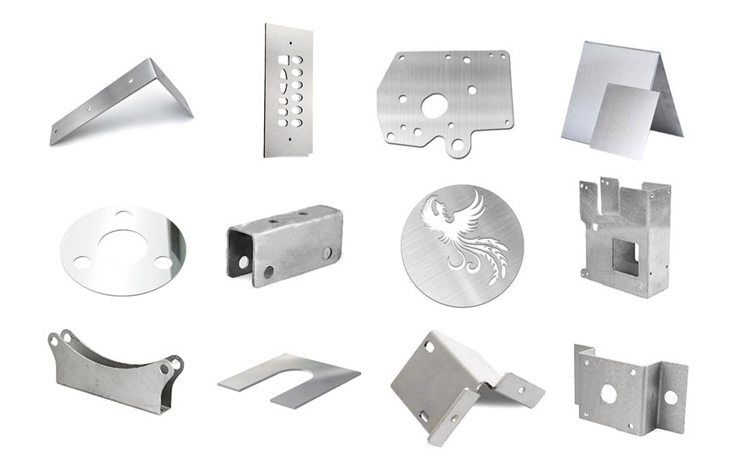

Sample Show
Our Services
---Pre-Sales Service
① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time
---After-sales Services
① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply.
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service
FAQ
1. What model does RAYMAX produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.
2. What are the payment methods of RAYMAX Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay
3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.
4. Can I visit the factory?
Available to have a visit to our factory at any time.
5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.
6. Can I go to the factory to test the machine before shipment?
Of course you can.
7. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.
Details
- Application: LASER CUTTING
- Applicable Material: Glass, Metal, Plastic, Wood, Crystal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1300mm*900mm
- Graphic Format Supported: DXF
- Cutting Thickness: Carbon ≤8mm;SS ≤4mm; AA ≤2mm; Copper ≤2mm;
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: BCM1604
- Laser Source Brand: IPG, MAX
- Laser Head Brand: Precitec, Ospri
- Servo Motor Brand: Yaskawa
- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 1500 KG
- Key Selling Points: High Safety Level
- Optical Lens Brand: Wavelength
- Warranty: 2 years
- Applicable Industries: Building Material Shops, Manufacturing Plant, Advertising Company, Metal processing industry, Sheet metal processing, Mechanical Parts, Glasses Industry, Hardware industry
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: PLC, Laser source
- Mode of Operation: continuous wave
- Configuration: 2-axis
- Products handled: Sheet Metal
- Feature: Water-cooled
- Product name: Small Size High Precision Laser Cutting Machine
- Laser power: 1500W
- Laser wave length: 1070nm
- Positioning accuracy: ≤±0.03mm
- Repeated position accuracy: ≤±0.02mm
- Max speed of X-axis: ≤20m/min
- Max speed of Y-axis: ≤20m/min
- Max speed of Z-axis: ≤17m/min
- Power supply: AC220V±5%50Hz
- Dimension size: 1880*1450*2100(mm)
