Product Description

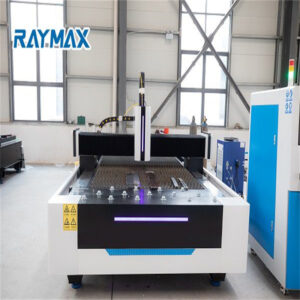

RAYMAX Laser is a world-leading manufacturer of fiber laser cutting machine.The fiber laser cutter machine of RAYMAX Laser are in great demand all over the world. RAYMAX Laser 2000w high power 1000W Laser Cutting Machine For Metal adopts optical fiber transmission, with no need for a reflective lens and no need to adjust the optical path. The sheet metal laser cutting machine has a zero key maintenance of core components and stable in use.
Product Feature
1) Lower operation cost, every hour only consumed 0.5W to 1.5W electricity.
2) High performance qualified fiber generator, which is high reliability and longevity of service.
3) Higher cutting speed and efficient, Max cutting speed can be reach 10m/min in cutting 1mm mild steel.
4) Free maintenance for fiber laser generator. Max life reach to more than 100000 hours.
5) Smooth cutting surface, little deformation, pretty leveling appearance.
6) Import transmission parts and servo motor, high dynamic movement performance, high cutting precision.
7) Dedicated software enables graphic or text into instantly designed pr processed.
Technical Data
| Name | fiber laser cutting machine |
| Model | PE-F2000-3015 |
| Power | 2000W |
| Working area | 3000 ×1500 x 150mm |
| Minimum cutting line width | 0.1mm |
| Rated output power | 2000W |
| X, Y-axis positioning accuracy | ≤±0.01mm |
| Repeated positioning accuracy of the table | ≤±0.01mm |
| Max. Cutting Thickness | 15-20 mm (Carbon Steel) |
| Transmission Method | High Precision Gear Transmission |
| Table-driven system | Japanese Import Panasonic Servo Motor & Driving System |
| Volume | 4.6*2.3*1.8m |
| Focus Method | Dynamic Following and Automatic Adjust Focusing |
| Water cooler | 2kw |
| Electricity power | 380v 50Hz±10% |
| Red light spot position | yes |
| Auxiliary gas | Oxygen, nitrogen |
Application
Applicable material: Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, pickling plate, galvanized sheet, copper and other metal materials.
Industry application: Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal processing and other manufacturing and processing industries.

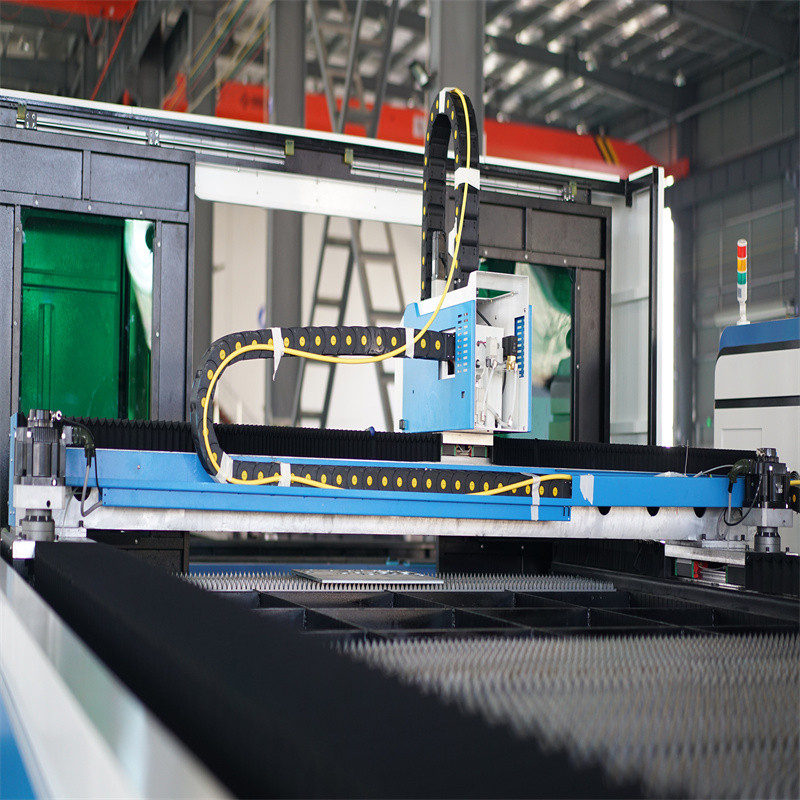

Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 3000mm*1500mm/2500*1300
- Cutting Speed: 5-20M/Min
- Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
- Cutting Thickness: 0-20mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Nceditor
- Laser Source Brand: Raycus / Max/ IPG

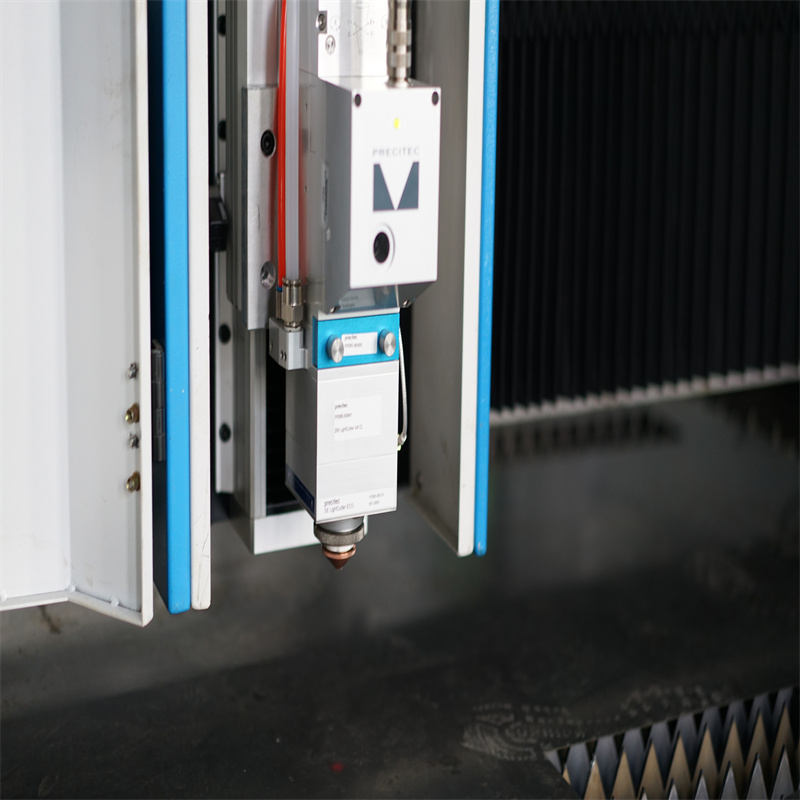

- Laser Head Brand: Raytools
- Servo Motor Brand: Panasonic
- Guiderail Brand: HIWIN
- Weight (KG): 2000 KG
- Key Selling Points: High-accuracy
- Warranty: 1 Year
- Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Laser Source
- Mode of Operation: Pulsed
- Configuration: bench-top
- Products handled: Sheet Metal
- Feature: Water-cooled
- Product name: fiber laser cutting machine
- Max. Cutting Speed: 20-30 Meter / Min (Up to materials)
- Transmission Method: Gear rack Transmission
- Focus Method: Following and Automatic Adjust Focus
- Location precision: ≤±0.05mm
- Re-location precision: ±0.02mm
- Power demand: 380V/50Hz
- Control Method: Offline Movement Control
