Compared with traditional cutting equipment.fiber laser machine has the characteristics of faster cutting speed,higher cutting accuracy,better cutting performance, lower use cost and so on. The model uses a graphite cast iron bed with the heavier weight,which not only has a longer service life,but also has stable accuracy under high-speed cutting and excellent cutting performance .The autofocus laser head and the unique UI interface operating system respond to the operation faster and improve the cutting efficiency. This model is widely used in sheet metal processing, kitchenware processing,automotive industry, cabinet industry, fitness equipmend and etc.
Fantastic design manifests noble disposition
Automatic equipment enables operation easier
Strong and professional R&D team

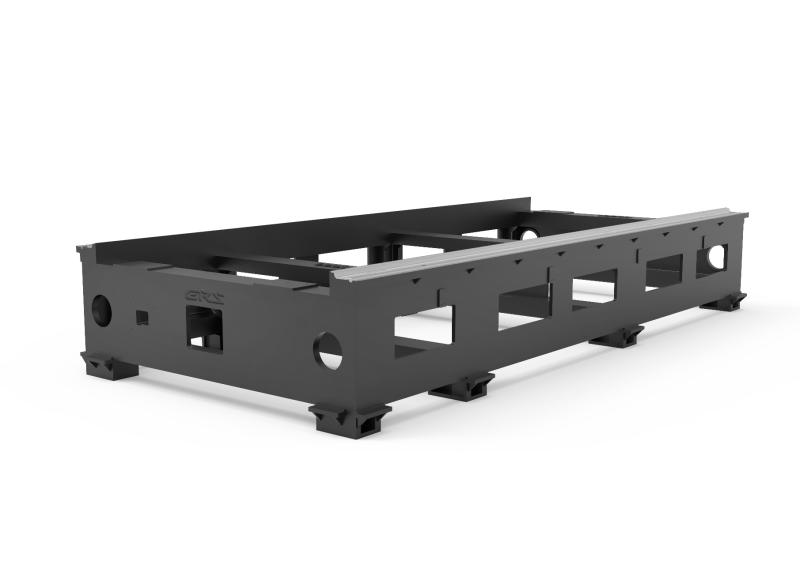

Cast iron machine body
1. Higher precision than welding bed.
2. Better anti-quake design. It has a very low sensitivity for vibrate that can decrease others influence and improve accuracy.
3. Higher stability. The material properies of cast iron bed is with high strength, stiffness and no deformation.
4. Thermal Sensitivity is lower. This makes the machine body not easy to deformation, in this way, ensure the accuracy of the machine.

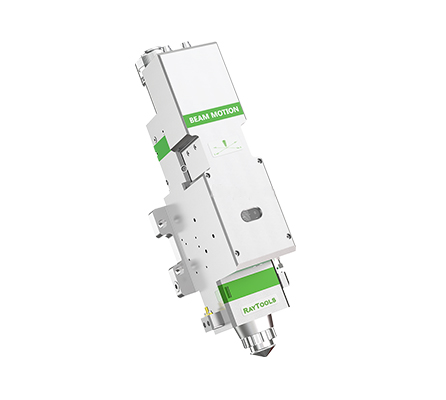

Raytools auto-focus laser cutting head
1. Bigger adjustment range
Adjustment range -10 mm~ 10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
2. Long service life
Collimating lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the lifetime of the cutting head.
3. Without manual focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

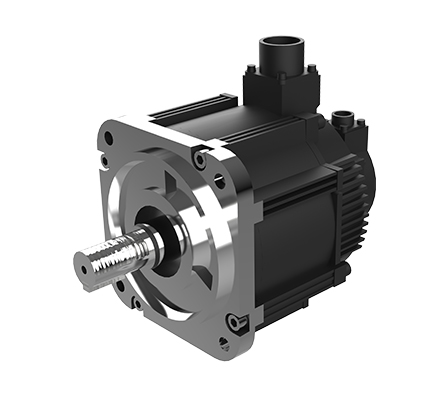

Japan YASKAWA driver & Servo Motor
1. High speed, ultra precision control.
2. No need to adjust the gain of the private service.
3. Can be used in harsh environments.
4. Meet safety standards for visualization.
5. Support management of customer information.

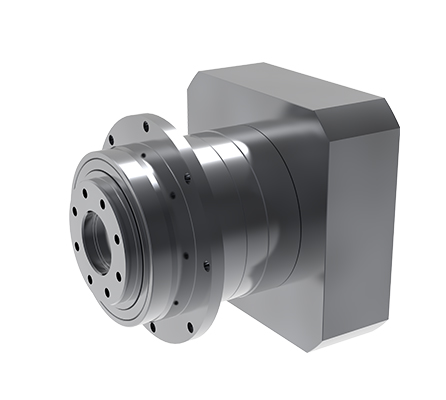

Japan SHIMPO motor reducer
1. Quiet operation--Helical gears contribute to reduce vibration and noise.
2. High precision--Standard backlash is 3 arc-min, ideal for precision control.
3. High rigidity & torque--High rigidity & high torque were achived by uncaged needle roller bearings.
4. Adapter-bushing connection--Can be attached to any motor all over the world.
5. No grease leakage--Perfect solution using high viscosity anti-separation grease.
6. Maintenance-free--No need to replace the grease for the life of the unit. Can be attached in any position.

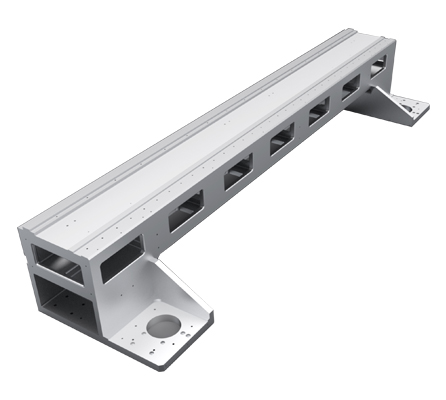

Cast Aluminum crossbeam
1. Beautiful in appearance and light in weight;
2. The density of aluminum alloy is obviously smaller than that of cast iron and cast steel, but its strength and corrosion resistance are much higher. Therefore, under the same load weight, the use of aluminum die-casting can greatly reduce the structural weight.
3. The surface gloss is very good, and it also performs well in casting performance;
4. Faster moving speed;

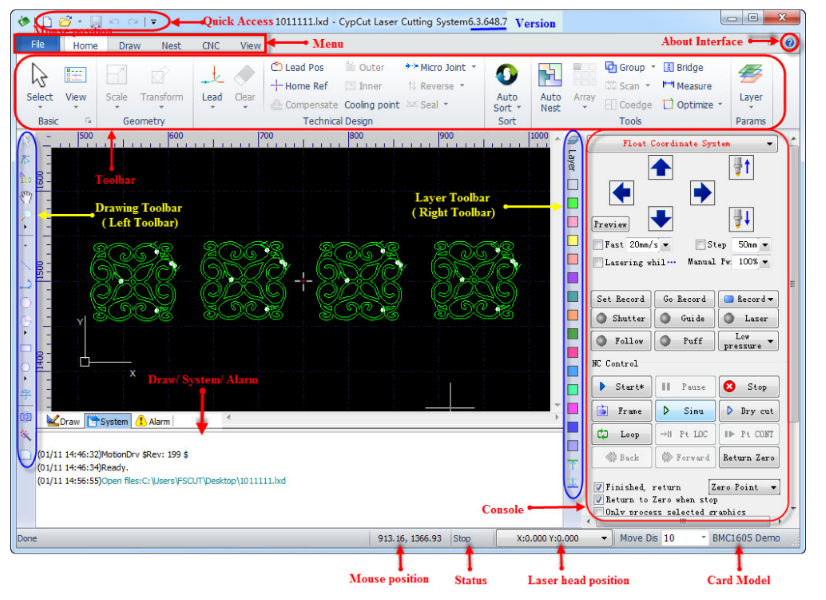

CYPCUY FS2000 CNC control system
Supports AI, DXF, PLT, Gerber, LXD and other graphic data formats, and accept the 1 CypCut Laser Cutting Control System international standard G code generated by Mater Cam, Type3, Wentai and other software.

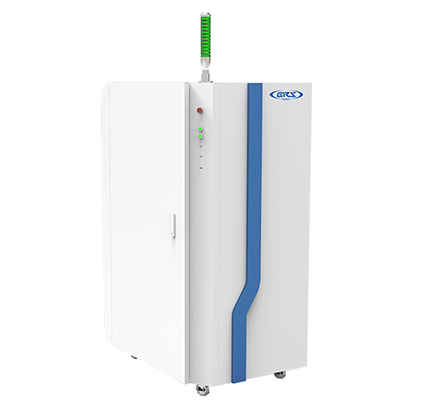

Independent electric control cabinet with Air Conditioning

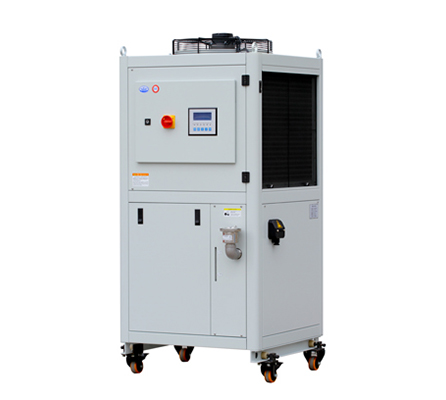

Tongfei water chiller

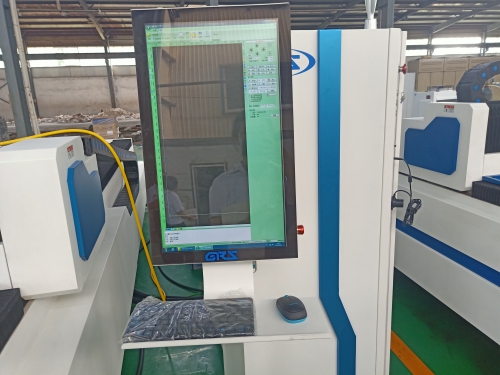

24 inch computer screen
Q1: I am looking for fiber laser cutting machine, any recommendation?
A1:Hi, there. Thank you for your concern about our laser cutting machine. It's essential to mention us about your cutting requests (materials, thickness, application and your expectation), our sales experts provides customized consulting service in term of your demand.
Q2: There are so many types of machines,which one should I choose?
A2:Easy to choose.Tell us what you want to do with a CNC laser machine and then let us give you the perfect solution and advice.
Q3: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
A3: 1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials. Metal/Acrylic/plywood/MDF?
3) You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
Q4. How long about delivery time?
A4: Fiber laser cutter takes normally 25 days, but sometimes we may have stock machines, which delivery is only 7 days. Please ask your sales manager to get details.
Q5. Are you a trading company or factory?
A5:We are the laser equipment and accessory factory in China more than 10 years.
- Application: LASER CUTTING, Laser Cutting
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 6100*2000mm
- Cutting Speed: 0-10000mm/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: 1-22mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Wei Hong / Cyp Cut / RAYMAX Smart 1.0
- Laser Source Brand: GW/MAX/PG/RAYCUS
- Laser Head Brand: Raytools/Empower
- Servo Motor Brand: Yaskawa
- Guiderail Brand: Taiwan HIWIN
- Control System Brand: Cypcut
- Weight (KG): 19000 KG
- Key Selling Points: Long Service Life
- Warranty: 3 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 3 years
- Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
- color: Customized
- Keyword: laser cutting machine cutter
- Model: GE6015T
- Power: 1000-6000w
- laser type: Fiber Laser
- Machine bed: cast iron bed
- Rack: Taiwan YYC
- Display size: 23.6-inch operation screen/19:CCTV SCREEN
- Relay: Siemens
- Certification: ISO
- After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
