Cnc Servo Press Brake 250t/3.2m 3+1 Axis 3 Meter Sheet Metal Press Brake

Main Feature

1. Welded steel structure, by normalizing and high-frequency vibration to eliminate stress, to ensure the overall accuracy of machine tools, has excellent rigidity, anti-distortion, and anti-tilt capability.

2. The two sides master cylinders belong to the electro-hydraulic CNC bending machine CNC axis where Y1, Y2 axes, synchronized compatible with hydraulic servo valve imported from Germany and the German HEIDENHAIN grating closed loop control, accurate feedback, sliders run accurate, repeat slider accuracy and parallel precision can reach /- 0.01mm.

3. Automatic hydraulic convex compensation system for worktable(V-axis), to address the slider deformation impact of the work piece during the bending. Numbers of compensation automatically adjusted by CNC system, convenient and accurate. ( mechanical compensation table structure for optional)

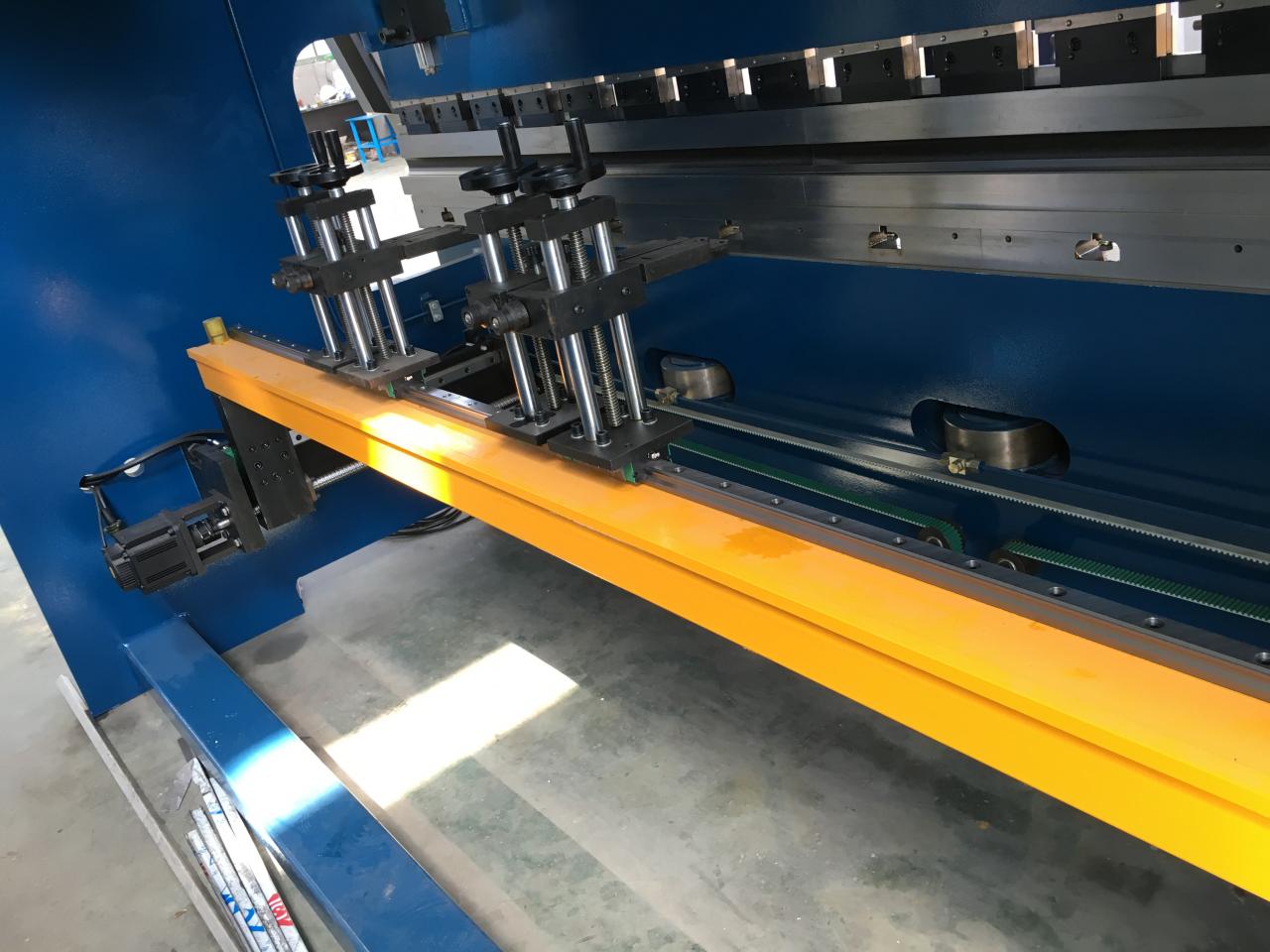

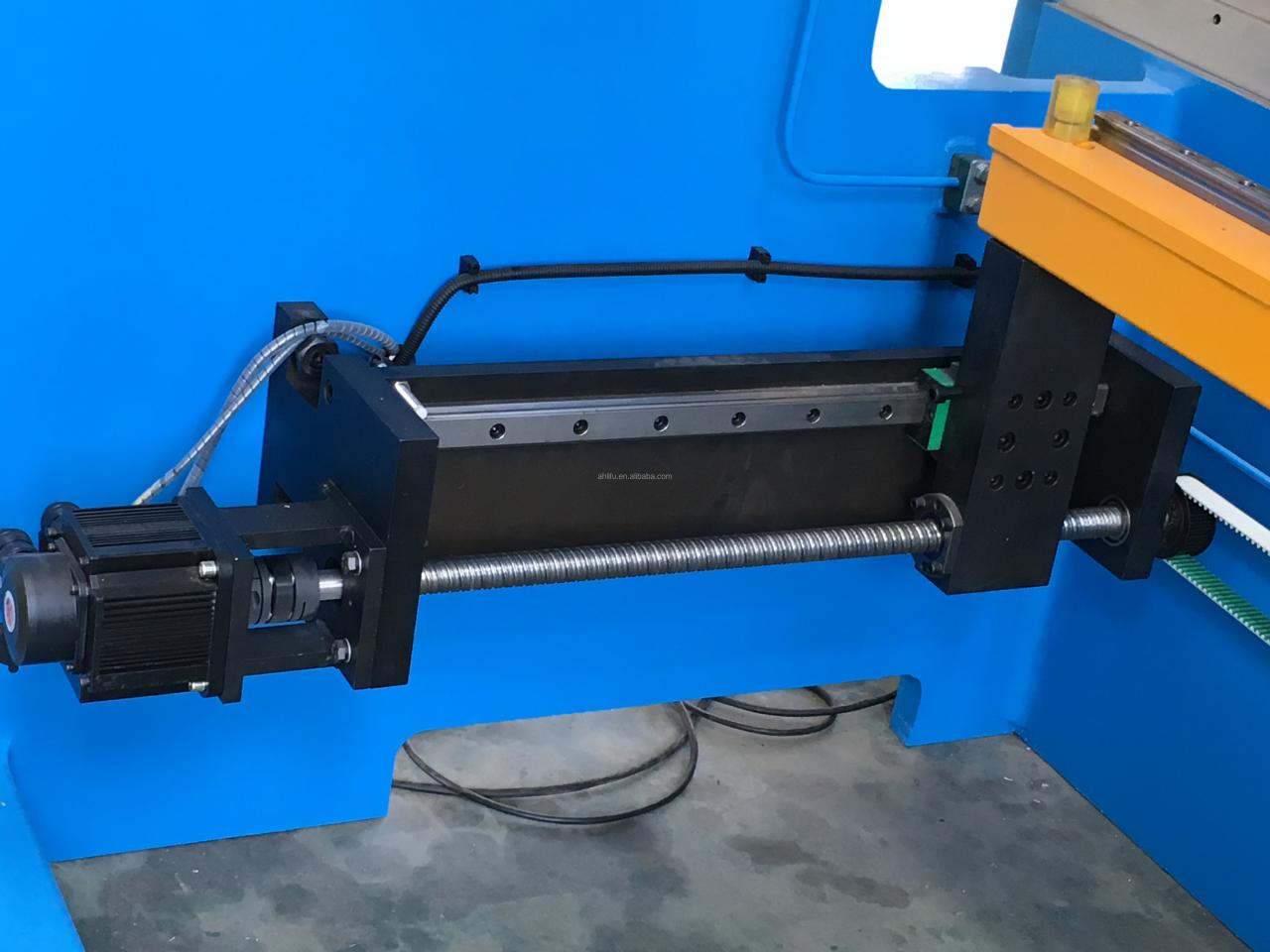

4. Back gauge(front and rear location) is the X-axis in CNC bending machine, driven by servo motor, CNC system, transmission through precision ball screw, linear guide, synchronous belt wheel, run fast, positioning data accurately. (Users could expand the R-axis or R1 axes, R2 axis, Z1 axis, Z2 axis, etc.)

5. Front feeding device moves lateral through precision linear guide, easily control the spacing between the arms. Adjustable height level, which greatly improves the convenience of the work piece bending.

6. With fast clamp pallet bending mold, compatible with deflection compensation mechanism. Combined type of modular CNC bending mold in order to ensure high precision and high efficiency of bending. Adjusting the position of the lower mold handy in different working conditions.

7. Both ends of the machine are equipped with grating ruler, which are used to measure the exact distance between the slide and the worktable. Machinery frame equipped C type plate, grating installed in the C-plate to eliminate the effect of the column deformation on position of the slider. The slider position feedback data will be transferred to the numerical control system immediately to estimated servo valve control signal S1 ~ S2 and the output, control two hydraulic servo valve output flow, so that two cylinders synchronization.

Activities beam structure for the four-point positioning, good stability, Y1, Y2-axis can be individually programmed, can be planted in partial state, tapered bending ( inclined bending).

Suspend pressure maintaining after bending forming to reduce the resilience of the work piece, the pressure maintaining time can be set.

8. Safety barrier around the machinery, and photoelectric protection device to ensure safety working. (laser protection device for optional)

Technical Parameter

Main Outsourcing parts

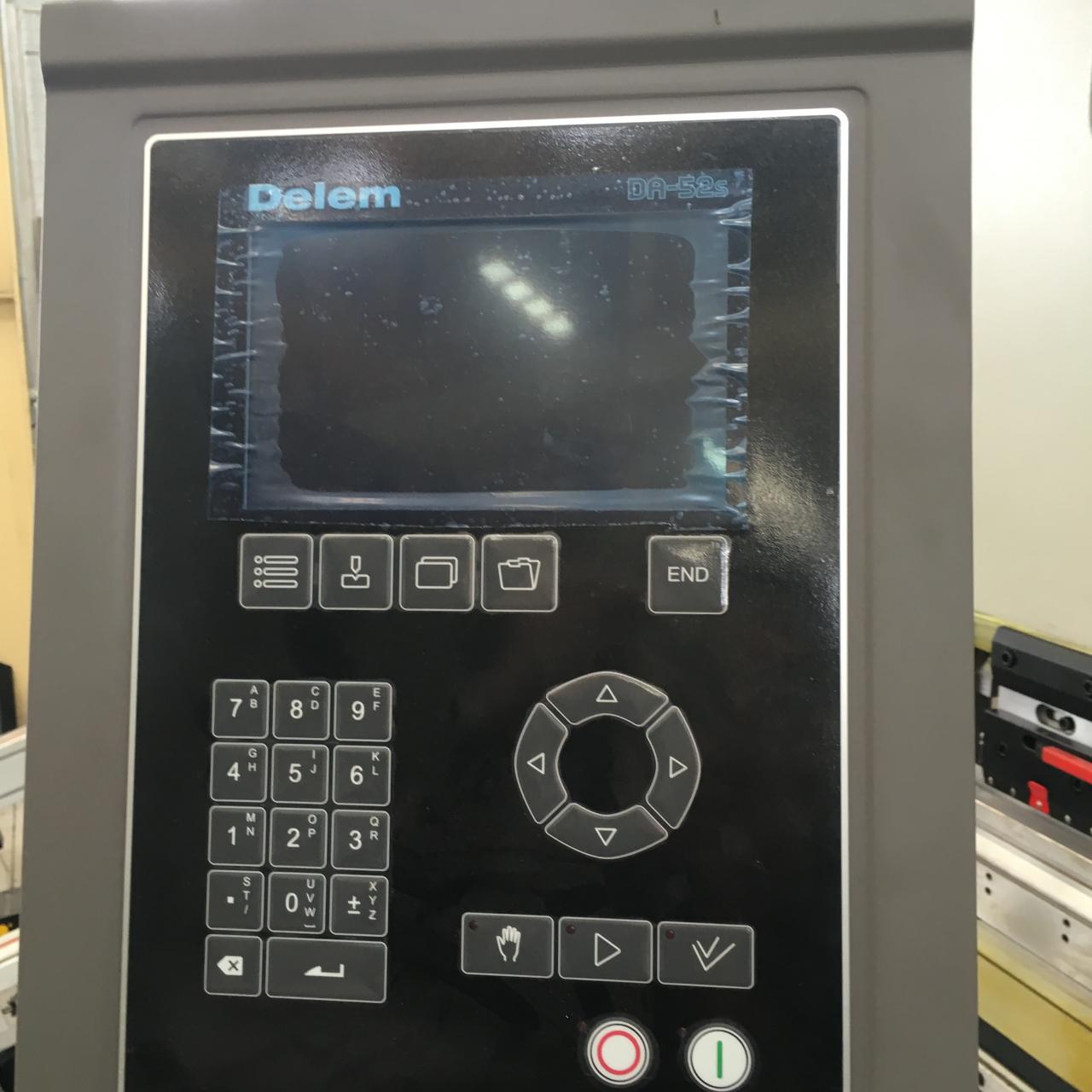

NOTE: cnc control system ESA S530, ESA S540, ESA S550, DA56S, DA66T, DA69T, DNC880S,  MODEVA12S, etc for optional

Detailed Images

Our Service

Pre-Sales Service

1. 24hrs online,reponse in 2hrs, provide solution in 48hrs.

2. Recommend the most suitable machine according to customer's purpose,

3. Sample testing support,

4. Factory visiting is welcomed.

After-Sales Service

1. provide solution in one day,solve complaint in 2 days.

2. Training how to install and how to use the machine

3. Engineers available to service machinery oversea

4. A discount for a long cooperate customer

5. Warranty 2 year

Packing & Delivery

1) before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.

2) before loading,stable package,professional and skilled loader reduce damage of product during transport.

3) we fixed our machine in container by steel wire inside which will be protected well during shipping

4) unloading, we use the wooden cabinet, protect the machine and can be easily used forklift to unloading machine.

FAQ

1. How about your machine quality? We are worry about the quality.

RE: RAYMAX is a mature brand in CHINA, through many years research in technology,our design including structure and detailed security and precision has enhanced greatly, and can match all the CE standard or more strict standard. Our machines distribute worldwide to about 50 countries where there are metal plate industry, there are Brilliant machines. And where there are our machines, there are good reputation and terminal user satisfaction

2. Whether the machine price can be more discount?

RE: 1. RAYMAX always provide high quality machine, with 10years experiences, our machine has enough quality standard to make sure the machine can work more than the real warranty period. In this way, we will save a lot and think in advance for the clients.

RE: 2. Actually RAYMAX also think about our price level, we are sure to provide quality=price and price=quality, the matched price and acceptable for the clients and durable for our machines. We welcome you negotiate with us and get a good satisfaction.

3. How about your manufactory in China?

RE: RAYMAX located in MaAnShan City, AnHui province which is the leading area in China and also in the worldwide as the center of the metal plate solution machines, We have worked about 10 years in this area. Rich experiences in this field with professional technical supporting and oriented service.

Details

• Slider Stroke (mm): 100 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 250 mm
• Machine Type: Torsion Bar, Press Brake
• Length of Working Table (mm): 3200
• Width of Working Table (mm): 160 mm
• Condition: New
• Place of Origin: Anhui, China
• Material / Metal Processed: Stainless steel, aluminum steel, alloy steel, iron steel, etc
• Automation: Automatic
• Extra Services: Punching
• Year: 2020
• Weight (KG): 6000
• Motor Power (kw): 7.5 kw
• Key Selling Points: Multifunctional
• Warranty: 3 years
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Printing Shops, Construction works , Energy & Mining
• Showroom Location: Egypt, Canada, Turkey, Italy, France, Viet Nam, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Chile, UAE, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Nigeria, Uzbekistan, Tajikistan
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 3 years
• Core Components: Bearing, Motor, Pump, Pressure vessel, Engine
• Power: Hydraulic
• Raw Material: sheet plate
• Application: Metal sheet bending
• Safety protect: Protective guard
• Motor: SIEMENS BEIDE
• Electric appliance: SCHNEIDER
• Hydraulic system: REXROTH
• Nominal Pressure (kN): 10000
• Certification: ce
