Production Description
The biggest advantages of machine help you choose most suitable one:We cooperate with many brands, the main parts can be optional according to your budget, and the machine body (working table / cover /rotary / exchange platform) can be customized
Details Precision Cutting
This series coperate with raytools cutting head, The error is less than 0.01mm, you can choose RAYTOOLS/ AU3TECH / WSX / PRECITEC as well, we coperate with top brand to ensure quality.
2t Stable Machine Frame
Palte welded machine bed can support heavy material cutting and no deformation within 10 years, and It doesn't shake when cutting, so as to reduce the error. the weight of machine bed 3000x1500 about 2T
Bochu Cypcut Control System
Easy to learn and easy to operate, this can accurately control the operation of the cutting head to maximize the utilization of materials and reduce tailing, FSCUT 2000 and others optional, plaese choose according to seller's advice
Yaskawa Servo Motor
Top brand servo motor, we coperate with Japan brand YASKAWA / FUJI, also you can choose XINBAO ,and you can choose according to the power you need
Powerful Laser Generator
1000w -15000w, you can choose JPT / RAYCUS / IPG / NLIGHT / MAX also suggest you to choose according to your material and your budget
Optional Parts
Support customization,you can choose rotary, exchange table, cover, or all of these.
Application:
1) Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.
2) Industries:
CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Configuration
| Model | 1325F | 3015F | 12025F |
| Laser wave length | 1064nm | ||

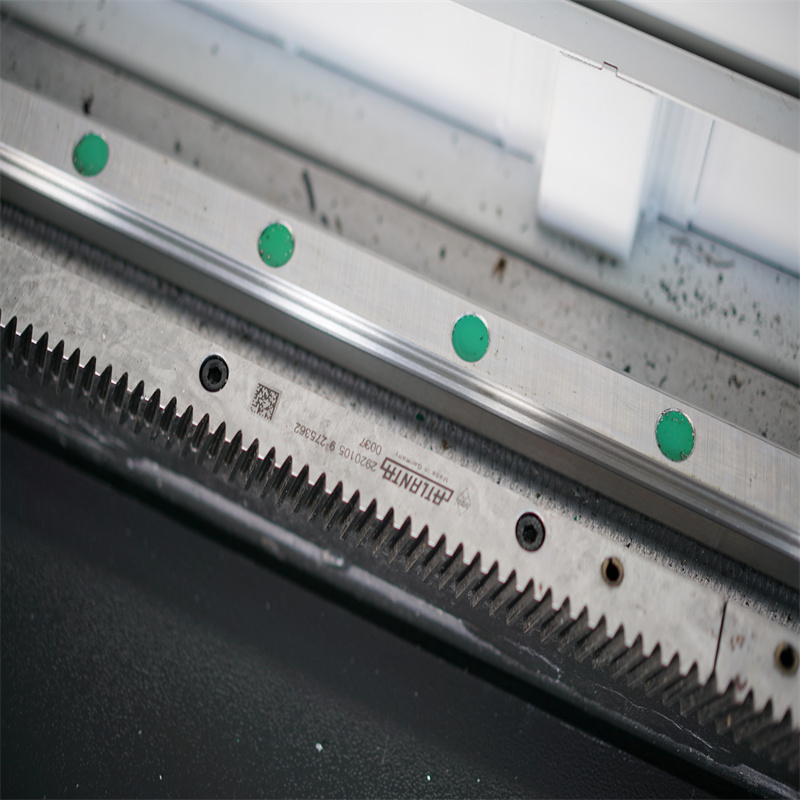

| Transmission system | Gear rails (we have standard brand,we can also produce as your requirements) | ||
| X.Y axis location accuracy | ±0.01mm | ||
| X.Y axis repeat location accuracy | ±0.01mm | ||
| X.Y axis max moving speed | 120m/min | 120m/min | 120m/min |
| Max cutting speed | 60m/min | 70m/min | 70m/min |
| Power | 1000W-15000W | 2000w -6000w | 3000w-12000w |
| Working area | 1325/3015/4015/4020/4025/6025/8025 | 3015/4015/40206015/6020/6025/8025 | 12025/16030/20030 |

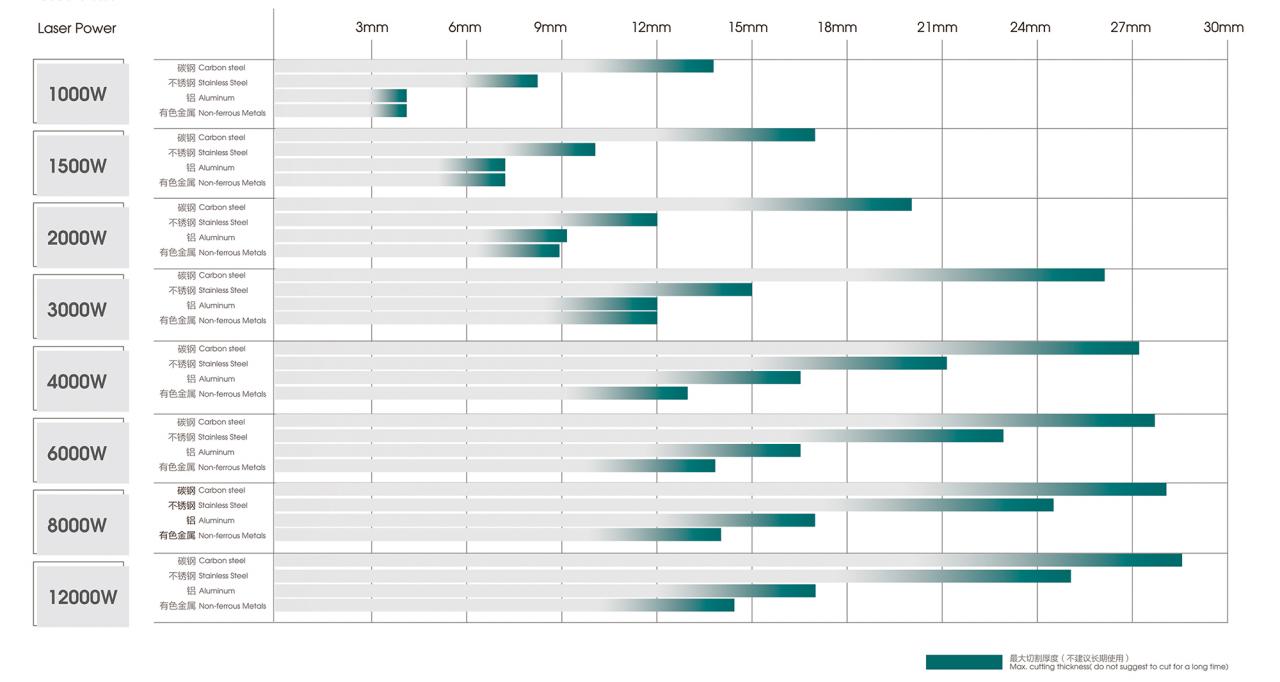

Cutting thickness: 0.2-30mm for metal plate, diameter 20-350mm for round tube Please refer to the table below for details,or ask us about details
Why Choose Us
Premium OEM Factory
*We have 16 years of manufacturing experience.
*The factory price is sold directly,support OEM&ODM.
*The products are strictly inspected to ensure good quality.
*Support the visualization of the whole production process.
*All the machine passed CE certification,
Professional After-sales Service
*We provide free training and free samples .
*Two-year warranty for the laser cleaning machine.
*Machine installation instructions and remote guidance.
*Door to door maintenance within 2 days.
Numerous Partners
Our machines use well-known brand parts.You have more options to configure the machine.The machine is more durable, and it is more convenient to repair and replace parts.
FAQ
Q1: Our workers can't operate the machine, how to train the staff?
A1: We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days,if you want door-to-door service,We can arrange local service in 48 hours
Q2: I don’t know which one is suitable for me ?
A2: Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness
Q3: It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?
A3: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him/her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
Q4: Why the machine price not include fiber source?
A4: Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q5: I don’t know how to use after I receive Or I have problem during use, how to do?
A5: 1) We have detailed user manual with pictures and CD, you can learn step by step. And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use, you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500mm*3000mm
- Cutting Speed: 1--60m/min
- Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, PLT, LAS
- Cutting Thickness: 0-22mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut
- Laser Source Brand: RAYCUS
- Laser Head Brand: WSX /Raytools/Autech/Precitec
- Servo Motor Brand: Yaskawa/fuji
- Guiderail Brand: HIWIN / THK
- Control System Brand: Bochu FSCUT2000C
- Weight (KG): 4000 KG
- Key Selling Points: High-accuracy
- Optical Lens Brand: Wavelength
- Warranty: 3 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Other, Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 3 years
- Core Components: Motor, Gear
- Mode of Operation: continuous wave
- Configuration: gantry type
- Products handled: Sheet Metal
- Feature: Water-cooled
- After-sales Service Provided: Engineers available to service machinery overseas
- Laser power: 500w/750w/1000/1500/2000/3000/4000/6000/8000/12000/25000W
- Transmission system: Gear rails
- Laser wave length: 1064nm
- Max cutting speed: 1--60m/min
- Cutting thickness: 0.2-20mm stainless steel/0.2-30mm steel
- Application Material: Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal
- Net weight: 3800KG
- X.Y axis max moving speed: 120m/min
- Machine size: 4800*2600*1860mm
