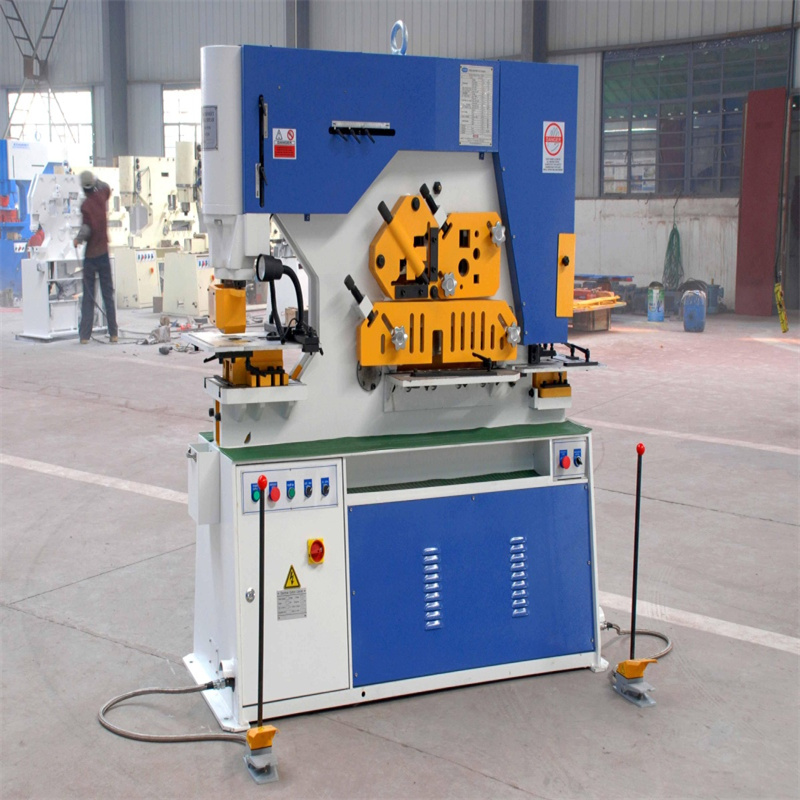

Product Description
Multi-function iron worker goes along with Automatic Holding System and Temperature Cooling System. Hydraulic iron worker can punch, cut, notch and bend for flat bar, square bar, round bar, equal angle, channel. It is the latest product of the punching and shearing machine at home and abroad.
| Model | Q35Y-20 |
| Punching Pressure (T) | 90T |
| Max. cutting thickness of sheet plates (mm) | 20 |
| Material strength (N/mm²) | ≤450 |
| Angle of Shear (°) | 8º |
| Flat bar shearing (T×W)(mm) | 20×330 10×480 |
| Max. length of cylinder stroke (mm) | 80 |
| Trips frequency (times/min) | 12-20 |
| Depth of throat (mm) | 355 |
| Punch depth (mm) | 20 |
| Max. punching diameter (mm) | 30 |
| Motor power (KW) | 7.5 |
| Overall dimensions (L×W×H)(mm) | 1950×900×1950 |
| Weight (kg) | 2400 |
Direction for use
The machine is mainly used for cutting flat bar, profile, punching hole and notching. It can widely used in Shipyard, Electric, Bridge, Automobile, Hoisting＆Transportation, Metal Construction and other machinery factories etc.
Description of application effect

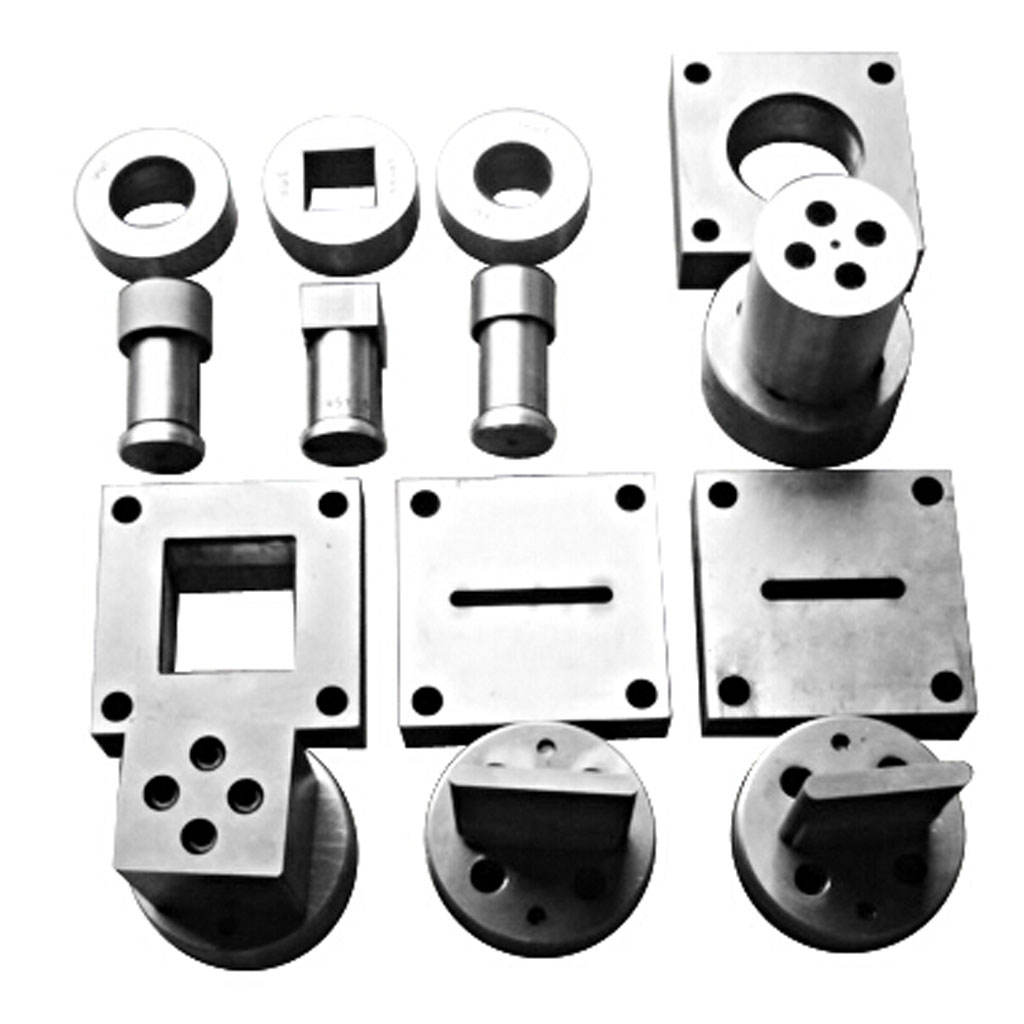

Flat bar cutting, punching hole and notching work can be performed on the machine within the rated specification. With extra equipment, the machine is able to cut, punch and bend in special shape. The machine adopted hydraulic driving system and has a performance and overload protecting device .
Product Paramenters
| Profile | Q35Y-20 | |
| Round Bar | 50 | |
| Square Bar | 50×50 | |
| Equal Angle | 90ºShearing | 140×140×12 |
| 45ºShearing | 70×70×10 | |
| T-Bar | 90ºShearing | 140×140×12 |
| 45ºShearing | 70×70×10 | |
| I-beam | 160×88×6 | |
| Channel | 160×63×6.5 | |

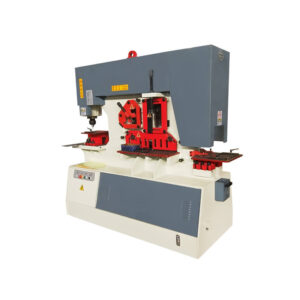

Details Images

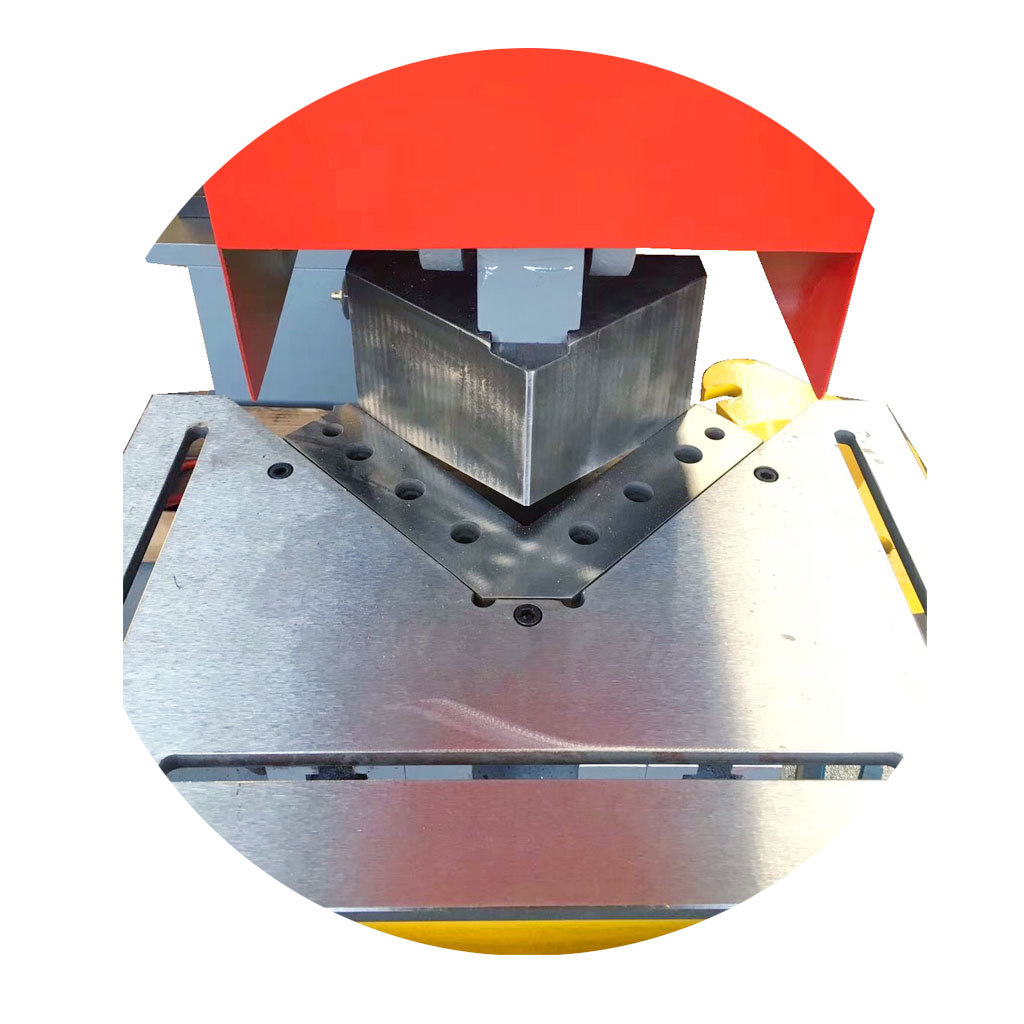

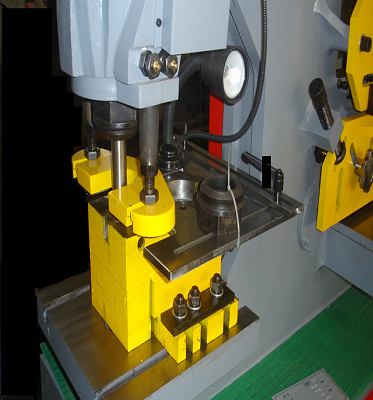

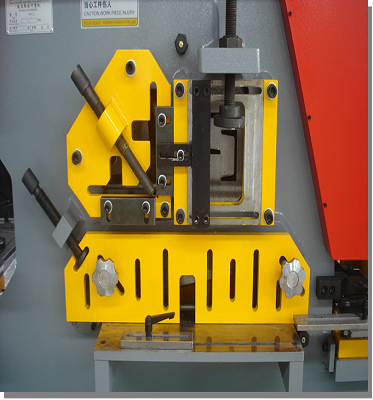

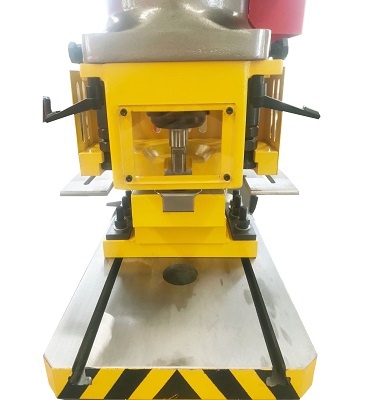

Visual safety protection device: Punching part equipped with a 360 degree visual rotary safety device, Punch more safe . And also have movable feeder
Electric : Main electric is Schneider. Equipped with open door automatic power-off protection device , more safe .
CNC System: CNC control , can automatic pressing material . Automatic control switch , control the backgauge. Multi - station cnc control system.
Automatic Backgauge: Ball screw automatic backgauge device, Scale positioning , automatic cut. Work table multi-angle engraved positioning , can cut high precision, reduce manual measurement .
Temperature control device: Visual pressure gauge. Integral fuel tank and Temperature control fan, can control the oil temperature. Increase working hours, improve work performance.
Details
- CNC or Not: CNC
- Condition: New
- Nominal Force (kN): 900 kN
- Power Source: Hydraulic
- Voltage: 380V/220V Optional
- Dimension(L*W*H): 1950*900*1950
- Weight (T): 2.4
- Key Selling Points: Automatic
- Warranty: 1 Year
- Showroom Location: Egypt, Turkey, India, Mexico, Russia, Kenya, Argentina, UAE, Colombia
- Applicable Industries: Construction works
- Machine Type: Hydraulic Ironworker
- After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: Canada, France, Brazil, Australia, Kenya, South Korea, Romania, Ukraine
- Certification: CE ISO
- Function: Punching and notching
- Flat bar shearing: 20*330 10*480
- Application: hole punching and metal forming machine
- Punch depth: 20mm
- Angle shear: 8°
- Max cutting thickness: 20mm
- Slider stroke: 80mm
- Max punching diameter: 30mm
- Weight: 2400kg
- Power(W): 7.5kw
