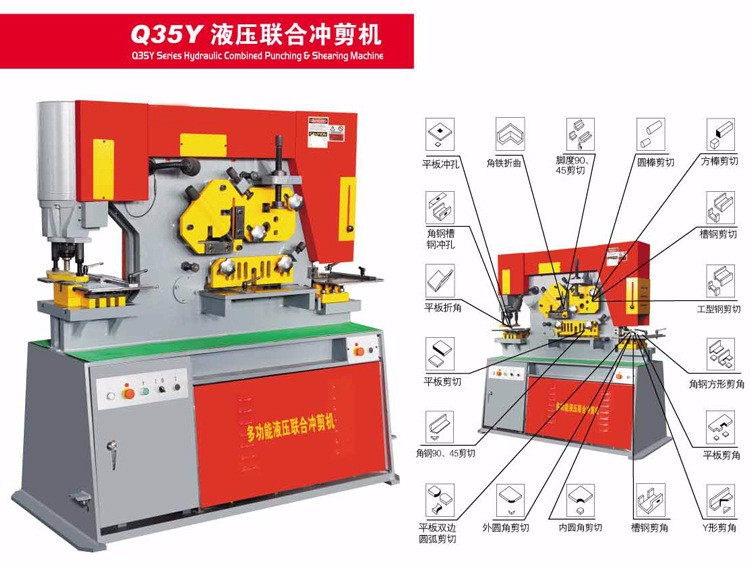

Q35Y hydraulic ironworker machine industrial-grade combined punching and shearing machine featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.
Features At A Glance
Hydraulic combined Ironworker punching machine
The machine adopts hydraulic driver,is the latest products in our country. It can shearand cut punch a hole and cut moulds for square steel, steel strip channel, "工" shapesteel and angle steel and equip with empress anticipate.
Product Specifications
| Type | Unit | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 |
| Punching pressure | T | 55 | 75 | 115 | 140 | 200 | 250 |
| Max.cutting thickness | mm | 16 | 20 | 25 | 30 | 40 | 50 |
| Plate strength | N/mm2 | W450 | W450 | W450 | W450 | W450 | W450 |
| Cutting angel | ° | 7° | 8° | 8° | 8° | 8° | 8° |
| Slipper stroke | mm | 80 | 80 | 80 | 80 | 100 | 100 |
| Travel times | times/min | 8 | 8 | 8 | 8 | 8 | 8 |
| Throat depth | mm | 300 | 355 | 400 | 600 | 700 | 800 |
| Punching thickness | mm | 16 | 20 | 25 | 26 | 35 | 35 |
| Max.punching diameter | mm | 25 | 30 | 35 | 38 | 40 | 45 |
| Main motor Power | Kw | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Dimension（LxWxH） | mm | 1640x730x1770 | 1860x800x1900 | 2350x960x2090 | 2680x1040x2300 | 2800x1100x2500 | 3000x1150x2600 |
| Weight machine | kg | 1600 | 2000 | 4800 | 6800 | 8600 | 12000 |
Punching In Ironworker Machine

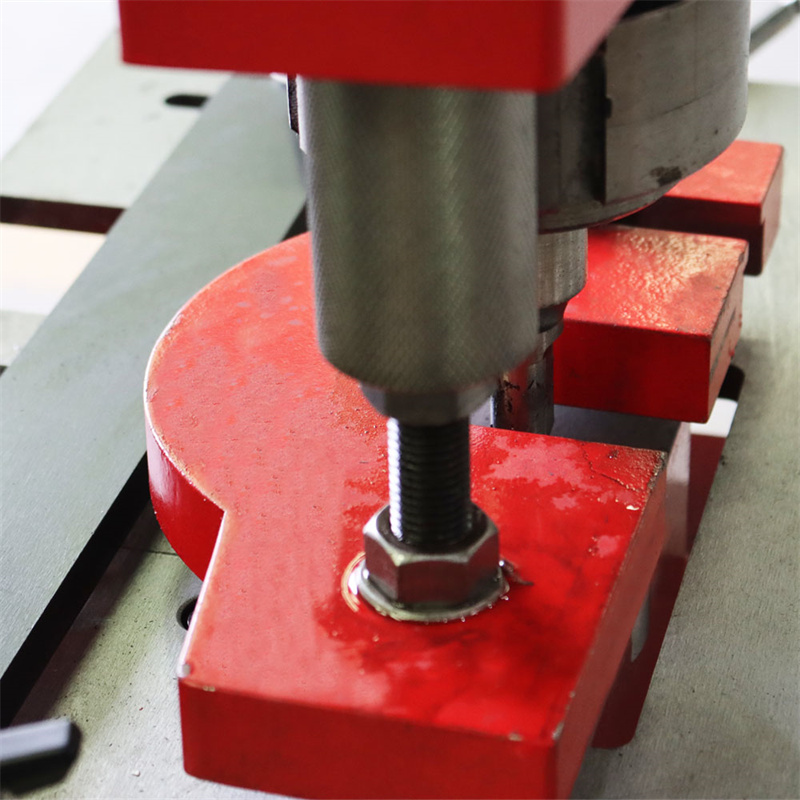

The machine punches from 30 mm diameters (8 mm thickness) to 57 mm diameters (22 mm thickness) very efficiently. Punches and dies are easily changeable. We provide special punches at short notice.
Steel Round Square Bar Shearing
With this part of machine, squares from 25 mm to 55 mm and rounds from 30 mm diameters to 65 mm diameters can be cut very fast. By changing the blades you can also U-I or T sections. We provide special blades.
Angle Shear In Ironworker
Here with the help of special blades you can cut several types of 90° – 45° angle sections efficiently.
Notching
The machine comes with a rectangular notching tool which you can use for your notching works. We provide special notching tools for you notching works.
A Multifaceted Tool
These universal machines are supplied with standard tooling including X,Y gauging support tables at punch,shear, and notch stations. There are easily adjusted hold downs at all five work stations. Each work station is also equipped with specially designed hold downs to ensure safety while providing precision alignment and ease of use.
Details
- CNC or Not: CNC
- Condition: New
- Nominal Force (kN): 650
- Power Source: Hydraulic
- Place of Origin: Anhui, China
- Voltage: 220V&380V
- Dimension(L*W*H): 1640*730*1770
- Motor Power (kW): 4kw
- Weight (T): 1660
- Key Selling Points: High-accuracy
- Warranty: 5 years
- Showroom Location: Germany, Indonesia, India, South Africa
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Construction works
- Machine Type: Hydraulic Ironworker
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 Years
- Core Components: pump
- Color: Customizable
- Material: Q235
- Frame: Frame Guide
- Precision: 0.01mm
- Control: Hydrulic
