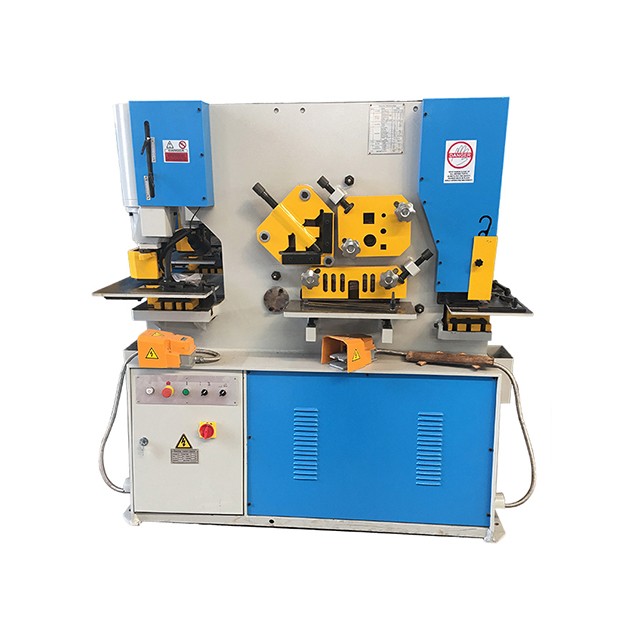

Application
They adopt hydraulic driving system and they are the latest iron workers in our country, various metal plate, square bar, Round bar, angle, channel and joist can be cut, punched and notched on the machine. It is also equipped with a stop device for cutting.
1) 2 separate hydraulic piston and foot pedal to allow 2 operator to work at the same time
2) More productivity with adjustable piston stroke distance
3) Central lubrication system
4) Electrical back gauge
5) Working light
6) Five individual workstation on the machine:
a) Ø26 mm punch and die and standard punching tools
b) Steel solid round and square bar cutting blade set
c) Angle cutting blade set
d) Sheet metal cutting shear
e) U-Notching blade set
Specifications For Hydraulic Iron Worker
| Specification | Model | Q35Y-12 | Q35Y-15 | Q35Y-16 | Q35Y-20 |
| Process Capacity | 40T | 55T | 60T | 90T | |
| Punching | Dia.(punch)*Thickness(mm) | 22*12 | 24*15 | 25*16 | 30*20 |
| Ram Stroke(mm) | 60 | 60 | 80 | 80 | |
| No. of stroke(times/min) | 8 | 8 | 8 | 8 | |
| Cutting | Max.thickness of plate (mm) | 12*250 | 15*300 | 16*250 | 20*330 |
| Max. width of plate (mm) | / | / | 8*400 | 10*480 | |
| Angle Shearing | 900 shearing (mm) | 100*10 | 120*12 | 125*12 | 140*12 |
| 450 shearing (mm) | 70*6 | 60*6 | 50*5 | 50*5 | |
| Notching | Thickness (mm) | 12 | 15 | 16 | 20 |
| Width (mm) | 22 | 24 | 25 | 30 | |
| Depth (mm) | 200 | 200 | 300 | 350 | |
| Specification | Model | Q35Y-25 | Q35Y-30 | Q35Y-40 |
| Process Capacity | 110T | 140T | 200T | |
| Punching | Dia.(punch)*Thickness(mm) | 35*25 | 38*26 | 41*35 |
| Ram Stroke(mm) | 80 | 80 | 100 | |
| No. of stroke(times/min) | 6 | 6 | 8~25 | |
| Cutting | Max.thickness of plate (mm) | 25*330 | 30*355 | 35*400 |
| Max. width of plate (mm) | 16*600 | 20*600 | 25*700 | |
| Angle Shearing | 900 shearing (mm) | 160*14 | 180*16 | 200*18 |
| 450 shearing (mm) | 60*6 | 60*6 | 80*10 | |
| Notching | Thickness (mm) | 25 | 26 | 35 |
| Width (mm) | 35 | 38 | 41 | |
| Depth (mm) | 400 | 600 | 600 | |
Detailed Images

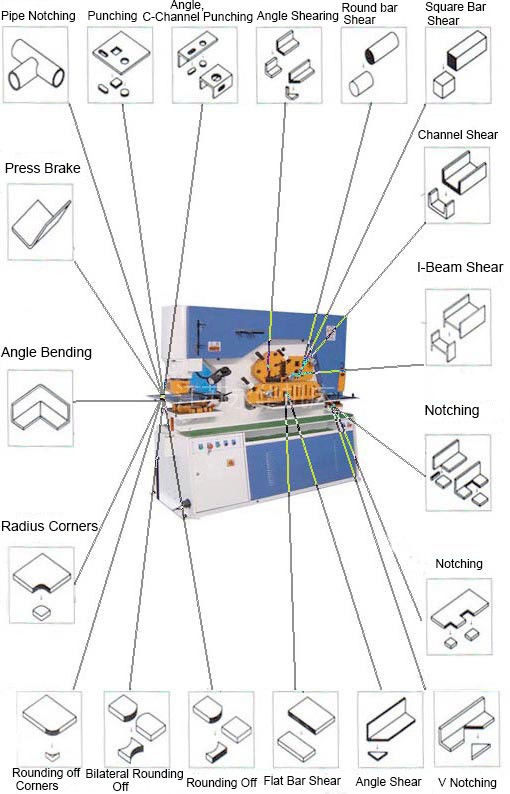

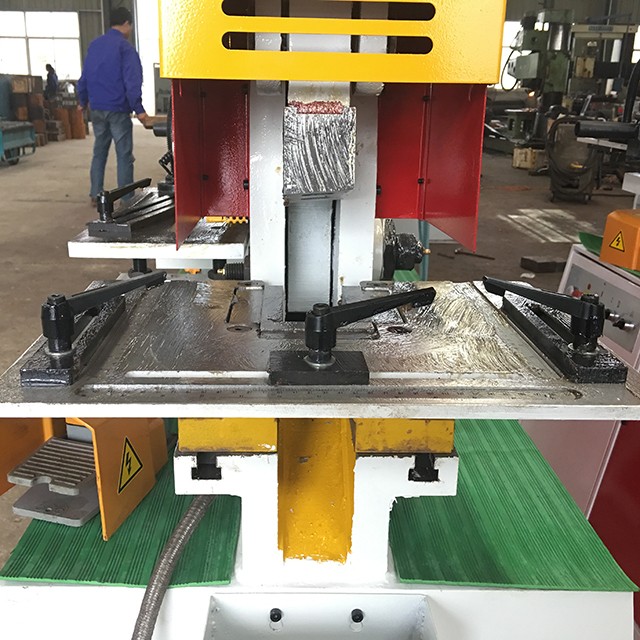

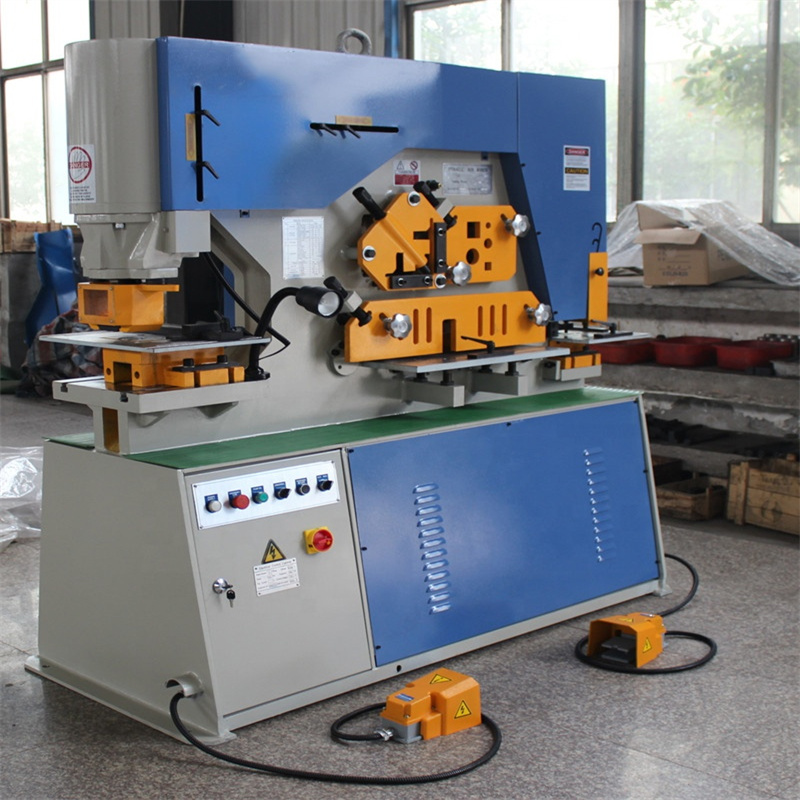

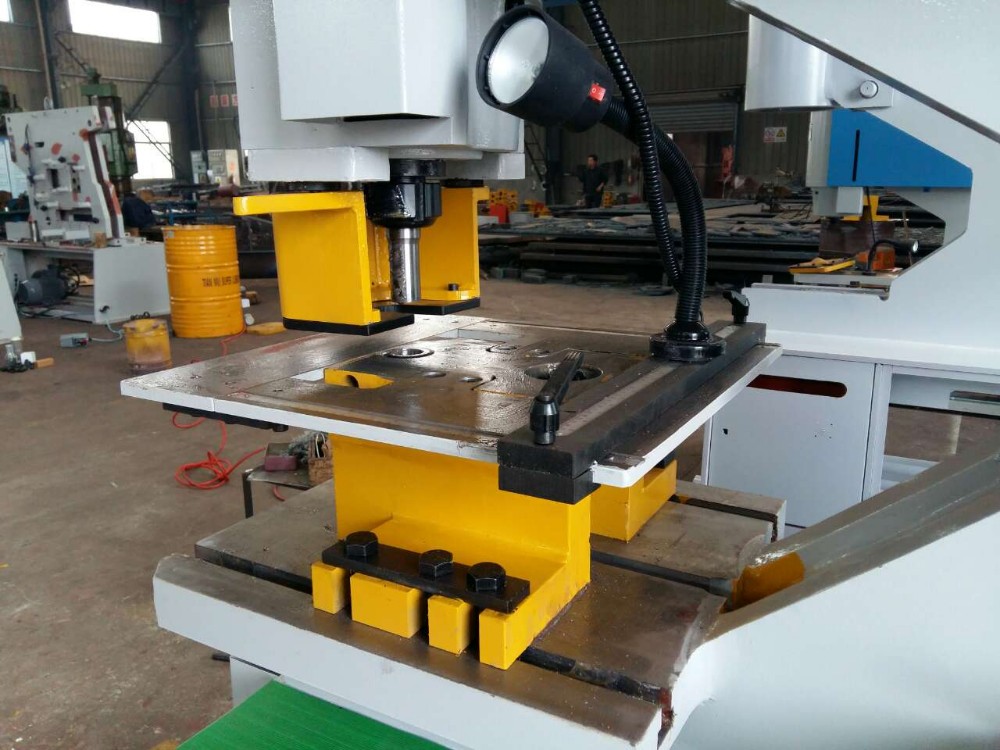

Punching Station

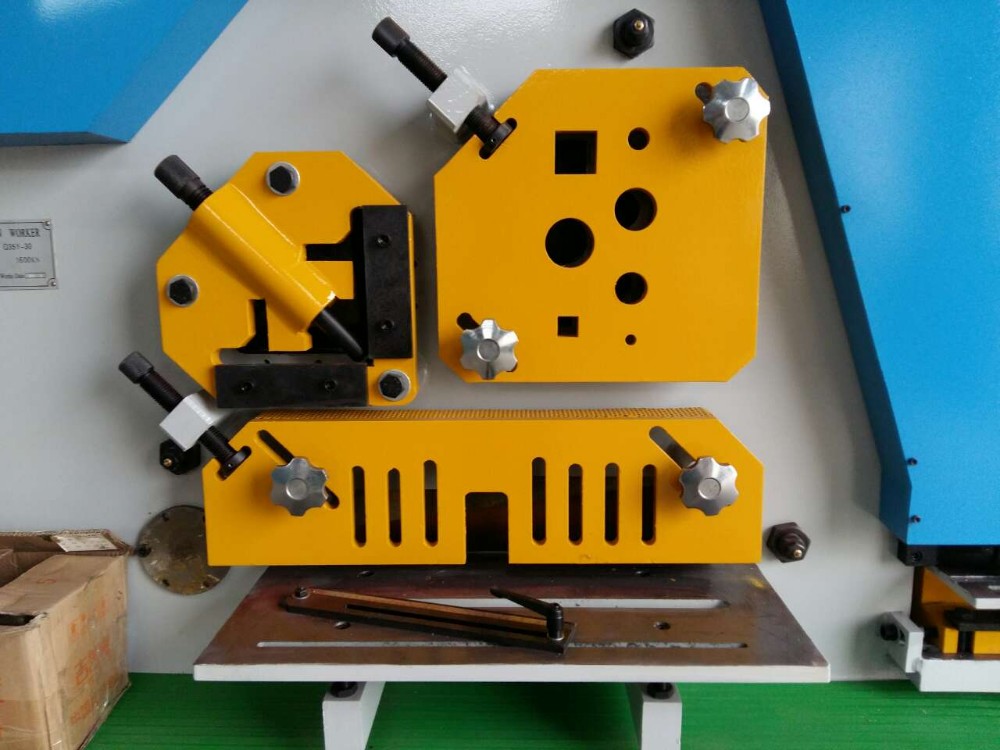

Solid Stock , Flat Bar and Angle Shearing Stations.
Rectangle Notching Station

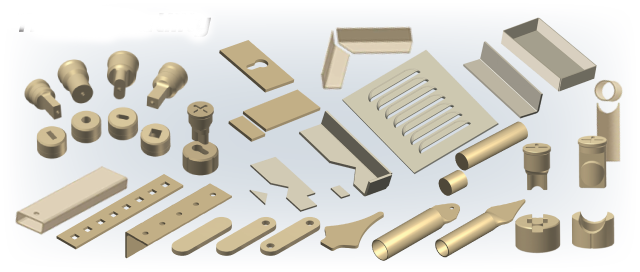

Mould Tooling and Samples.
Details
- CNC or Not: Normal
- Condition: New
- Nominal Force (kN): 1100
- Power Source: Hydraulic
- Voltage: 380v
- Dimension(L*W*H): 2350*960*2090
- Motor Power (kW): 15
- Weight (T): 4500
- Key Selling Points: Multifunctional
- Warranty: 12 Months
- Showroom Location: None
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Construction works , Manufacturing Plant, Energy & Mining
- Machine Type: Hydraulic Press
- Punching Pressure(KN): 1100 Ironworker
- Max Shearing Thickness(mm): 25 Ironworker
- Shearing size of One Stroke(mm): 25*330
- Throat depth standard(mm): 400
- Punching Thickness(mm): 25
- Max.Diameter of Punching(mm): 25
- After Warranty Service: Video technical support, Field maintenance and repair service, Spare parts, Online support
- Local Service Location: UAE
- Certification: ce
