Product Description
Hydraulic transmission is the latest product of the multi-function joint punching and shearing machine, shearing, punching, die cut flat steel, square steel, round steel, angle steel, channel steel, I-beam carried, and equipped with shear blockfeeding devices
Main functions:
2 independent hydraulic piston rods and foot-pedal allows two people operating at the same time.
More efficient stroke-control functions of piston rod.
Central lubricating system
Motor-driven rear stopper
Lighting devices for work

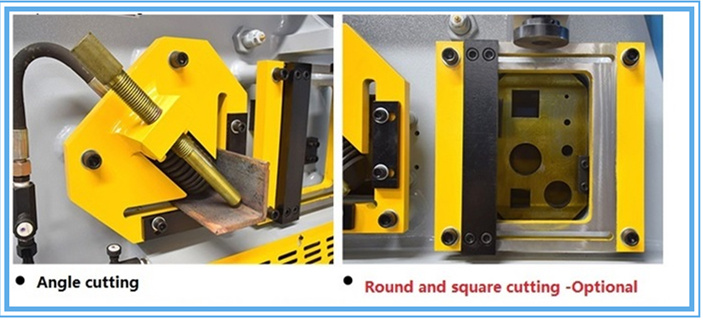

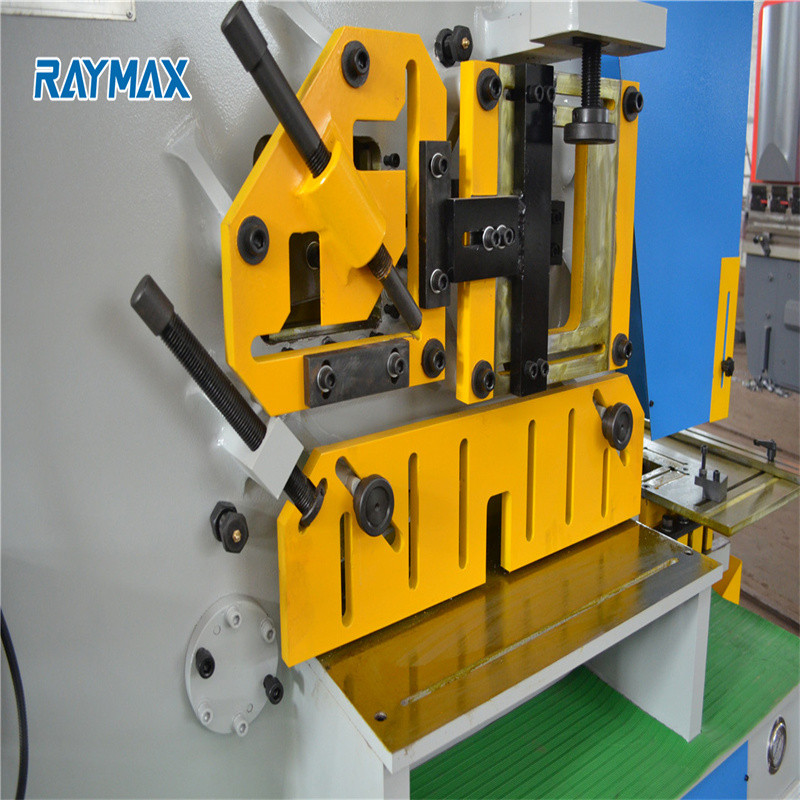

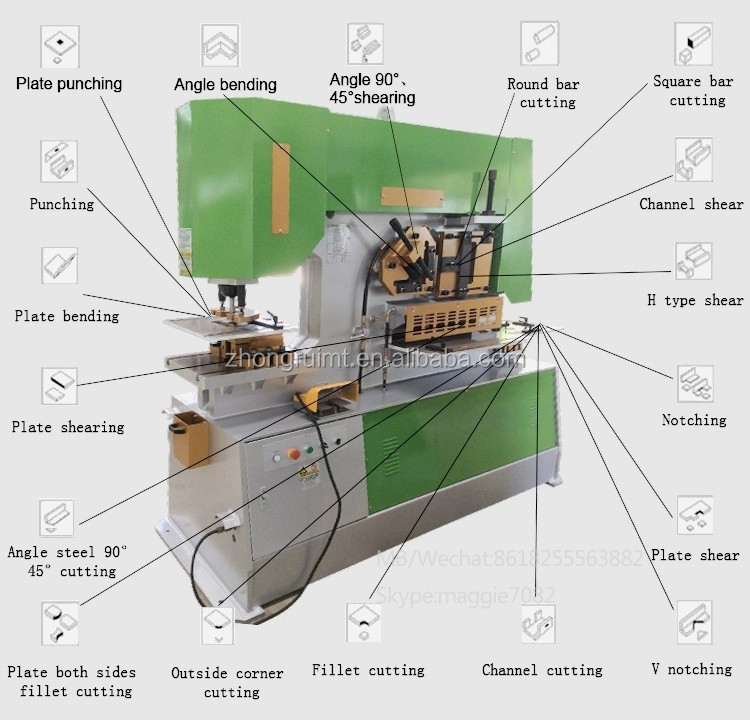

5 independent work-positions: punch pin and die (standard punching dies), cutting blade group for round and square steel, shearing blades for steel plate, slotting and angle-cutting blade.

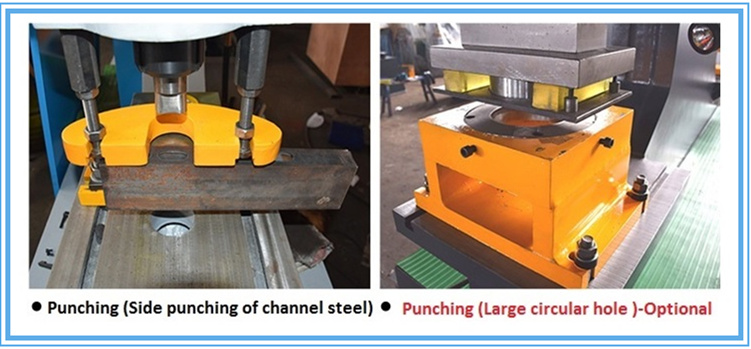

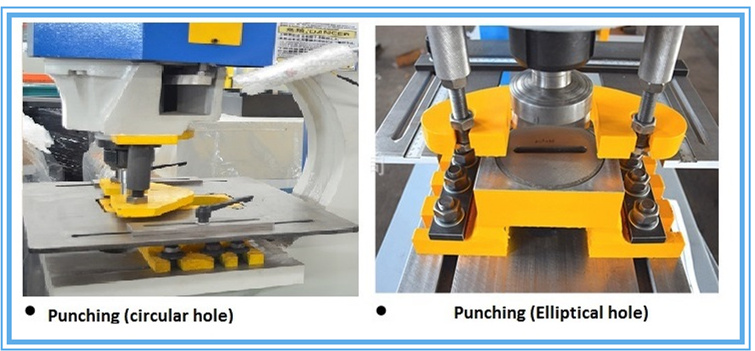

| Punching | effective punching can be achieved with the machine, and stamping die is easy to be replaced. |

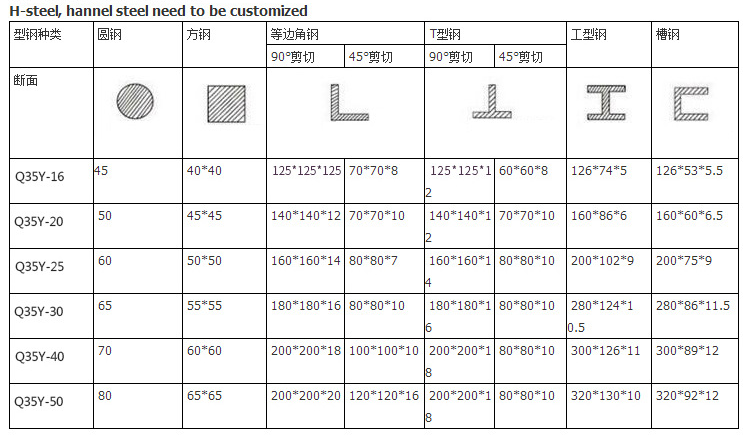

| Bar cutting | can quickly cut the round bar and square steel, if you want to cut U-shaped, I-beam or T-profile section steel only by exchanging the cutting blade and the operation procedure is very simple |
| Metal Sheet Bending | it is very easy to fulfill the daily metal sheet bending work by making the bending moulds. |
| Notching | The machine is equipped with a large-shaped slotting blade head, which can meet your general use, as to, special shaping blade head can be customized |

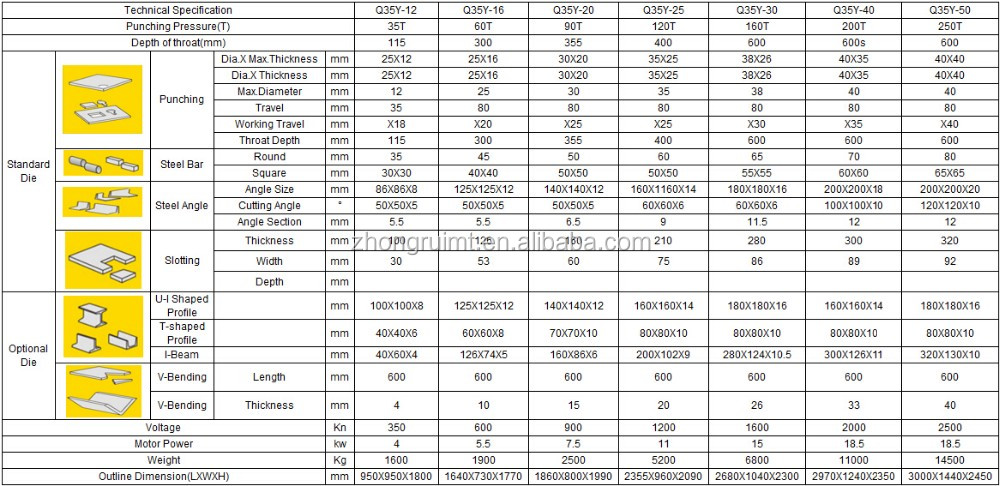

Technical Parameter
Detailed Images

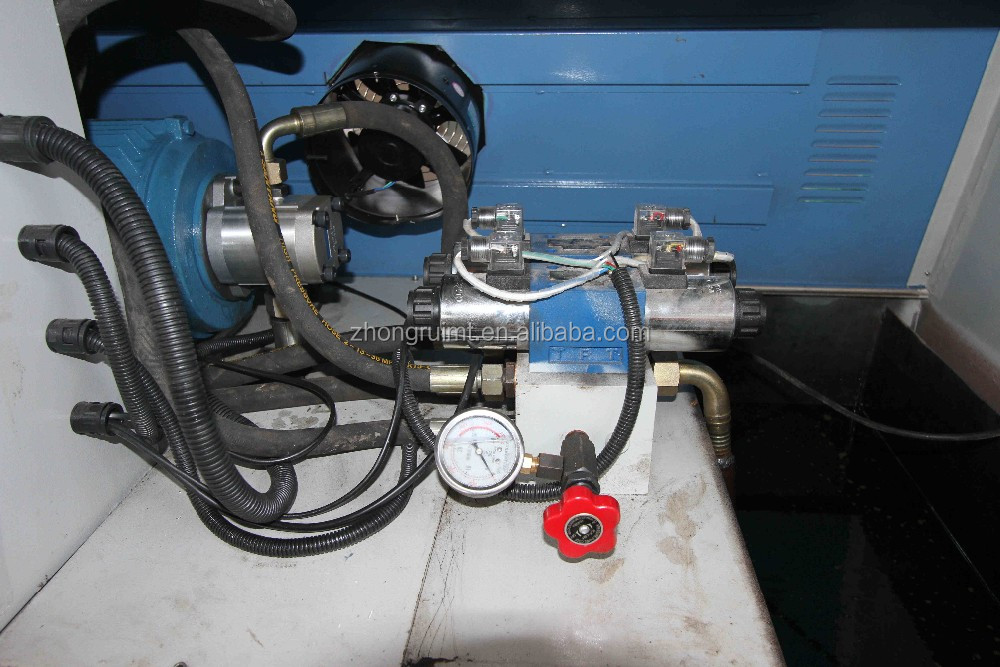

Hydraulic System
Adopt integrated hydraulic control system, more reliable and easy for maintenance.
Reduced noise: the particular installation choices allow to obtain especially moderate noise levels both on machines of average capacity
Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.

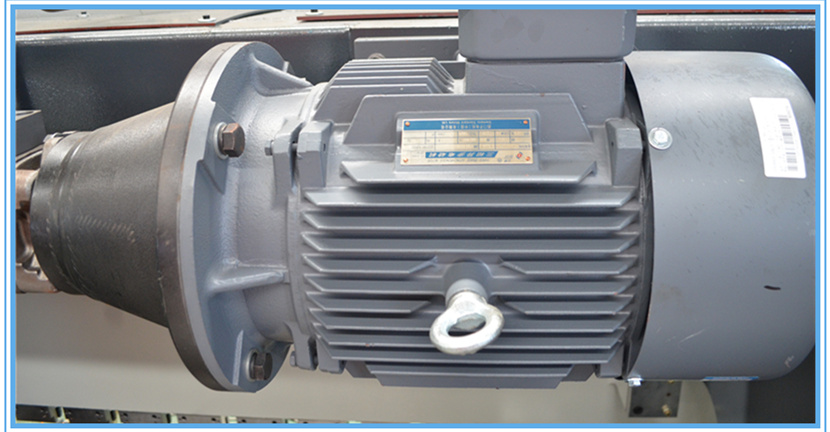

Main motor
Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
Emergency stops on machine and foot switch for safety,Foot pedal conforming to CE regulation.

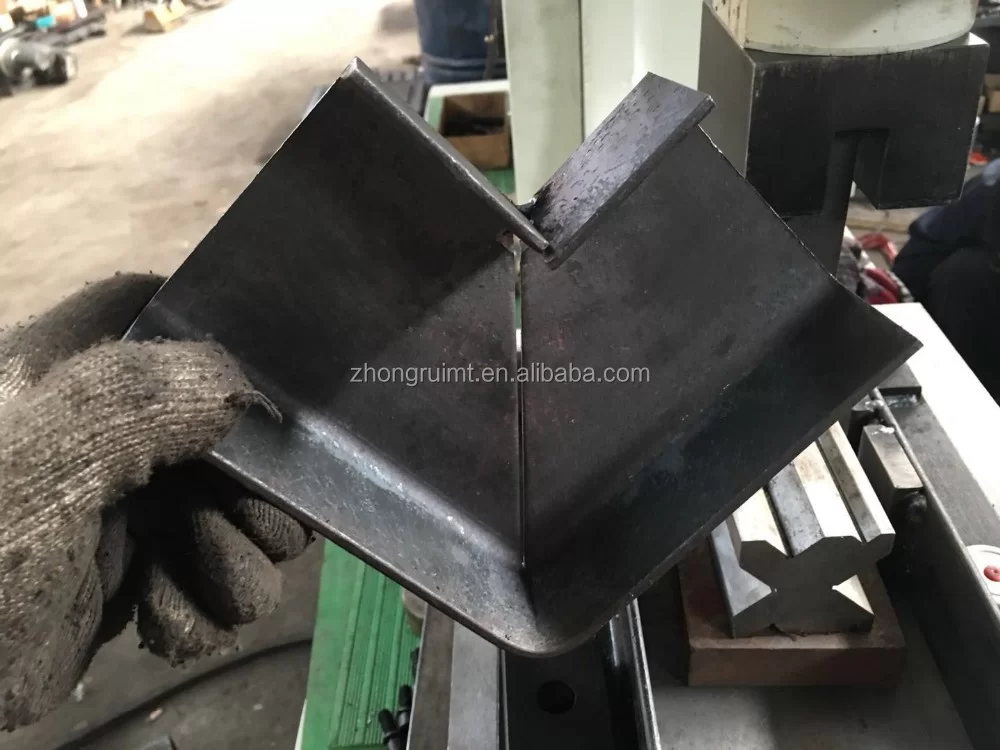

bending mold customized
Details
- Model Number: Q35Y-16
- CNC or Not: Normal
- Condition: New
- Nominal Force (kN): 60 kN
- Power Source: Hydraulic
- Place of Origin: China
- Voltage: 220V380V, Customized
- Dimension(L*W*H): 1780*920*1780
- Motor Power (kW): 5.5
- Weight (T): 2.2
- Key Selling Points: Multifunctional
- Warranty: 1 Year
- Showroom Location: United States, Spain, Thailand
- Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Advertising Company
- Machine Type: Punching Machine
- After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
- After Warranty Service: Video technical support, Online support, Spare parts
- Local Service Location: United States, Spain, Thailand, Malaysia
- Certification: ISO, CE,ISO,CIQ
- Punching Pressure: 60 Ton
- Max.shearing thickness: 16mm
- Shearing angel: 8 degree
- Shearing size of one stroke: 16X250 8X400 mm
- Ram Storke: 80 mm
- Munber of Strokes: 6
- Throat Depth: 300 mm
- Punching Thickness: 16 mm
