Product Description
The second generation of hydraulic shearing machine QC11Y series adopts steel plate welding structure, which eliminates stress during vibration, and has good rigidity and stability. It adopts three-point supporting rolling guide to eliminate supporting gaps and improve cutting quality. It has segmented cutting function, light alignment function, motorized back gauge, digital display. In the machinery industry, Haas has always maintained the original aspiration to achieve quality, efficiency, and safety requirements.
Details Images CNC system (Optional)
DAC-360S（DELEM）
* Panel based housing
* Bright LCD screen
* Back / front gauge control
* Retract function
* Cutting angle control and gap control
* Stroke length limitation
* Manual movement of all axes
* Force control
* Sheet thickness measurement
* RTS, Return to Sender function
* Second servo axis (DAC-362s)
* Sheet support
DAC-310S（DELEM）
* Bright LCD 128 x 64 display
* Backgauge control
* Gap control
* Stroke length limitation
* Actual and Programmed position visualization
* Stock counter
* Programmable up to 100 steps
* Panel-based housing
* Servo control / inverter / 2-speed AC control

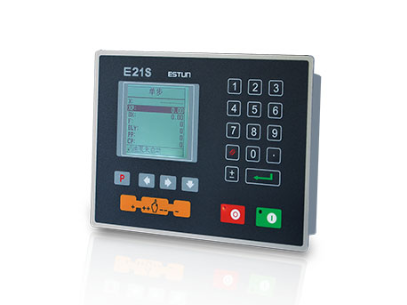

E21S
* High-definition LIQUID crystal display screen, with Chinese and English two languages optional, one page display programmingparameters, when writing programs more fast and convenient. * Rear gear: intelligent positioning, or manual adjustment as required to remove the mechanical hand positioning device.
* Shear stroke: built-in shear time relay, simple operation, cost saving.
* Shearing Angle: The built-in shearing Angle adjustment function eliminates the Angle indicator light and the button.
* Blade gap: encoder feedback, timely display blade gap size, easy to operate.
* With one-key backup and recovery function of parameters, parameters can be restored at any time according to needs, and maintenance cost can be reduced.
* All the keys on the panel are microswitches, which have been subjected to EMC, high and low temperature, vibration and otherstrict tests to ensure the stability and service life of the products.
* Through CE certification, to meet the needs of overseas markets.

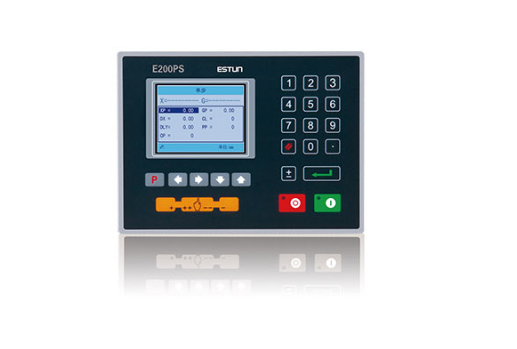

E200PS
* Color LCD hd display, with Both Chinese and English language optional, one page display programming parameters, more rapid and convenient programming. * CAN bus technology is adopted to control X and Y axes with high control precision and resolution up to 0.001.
* The installation and wiring are simple and the reliability of the system is improved.
* Shear stroke: built-in shear time relay, simple operation, cost saving.
* With built-in control functions such as knife edge clearance, shear stroke, concession delay, etc.The parameters can be set according to actual needs for real-time control of cutting between teeth and franchising.
* Blade gap: encoder feedback, promptly display the blade gap size, easy to operate.
* With machine control function, it simplifies the wiring in the electric cabinet, saves costs and improves reliability.
* All the buttons on the panel are micro switches, which have been strictly tested for EMC, high temperature, low temperature,vibration, etc. to ensure the stability and service life of the product, with self-diagnosis and real-time alarm functions,debugging and debugging functions, and more convenient maintenance . Keep the safe interface, easy to expand.
* CE certification can meet the needs of overseas markets Security configuration
Protective net/Pedal start and stop
The QC11Y series shearing machine is equipped with a processing guardrail and a foot-operated controller, which better
guarantees the operator's processing safety and control safety.

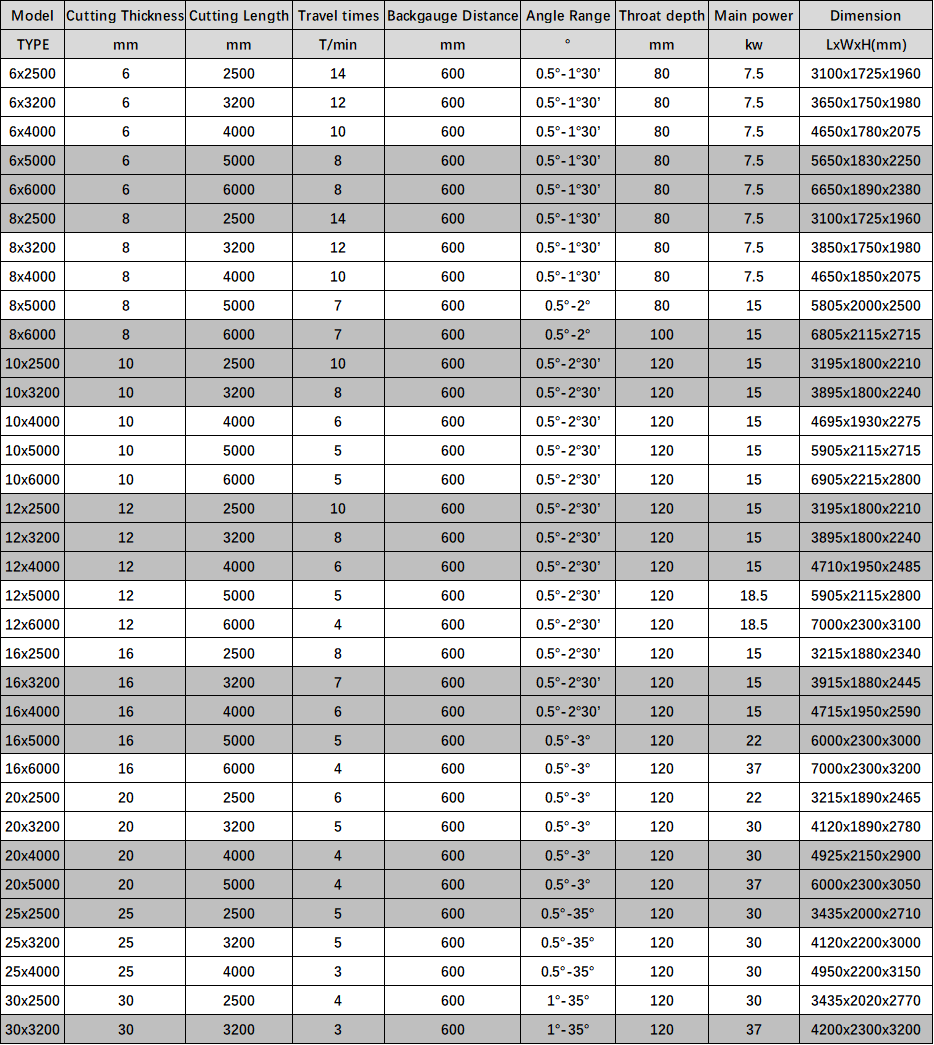

Hot machine model
| 1 | QC11Y-6/2500 |
| 2 | QC11Y-8/2500 |
| 3 | QC11Y-10/3200 |
| 4 | QC11Y-12/2500 |
| 5 | QC11Y-16/2500 |
| 6 | QC11Y-20/3200 |
Means Of Transaction
| Our trade terms | CIF(recommend)/FOB | |||||
| Our payment method | L/C | D/A | D/P | T/T | Western Union | MoneyGram |
| Our payment channels | Credit Insurance Transaction Order(recommend) | Bank transfer | ||||
1. Buyer pays 30% advance payment.
The machine began to make processing.According to the customer's configuration requirements, from the processing of the machine frame, the heat treatment, the se
lection of accessories, the assembly of the machine and the production and debugging, this process takes about 15-20 days.
2. After the machine is made, the buyer pays the remaining 70% of the amount. After the machine is manufactured and debugged, we will send the video to the buyer and transport it to a port in China for shipment to the destination port. This process takes about 1 -2 days.
After the machine is put into the container at the port, we will wait for the scheduled sailing schedule. Generally, we will choose to book the nearest sailing schedule. This process takes about 2-3 days The machine is transported from the port to the destination portAfter the agreed sailing time is up, the machine will be transported from the Chinese port to the destination port. According to the distance between each country/region, this process will be different, and the sailing time will also be different, but we will inform you about the situation before the buyer pays. Sailing days
FAQ
Q: Are you a factory or a trading company?
A: We are factory.
Q: How long is the warranty period of your machine?
A: The whole machine is guaranteed for one year, and the core components are guaranteed for two years.
Q: Can you supply the relevant documentation?
A: Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
Q: How about the shipping fees?
A: The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
Details
- Max. Cutting Width (mm): 2500
- Max. Cutting Thickness (mm): 4 mm
- Automatic Level: Fully Automatic
- Shearing Angle: 1°30'
- Blade Length (mm): 2500 mm
- Backgauge Travel (mm): 20 - 500 mm
- Throat Depth (mm): 80 mm
- Condition: New
- Brand Name: RAYMAX
- Power (kW): 5.5 kW
- Weight (KG): 3100 KG
- Place of Origin: Anhui, China
- Voltage: 380V
- Dimension(L*W*H): 3040*1550*1550
- Year: 2020.9.1
- Warranty: 1 Year
- Key Selling Point
s: Automatic - Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
- Showroom Location: Pakistan, India, Kenya
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Motor, PLC
- Model: 4*2500
- Cutting Thickness: 4mm
- Cutting Length: 2500mm
- Cutting Angel: 1°30'
- throat depth: 80mm
- Backgauge Distance: 500mm
- Travel Times: 14T/min
- Main Power: 5.5kw
- Overall Dimension: 3040*1550*1550
- After-sales Service Provided: Online support
