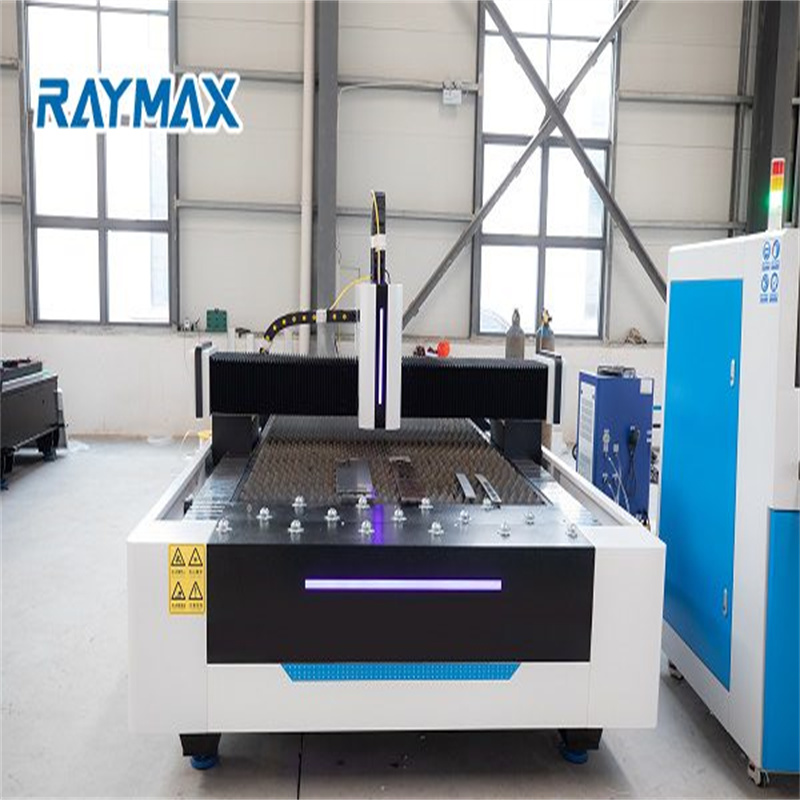

10KW Fiber Laser Cutting Machine for High Power 10000W Fiber Laser Cutting stainless steel assemble their lasers cutting machine 2000w/3000w/4000w/6000w to the strictest quality standards with nothing but world class components to ensure lasting quality at an attractive price. SmartLine is the general purpose 2D laser cutting machine by utilized around the globe across a multitude of applications, manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.
The following elements are included:
• Laser Cutting Head: Raytools laser cutting head;Precitec Cutting head
• CNC Controller: CypCut Fscut 2000 CNC System; BECKHOFF TwinCAT Touch Screen Control System HYPCUT Touch FSCUT8000 TwinCAT CNC System
• Cutting Area: 3000x1500mm, 4000×20000mm, 6000x2000mm, 6000x2500mm
• Cutting Speed: Max 100m/min; Positioning: 140m/min; Accelerations:1.6G
BRAND SmartLine is the general purpose 2D laser cutting machine by utilized around the globe across a multitude of applications, manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.
FULLY ANNEALED FRAME
steel frames undergo annealing at over 600⁰ to relieve stress. They are built to last years of heavy use without distortion.Auto changing pallet system allows over 1800kg loading weight.A heavier frame means less vibration and better accuracy. the machine frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to the chassis by steel bars.
LASER BEAM SECTION

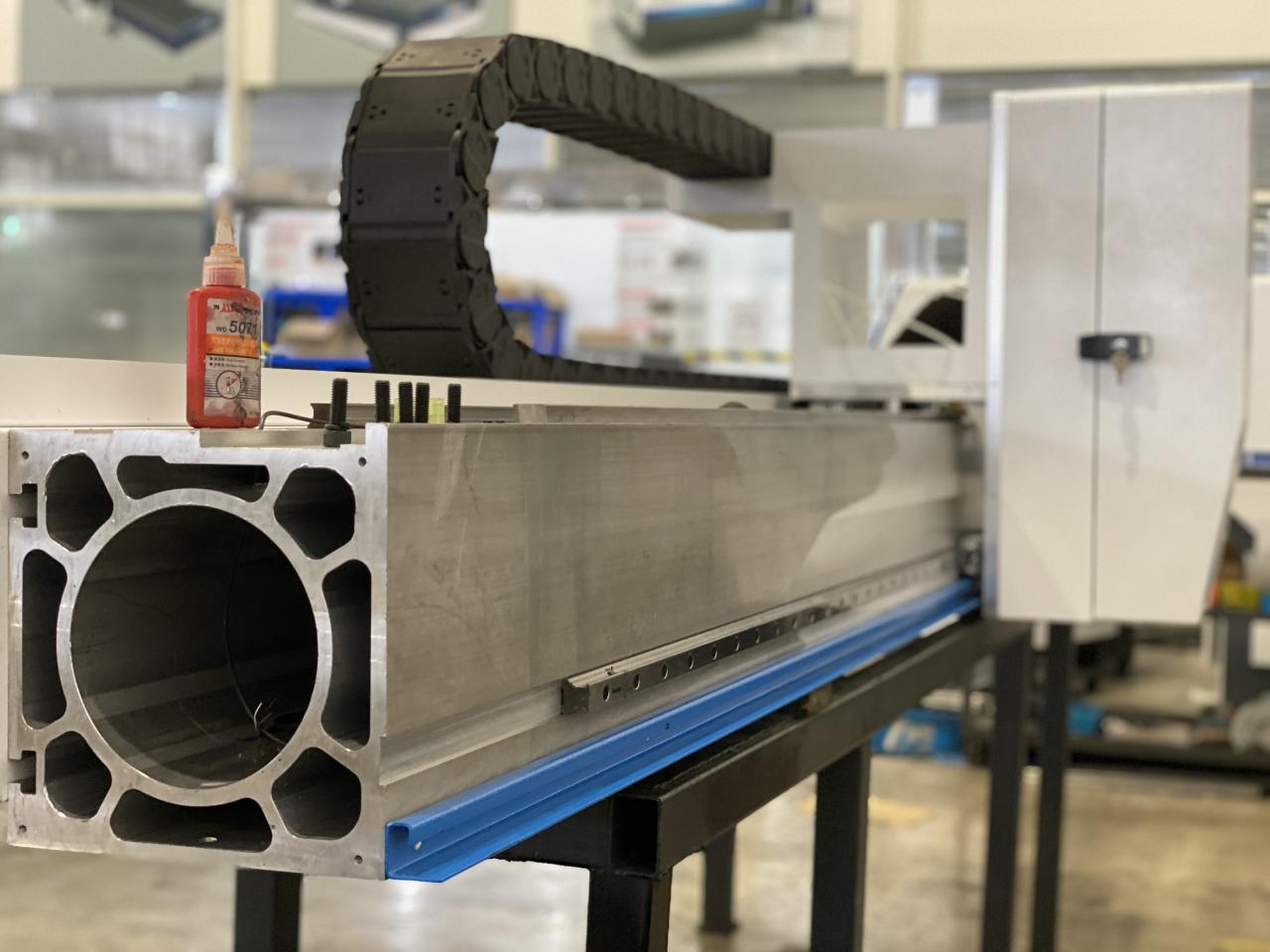

The beam body adopts the overall aluminum casting method, annealing eliminates internal stress and processes, The process is casting →annealing stress → rough machining → vibration aging → semifinishing → vibration aging →finish machining, the machine is machined after tempering, the strength, rigidity and stability of the beam are guaranteed, the precision of the beam can be maintained for a long time. Mainly for the high speed cutting of high power laser cutting machine provides an effective guarantee.
GRAPHITE ANTI-BURN TECHNOLOGY

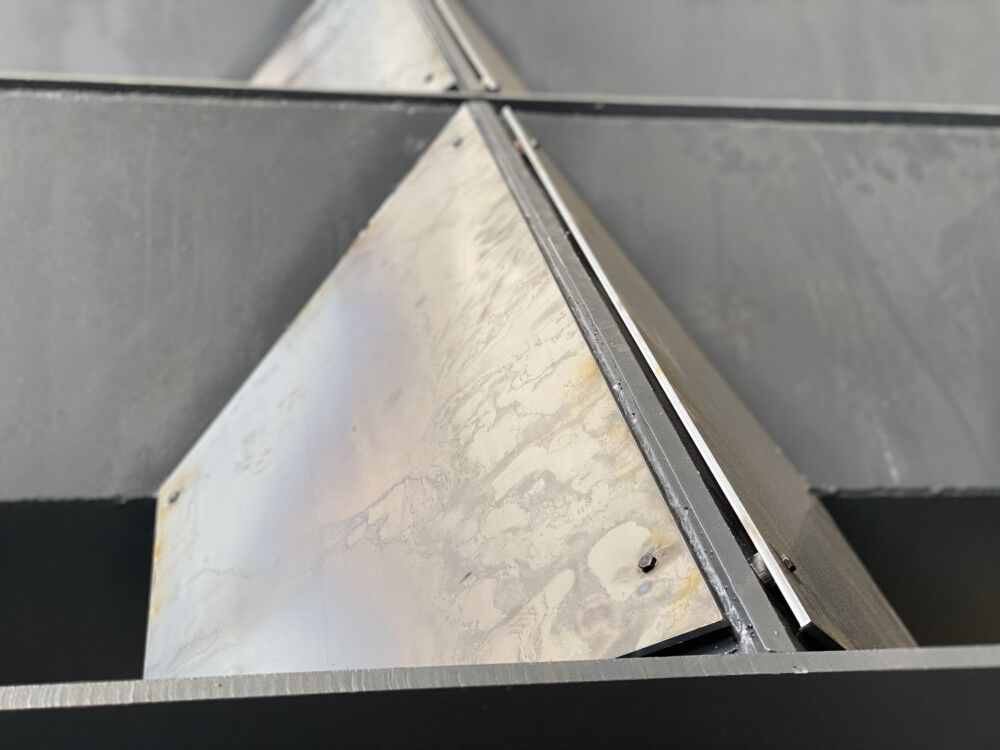

The area in the entire machine tool where the laser can shoot at isall covered and protected by 20mm thick graphite anti-bruning.To insuring the machine bed and working table not be out of shape and burned-out.
DRIVE SYSTEM
The beam is mounted on a pair of precision REXROTH linear guide rails & with advanced German ALPHA engineering and precision manufacturing have created the highest quality linear systems available today.
BECKHOFF Servo Drive: DUST EXTRACTION SYSTEM
This system is used to filter dry dust from industrial leaks, in accordance with VDI guidelines 3677, paragraph. The filter elements use compact porous filters. In many countries it is forbidden to circulate filtered air during the cutting of stainless steel (CrNi). Therefore, it is recommended that the user install air ducts to the outside.
CNC CONTROL SYSTEM
The FSCUT2000 laser cutting control system of an economical laser cutting control system.Widely used in the field of metal and nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.
LASER CUTTING HEAD: CUTTING HEAD PRECITEC PROCUTTER 2.0
The new ProCutter 2.0 generation impresses with its increased performance and new automation features. Faster, easier, more efficient, more enduring – this is how laser cutting is shaping up in the new generation, due to numerous developments.
PROFILE & PIPE CUTTING SYSTEM(OPTIONAL)
The Smartline series offers unparalleled versatility. optional tube and pipe cutting system has the capability to precisely cut pipe/tube and makes it a necessity for anyone who needs precision parts made from various materials, sizes, and thicknesses.
LASER SOURCEGermany IPG Fiber Laser Resonator
IPG 12000W Ytterbium Laser Resonator
IPG 4000W Ytterbium Laser Resonator
IPG 6000W Ytterbium Laser Resonator
| MACHINE DIMENSION AND WEIGHT | |||||
| MACHINE MODEL | 3015 | 4020 | 6020 | 6025 | 8025 |
| Lenght(mm) | 10000 | 11200 | 14000 | 14000 | 10800 |
| Width(mm) | 3080 | 4100 | 4100 | 4750 | 4750 |
| Height(mm) | 2250 | 2250 | Z axis(mm) | 100 | 100 |
| Weight(kg) | 12000 | 15000 | Max.sheet weight(kg) | 1100 | 1800 |
OPTIONAL FOR LOADER & UNLOADER BRG SYSTEM 2.0

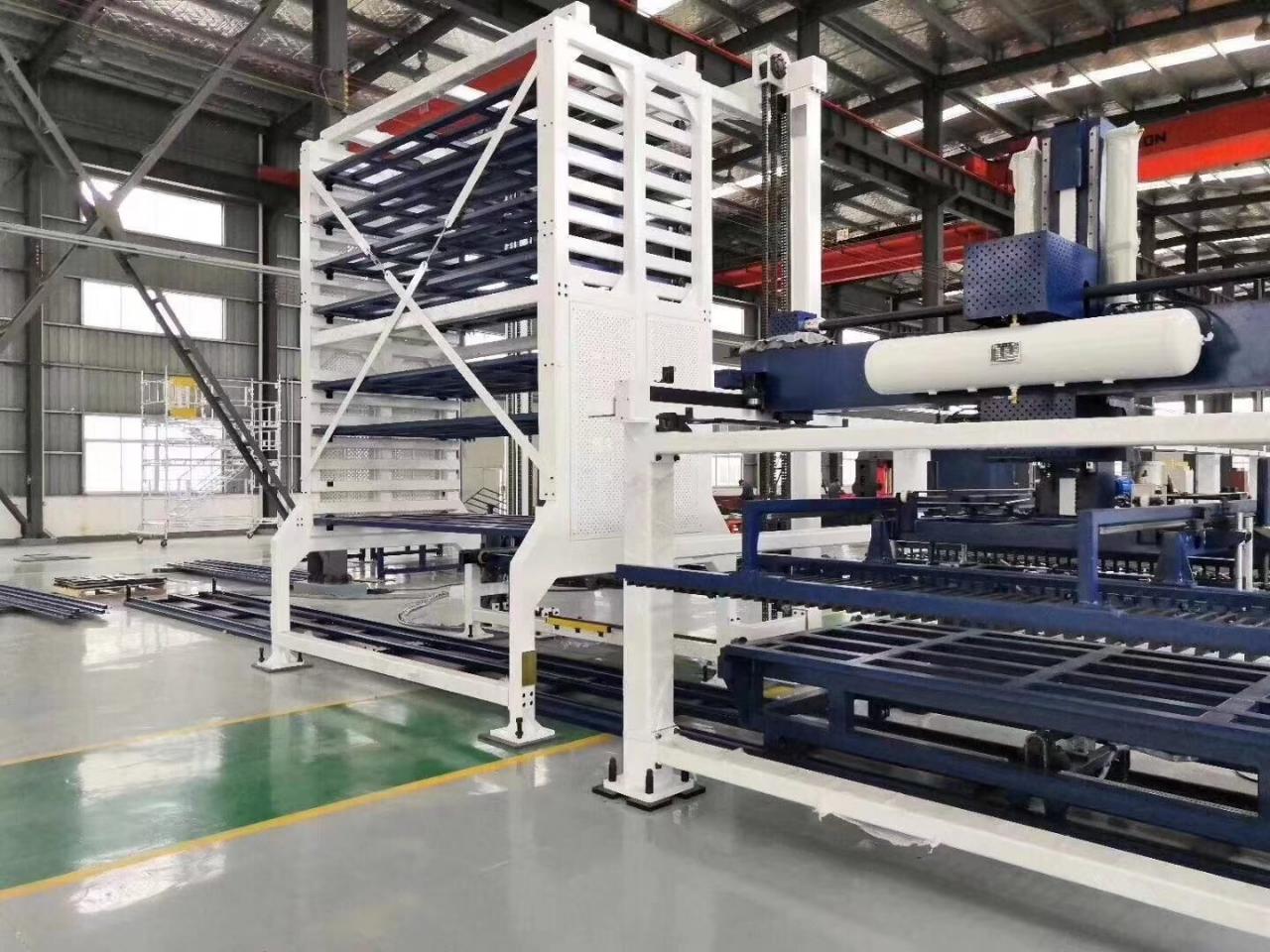

Loader & unloader BRG System 2.0 is the automated solution that best optimizes the flow of material, which improves both the safety at work and the safety of the process. The solutions included range from simple operation to fully automated operation.
We are currently reviewing our product packaging from the angles of waste-reduction and resource-saving. We are also working on improving transportation efficiency from the design phase of product development.
1. Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
3. The outmost is wooden case with fixed formwork.
4. The bottom of the wooden case has firm iron jack, convenient to handing and transport.
Our Serives
The use of an interferometer records the machines X and Y axis movement during cutting to ensure accuracy. Adjustments are made to ensure machine is precisely tuned before shipment. A Marble test is performed to measure the X and Y axis, calculating any necessary adjustments to ensure perfect level and alignment along length of machine.A collimator is run along the full length of the guide rail, testing for straightness. Adjustments are made as required to ensure linear accurae linear accuracy.
Details
- Application: LASER CUTTING
- Applicable Material: MDF, Metal, Crytal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500*3000mm
- Cutting Speed: 100m/min
- Graphic Format Supported: AI, DXF, Dst, Dwg, LAS, DXP
- Cutting Thickness: 100mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut Control System
- Place of Origin: Anhui, China
- Laser Source Brand: IPG
- Laser Head Brand: Raytools
- Servo Motor Brand: Yaskawa
- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 15000 KG
- Key Selling Points: High-accuracy
- Optical Lens Brand: Might
- Warranty: 3 years
- Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Pressure vessel, Motor
- Mode of Operation: Pulsed
- Configuration: cantilever type
- Products handled: Sheet Metal and Tube
- Feature: Programmable
- After-sales Service Provided: Engineers available to service machinery overseas
- Laser type: IPG fiber laser generator from USA
- Laser wavelength: 1070nm
- Laser power output rating: 6kw-20kw
- X-axis travel: 1500mm
- Y-axis travel: 3000mm
- Working table: Open design, fixed table
- Driving mode: Double rack and pinion driving system
- Control system: Cypcut Control System
