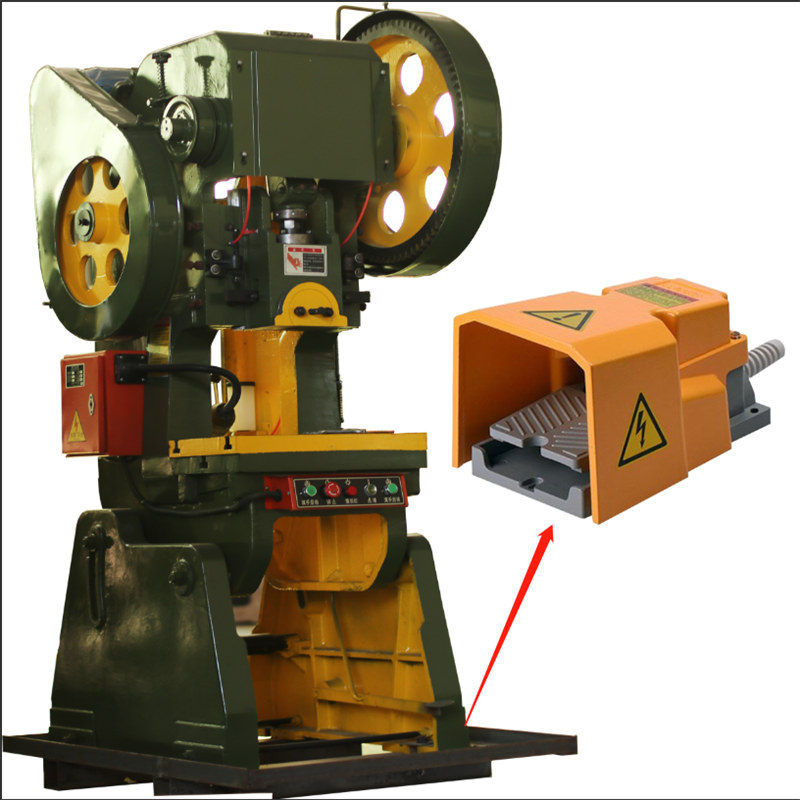

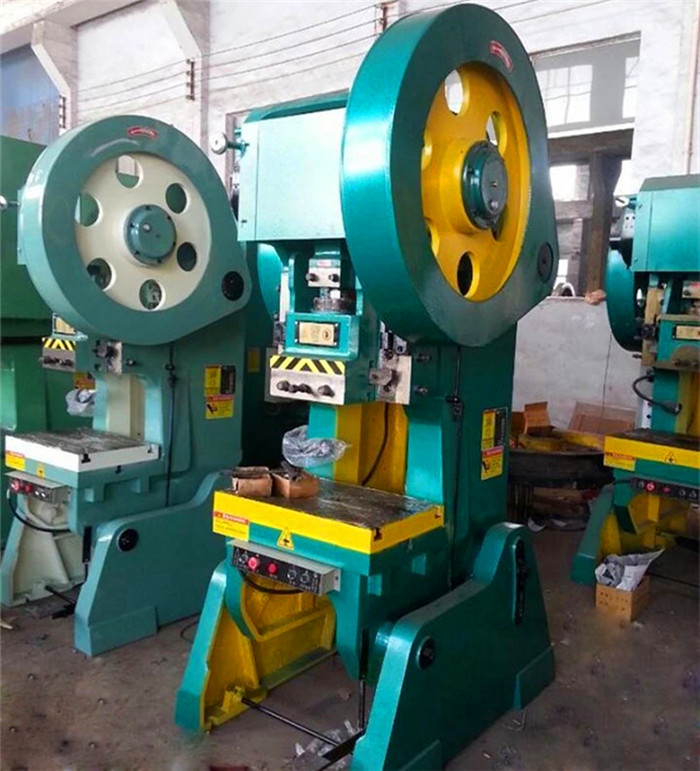

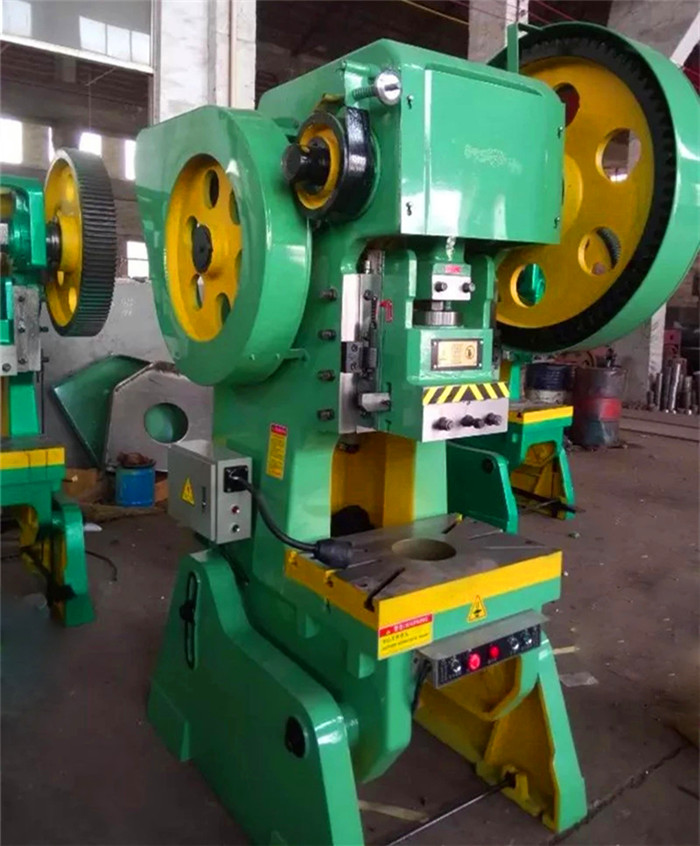

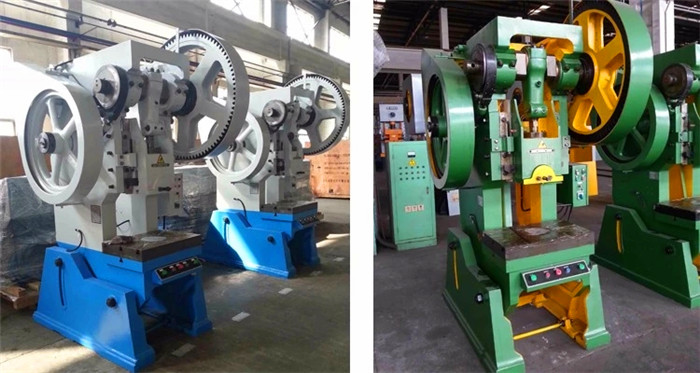

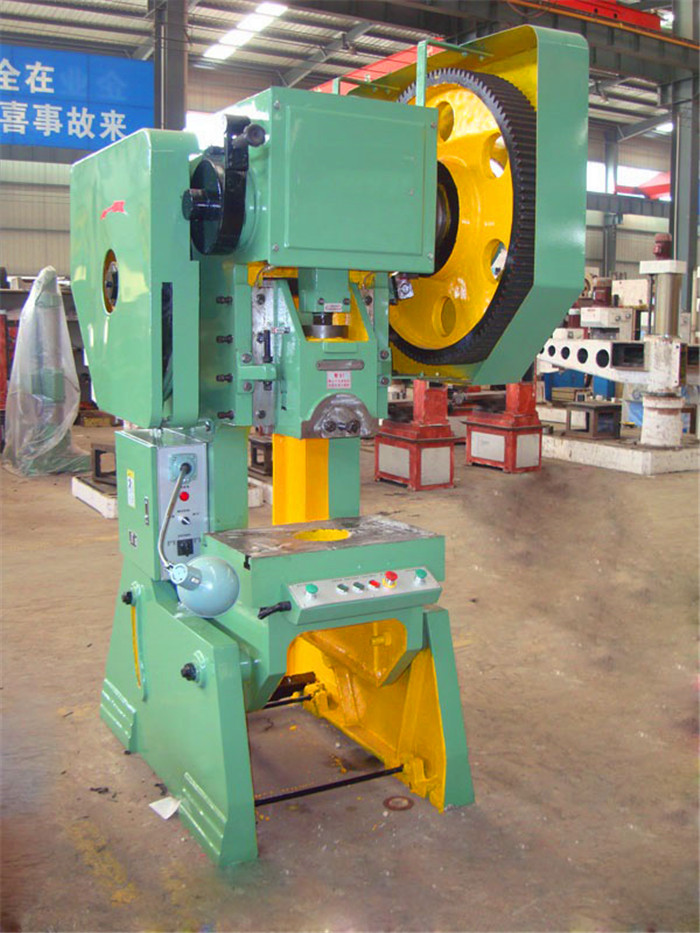

J23 Series 10 Ton Pneumatic Power Press Aluminium Lid Punching Machine

J23 Series Pneumatic High Speed Sheet Metal Punching Press Machine Perforating Machine

1. steel welding body, good stiffness, more stable accuracy.

2. Crankshaft longitudinal, compact structure, beautiful appearance.

3. Mold height to achieve electric adjustment, digital display adjustment height.

4. Slider with rectangular hexahedron extended rail, with bronze lining, high precision guide.

5.Brake with modular pneumatic friction clutch, smooth connection, action sensitive.

6. Press the collapse of the insurance, to ensure the safety of the whole overload.

7. Slider with lifting balance cylinder, to achieve the balance of the slider link.

Model	Nominal Pressure(kn)	Slipper Stoke(mm)	Slipper Stoke Times(time/min)	Max closing height
J23-10	100	50	170	200

1. Does the machine have a stacker of 50 pieces or do you manually have to do the stacks ?

Yes, the machine have PCL control, which will be more helpful for you, when you using, every number you want, you all can settle directly.

2. What is the configuration of the system ?

Mitsubishi System.

3. Are the machines inclusive of the conveyors in the price ?

Yes, included.

4. What is the out put of the machines per minute ?

120-150PCS/Minutes.

CNC or Not: CNC
Condition: New
Machine Type: Punching Machine
Power Source: Hydraulic
Voltage: 380V/220V Optional
Dimension(L*W*H): Machine Size
Motor Power (kW): 1.5
Model Number: p 8
Weight (T): 0.65
Key Selling Points: Competitive Price
Warranty: 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: PLC
After-sales Service Provided: Engineers, Online support
Slipper stoke times(time/min): 170
Slipper stoke(mm): 50
Max closing height(mm): 200
Height adjustment(mm): 30
Distance between slipper center: 110
Worktable Dimension(mm): 310*200
Size of die handle bore(mm): 30*50
Payment Term: T/T or trade assurance
Shipping time: 5-10 days
Nominal Force (kN): 100
After Warranty Service: Online support
Local Service Location: None
Certification: ISO
