Sheet Metal And Pipe Round Cnc Plate And Tube Fiber Laser Cutting Machine

Product Description

The sheet and tube fiber cutting machine realizes the cutting of two different materials shapes on the same machine tool. It adopts a cast iron bed, a rack and pinion drive system, and a professional cutting CNC system, and it is easy to operate and simple to maintain. Besides that the strict assembly process ensures the stable operation of the CNC laser cutting machine with high precision. Optical fiber laser cutting machine with imported top-grade accessories, which provides users with powerful cutting ability and efficiency. Therefore it is the best choice for the economical plate and pipe processing Specification

Product details

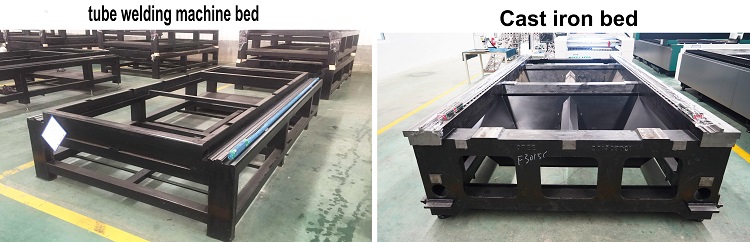

Cast iron bed (customized)

*more stable: using flake graphite cast iron with the lowest tensile strength of 200MPa as the raw material

*high precision: use of graphite cast iron as a raw material keeps the precision of the machine tool for a long time and remains unchanged for 50 years

*long service life: can effectively reduce the machining error caused by the vibration of the bed, which saves the user direct cost

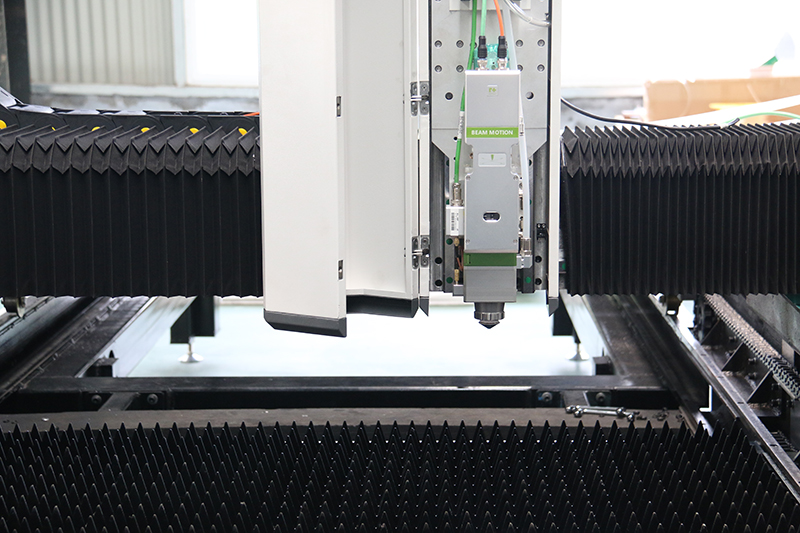

Automatic focusing laser head

The German imported Precitec laser head is made of high-quality materials in accordance with advanced technology. It is strong and durable; it can achieve "online" measurement during the production process, and the measurement is accurate and rapid.

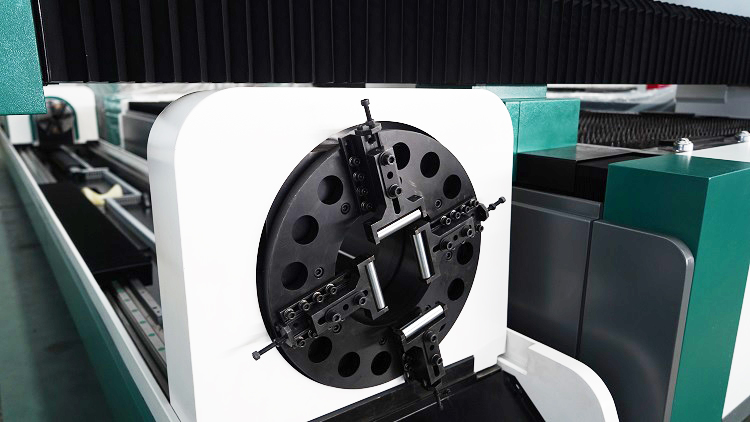

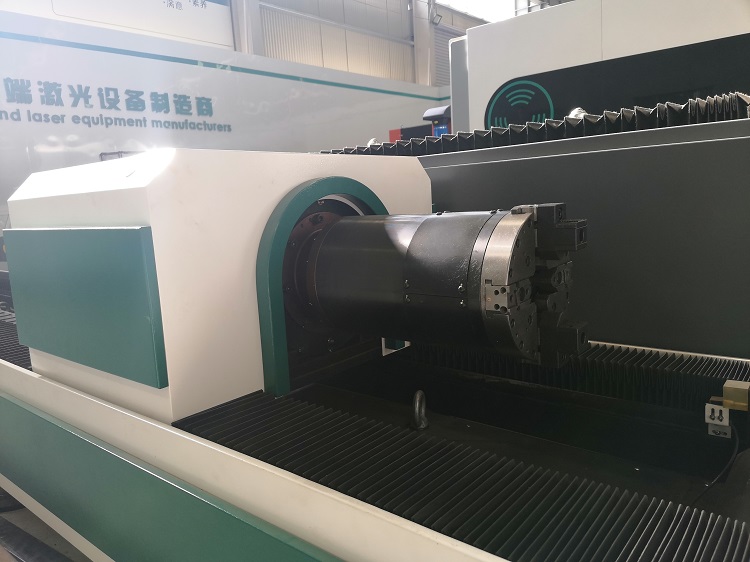

Fully automatic pneumatic chuck

Front and rear pneumatic chuck, maximum clamping diameter 350mm, chuck with self-centering function, pipe clamping self-centering more convenient, reduce manual clamping centering error.

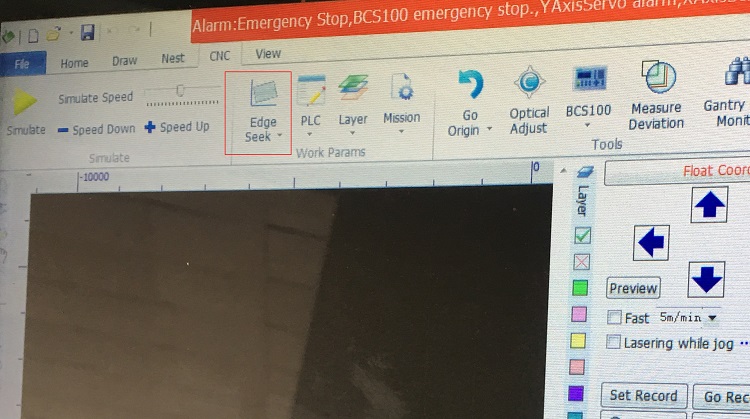

Tube Pro(3000S)

The professional cutting software for processing various types of pipes. Through the collection and processing of various real-time information, it can achieve high-precision cutting and achieve higher efficiency processing

Save material

Optimize the pneumatic chuck structure before and after, increase the chuck claw, clamping space is larger, the residual material is less than 200mm, saving the cost of users

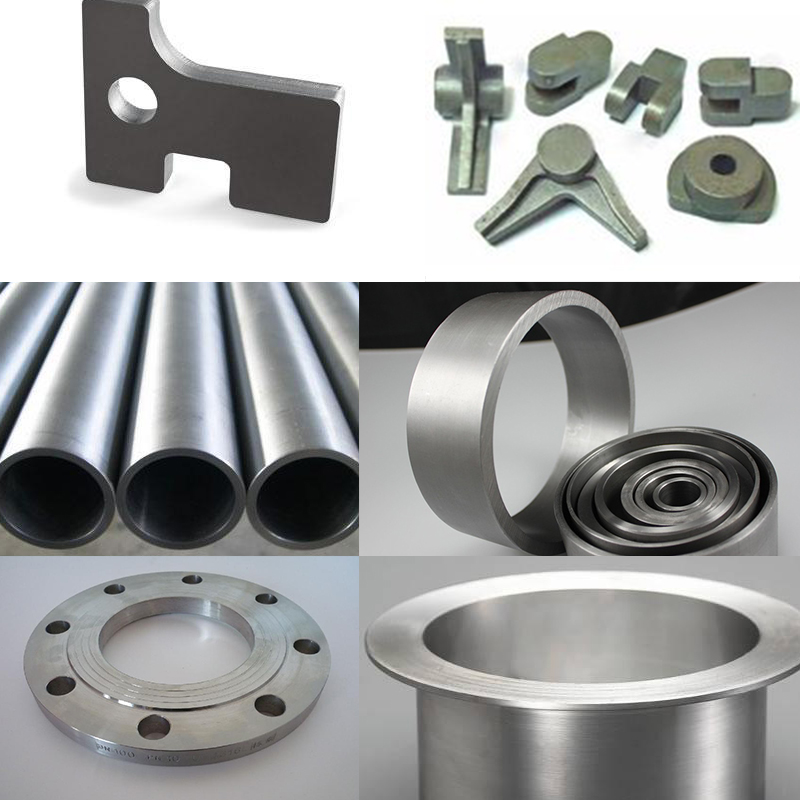

 Sample

The fiber laser cutting machine metal fiber laser cutting machine laser cutting machine enclosed is used in automobiles, agricultural machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, furniture, kitchenware, household appliances, Metal crafts, hardware tool processing, decoration engineering, advertising signs, sheet metal processing and other industries; RAYMAX laser cutter machine can cut stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized steel, pickling Cutting of plates and other metal sheets and pipes.

Packaging

The packaging of our laser cutting machine is a three-layer packaging, with pearl cotton inside, and then wrapped with plastic film. The outside is wrapped in an aluminum foil gown, and the bottom is a steel chassis. When special models, such as OR-E, OR-P and other large format machines, use frame cabinets during transportation, the workshop will pack them in wooden boxes to protect the fuselage

The after-sales service of RAYMAX

1. 12 languages 24 hours Quick Feedback;

2. "Training Video", "Instruction Book", and "Operation Manual" will be offered;

3. Brochures for simple trouble-shootings of the machine is available;

4. Plenty of technical support online is available;

5. Quick Back-up Parts Available & Technical Assistance;

6. Free training service is available.

FAQ

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will
response within 24 hours as quick as we can to solve it for you.

Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.

Q: How do your factory do regarding quality control?
A: Quality is priority. Each RAYMAX laser machine will be tested by 24 items. After all the 24 items passed, then our QC do 48~72 hours reliability test. Our laser machines has gained CE authentication.

Details

• Application: LASER CUTTING
• Applicable Material: Metal
• Condition: New
• Laser Type: Fiber Laser
• Cutting Area: 1500mm*3000mm
• Cutting Speed: 140mm/min
• Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
• Cutting Thickness: 30mm
• CNC or Not: Yes
• Cooling Mode: WATER COOLING
• Control Software: cypcut
• Place of Origin: China
• Laser Source Brand: MAX
• Laser Head Brand: Raytools
• Servo Motor Brand: Yaskawa
• Guiderail Brand: HIWIN
• Control System Brand: Cypcut
• Weight (KG): 7800 KG
• Key Selling Points: cast iron bed
• Optical Lens Brand: II-VI
• Warranty: 2 years
• Applicable Industries: Hotels, Building Material Shops, Food & Beverage Factory, Restaurant, Printing Shops, Advertising Company
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 2 years
• Core Components: Motor, Gear, Gearbox, PLC
• Mode of Operation: continuous wave
• Configuration: Optional
• Products handled: Sheet Metal and Tube
• Feature: Customized
• Product name: Fiber Laser Metal Cutting Machine
• Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
• Function: metal sheet laser cutting machine
• Laser power: 1000W / 2000W / 3000W
• Laser tube: 3m / 6m
• Laser source: MAX IPG RAYCUS
• Model: Processing Metal
• Laser head: Switzerland Raytools
• Color: White-green
• Power supply: 220V/50HZ 110V/60HZ
