High power and high quality laser output, The electro-optical conversion efficiency is high, and the electro-optical conversion rate is over 30%. Diversified compatibility, faster cutting speed, wider welding thickness and material, can meet 3C fine welding and metal / non-metal fine cutting at the same time.

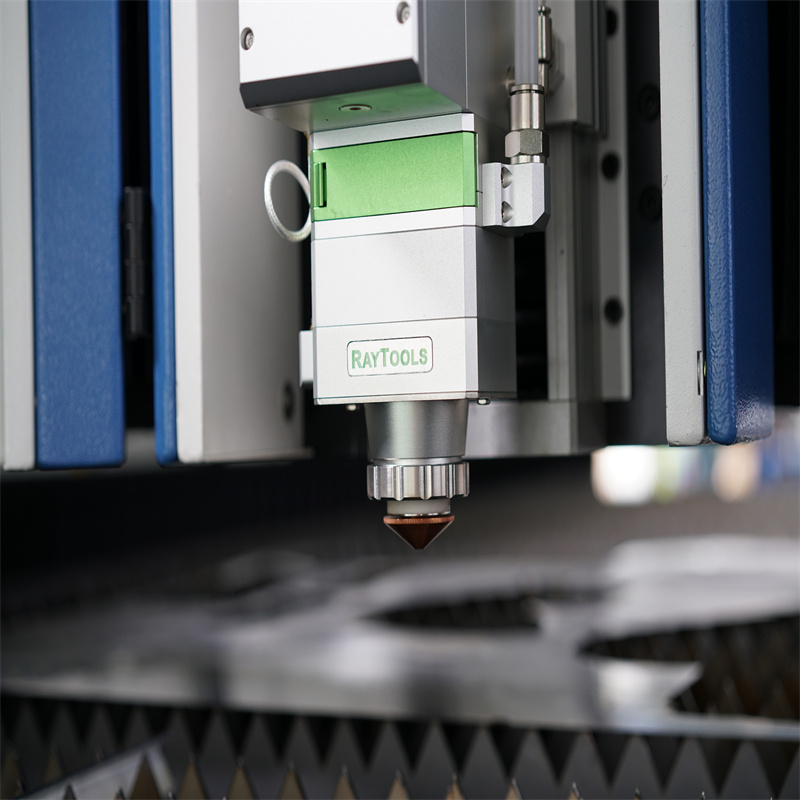

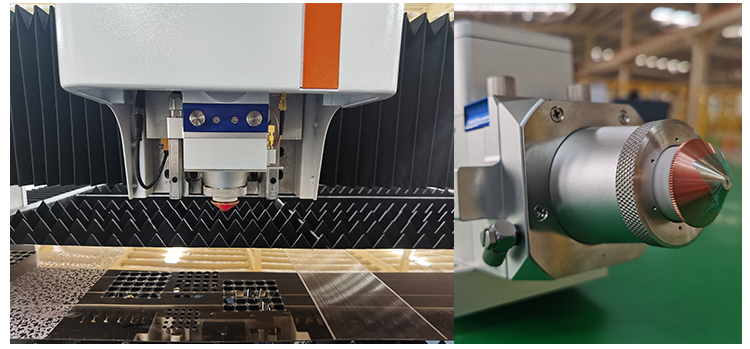

▲Laser head: High stability and good cutting quality, Fast piercing and cutting
▲Japan Fuji Drive
| Equipment Specification | |||||
| Model | RTC3015H | RTC4015H | RTC6015H | RTC4020H | RTC6020H |
| Cutting Area | 3000*1500mm | 4000*1500mm | 6000*1500mm | 4000*2000mm | 6000*2000mm |
| Laser source | MAX | MAX | MAX | MAX | MAX |
| Max Moving Speed | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G |
| Position Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Reposition Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Power | 380V 50/60Hz 50A | 380V 50/60Hz 50A | 380V 50/60Hz 50A | 380V 50/60Hz 50A | 380V 50/60Hz 50A |
| Max Loading(KG) | ≤4000 | ≤5000 | ≤5500 | ≤6000 | ≤6000 |
Application
What is fiber laser cutting machine Application?
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal processing, kitchen processing and other manufacturing and processing industries.
What materials can laser cutting machines be applied to?
Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet and pipe cutting.
FAQ
1. who are we?
We are based in Anhui, China, start from 2020,sell to North America(15.00%),Southeast Asia(10.00%), Mid East(10.00%), Eastern Asia(10.00%), Domestic Market(10.00%), Northern Europe(8.00%), South America(6.00%), Eastern Europe(5.00%), Western Europe(5.00%), Central America(5.00%), Southern Europe(5.00%), South Asia(5.00%), Africa(4.00%), Oceania(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Laser cutting machine, Marking machine, CNC router machine, Laser welding machine, Cleaning machine
4. why should you buy from us not from other suppliers?
The company has a group of top laser technology talents, established a covering China, radiation of the global sales system.The company has a standardized intelligent equipment base, committed to fiber cutting machine research and development.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German , Arabic, French, Russian, Korean, Hindi, Italian
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500*3000mm/4000*2000mm/6000*2000mm
- Cutting Speed: 0-50000mm/s
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: 0-30mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: BOCHU
- Laser Source Brand: MAX/RAYCUS
- Laser Head Brand: Raytools/WSX
- Servo Motor Brand: FUJI/YASKAWA
- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 4000 KG
- Key Selling Points: High Safety Level
- Optical Lens Brand: Wavelength
- Warranty: 2 years
- Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, Advertising Company, Other
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 3 years
- Core Components: Motor, Laser source, laser head, Chiller
- Mode of Operation: continuous wave
- Configuration: gantry type
- Products handled: Sheet Metal
- Feature: Programmable
- Working voltage: 380V 3 PHASE 50hz/60hz
- Positioning Accuracy: ±0.03mm
- Re-positioning Accuracy: ±0.02mm
- Auxiliary Gas: Oxygen Nitrogen Compressed air
- Idle Cutting Speed: 100m/min
- Z-axis Travel Length: 100mm
- Minimum Line Width: : ±0.3mm
- Interface: USB
- Door to door after service: Support
- Showroom Location: Germany
