Product Description
Cast structure, tilting for easy blanking of finished part and waste material. Rigid rotating key clutch, ribbon brake. Overload protecting device will collapsed as safeguard of personnel and equipment. Durable, precise, reliable and easy to operate.

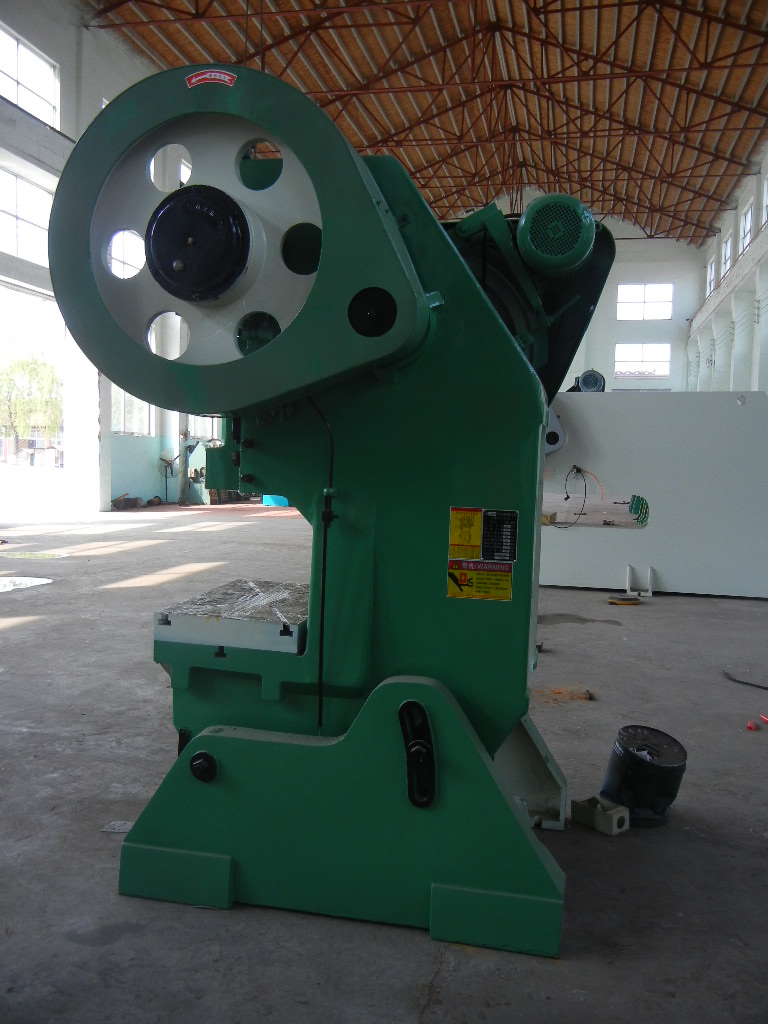

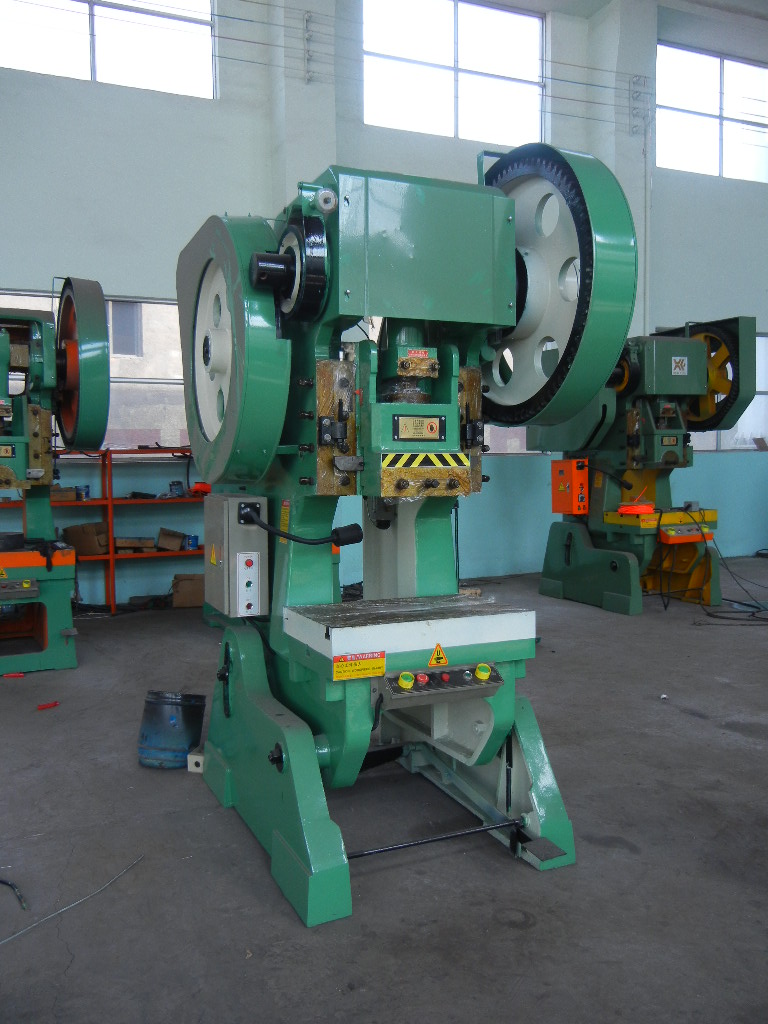

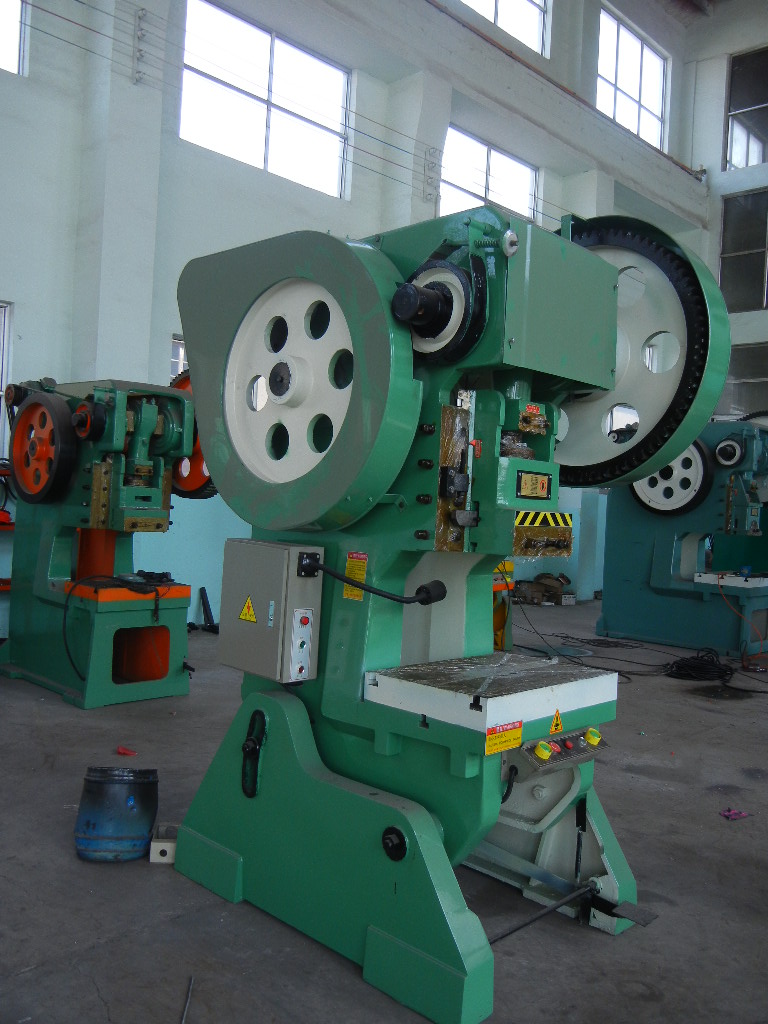

Punch press is a suitable open type crank press featuring a left and right open type machine body (i.e. C-shaped machine body). Its steel plate welded body has high shock-absorbing performance. Its novel overall design gives the machine elegant appearance. Its throat has certain depth. The compact structure makes the use convenient and operation safe. The punch press is equipped with a turn-key rigid clutch, a cam band brake and a press-down type safety device. Its working table is open on three sides, so the mold loading and unloading and operation are convenient. The punch press is widely used for it provides good conditions for mechanization and automation. And as main equipment for plate punching production, the punch press can be used for punching holes, blanking, trimming, bending, shallow stretching and forming in national defense, aerospace, automobile, tractor, motor, electrical appliance, bearing, instruments, agricultural machine and tool, bicycle, sewing, mechanical appliance, daily hardware and coinage departments.
Features:
1.Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2.Vertical located crankshaft, compact structure;
3.The crankshaft undergoes grinding treatment after high frequency quenching;
4.Lengthened rectangular guideway with a surface of bronze plate;
5.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
6.PLC control and imported safety dual valve;
7.Wet clutch and hydraulic overload protector.
Technical Parameters
| Model | Pressure(Kn) | Pressure stroke(mm) | Slipper stroke(mm) | Slipper stroke times(t/min) | Max closing height(mm) | Closing height adjuster(mm) |
| J23-10T | 100 | 4 | 50 | 130 | 180 | 35 |
| J23-16T | 160 | 5 | 60 | 110 | 220 | 50 |
| J23-25T | 250 | 5 | 70 | 70 | 260 | 60 |
| J23-40T | 400 | 6 | 100 | 60 | 320 | 80 |
| J23-63T | 630 | 6 | 100 | 55 | 330 | 80 |
| J23-80T | 800 | 8 | 120 | 50 | 380 | 100 |
To all clients
Your struct requirement of quality is the driving force of our effort. May our products and service bring you the joys of success.
Details
- CNC or Not: CNC
- Condition: New
- Machine Type: Punching Machine, Metal Sheet Power Press
- Slide Stroke (mm): 100
- Power Source: Mechanical
- Place of Origin: Anhui, China
- Voltage: 380V
- Dimension(L*W*H): 1500*1100*2400
- Motor Power (kW): 4
- Model Number: J23-40T
- Weight (T): 3800
- Key Selling Points: Automatic
- Warranty: 3 years
- Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Construction works , Energy & Mining
- Showroom Location: None
- After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
- After Warranty Service: Online support
- Local Service Location: None
- Nominal Force (kN): 400 kN
- Certification: CE
- Product name: Punching Machine
- Application: Metal Sheet
- Function: Steel Metal Punching
- Usage: Pressing Metal Products
- Color: Customizable
- Name: Punch Press J23
- Control system: Germany Siemens
- Applicable materials: Press Moulding
- Raw Material: Mould Steel
