FEATURES
1. Whole steel welded structure,with VSR eliminate internal stress,with high strength and good rigidity.

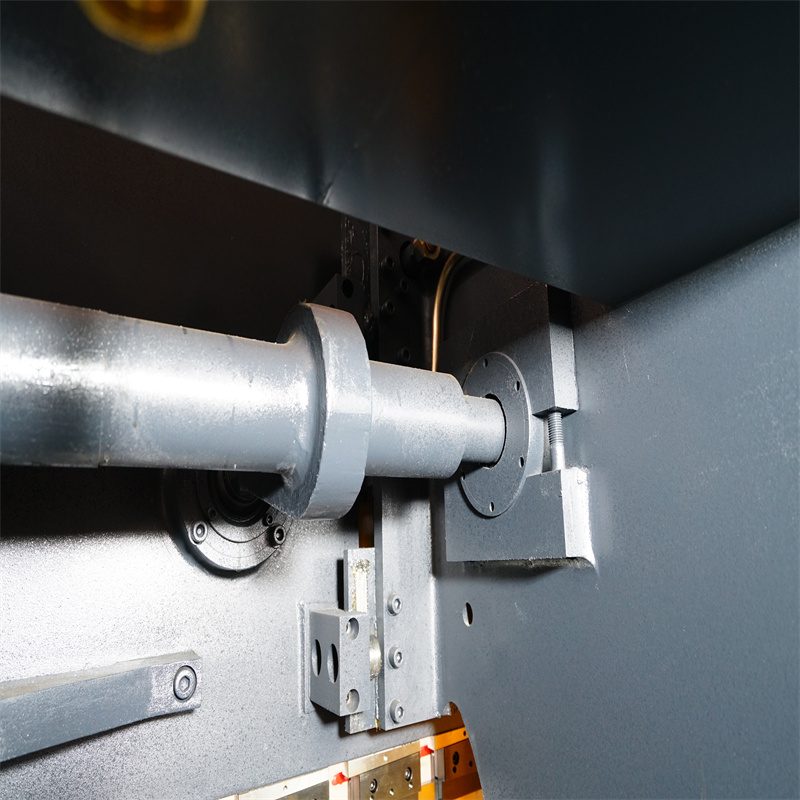

2. Hydraulic double cylinder on the transmission,mechanical block,twisting axis synchronization,and reliable operation and high precision.
3. After the block away and slide stroke with electric adjustment and manual fine-tuning mode,and with a digital display device,easy to use shortcuts.
4. On thw mold with a deflection compensation device,more than 100 tons and the length of 4000mm Tool deflection compensation under the body can use.
5. The hydraulic system makes the operation with little noise, low energy consumption, and stable property.
6. The die is made of quality carbon tool steel and processed by heat treatment, such as forging, hardening, quenching etc., and grinding, which makes sure of the high accuracy and durable service life for the die.
| stress | 1000 | KN |
| max. width | 4000 | mm |
| yield stress of the board | 345 | N/mm2 |
| throat depth | 400 | mm |
| distance for backgauge | 20-1000 | mm |
| highest operation level | 460 | mm |
| slide stroke | 160 | mm |
FAQ
(1) What is your advantages?
A1: More than 20 years experience in manufacturing and R&D, we are professional and humanized .
A2: Since we are a manufacturer, not a trading company, we can provide good quality pre and after sales service on time.
A3: production efficiency: 3-4 line per month
(2) Do you have after sales support?
A: Yes, we have a 15 persons professional installation and testing team. And will provide service for you during the machine life time. Any problem, contact us freely and we will try to solve asap.
Details
- Slider Stroke (mm): 110 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 320 mm
- Machine Type: Synchronized, Press Brake
- Length of Working Table (mm): 4000 mm
- Width of Working Table (mm): 1200 mm
- Condition: New
- Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
- Automation: Automatic
- Weight (KG): 10000
- Motor Power (kw): 7.5 kw
- Key Selling Points: Automatic
- Warranty: 1 Year
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
- Certification: ISO 9001:2000
- After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
- Nominal Pressure (kN): 1000 kN
- name: High quality Bending Machine press brake hydraulic cnc folding machine
- Raw material: Sheet / Plate Rolling
- press brake: bending machine
- metal bending machine: sheet bending machine
- brake press: CNC bending machine
- Package: Waterproof Plastic Film Wrapped Inside
- Voltage: 380V 50Hz 3Phase/Customized
