The machine of whole structure and characteristics :

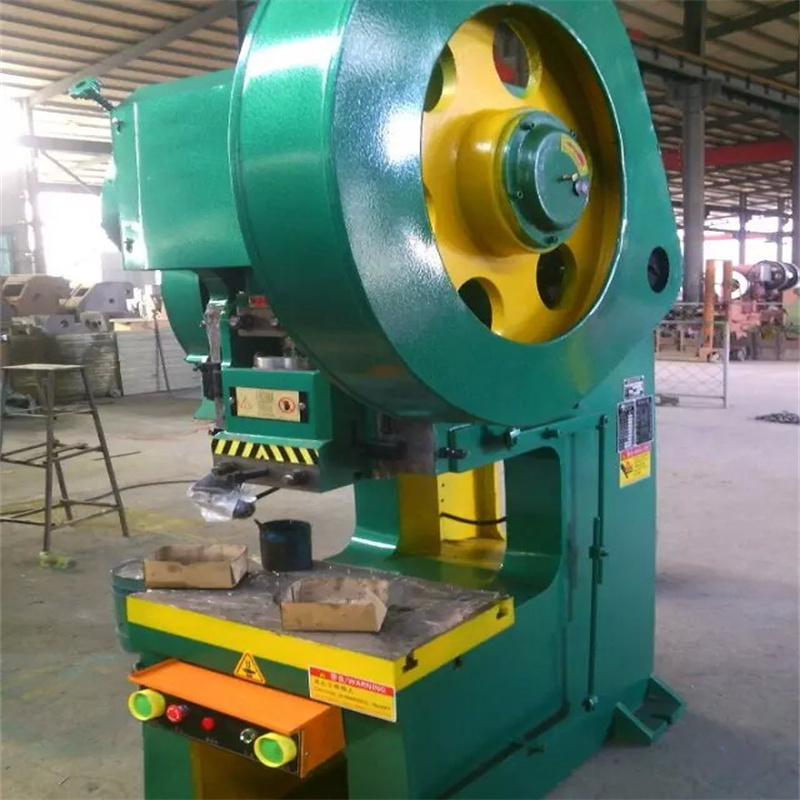

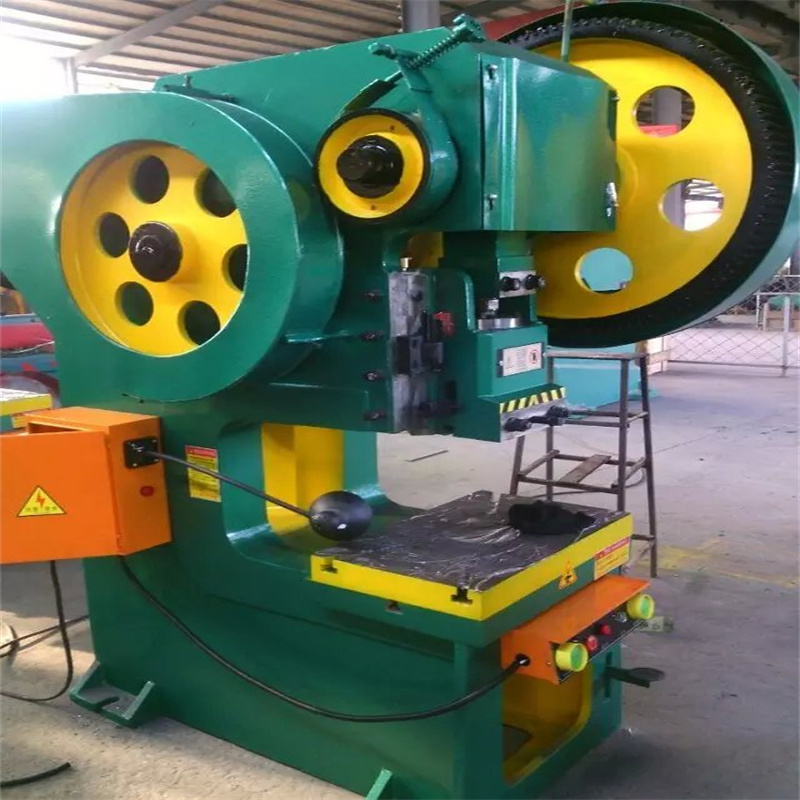

1. J23 Series High Precision Presses punching machine is one of the new generation of plate process and developed by RAYMAX, The punching machine is for cutting, punching, blanking, bending and light stretching work.
2. C Type Steel welded frame, high rigidity and less deformation Compact, wide body frame eliminating vibration for improved ide life and machine.
3. Rigid construction guarantees exact die mating, Six side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.
4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection,
increases gear life.
5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
Size Information
| Model | Unit | J23-16 | J23-25 | J23-40 | J23-63 | J23-80 | J23-100 | J23-160 | |
| Normial Force | KN | 160 | 250 | 400 | 630 | 800 | 1000 | 1600 | |
| Slipper Stroke | mm | 70 | 90 | 100 | 120 | 120 | 130 | 160 | |
| Slipper stroke times | 次/min | 120 | 100 | 55 | 50 | 50 | 45 | 50 | |
| Max.Closing Height | mm | 220 | 250 | 300 | 360 | 360 | 400 | 450 | |
| Connecting Rod adjuster | mm | 60 | 70 | 80 | 90 | 90 | 100 | 120 | |
| Throat Depth | mm | 160 | 190 | 240 | 260 | 260 | 320 | 380 | |
| Pole Distance | mm | 220 | 250 | 300 | 350 | 400 | 420 | 440 | |
| Angle of inclination | ° | 30 | 30 | 30 | 25 | 25 | 0 | 0 | |
| Worktable size | L-R | mm | 450 | 560 | 700 | 710 | 710 | 900 | 1120 |
| F-B | mm | 300 | 360 | 460 | 480 | 480 | 600 | 710 | |
| Slipper underside bore | L-R | mm | 200 | 250 | 320 | 320 | 320 | 390 | 510 |
| F-B | mm | 180 | 210 | 270 | 280 | 280 | 340 | 370 | |
| Size of die handle bore | Diameter | mm | 40 | 40 | 50 | 50 | 50 | 50 | 80 |
| Depth | mm | 60 | 60 | 70 | 80 | 80 | 85 | 80 | |
| Dimension | F-B | mm | 1140 | 1350 | 1500 | 1810 | 1800 | 2100 | 2175 |
| L-R | mm | 900 | 950 | 1180 | 1400 | 1480 | 1740 | 1288 | |
| Height | mm | 1890 | 2200 | 2300 | 2750 | 2820 | 3240 | 3047 | |
| Motor Power | Kw | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | |
| Weight | Kg | 850 | 1300 | 2700 | 3500 | 4500 | 5500 | 7800 | |
FAQ
Q: How to get a accurate quotation from us ?
A: Prvide us the details of material , such as metal thickness and width .
Q: You are manufacturer or trading company ?
A: We are 100% manufacturer with 17 year's manufaturer experience.
Q: Can you do OEM service ?
A: Yes, we can. your design is accepted , your own logo can be used on the machine.
Q: What's the shipping cost from china to your country ?
A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q: Do you accept LC payment ?
A: Yes, normally our payment is 30%+70% ,LC payment is also acceptable
Q: How to operate this machine ?
A: Video line of our factory or we send you the moive directly.
Q: What about commissioning service ?
A: We can offer commissioning service, the buyer need to afford plane tickets.
Q: Do you offer teaching & training ?
A: Training at supplier's plant
Details
- Slide Stroke (mm): 130
- Machine Type: Single Column Hydraulic Press
- Return Force (kN): 100 kN
- System: Servo
- Condition: New
- Place of Origin: Anhui
- Year: 2020
- Voltage: 220V/380V
- Dimension(L*W*H): 1880X1360X2850
- Weight (T): 1.8 T
- Model Number: J-23 Frame Punching Machine
- Motor Power (kw): 75 kw
- Key Selling Points: High Productivity
- Warranty: 2 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Restaurant, Home Use, Retail, Energy & Mining, Food & Beverage Shops
- Showroom Location: Turkey
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 5 years
- Core Components: Motor
- pole distance: 380 mm
- Product name: Power Press Machine
- Max closing height: 380 mm
- workbench distance: 510 mm
- Thickness of spacer: 100
- Application: Metal Sheet Stamping
- Angle of inclination: 20°
- Connecting rod adjuster: 100 mm
- Nominal pressure stroke: 9 mm
- Motor Power (kW): 7.5
- After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: Ukraine
- Certification: ISO9001/CE
