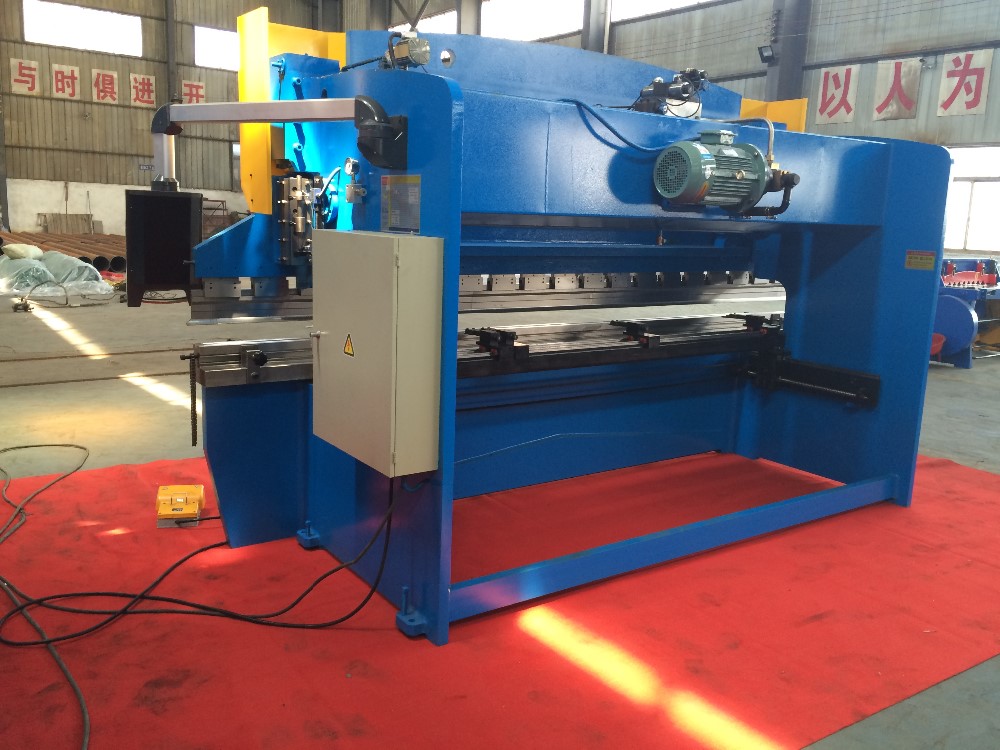

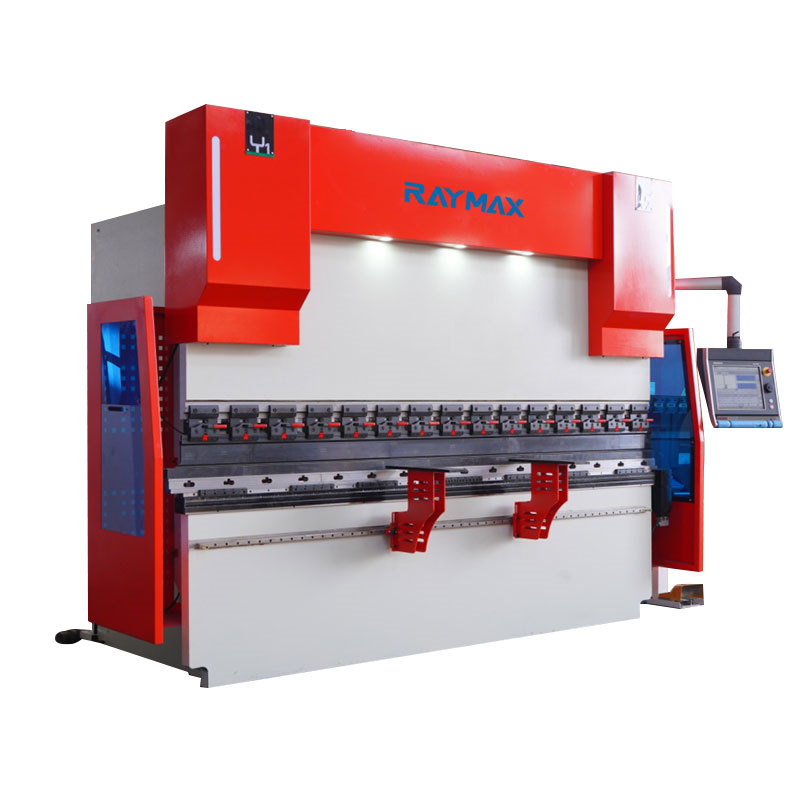

Wc67k Cnc Hydraulic Press Brake Bending Machine Press Brake Machine

NO.	Model	Nominal Pressure KN	Length of Table mm	Distance between Frames mm	Open Height mm	Throat Depth mm	Slide Stroke mm	Motor Power kw
1	WC67Y/K-40T/2500	400	2500	2050	210	200	110	4
2	WC67Y/K-63T/2500	630	2500	2050	235	250	120	5.5
3	WC67Y/K-100T/3200	1000	3200	2500	330	320	150	7.5
4	WC67Y/K-125T/3200	1250	3200	2500	330	320	150	7.5
5	WC67Y/K-160T/3200	1600	3200	2500	400	320	200	11
6	WC67Y/K-200T/3200	2000	3200	2500	435	300	200	15
7	WC67Y/K-200T/4000	2000	4000	3100	435	300	200	15
8	WC67Y/K-200T/6000	2000	6000	4800	435	320	200	15
9	WC67Y/K-250T/3200	2500	3200	2500	435	320	200	18.5
10	WC67Y/K-250T/4000	2500	4000	3100	435	320	200	18.5
11	WC67Y/K-250T/6000	2500	6000	4800	435	350	200	18.5
12	WC67Y/K-300T/3200	3000	3200	2600	435	350	200	22
13	WC67Y/K-300T/4000	3000	4000	3100	435	350	200	22
14	WC67Y/K-300T/6000	3000	6000	4800	435	350	200	22
15	WC67Y/K-400T/3200	4000	3200	2600	520	400	250	37
16	WC67Y/K-400T/4000	4000	4000	3100	520	400	250	37
17	WC67Y/K-400T/5000	4000	5000	4100	520	400	250	37
18	WC67Y/K-400T/6000	4000	6000	4800	520	400	250	37
19	WC67Y/K-400T/7000	4000	7000	5600	520	400	250	37
20	WC67Y/K-500T/4000	5000	4000	3100	600	400	300	45
21	WC67Y/K-500T/5000	5000	5000	4100	600	400	300	45
22	WC67Y/K-500T/6000	5000	6000	4800	600	400	300	45
23	WC67Y/K-500T/7000	5000	7000	5600	600	400	300	45
24	WC67Y/K-500T/8000	5000	8000	6200	600	400	300	45
25	WC67Y/K-600T/4000	6000	4000	3100	600	400	300	45
26	WC67Y/K-600T/5000	6000	5000	4100	600	400	300	45
27	WC67Y/K-600T/6000	6000	6000	4800	600	400	300	45
28	WC67Y/K-600T/7000	6000	7000	5600	600	400	300	45
29	WC67Y/K-600T/8000	6000	8000	6200	600	400	300	45
30	WC67Y/K-700T/4000	7000	4000	3100	640	500	300	55
31	WC67Y/K-700T/5000	7000	5000	4000	640	500	300	55
32	WC67Y/K-700T/6000	7000	6000	4800	640	500	300	55
33	WC67Y/K-700T/7000	7000	7000	5600	640	500	300	55
34	WC67Y/K-700T/8000	7000	8000	6200	640	500	300	55
35	WC67Y/K-800T/4000	8000	4000	3100	800	500	400	2x37
36	WC67Y/K-800T/5000	8000	5000	4000	800	500	400	2x37
37	WC67Y/K-800T/6000	8000	6000	4800	800	500	400	2x37
38	WC67Y/K-800T/7000	8000	7000	5600	800	500	400	2x37
39	WC67Y/K-800T/8000	8000	8000	6200	800	500	400	2x37
40	WC67Y/K-1000T/5000	10000	5000	4000	800	600	400	2x45
41	WC67Y/K-1000T/6000	10000	6000	4800	800	600	400	2x45
42	WC67Y/K-1000T/7000	10000	7000	5600	800	600	400	2x37
43	WC67Y/K-1000T/8000	10000	8000	6200	800	600	400	2x45
44	WC67Y/K-1200T/5000	12000	5000	4000	900	600	400	2x45
45	WC67Y/K-1200T/6000	12000	6000	4800	900	600	400	2x45
46	WC67Y/K-1200T/7000	12000	7000	5600	900	600	400	2x45

Rexroth Valve

Germany hydraulic valve is very important part for press brake machine, high quality hydraulic valve make the machine more reliable to use

Schneider Electric Components

High quality electric parts can perform well, even the electric is not stable and customers can easily get the replacement anywhere in the word.

SIEMENS Motor

Germany famous brand motor improves the lifespan of the machine and keeps the machine working in low noise.

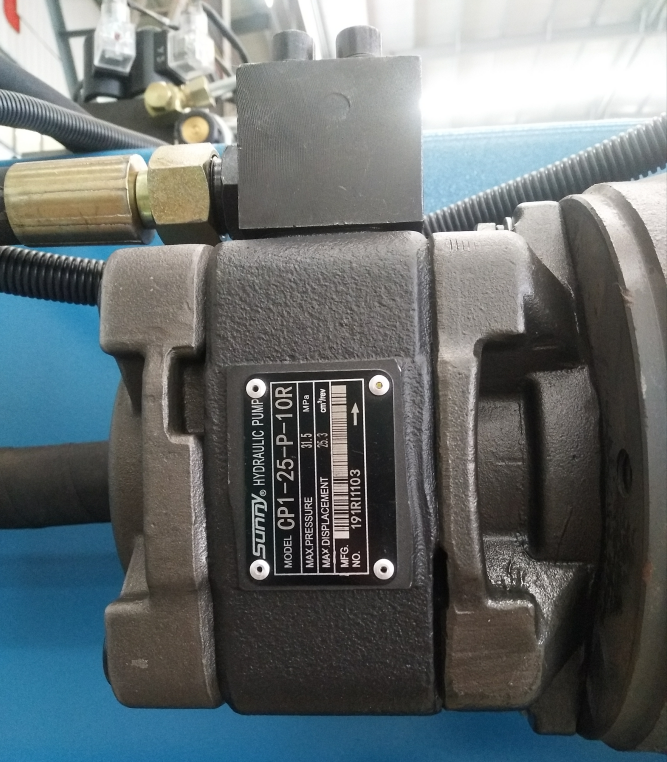

SUNNY Pump

American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system.

1. 4- axis Delem DA52s programming mode CNC control

2. Full synchronisation of Y1 Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to /- 0.01mm accuracy

3. High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load

4. CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors

5. Light guards

6. Two micrometric backgauge finger-stops with lateral adjustment

7. Steel mono-block construction

8. Polished chrome plated and ground cylinders

9. Long stroke and large open height dimensions

10. High approach and return speeds for production bending

11. Euro style quick release top tool holders with intermediaries including wedges for crowning

12. 88 degree sectionalised goose neck top tool

13. 4 way sectionalised multi vee bottom tool

14. Double footswitch control and pendant type control arm

15. AKAS laser tooling guards

16. Electrically interlocked side guards

17. Electrically interlocked read access door

18. 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee

19. Side guard is standard meeting CE regulations

FAQ

1. Q: Why do we choose RAYMAX machine?

A: We have our own plant, RAYMAX metalforming equipment manu. As a result , we can surely promise the quality of every product and provide you with competitive price.

2. Q: Do you provide OEM or ODM service?

A: Yes, OEM or ODM are both available for us.

3. Q: May I visit your factory?

A: Certainly, we welcome our customers from all over the world, and we will always seek for long-term cooperation with you.

4. Q: How about your after sales service?

A: Our experienced engineers are waiting to make service for you. One-top service term made us survive from fierce competition.

5.Q: What's the policy for guarantee and broken parts?

A: Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.

Details

Slider Stroke (mm): mm
Automatic Level: Fully Automatic
Throat Depth (mm): 320 mm
Machine Type: Synchronized
Length of Working Table (mm): 2500 mm
Width of Working Table (mm): 2000 mm
Dimension: depend on Model
Condition: New
Brand Name: RAYMAX
Material / Metal Processed: Stainless Steel, Carbon steel, Aluminum
Automation: Automatic
Extra Services: End Forming
Year: 2019
Weight (KG): 4000
Motor Power (kw): 18.5 kw
Key Selling Points: Competitive Price
Warranty: 1 Year
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Hardware Processing Industry
Showroom Location: Viet Nam, India
Marketing Type: Sheet metal forming machine
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gearbox
Keyword: Press Brake Bending
Color: Customized
Voltage: 220V/380V/415V/440V/customized
Type: Hydraulic Bending Tools
Function: Steel Metal Bending
Main motor: Siemens
Valve: Rexroth brand
Pump: Sunny brand
Electrical Components: Schneider Electrical
Nominal Pressure (kN): 2500 kN
Certification: ISO 9001:2000
After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service: Video technical support, Online support
