Product Application
Totally European design, streamlined looking
Taking off inner-stress of welded parts by tempering, good stability
Romove rust with sand-blast and coated with anti-rust paint
Adopt Spanish pentahedron machine center, once clamping can finish all working surfaces which will guarantee dimension precision and position precision.
The design of the machine frame is a critical part of any machine with relation to its ability to produce accurate parts for a long period of time. WE67K Hydraulic metal plate press brake , steel sheet bending machine , SS plate press brake Frames, assembly surfaces and connection holes are machined after the welding process, up to 60' in a single pass.

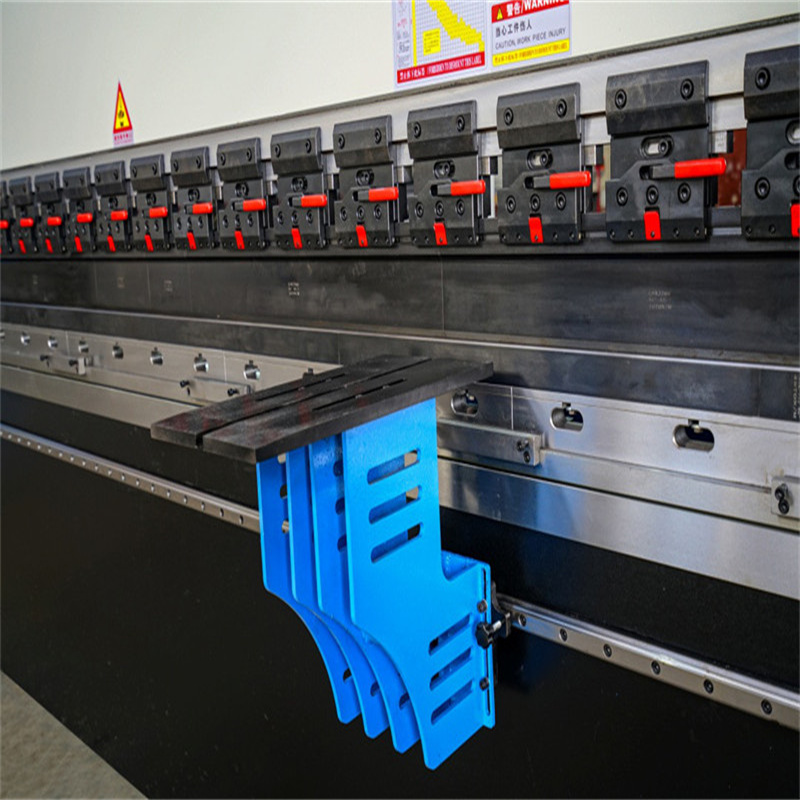

Supplying three front sheet supports , Finish of Nippon Polyurethane paint.
Main Features
1. Hydraulic system:
1) Hydraulic control system by BOSCH-REXROTH Germany or FIRST America.
2) Oil seals by Japanese, NOK.
3) Overload & overflow protection to ensure there is no leakage and protect hydraulic system, and the oil level can be read directly.
2. Servo motorized backgauge:
1) CNC backgauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.
2) Backgauge has well enough mechanical strength and rigidity with tank-type gauge structure.
3) High-precision ball screw and linear guide-way. Particular finger-stop design, enlarge the range of backgauge.
3. Electrical parts and protection device:
1) Schneider or Siemens Low-voltage apparatus. In accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
2) Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate. WE67K Hydraulic metal plate press brake , steel sheet bending machine , SS plate press brake
3) Light screen protection.
4. Delem DA52S CNC press brake control system:
1) 6.4" VGA colour LCD (TFT)
2) Numerical, one page programming
3) Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
4) CNC crowning control
5) USB, peripheral interfacing
6) Servo, frequency inverter and AC control for backgauge axes.
FAQ
Q1. Trade company or manufacturer?
A: We manufacturer
Q2. Is it easy to operate for the new user ?
A: Very easy
Q3. What should I do when the machine is in trouble?
A: Take photos and videos and contact our sales at once.
Q4: How long does it take to learn how to operate a laser cutting machine?
A: A couple of hours
Details
- Slider Stroke (mm): 80 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 200 mm
- Machine Type: Synchronized
- Length of Working Table (mm): 2000
- Width of Working Table (mm): 1280 mm
- Dimension: 1700*900*1650
- Condition: New
- Place of Origin: Anhui, China
- Material / Metal Processed: Carbon steel
- Automation: Automatic
- Extra Services: End Forming
- Weight (KG): 3
- Motor Power (kw): 7.5 kw
- Key Selling Points: High Productivity
- Warranty: 5 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Farms, Home Use
- Showroom Location: UAE
- Marketing Type: Ordinary Product
- Machinery Test Report: Not Available
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Motor, Pump, Gear
- Product name: press brake machine
- Raw Material: Sheet / Plate Rolling
- Type: Hydraulic Bending Tools
- Material: Q235
- Weight: 3000KGS
- Color: can be customized
- After-sales Service Provided: Engineers available to service machinery overseas, Video technical support
- Lead time: 15-20days
- Warranty time: 2 years
- Nominal Pressure (kN): 300
- Certification: ce
- After Warranty Service: Video technical support
- Local Service Location: UAE","attrValueId":21188773}
