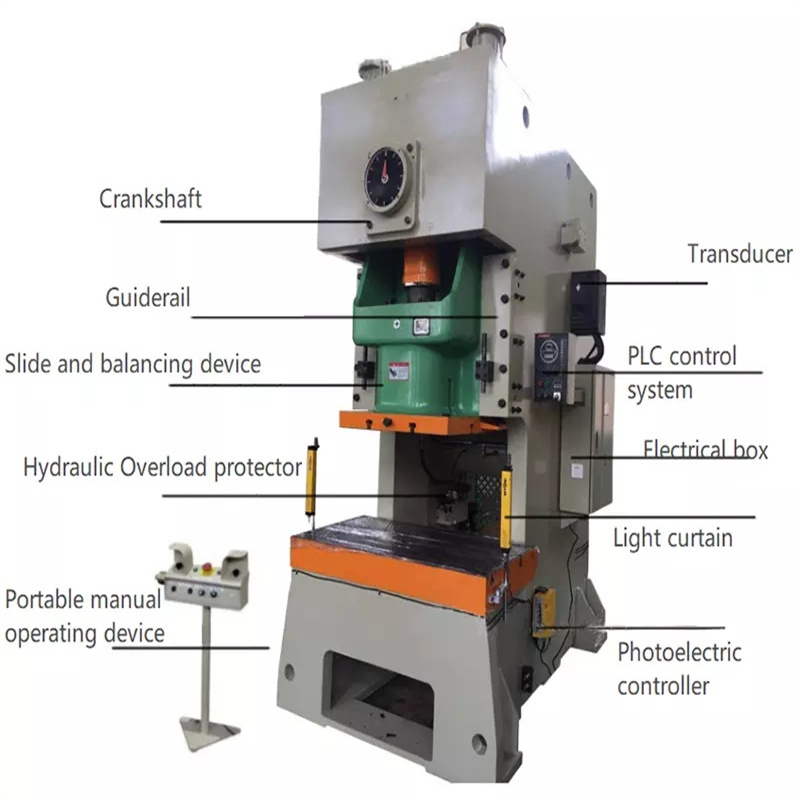

Main Features
1. The high-rigidity body is designed, the high-quality steel plate is used for welding, and the stability and reliability of the precision of the whole machine are high by relieving the internal stress;
2. The precision machining is high, the noise is low, and the comprehensive clearance is low;
3. The symmetrical six- -face long guide rail of the sliding block is used for guiding, so that precision is high, and the operation is stable;
4. The adjustment of the mold height is precision, safe, convenient and reliable;

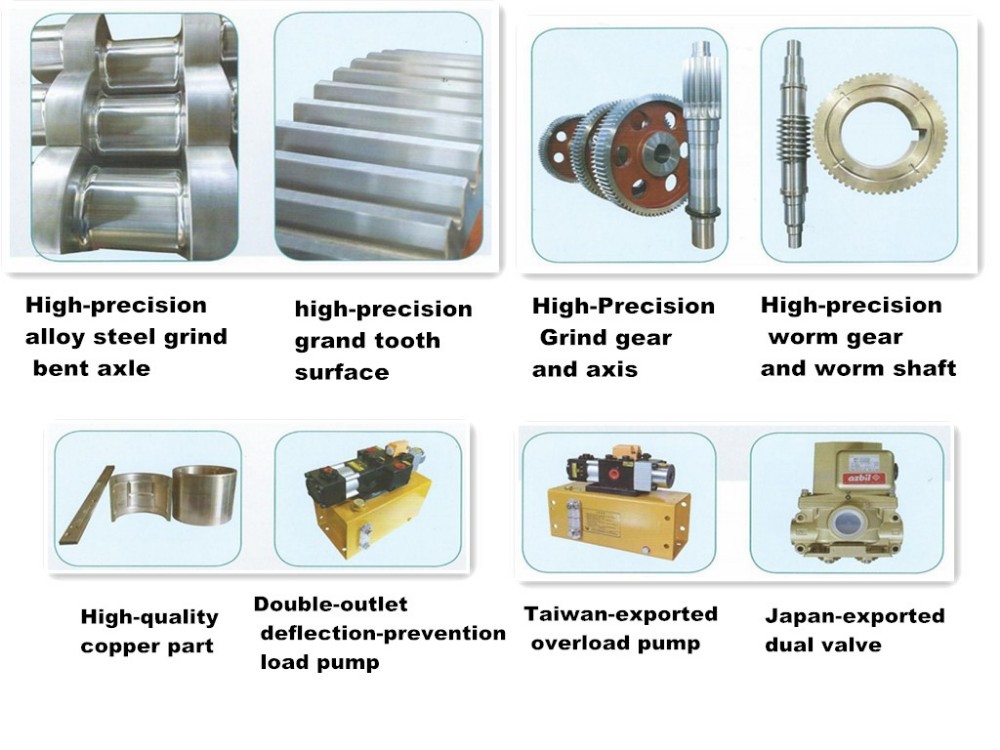

5. The crankshaft, gear set, connecting rod and other components have high comprehensive performance and durability through the hard oxidization, grinding and other process treatment;
6. The closed high-rigidity body is designed, the high- -quality steel plate is used for welding, and the stability and reliability of the precision of the whole. machine are high by relieving the internal stress;
7. The automatic thick oil lubrication system is available, so that it is convenient and accurate for supplying the oil; and the oil line alarm function is provided, so as to ensure the smooth operation of the machine tool;
8. The structural design of the whole machine is reasonable, so as to be convenient for realizing the automatic production, reduce the cost, and improve the efficiency;
9. The advanced design philosophy is provided, the noise is low, the consumption is low, and the energy is saved.
| Specification | RAYMAX-25 | RAYMAX-35 | RAYMAX-45 | RAYMAX-60 | RAYMAX-80 | RAYMAX-110 | RAYMAX-160 | RAYMAX-200 |
| Capacity | 25 | 35 | 45 | 60 | 80 | 110 | 160 | 200 |
| Rate tonnage point | 3.2 | 3.2 | 3.2 | 4 | 4 | 6 | 6 | 6 |
| Speed changing | 60-140 | 40-120 | 40-100 | 35-90 | 35-80 | 30-60 | 20-50 | 20-50 |
| Stroke | 70 | 70 | 80 | 120 | 150 | 180 | 200 | 200 |
| Die height | 195 | 220 | 250 | 310 | 340 | 360 | 460 | 460 |
| Slide adjustment | 50 | 55 | 60 | 75 | 80 | 80 | 100 | 110 |
| Presses weight | 2.1 | 3 | 3.8 | 5.6 | 6.5 | 9.6 | 16 | 23 |
Our Advantages
1. Our guarantee time is one year, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.
Details
- CNC or Not: CNC
- Condition: New
- Machine Type: Punching Machine
- Slide Stroke (mm): 100
- Power Source: Pneumatic
- Voltage: 380v, 380V/220V Optional
- Dimension(L*W*H): 3800mmx1900mmx1900mm
- Motor Power (kW): as type
- Model Number: BLA
- Weight (T): 10
- Key Selling Points: High-accuracy
- Warranty: 2 years
- Applicable Industries: Machinery Repair Shops
- Showroom Location: Canada, United Kingdom, Italy, France, Germany, Viet Nam, Brazil, Saudi Arabia, Russia, Spain, Thailand, Morocco, Argentina, Sri Lanka, South Africa, Kyrgyzstan, Uzbekistan, Malaysia
- Marketing Type: New Product 2021
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years

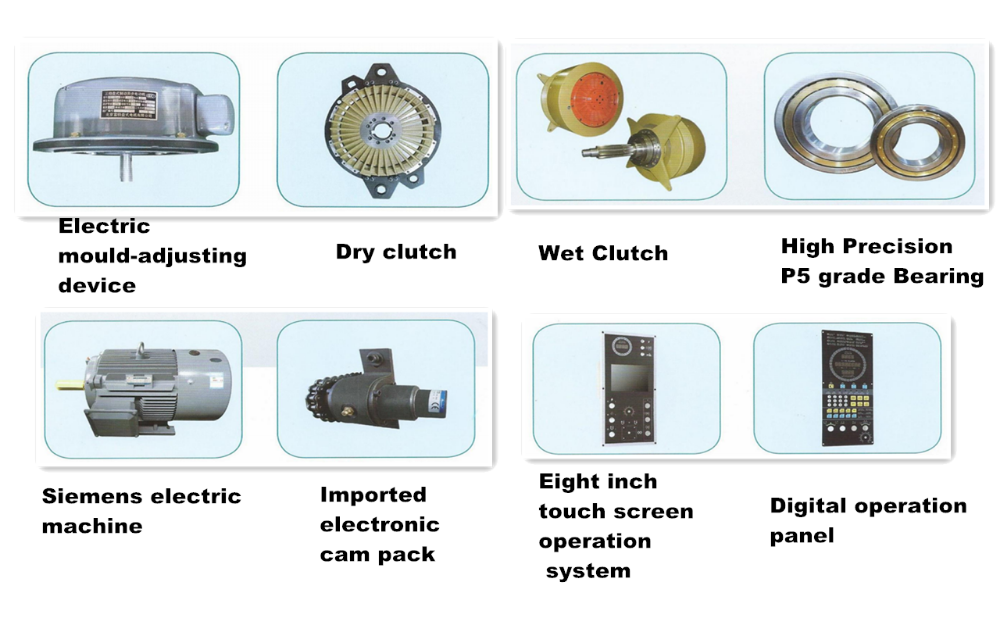

- Core Components: Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure vessel, Engine
- Weight: as type
- Certification: CE ISO
- Product name: small pneumatic press machine
- Type: C-Type
- Nominal Force (kN): 800 kN
- Keyword: small pneumatic press machine
- Function: Punching Ang Press
- Usage: Pressing Metal Products
- Material: Steel Material
