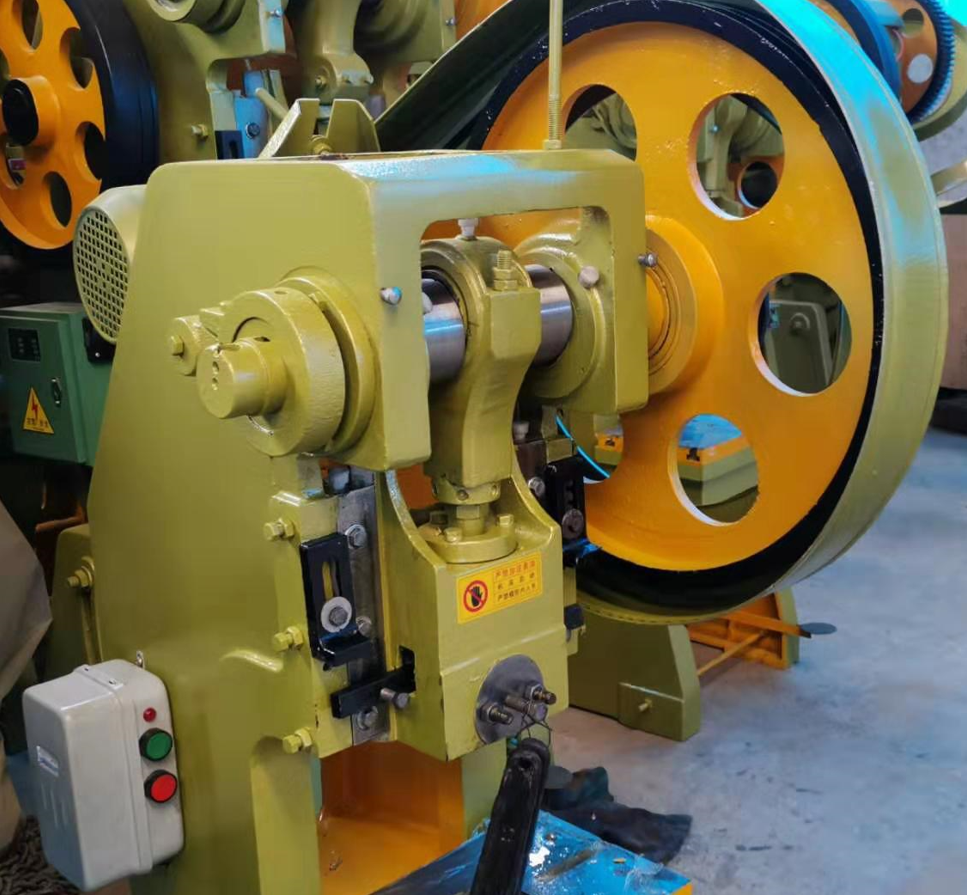

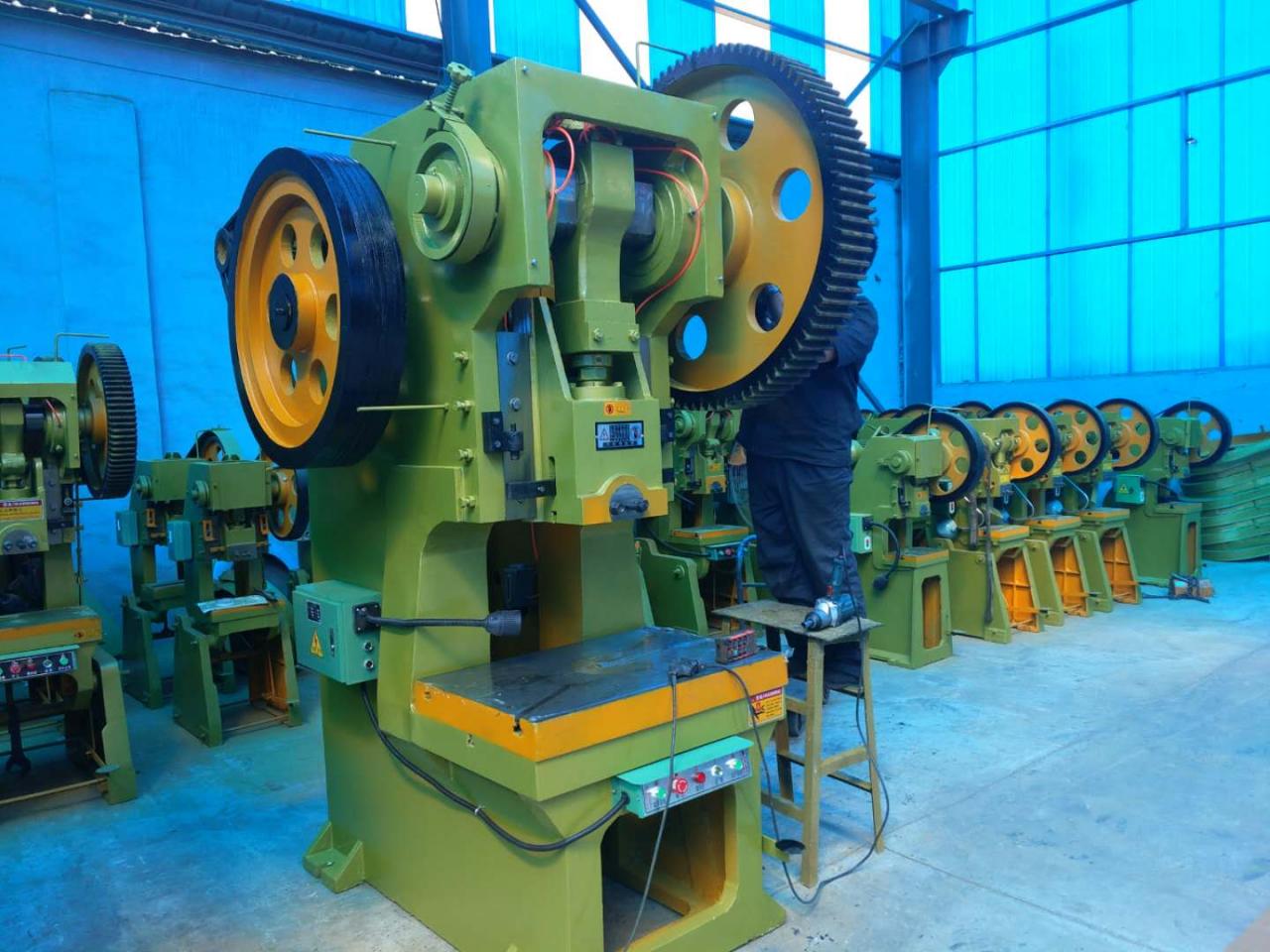

Product Overview
1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life. Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application.
2. Wide body frame eliminating vibration for improved IDE life and machine, which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple andthe appliance is also beautiful.
3. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service
Features At A Glance

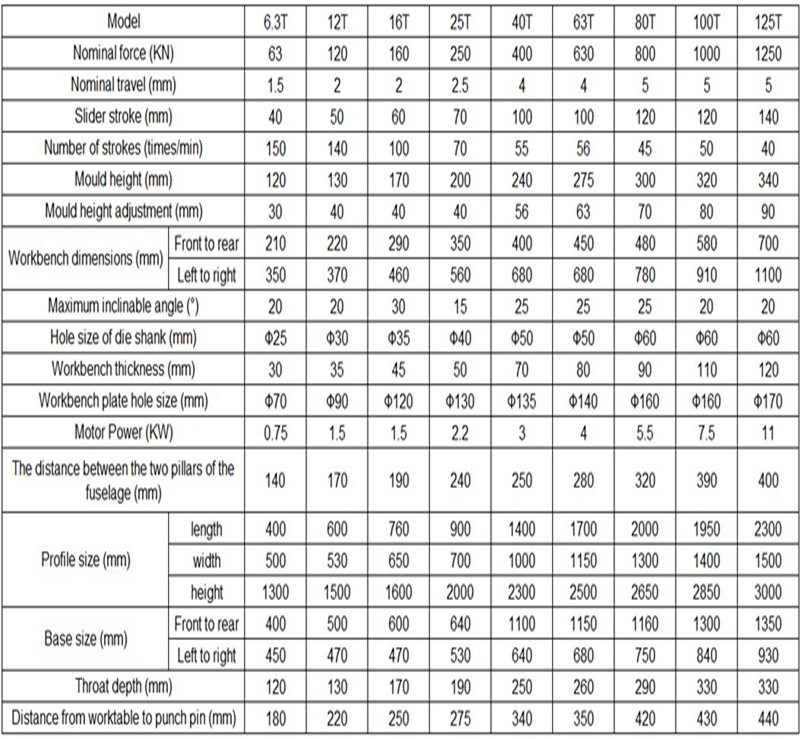

Product Specifications
Product Configuration

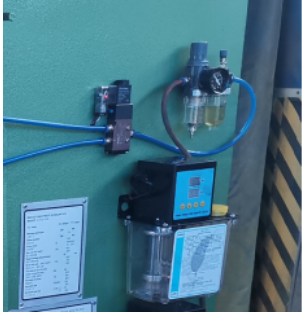

Manual centralized lubrication. Simple and easy operation.

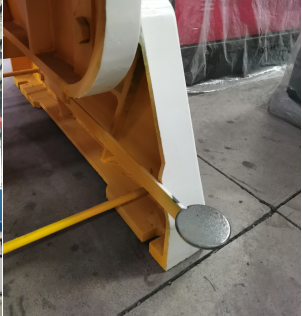

Controlling the electromagnet and machine by foot switch, which is easy operated.

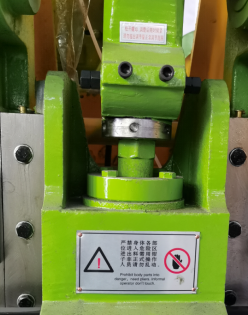

Manually adjusts the die height of mechanical punch, scale display

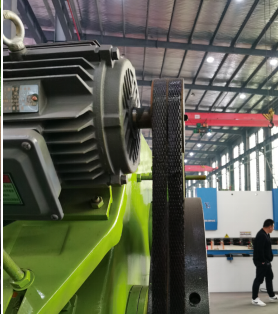

Use motor to ensure the operation reliability.
Both-hands operation buttons to ensure the operators' safety.
Intergrally forged frame, never deformation.
Options Parts

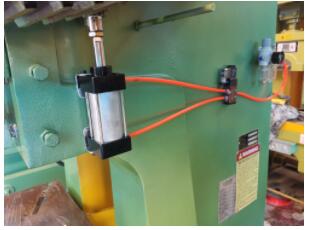

Pneumatic clutch can be produced automatically.
Automatic lubrication device to extend the service life of the machine.

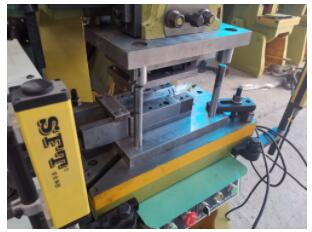

Light curtain protection, more secure.
Main Features
1. Use the combine of dry friction clutch and brake pneumatic, rigid interlocking, reliable piece of friction material semimetallic friction material SMFM88 less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation,convenient of installation and maintenance
2. Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment.
3. Use double safety valve to ensure the accurate implementation of the clutch instruction.
4. Electrical control is installed PLC, 8 group cam controller, reliable action.
5. Electrical control adopts Omron PLC for centralized control, improved machine reliability
6. Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization detection and monitoring.

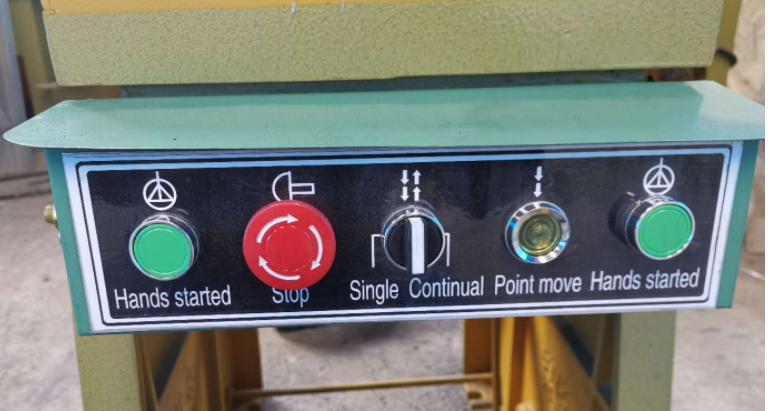

7. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
8. Can move the RAM up slowly, which allows the operator to control Mold adjustment conveniently.

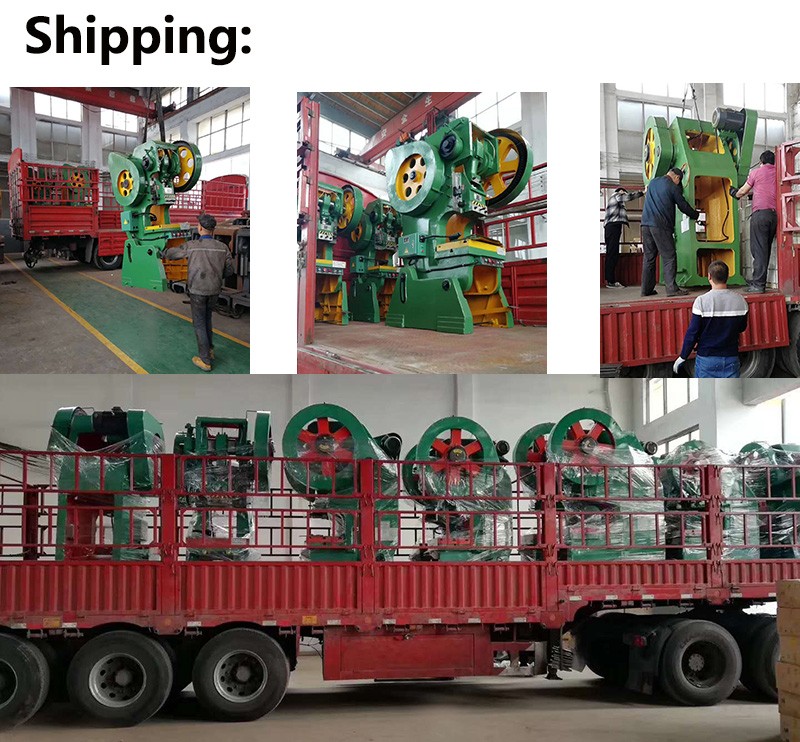

2 kinds of ways: LCL is for small machine, FCL is for big machine.
※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.
Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
Each machine packed with plastic film first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.
FAQ
1. Are you the manufacture? Can we visit your factory?
We are manufacturer and we are located in Anhui,China. And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot, any question will be solved on spot at first time.
2. What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Africa.
3. What are the advantages of your machines?And how can i believe the quality of your product?
The main configuration is to import quality products, and Professional product quality inspection teamensure machine in
top-quality, precision and life. For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as qualified. Our machine would be sent out. So The quality of our product is stable and reliable.
4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.
5. Can we be your agent?
Yes, we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect. Buyer pays 30% by T/T to start this order, rest 70%paid before shipment.
7. Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.
8. How long is your warranty?
13 months free warranty, life-long maintenance.
9. Do you accept customer Logo and customized ?
We accept kinds of customized ,including logo and machine .
Details
- CNC or Not: Normal
- Condition: New
- Machine Type: Punching Machine
- Slide Stroke (mm): 40
- Power Source: Mechanical
- Motor Power (kW): 1.5
- Weight (T): 0.04
- Key Selling Points: Competitive Price
- Warranty: 2 years
- Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Advertising Company, Other
- Showroom Location: None
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Motor, Other
- Product name: Punching Pressing Machine
- Keyword: Mechanical Metal Punching Machine
- Material: Carbon Steel
- Color: Customer Request
- Nominal Pressure: 1000 (kn)
- Hole shape: Circle
- Motor: 1.5KW
- Mold adjustment height: 30mm
- Feature: Safety Operation
- workbench thickness: 30mm
