Production Description
Basic type, torsion bar press brake,E21/E22 system with frequency converter + reducer and ball-screw to control the machine running accuracy.
Torsion bar press brake, use Co-trust, E300, ES10, TP10S smart system with servo motors for y/x, machine running faster, supportfor degree input.
Electro-hydraulic synchronous press brake, popular Cybelec Touch 8 system, support 4+1 axis, and motorized Z1/Z2 optional
Electro-hydraulic synchronous press brake, popular Delem DA53T system, support 4+1 axis, and motorized Z1/Z2 optional
CNC press brake with smarter system like DA66/69T, CT12/ModEva with 6+1 or 8+1 axis, support the communication with Robots
NC/CNC tandem machine, each machine has one system can work separately. popular on light/flag pole industry.
Product Details
Abundant systemsY/X: E21/E22Y/X/R+V: Co-trust/E300/TP10S/ES10Y1/Y2/X/R+V: DA53T/DA58T/CT8/CT12Y1/Y2/X/R/Z1/Z2+V: DA66T/CT15Y1/Y2+X1/R1/Z1+X2/R2/Z2+V: DA69T/VT19Begin from DA53T system, it can build communication with Robots.
Abundant backgaugeCommon X backgauge with system, with manual R up-down for the beam. Common X/R backguage with linear guide with system. Special backgauge X/R+Z1/Z2 motorized with button on the pedal. Integral X/R/Z1/Z2 and X1/R1/Z1+X2/R2/Z2 backgauge are optional with high level system .
Main configurations

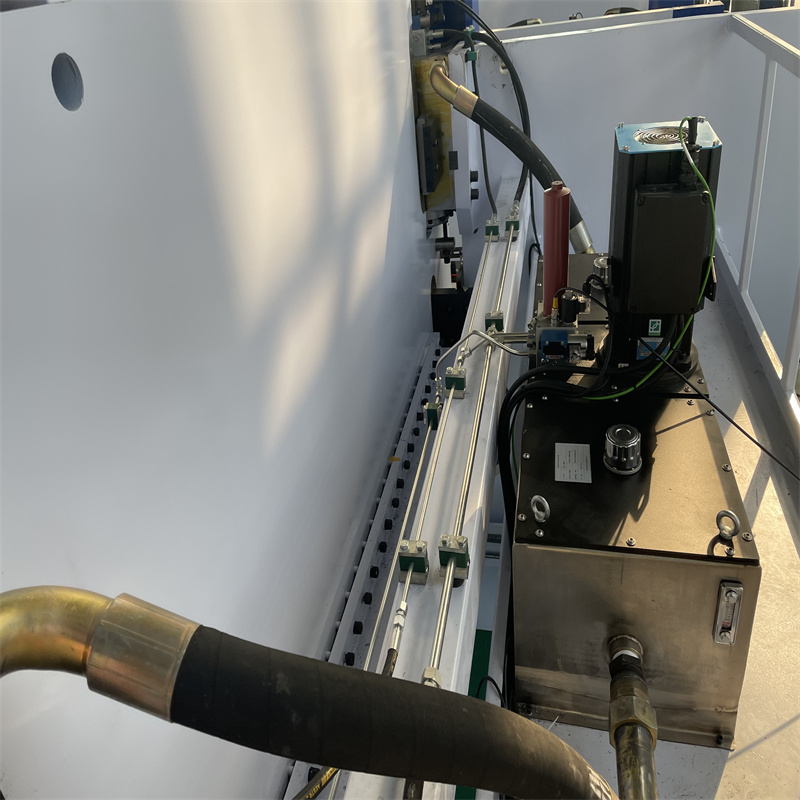

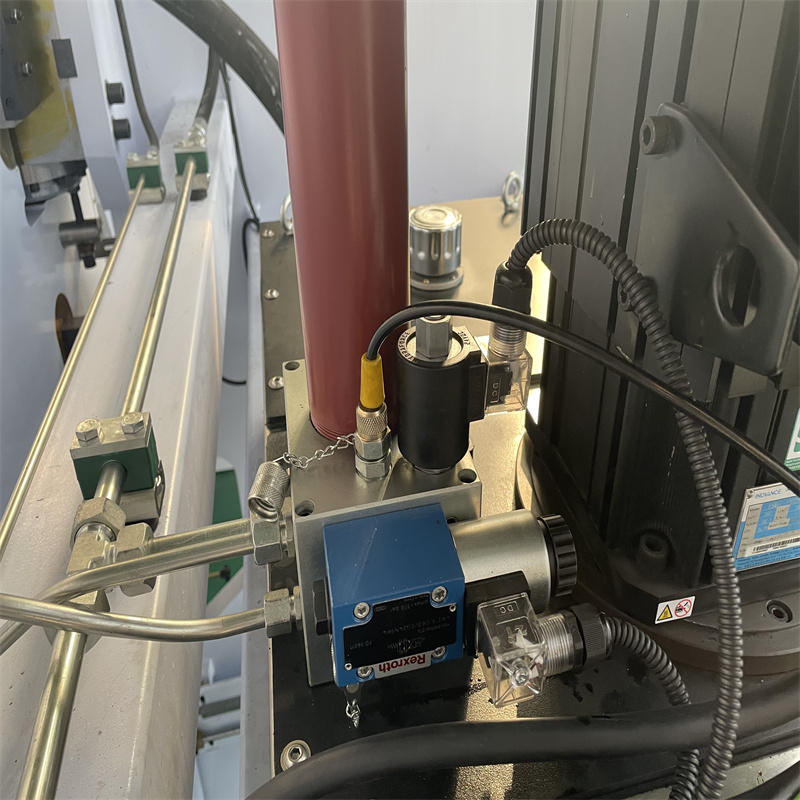

Rexroth proportional servo valvesRexroth pump
Heyan cylinder
Fargo grating ruler
Estun servo motor and driver
Schneider Electric
Abundant options 300mm/500mm light curtain DSP/MSD/Estun laser protectionMetal/Euro/One-click fast releasing clampsRise-and-fall/rotating/fixed front supportFollow-up front support with bendingVaried bending tools designed.
Details
- Slider Stroke (mm): 200 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 320 mm
- Machine Type: Synchronized, Synchronized
- Length of Working Table (mm): 3200
- Width of Working Table (mm): 200 mm
- Dimension: 3850x2000x2569mm
- Condition: New
- Place of Origin: Jiangsu
- Brand Name: Supertech
- Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
- Automation: Automatic
- Extra Services: End Forming
- Year: 2022
- Weight (KG): 9000
- Motor Power (kw): 7.5 kw
- Key Selling Points: Competitive Price
- Warranty: 1.5 years
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Advertising Company
- Showroom Location: Turkey, United States, Philippines, Peru, Pakistan, Spain, Morocco, Kenya, Argentina, South Korea, Chile, Sri Lanka, Romania, Bangladesh, Kazakhstan, Malaysia
- Marketing Type: New Product 2022
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1.5 years
- Core Components: Motor, Pump, Pressure vessel, Engine
- After-sales Service Provided: Online Support
- Product name: Hydraulic Cnc Bending Machine
- Raw Material: Sheet
- Application: Metal Sheet Bending
- CNC system: E21/DA52S/DA66T/E300P
- Keyword: Hydraulic Press Break
