The press brake is a machine that can bending the sheet metal. Its structure mainly includes a bracket, a working table and a clamping plate. The working table is placed on the bracket which composed of a base and a pressing plate. The base is attached to the clamping plate by a hinge, and is composed of a shell, a coil and a cover plate.
When in use, the wire is energized to the coil, so that the coil generates attractive force to the pressing plate in order to realize the clamping of the sheet metal between the pressing plate and the base. Due to the use of electromagnetic force clamping, the pressing plate can be used into a variety of workpiece requirements, and workpieces with side walls can also be processed. The bending machine can meet the needs of various workpieces by changing the mold.
1. All the components of the machine are designed under the instruction of the computer aided design and software of CAD/CAE/CAM to fully guarantee the intensity and rigidity of all the components.
2. The whole body under total wielded, thickness and reliable in machine body with high-rigidity and good in shock absorption reduction.
3. The machine structure are composed by body frame, working table, slide block, main cylinder and backgauge. The advantage design and produce style can ensure the machine usage and high precision. The main produce procedure as below (all process under strictly inspection).
4. Plate stock----Physical and chemical inspection----Plate pre-treatment (Rust-Cleaning) --- CNC flame cutting-- Cutting the welded joint----Group welding----Gas shielded welding---Ageing treatment----Milling planer working----The assembly of finished products.

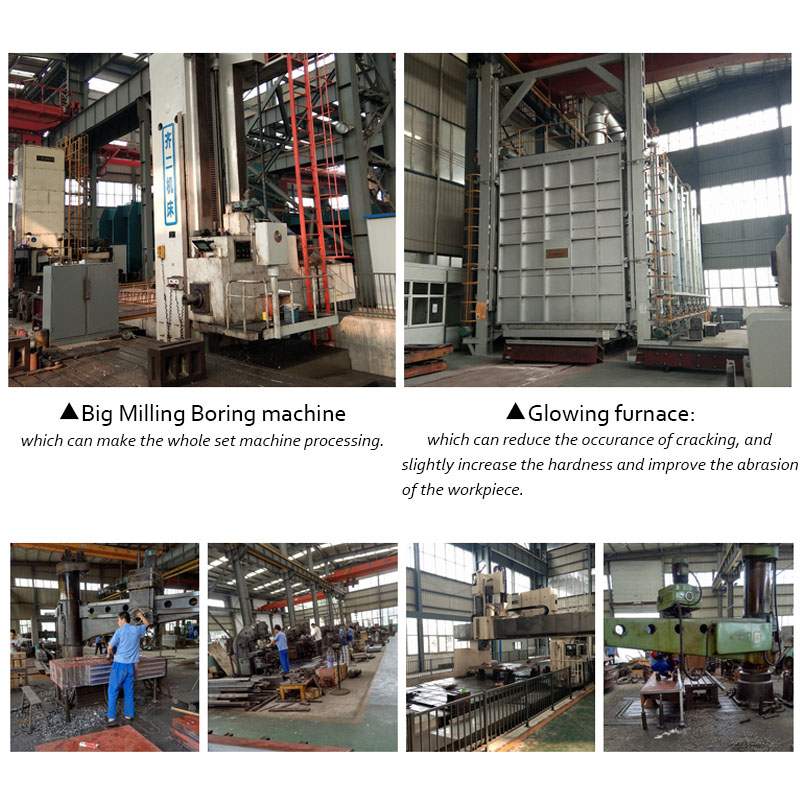

5. The machine body, slide block, working table and other main components are under one time clamping of large landing boring and milling machine to ensure several geometric accuracy of the main machine.
6. The machine is greatly enhanced in anti-torque and electronic load resistance. Machine can normally work in full loaded situation. Working table, upright column, crossbeam and ram are good and high in design rigidity. Little deformation between the working table and ram when work to guarantee good straightness and uniformity in angle.

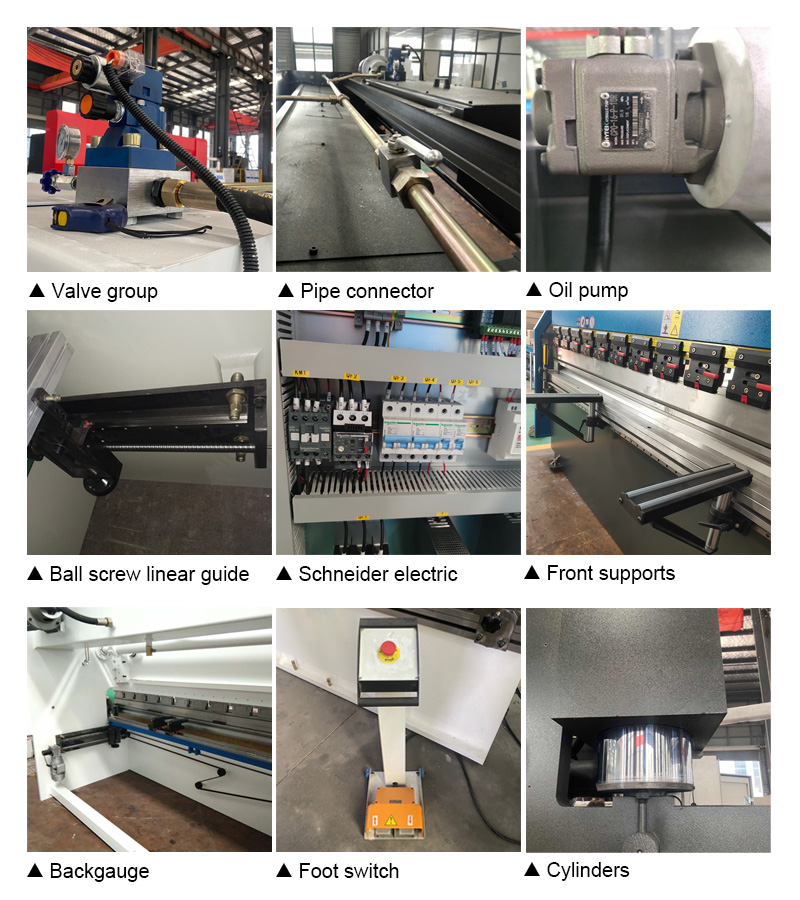

※ Germany Rexroth valve group
※ Pipe joint Germany EMB
※ Sunny oil pump, the US
※ Ball screw linear guide, Taiwan HIWIN(China)
※ Schneider electric system, France

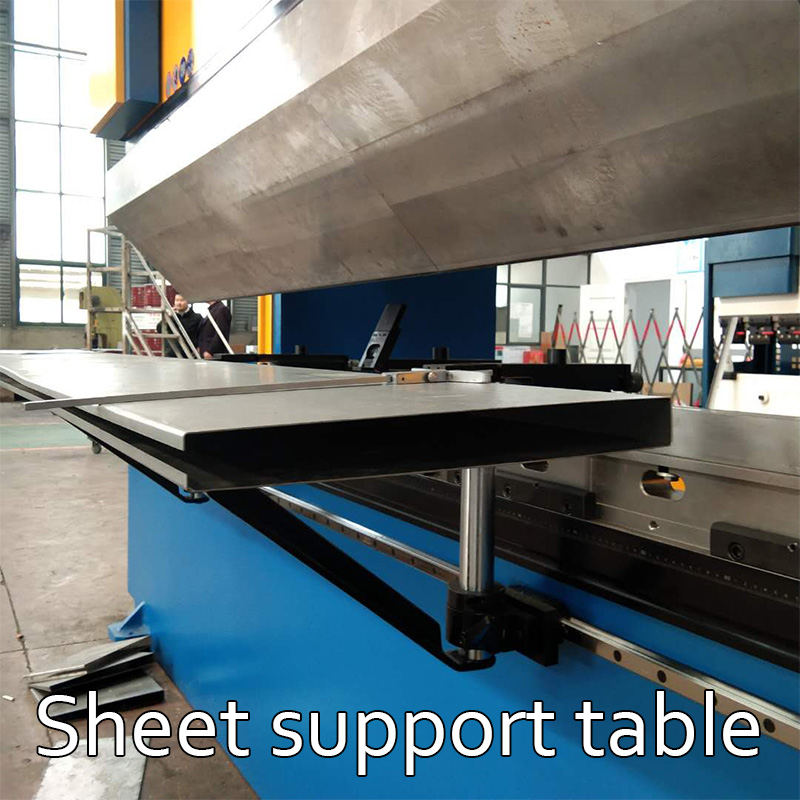

※ Front support
※ High accuracy backguage
※ Foot switch

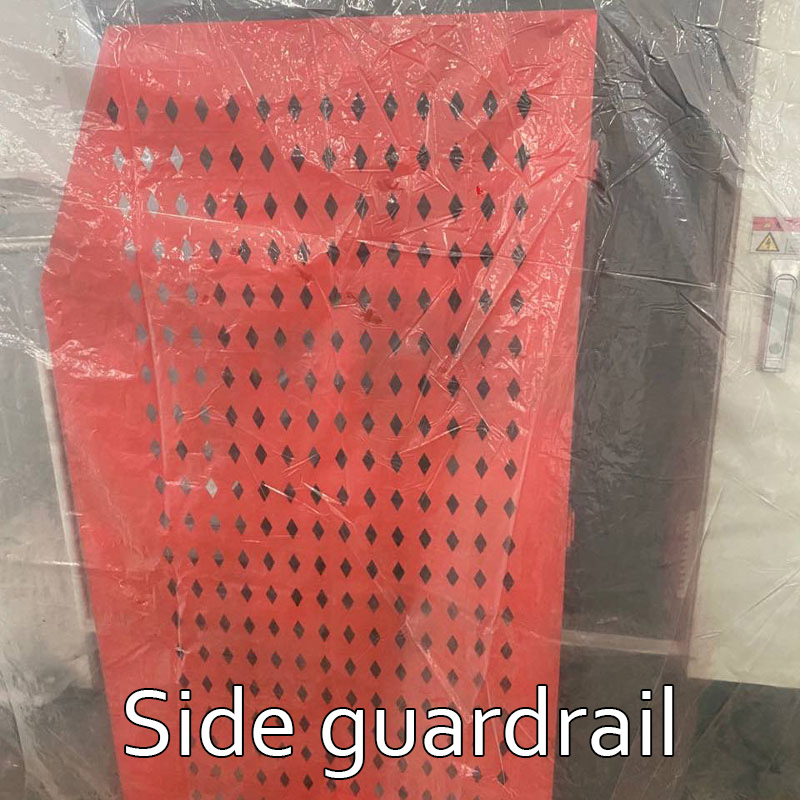

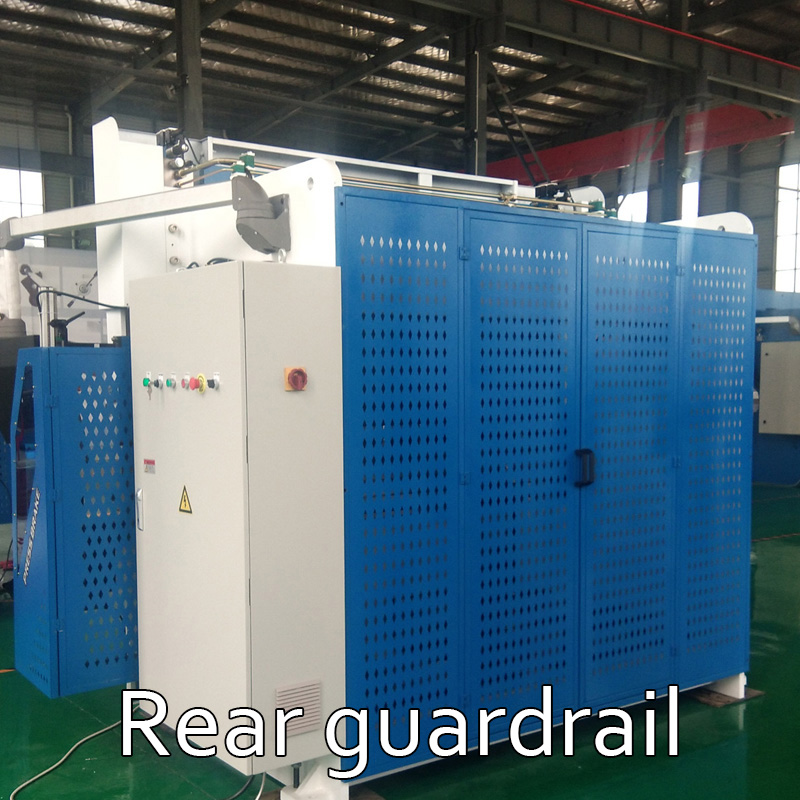

※ Side guardrail and rear guardrail(Optional)
※ Light curtain protection and Laser protection (Optional)

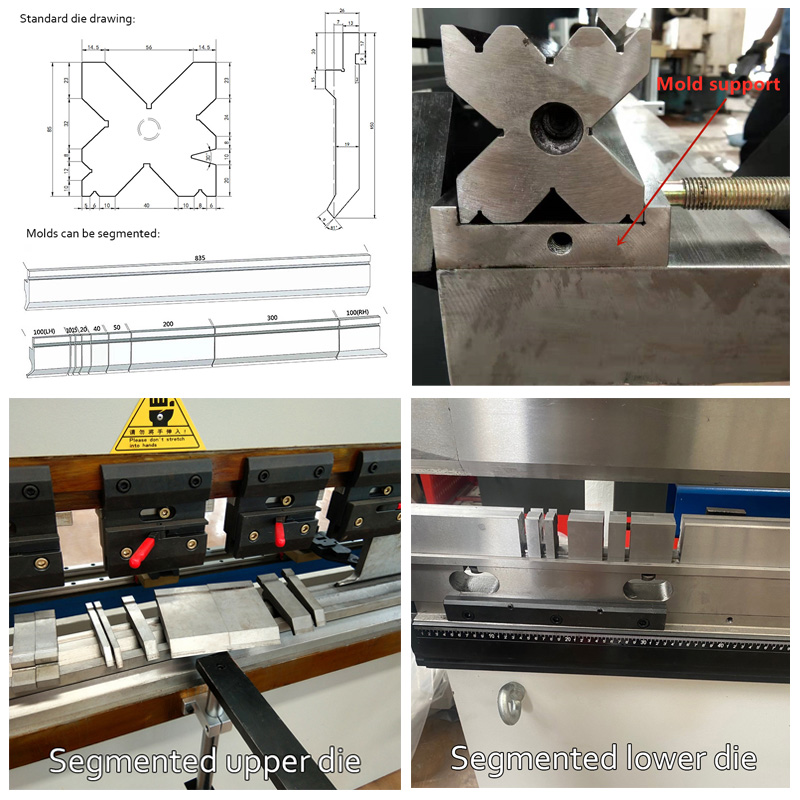

※ A set of mold for free (if you want a customized mold, just tell us, we can customized them for you.)
※ Or can be customized by your requirements

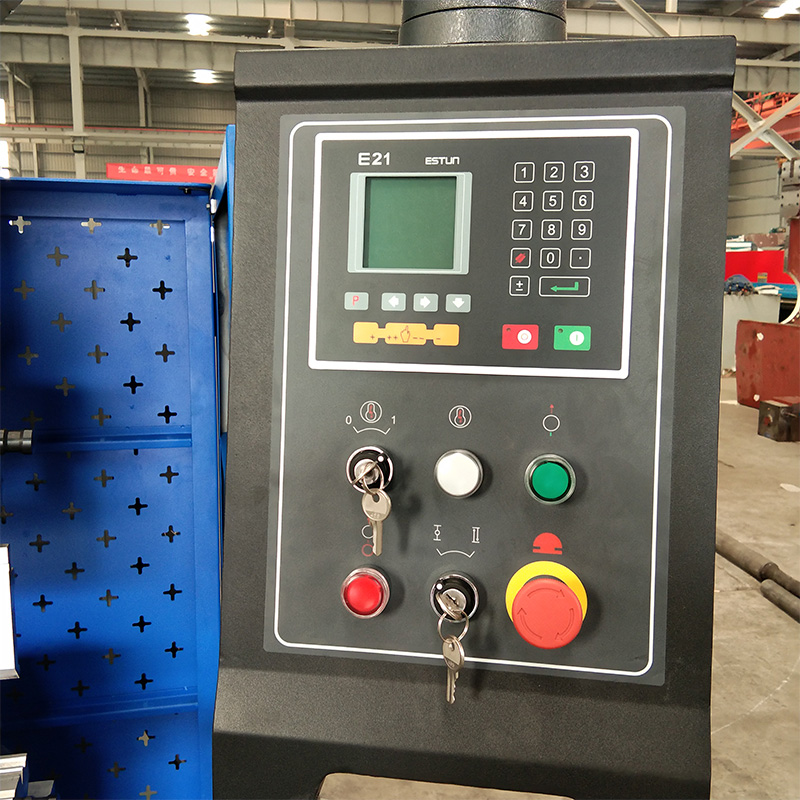

E21 Controller
1. HD LCD display, with both Chinese and English optional page display programming parameters, faster and easier to write programs.
2. X,Y-axis intelligent positioning, can also be manually adjusted as needed to remove the mechanical hand positioning device.
3. Built-in stay time, uploading delay setting function, the operation easier without time relay to reduce costs.
4. With the function of one button backup and restore, always can restire parameters as required to reduce the maintenance costs.
5. Support multi-step programming, complex workpieces can complete a process, improve production efficiency and machining accuracy.
6. All keys on the panel are micro-switches, through EMC, high temperature, vibration and other rigorous testing to ensure product stability and service life.
7. CE certified to meet the needs of overseas markets.

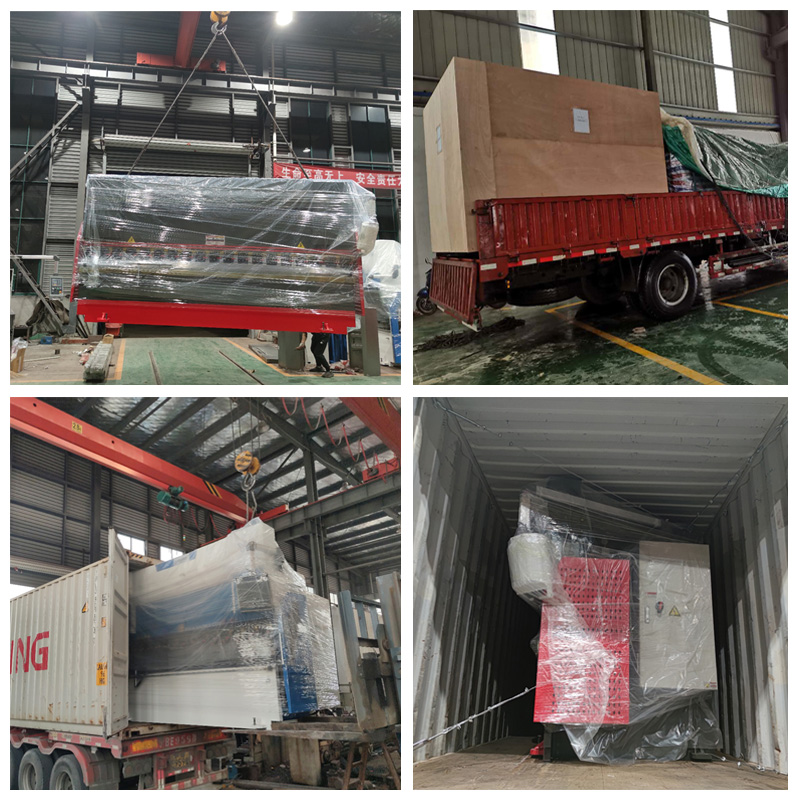

2 kinds of ways: LCL is for small machine, FCL is for big machine.
※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.
Delivery Detail :
✈ Shipped in 30 days after payment.
☀Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
☂ After tested, the machines will be wrapped with plastic sheet, machine will be securely wired to the container.
☂ Each machine packed with plastic film first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
FAQ
1. Are you the manufacturer? Can we visit your factory?
Of course, you can. We are manufacturer and we are located in Anhui, China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.
2. What's your main product? What is your main foreign market?
Our main products are press brake, shears machines, hydraulic press, cutting machine, locking machine, auto duct line and related products. Our main foreign markets are Asia, North America, Europe, and Africa.
3. What are the advantages of your machines? And how can I believe the quality of your product?
The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group, Germany Siemens Main Motor, Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So the quality of our product is stable and reliable.
4. Are you able to update the production process Information in time after placing our order?
After confirming your order, we would keep you updated of production details of emails and photos.
5. Can we be your agent?
Yes, we are looking for global agent, and we will help agent improve the market, and supply all the service like machine technical problem or other after-sales problem, meanwhile, you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment etc.
7. Are you provide product metal parts and provide us technical guidance?
Wearing parts, Disassembly tool(free) are what we could provide. And we can give you technical guidance. Our technical staff can go abroad to provide you with professional technical guidance.
8. How long is your warranty?
2 years free warranty, life-long maintenance.
9. Do you accept customer Logo and customized?
We accept kinds of customized, including logo and machine.
Details
- Slider Stroke (mm): 100 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 300 mm
- Machine Type: Torsion Bar
- Length of Working Table (mm): 2500
- Width of Working Table (mm): 2500 mm
- Dimension: 2605 x 1725 x 2355
- Condition: New
- Material / Metal Processed: Stainless Steel, Carbon steel, Aluminum, Iron
- Automation: Automatic
- Extra Services: Machining
- Year: 2021
- Weight (KG): 5000
- Motor Power (kw): 5.5 kw
- Key Selling Points: Easy to Operate
- Warranty: 2 years
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Construction works , Energy & Mining, Advertising Company, Other
- Showroom Location: None
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor, Pump
- Raw Material: Sheet
- Type: Hydraulic Bending Tools
- Application: Stainless Plate Bending
- Usage: Metal Sheet Bending
- Keyword: Hydraulic Press Break
- Control system: E21
- Voltage: 220V/380V/415V/440V/customized
- Color: Customer Choose
- CNC or not: NC
