1. The whole machine is designed according to JB/T2257. 2-92 (China National standard) "plate bending machine technical conditions" and GB/T14349-93 "plate bending machine precision", all the parts of this machine are using computer graphics, computer element analysis, computer aided manufacturing,use CAD, CAE, CAM software for machine structure design, and fully guaranteed the structural strength enough and rigid of each machine component.
2. The whole steel frame welded structure, made the press brake thick, high rigidity, strong shock anti-knock.

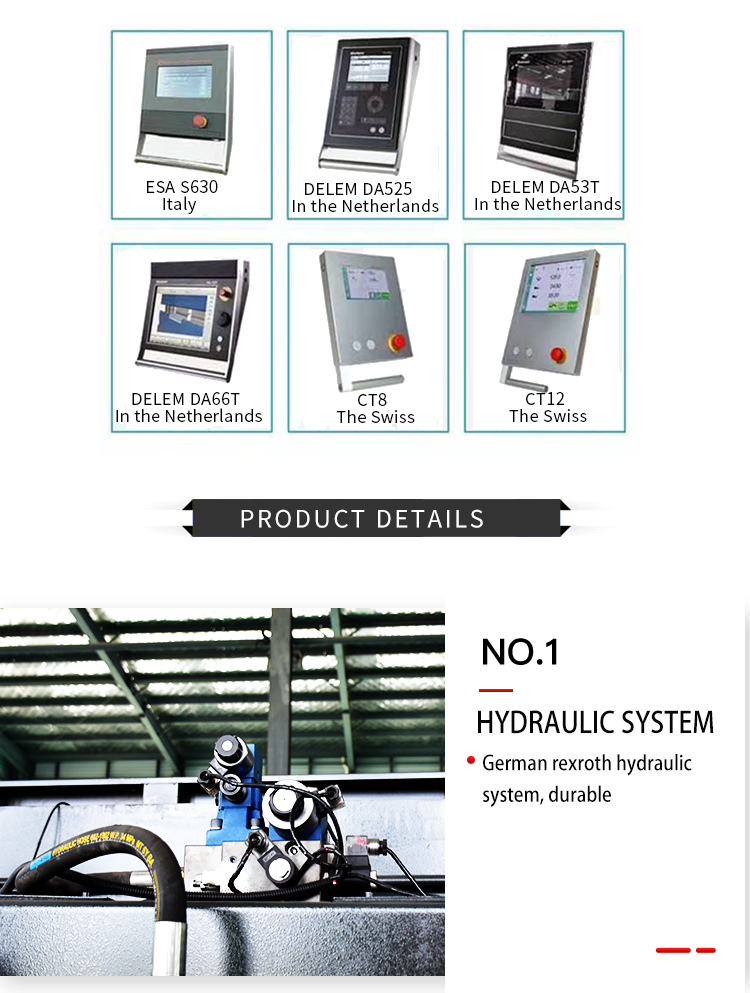

3. Allocate breaking that the DELEM company produces bending machine special use numerical control system (or customer specify other shears to fold numerical control system);
4. Rear material(X), smooth piece route or distance of travel(Y) control equal reason computer autocontrol;
5. Rear material adopt the average silk pole and precise ball two kind silk poles;
6. Machine steel plate welded strure, using VSR elimimate internal stress, high mechanical strength and good rigidity.

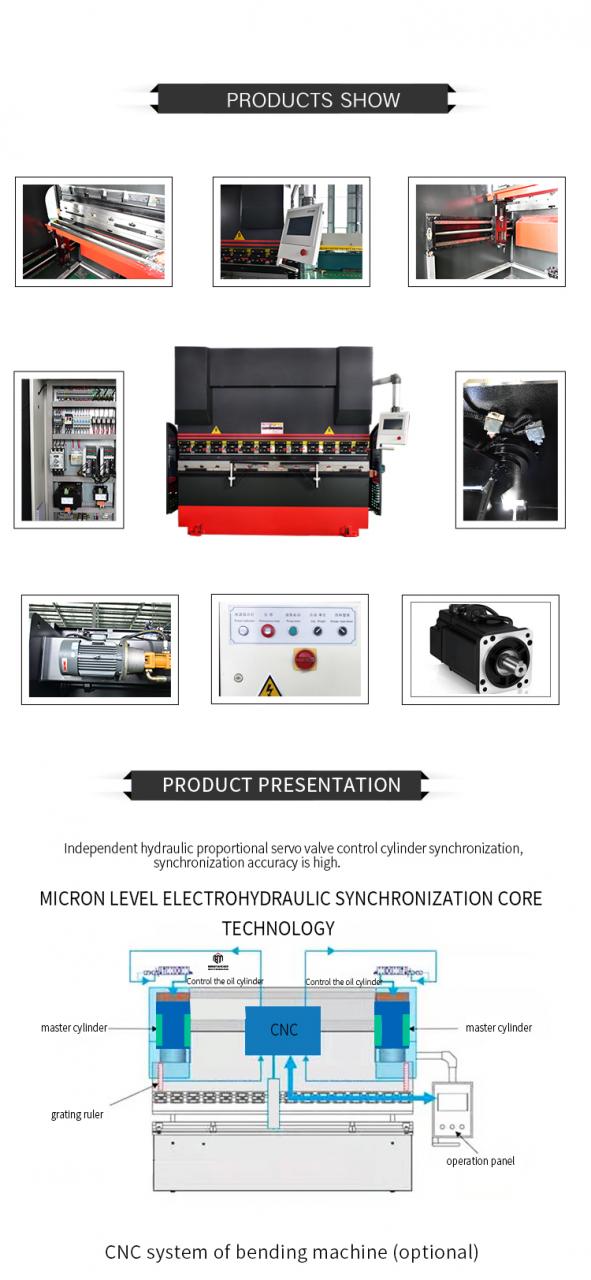

7. Hydraulic double cylinders on the drive, mechanical block, twisting axis synchronization, smooth and reliable operation, high precision.
| Type | Nominal Force | Worktabie Length | Poles Distance | Throat Depth | Stroke | Max Open | Pover | Dimension |
| (KN) | （mm) | （mm) | （mm) | （mm) | （mm) | (KW) | L*W*H(mm) | |
| 30T/1600 | 300 | 1600 | 1280 | 200 | 80 | 285 | 3 | 1600*1000*1600 |
| 35T/2000 | 350 | 2000 | 1480 | 200 | 80 | 285 | 4 | 2000*1100*1800 |
| 40T/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 5.5 | 2200*1200*1910 |
| 40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500*1200*1910 |
| 50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500*1200*2000 |
| 63T/2500 | 630 | 2500 | 1900 | 250 | 120 | 320 | 5.5 | 2500*1300*2210 |
| 63T/3200 | 630 | 3200 | 2500 | 250 | 120 | 320 | 5.5 | 3200*1300*2210 |
| 80T/2500 | 800 | 2500 | 1900 | 300 | 120 | 320 | 7.5 | 2500*1400*2300 |
| 80T/3200 | 800 | 3200 | 2500 | 320 | 120 | 350 | 7.5 | 3200*1500*2300 |
| 80T/4000 | 800 | 4000 | 3000 | 320 | 120 | 350 | 7.5 | 4000*1500*2400 |
| 100T/2500 | 1000 | 2500 | 1900 | 320 | 160 | 320 | 7.5 | 2500*1600*2400 |
| 100T/3200 | 1000 | 3200 | 2500 | 320 | 160 | 370 | 7.5 | 3200*1600*2600 |
| 100T/4000 | 1000 | 4000 | 3000 | 320 | 160 | 370 | 7.5 | 4000*1600*2700 |
| 125T/3200 | 1250 | 3200 | 2500 | 320 | 160 | 370 | 7.5 | 3200*1600*2700 |
| 125T/4000 | 1250 | 4000 | 3000 | 320 | 160 | 370 | 7.5 | 4000*1600*2700 |
| 160T/3200 | 1600 | 3200 | 2500 | 320 | 200 | 460 | 11 | 3200*1700*2700 |
| 160T/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1700*2800 |
| 160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1900*3100 |
| 160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 6000*1900*3200 |
| 200T/3200 | 2000 | 3200 | 2500 | 320 | 200 | 460 | 11 | 3200*1950*2800 |
| 200T/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1950*2800 |
| 200T/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1950*3000 |
| 200T/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 11 | 6000*1950*3300 |
| 250T/3200 | 2500 | 3200 | 2500 | 400 | 250 | 460 | 18.5 | 3200*2000*3200 |
| 250T/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 | 4000*2000*3400 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 | 5000*2000*3400 |
| 250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 | 6000*2000*3400 |
| 300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 570 | 22 | 5100*2600*4000 |
| 300T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 570 | 22 | 6100*2600*4200 |
| 300T/7000 | 3000 | 7000 | 5620 | 400 | 250 | 570 | 22 | 7100*2600*4400 |
| 320T/7000 | 3200 | 7000 | 5620 | 400 | 250 | 570 | 22 | 7100*2600*4400 |
| 350T/6000 | 3500 | 6000 | 5100 | 450 | 250 | 570 | 30 | 6100*2600*4200 |
| 350T/7000 | 3500 | 7000 | 5620 | 450 | 250 | 570 | 30 | 7100*2500*4500 |
| 400T/4000 | 4000 | 4000 | 3100 | 350 | 300 | 620 | 30 | 4100*2700*3800 |
| 400T/6000 | 4000 | 6000 | 4820 | 400 | 320 | 620 | 30 | 6100*2800*4200 |
| 400T/6500 | 4000 | 6500 | 5100 | 400 | 320 | 620 | 30 | 6600*2800*4300 |
| 500T/5000 | 5000 | 5000 | 4100 | 400 | 320 | 620 | 37 | 5100*3000*4400 |
| 500T/6000 | 5000 | 6000 | 4820 | 400 | 320 | 620 | 37 | 6100*3000*4700 |
| 500T/7000 | 5000 | 7000 | 5620 | 400 | 320 | 620 | 37 | 7100*3000*4900 |
| 600T/6000 | 6000 | 6000 | 4820 | 400 | 320 | 620 | 45 | 6100*2965*4900 |
| 600T/7000 | 6000 | 7000 | 5620 | 400 | 320 | 620 | 45 | 7100*2965*4700 |

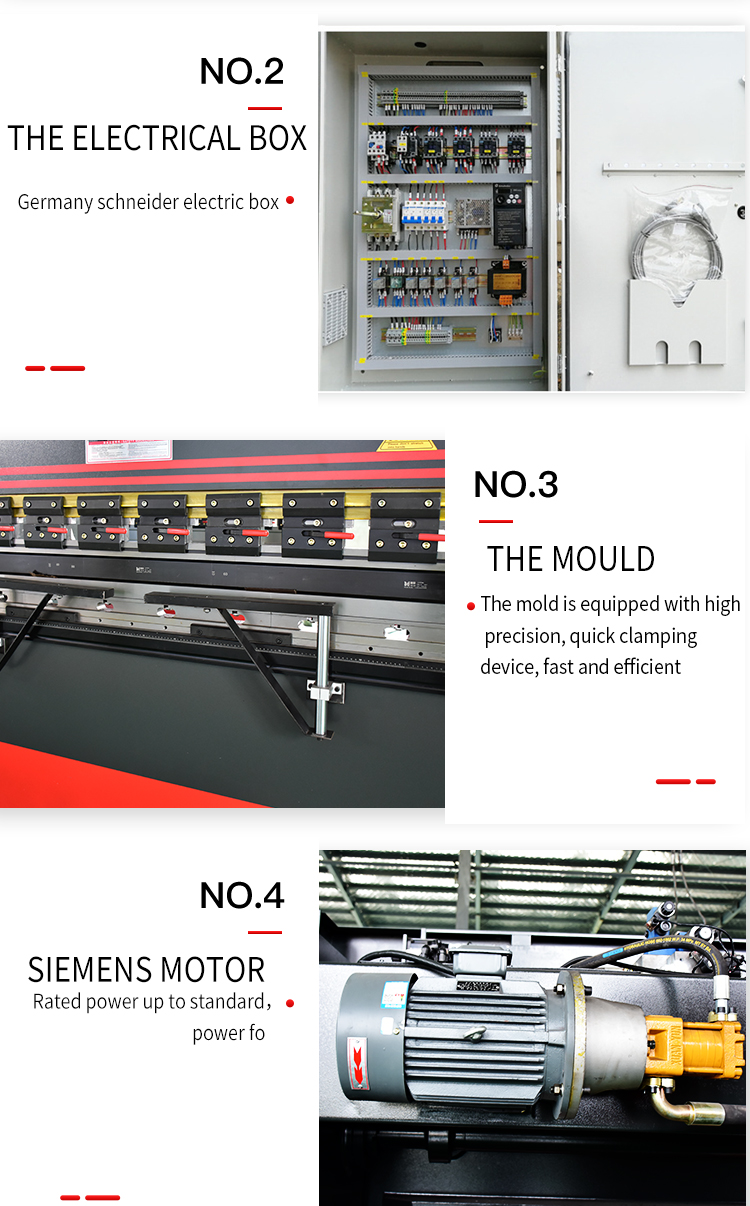

Details Display
FAQ
1: How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, gear hobbing machine and so on.
3: Where is our factory located? How can I visit there?
A: Our factory is located in Anhui China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms?
A : T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set. (Only some low cost machines will be more than 1 set ) pes.
Details
- Slider Stroke (mm): 120 mm
- Automatic Level: Semi-automatic
- Throat Depth (mm): 250 mm
- Machine Type: Torsion Bar
- Length of Working Table (mm): 2500
- Width of Working Table (mm): 160 mm
- Dimension: L2500mm*W1300mm*H2210mm
- Condition: New
- Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
- Automation: Automatic
- Extra Services: End Forming
- Year: new
- Weight (KG): 2600
- Motor Power (kw): 5.5 kw
- Key Selling Points: Competitive Price
- Warranty: 1 Year
- Applicable Industries: Machinery Repair Shops, Manufacturing Plant
- Showroom Location: None
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor, PLC
- Raw Material: Sheet
- Name: Hydraulic Press Brake
- Product name: Hydraulic Cnc Bending Machine
- Usage: Metal Sheet Bending
- Type: Hydraulic Bending Tools
- Application: Stainless Plate Bending
- Keyword: Hydraulic Press Break
- Function: Steel Metal Bending
- Material: Stainess Steel
- CNC or not: CNC Bender Machine
- Certification: ce
