CNC Hydraulic Press Brake Machine Model Wc67k-80tx3200

Product Application

Our range of hydraulic press brake is simple to use, easy for starting , and convenient for maintenance. It is  the mainstream machine in the metal bending market, widely used in sheet metal processing industries.

Main Features

1.  EU streamlined design, all the components of the machine are designed under the instruction of the computer aided design and software of CAD/CAE/CAM to fully guarantee the intensity and rigidity of all the components.

2.  RAYMAX engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis.

3.  All machine body is total monoblock welded assembly by high quality steels . After welding procedure, the machine body will be milled to ensure the balance and precision.

4.  Mechanical synchronous mechanism and the complex compensation are designed so as to raise the work pieces precision.

5.  Adopt integrated hydraulic system, more reliable and easy for maintenance.

6.  The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand,the adjustment is displayed by digital meters

7.  Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays

8.  Humanistic concern security design in all details and also the scientific details through RAYMAX standard.

Standard Equipment

1.  Wedge compensation on top punch clamping

2.  Plate Support Arms

3.  Collapsible  Backstop Finger

4.  Standard Top Dies and Multi-V Lower Dies

5.  Hydraulic and Electrical overload protection

6.  Squaring Arm and Front Support Arms

7.  Dies can be designed under clients' requirement. The machine will be equipped standard molds/dies and the drawing will be sent. And the non-standard molds/dies can be designed if the clients can provide the molds/dies drawing or the working pieces, we will design. The upper mold can be done in section.

8.  SIEMENS Motor or China Hanneng High Quality Motor

9.  Germany Bosch Rexroth Hydraulic System or CHINA Top Level Youtong Hydraulic System.

10.  USA SUNNY Hydraulic Gear Pump or CHINA Shanghai YONGMING High Quality Hydraulic Gear Pump which is used for Chinese Aircraft Industry.

11. The sealing parts will be from JAPAN VALQUA .

12. Germany SIEMENS or France SCHNEIDER Main Electric Elements.

13. Taiwan HIWIN ball screw and polished rod with 0,05 mm accuracy.

14. ESTUN E21 NC system or other cnc controller system.

E21 NC Controller System Features

1. Positioning control of back gauge.

2. Intelligent positioning control.

3. Unilateral and bidirectional positioning which eliminates spindle clearance effectively.

4. Retract functions.

5. Automatic reference searching.

6. One-key parameter backup and restore.

7. Fast position indexing.

8. 40 programs storage space, each program has 25 steps.

9. Power-off protection.

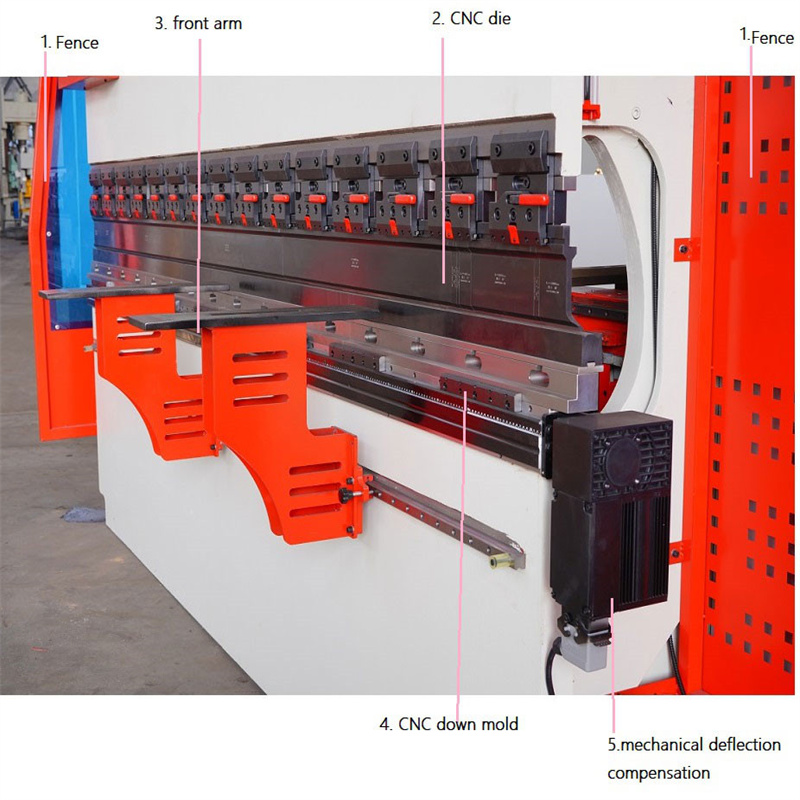

10. mm/inch, Chinese/English . Detailed Images

How to count bending power?

8(Ratio) x 2 mm(thickness) x 2.5 meter (width)= 40
So, you need WC67Y-40T/2500 press brake to bend 2 mm thick x 2500 mm width mild steel.

FAQ

Q1. Are you a factory or trading company and where are you located?

A: We are a factory located in Anhui, China, The transportation is convenient.

Q2. How long about your machine guarantee period?

A: 12 months. Our machine comes with 1 year warranty, except for wearing parts and damage incurred by improper usage/negligence.After this period , you can still enjoy our service all the time.

Q3. Does your company have any certification?

A: Yes. We have CE , ISO 9001 and so on.

Q4. Do you have machine operating instruction?

A: Yes. We have English machine operating instruction together with the machine.

Q5. What's the delivery time?

A: Generally, it takes 15-25 working days to finish an order. Exact delivery time would be confirmed by further communication.

Q6. Can i put my own LOGO on the products?

A: Yes. You can put your own LOGO on the products. Related Products ",

Details

• Slider Stroke (mm): 120 mm
• Automatic Level: Semi-automatic
• Throat Depth (mm): 320 mm
• Machine Type: Torsion Bar
• Length of Working Table (mm): 3200
• Width of Working Table (mm): 200 mm
• Dimension: 3300x1500x2200 mm
• Condition: New
• Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum, Plastic, PVC, Carbon steel, Stainless steel, Aluminum
• Automation: Automatic
• Extra Services: End Forming
• Weight (KG): 6000
• Motor Power (kw): 7.5 kw
• Key Selling Points: Competitive Price
• Warranty: 2 years
• Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
• Showroom Location: United States, Viet Nam, Philippines, Indonesia, Mexico, Thailand, Sri Lanka, Bangladesh, Malaysia
• Marketing Type: Ordinary Product
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 2 years
• Core Components: Bearing, Motor, Gear, PLC
• Product name: Hydraulic Press Brake
• Color: Customized
• Voltage: 220V/380V/415V/440V/customized
• Type: Hydraulic Metal Bending Machine
• Electric Elements: Germany Siemens
• Control System: Estun E21
• Weight: 6000 kg
• Certification: ISO 9001:2000
• After-sales Service Provided: Online support
