Products Description
What is a fully enclosed laser cutting machine? The fully-protected fiber laser cutting machine adopts a fully enclosed laser protective cover, is equipped with a special laser protective glass observation window, and is equipped with a scientific smoke recovery and purification system, which is overall beautiful, safe and environmentally friendly; at the same time, it is equipped with a special exchange platform, which is fast and up and down. Convenient material, high processing efficiency
Product Paramenters
| Equipment model | 1500*3000mm/ 2000*4000mm / 2500*6000mm optioal |
| Laser type | Fiber laser generator |
| Laser wavelength | 1064nm |
| Rated output power | 500w-12000w |
| Table | Two, automatic exchange |
| Workbench axial positioning accuracy | ≤±0.03mm |
| Workbench repositioning accuracy | ≤±0.02mm |
| Cutting speed | Depend on material and thickness |
| Max no-load speed | 120m/min |
| Cutting head | Switzerland Raytools laser head |
| Transmit way | Dual Rack & Pinion type |
| Reducer | Japan Shimpo |
| Drive system | Japan Yaskawa servo motor and driver |
| Water chiller | Industrial water chiller |
| Software | Cypcut control software |
| Electrical requirements | 3 Phase 380V±10% 50HZ/60HZ or 3 Phase 220V±10% optional |
Product features:
1. Double exchange table automatic loading and unloading cutting, saving time and effortFollow-up focusing cutting head, good cutting effect
2.Fully enclosed cover, environmentally friendly, easy to maintain, and prolong the life of the whole machine
3.High-temperature annealing machine tool, stable, imported guide rail rack, positioning pin, stopper, to ensure long-lasting accuracy

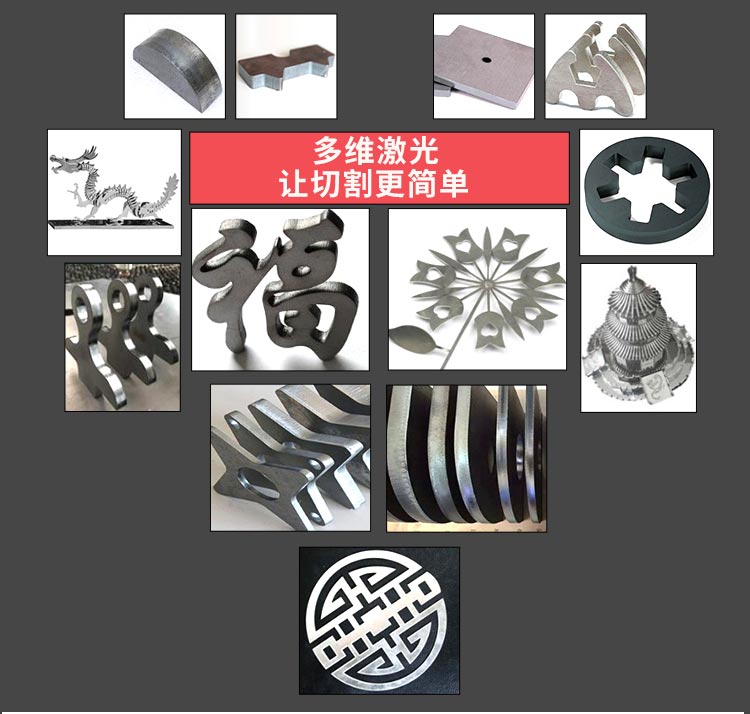

Product Effect Display
Fully enclosed laser cutting machine application industry：
Fiber laser machine is suitable for sheet metal cutting, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, gifts, handicrafts, tool processing, decorations, Advertising, metal processing abroad, various metal cutting industries.
Why Choose Us
- 10,000 square meters production plant
- 12 years focus on laser equipment manufacturing
- Customized equipment available
- Full range of models and specifications
- Professional technical team
- Free samples, free plant visit
FAQ
Q: What materials can your laser cutting machine cut?
A: Please provide the material you want to cut The thickness of the cut sheet
Q: I don’t know which one is right for me?
Answer: Just tell us the following information
1) Maximum working size: select the most suitable model.
2) Material and cutting thickness: the power of the laser generator.
3) Commercial industry: We sell a lot and provide advice in this industry.
Q: How can I quickly obtain information and quotations for this product?
Answer: Please leave your email, WhatsApp or WeChat, and we will arrange for the sales manager to contact you as soon as possible.
Q: What operations can the laser cutting machine perform on the plate?
Answer: It can be cut, cut, and punched on the plate.
Q: What materials can the fiber cleaver cut?
Answer: All kinds of metal plates, such as stainless steel, carbon steel, low carbon steel, chemical steel, aluminum, copper, etc.
Q: Do you provide after-sales service?
A: The whole machine is guaranteed for 1 year, and door-to-door service is provided.
Q: What payment methods are supported?
A: Alibaba Trade Guarantee/TT/Western Union/Payple/LC/Cash/DA/DP.
Q: Do you support customization?
A: Yes, we will customize the service for you according to different cutting materials and thickness.
Q: I don't know how to use it after receiving it, or I have encountered a problem in the process of using it. what do I do?
A: We have detailed user manuals and video materials, you can learn. In addition, we provide door-to-door service.
Q: Payment terms?
A: Alibaba Trade Guarantee/TT/Western Union/Payple/LC/Cash etc.
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500*3000mm
- Cutting Speed: 120mm/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: 0-30mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: AutoCAD
- Place of Origin: China
- Laser Source Brand: RAYCUS
- Laser Head Brand: Raytools
- Servo Motor Brand: Yaskawa
- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 1000 KG
- Key Selling Points: High Safety Level
- Optical Lens Brand: Might
- Warranty: 2 years
- Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Other
- Mode of Operation: continuous wave
- Configuration: gantry type
- Products handled: Sheet Metal
- Feature: Fully-enclosed
- Product name: enclosed fiber laser cutting machine
- Laser power: MAX
- Laser head: Raytools Cutting Head
- Control system: Cpycut
- Power: 1kw-20kw
- Guide rail: Taiwan Hiwin
- Certification: ce
- Cutting materials: Stainless Steel Carbon Steel Sheet
- Keyword: Fiber Laser Cutting Machiens
- Function: Cutting Metal Materials
