Main features:
* 3 1 Axis,Y1 Y2 X axis crowing
* Fast Released Clamp
* Synchronized cylinders for Y1 & Y2 axis. * Schneider Electrics, Yaskawa Servo Motor and Driver
* Imported ball bearing lead screw and linear guide rail
| Controller | DELEM 52S |
| Motor | Siemens |
| Valve | BOSCH Rexroth |
| Electrics | Schneider |
| Pump | Sunny |
| Servo | Yaskawa |
| Foot Pedal | Kacon |

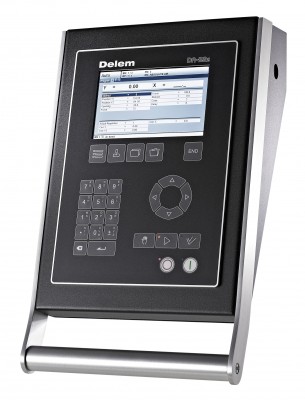

Controller
DELEM DA52S
* Quick, one page programming
* Hotkey navigation
* 7” VGA colour TFT
* Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
* Crowning control* Tool/material/product library
* USB, peripheral interfacing
* Advanced Y-axis control algorithms for closed loop as well as open loop valves
Main Parameters
| Series | Name | PB-CNC 63T/1600 | Unit |
| 1 | CNC Controller | DA52S | |
| 2 | Axis | Y1 Y2 X Crowing | |
| 3 | Bending Force | 63 | Ton |
| 4 | Max. Bending Width | 1600 | mm |
| 5 | Max. Bending Thickness | 5(MS,L=1600mm),3(SS,L=1600mm) | mm |
| 6 | Stroke | 200 | mm |
| 7 | Column Distance | 1000 | mm |
| 8 | GAP | 480 | mm |
| 9 | Throat Depth | 320 | mm |
| 10 | Worktable Width | 110 | mm |
| 11 | Main Motor Power | 5.5 | KW |
| 12 | Back Gauge Stroke | 600 | mm |
| 13 | X axis Accuracy | 0.01 | mm |
| 14 | Oil Pump | 13-MCY | |
| 15 | Max. Hydraulic Pressure | 30 | Mpa |
| 16 | Hydraulic Oil need | 100(L-HM 46) | L |
| 17 | Crowing | Electric Crowing | |
| 18 | Voltage | 220/380/415/440 | V |
| 19 | Length | 2000 | mm |
| 20 | Width | 1700 | mm |
| 21 | Height | 2100 | mm |
| 22 | Weight | 3000 | KG |
Detailed Images

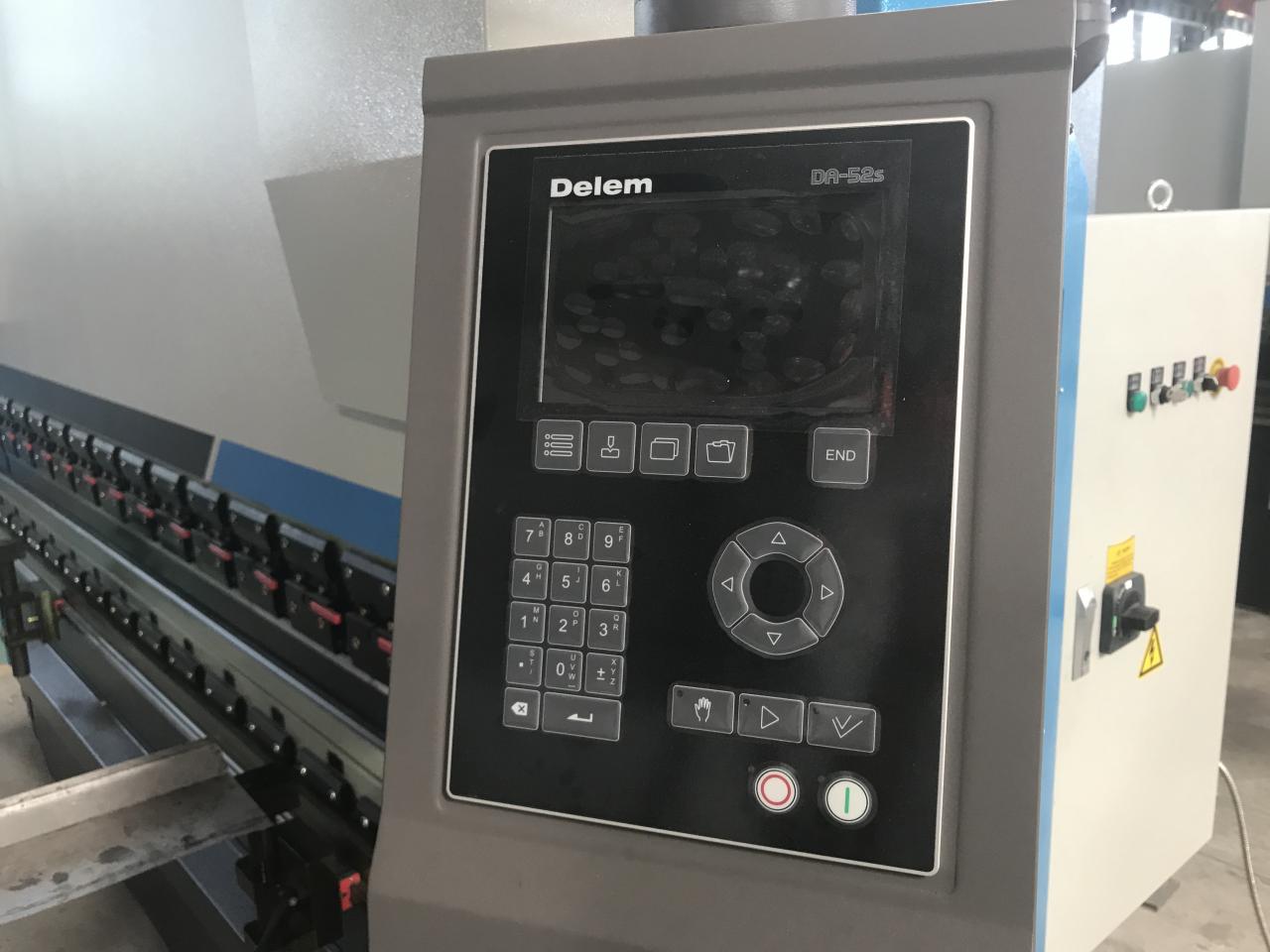

DA52S Controller
Top quality and grade in the world

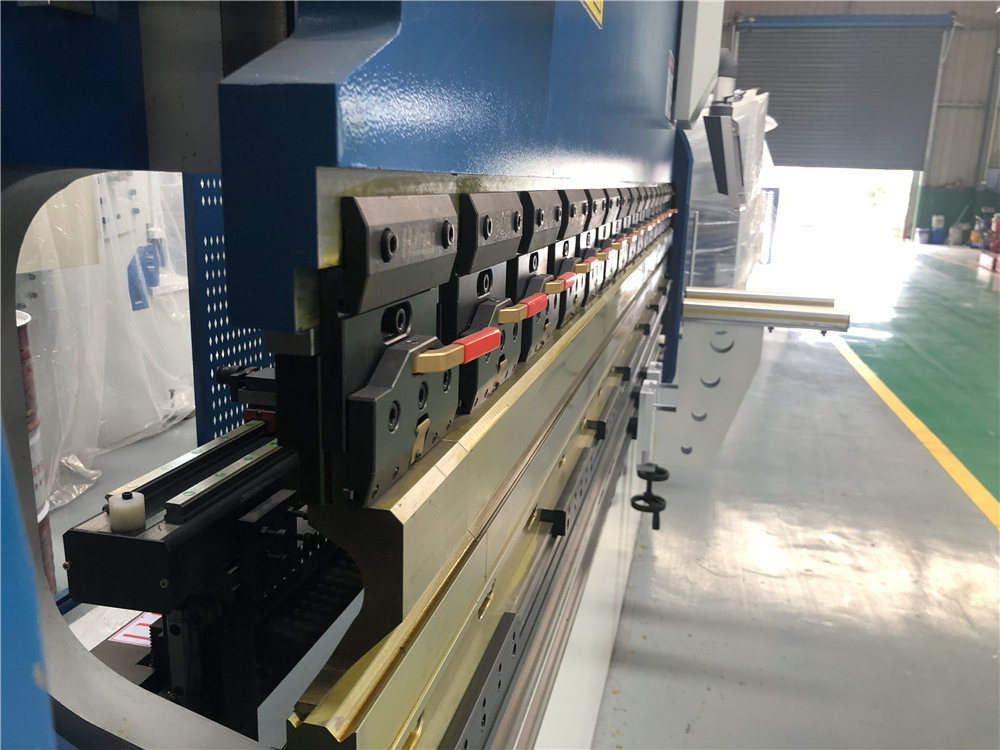

Fast Released Tool Clamp
One Key loosen and fix

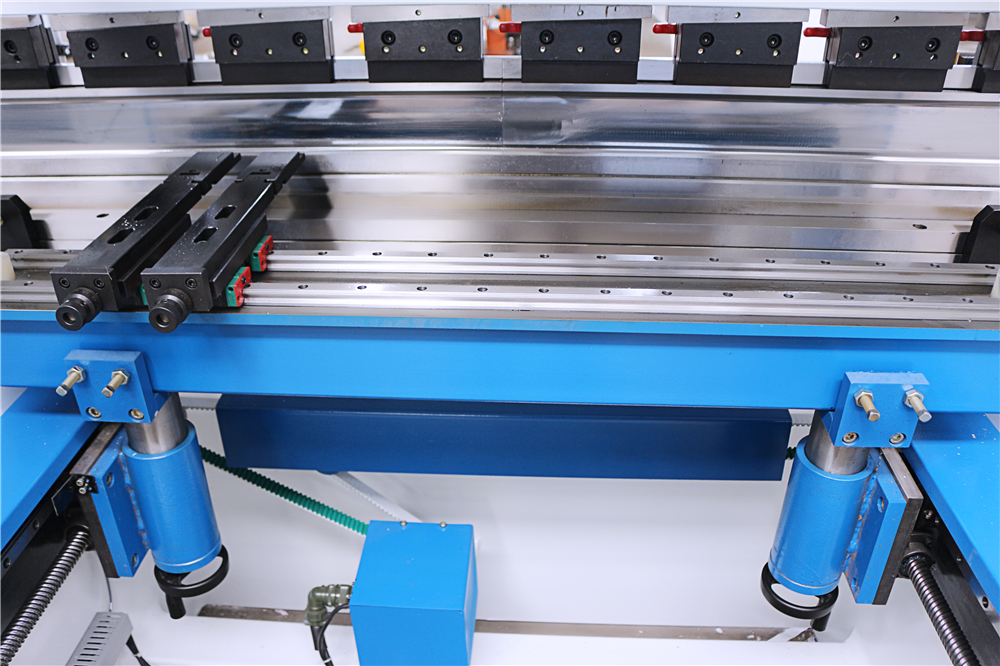

Electric Crowing
Automatic crowing table controled by system

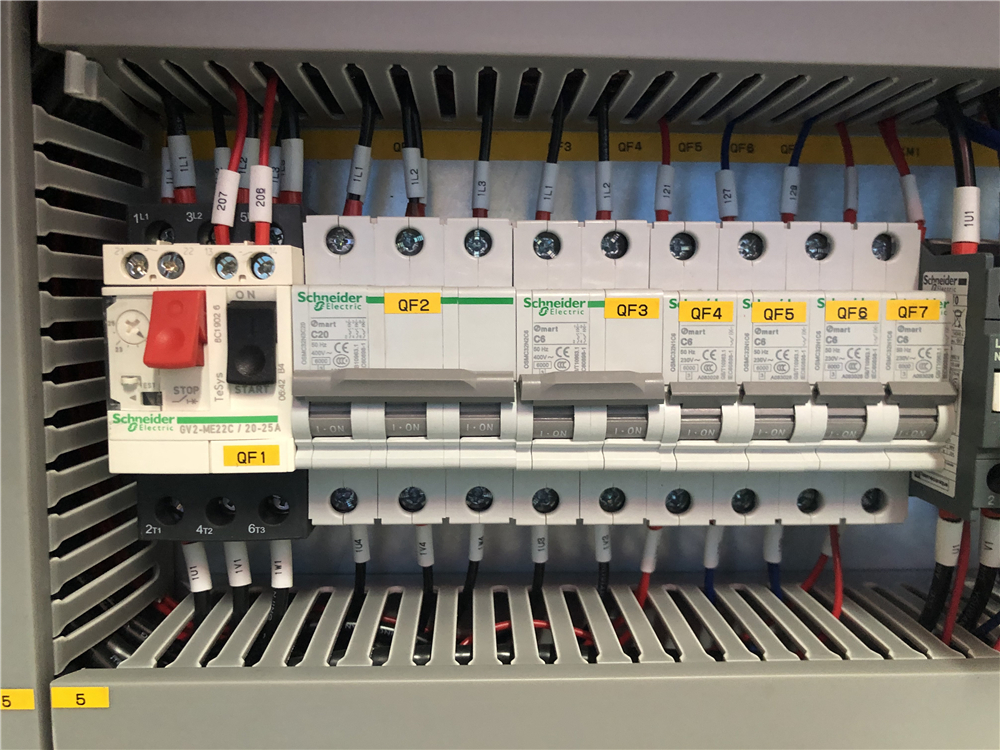

Schneider Electrics
World famous bran, Stable quality. easy to get replace parts

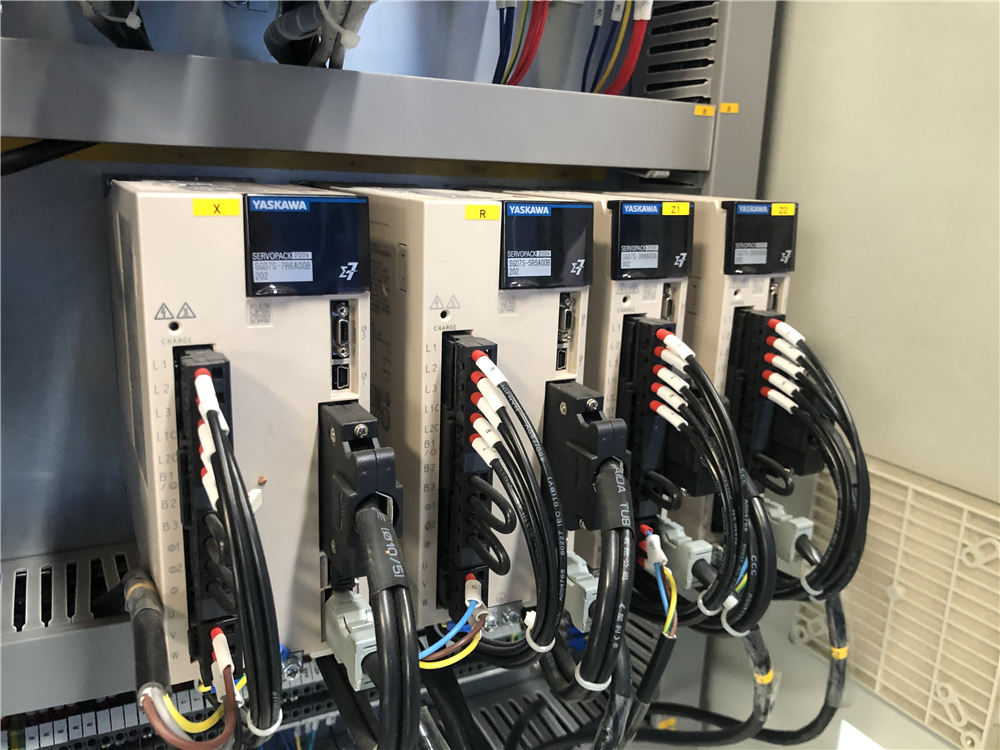

Yaskawa Servo
Japanese Brand, High quality.

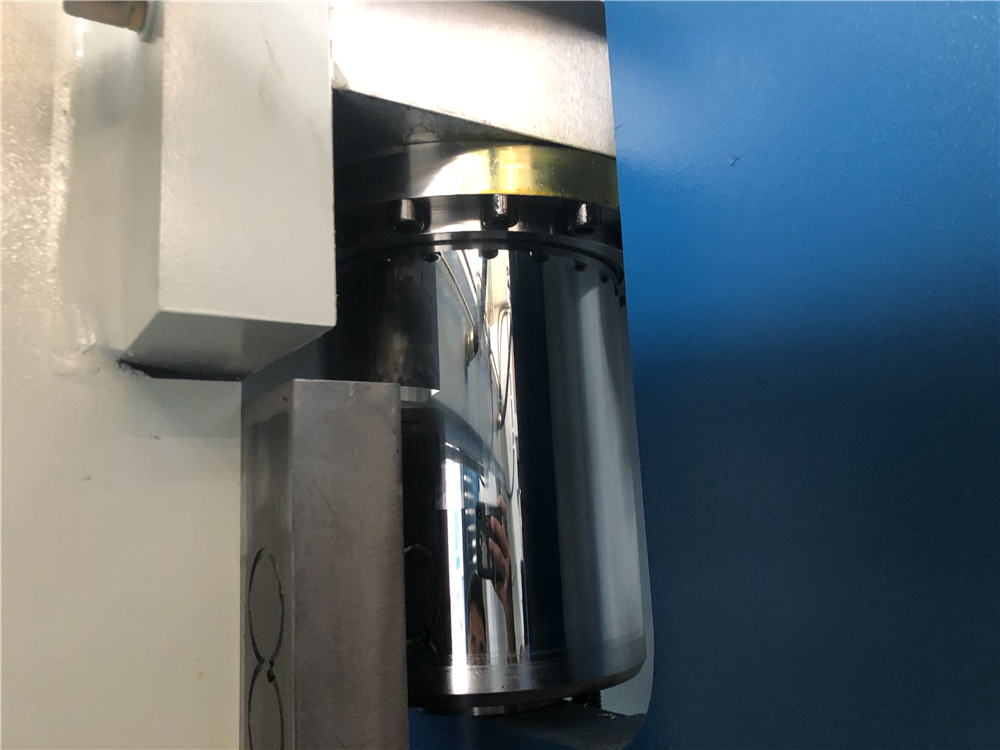

Taifeng Cylinder
Most Famous brand in China. Life-long time aftersale maintance.
Rexroth Valve
Germany BOSCH Valve. Simple Structure,Easy to repaire

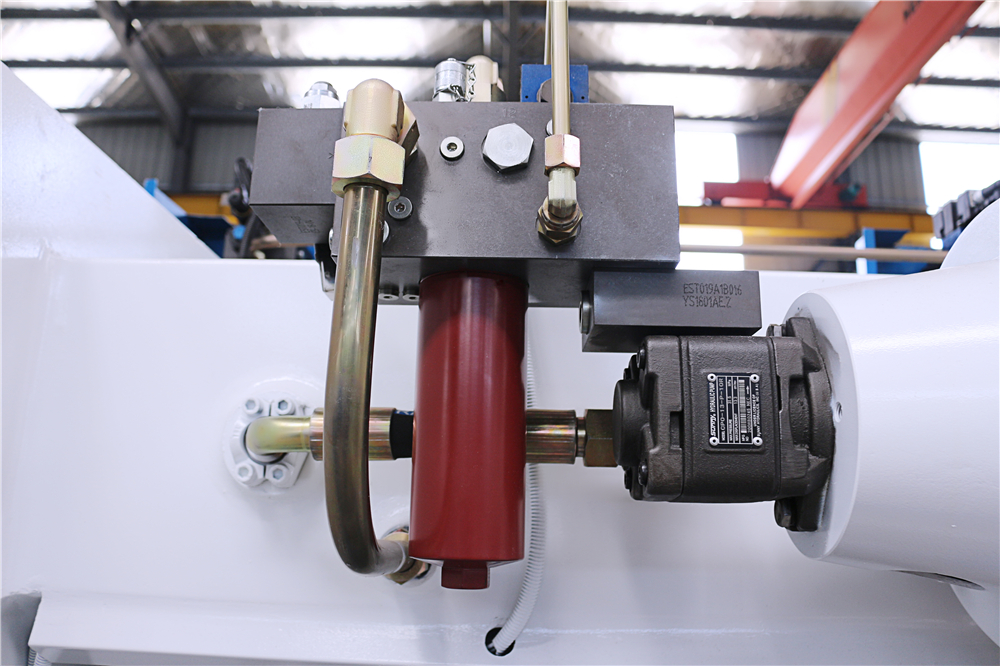

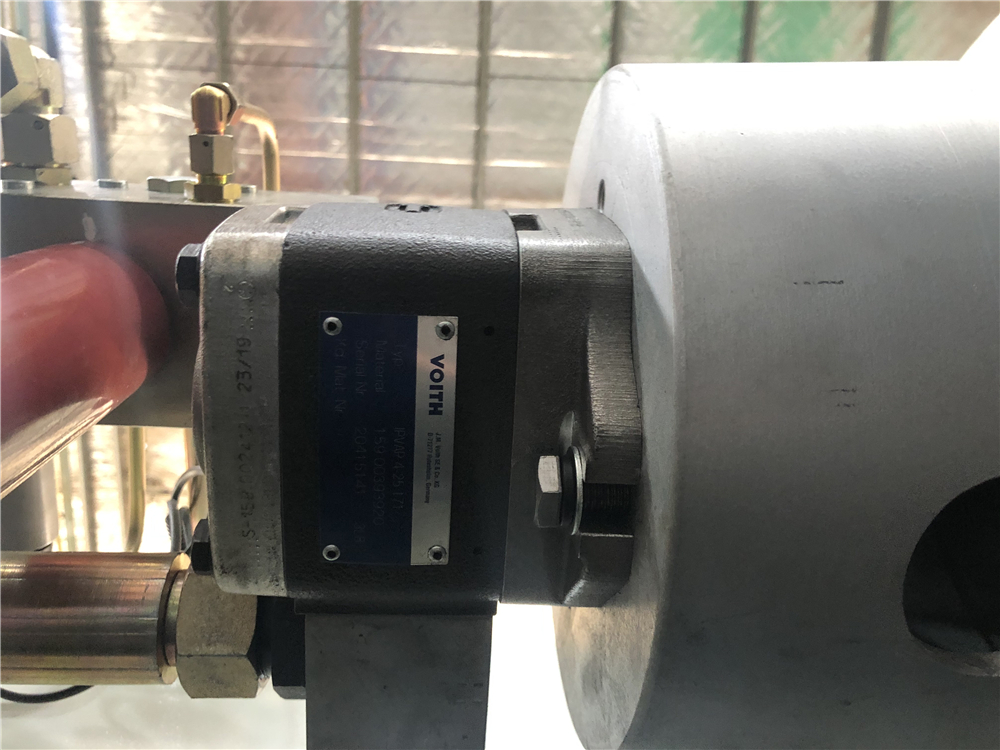

Sunny Oil Pump
American most famous pump brand.High quality

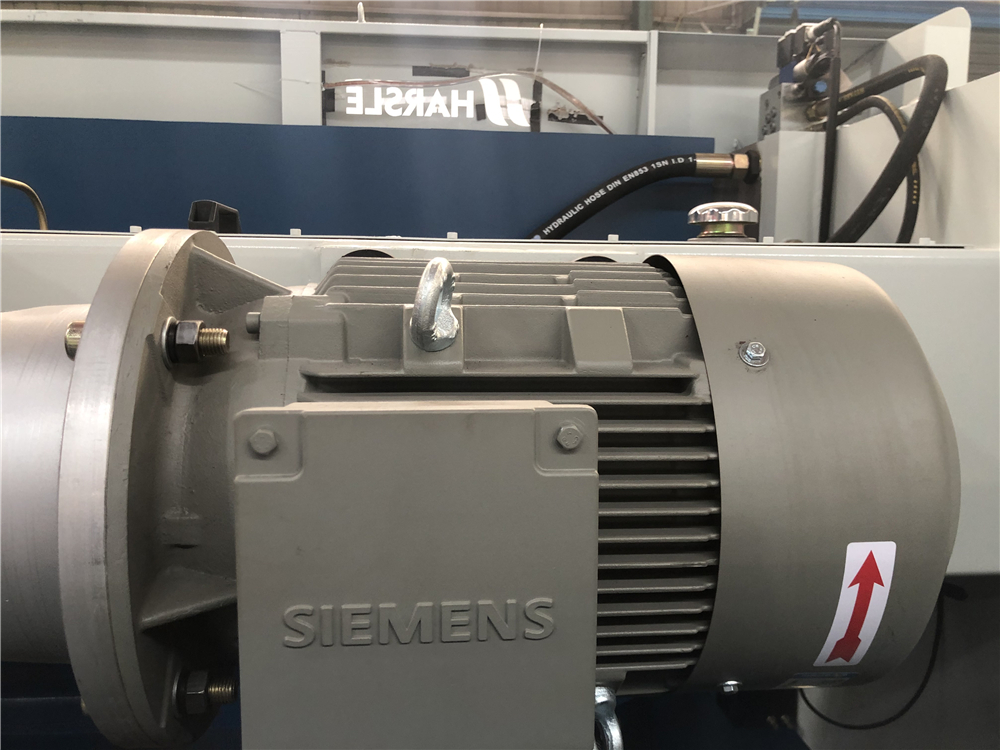

Siemens Motor
Original Germany Siemens imported motor

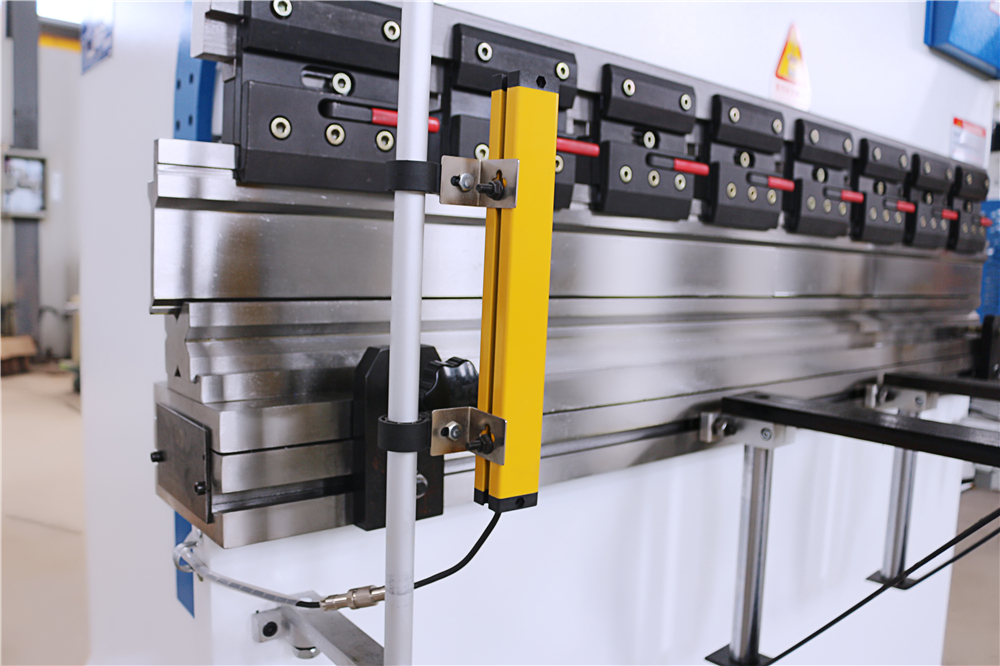

Side Light Curtain
SDKELI Brand, CE satandard

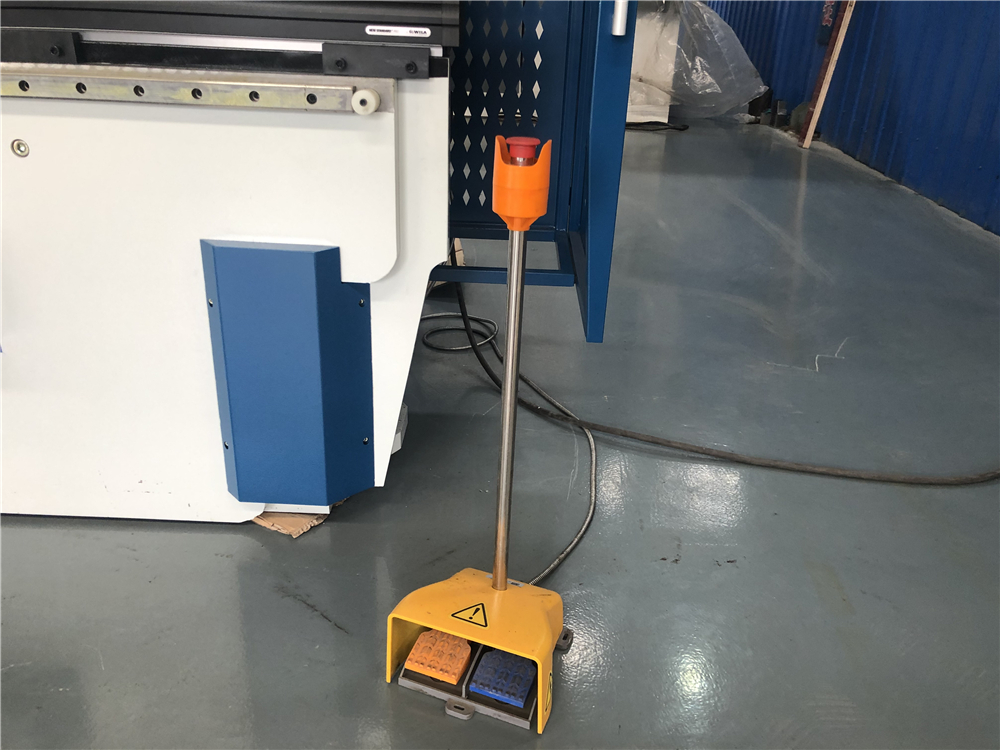

Kacon Foot Switch
South Koera CE Standard Foot Switch

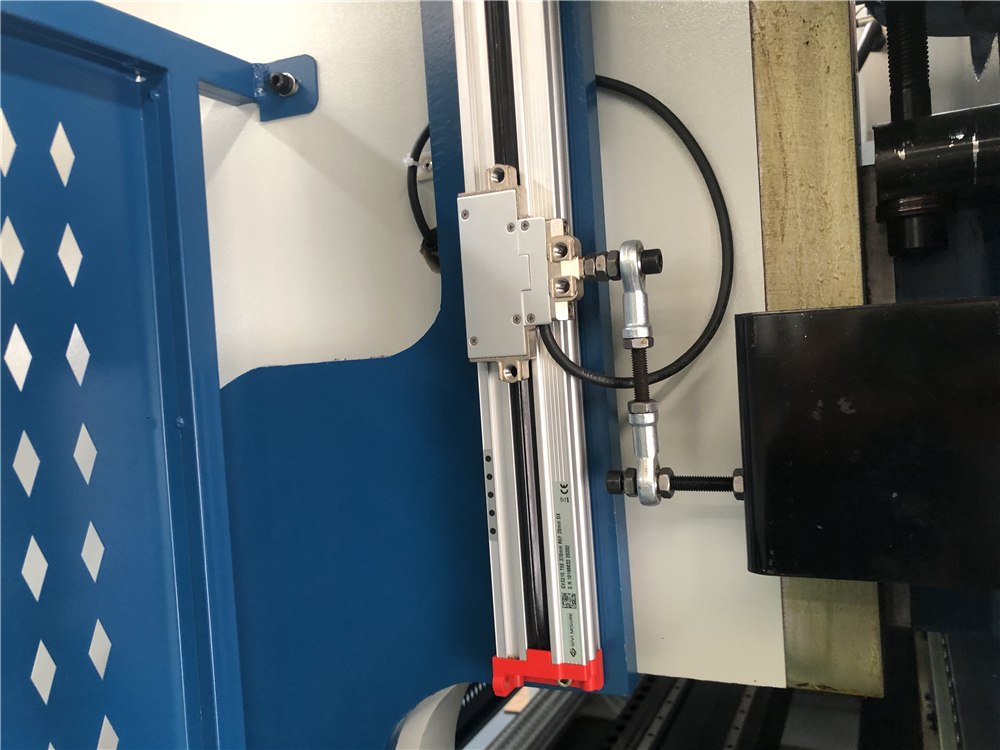

GIVI Linear Encoder
High accuracy,stable quality.

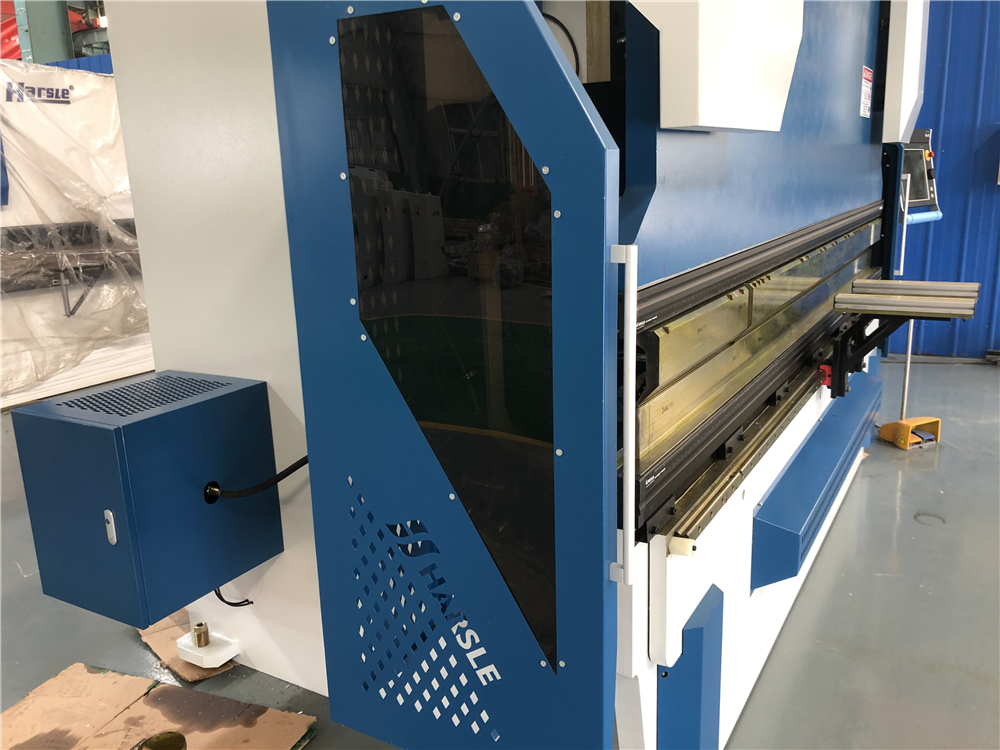

Side Fence
CE Safety Standard. Power off when open

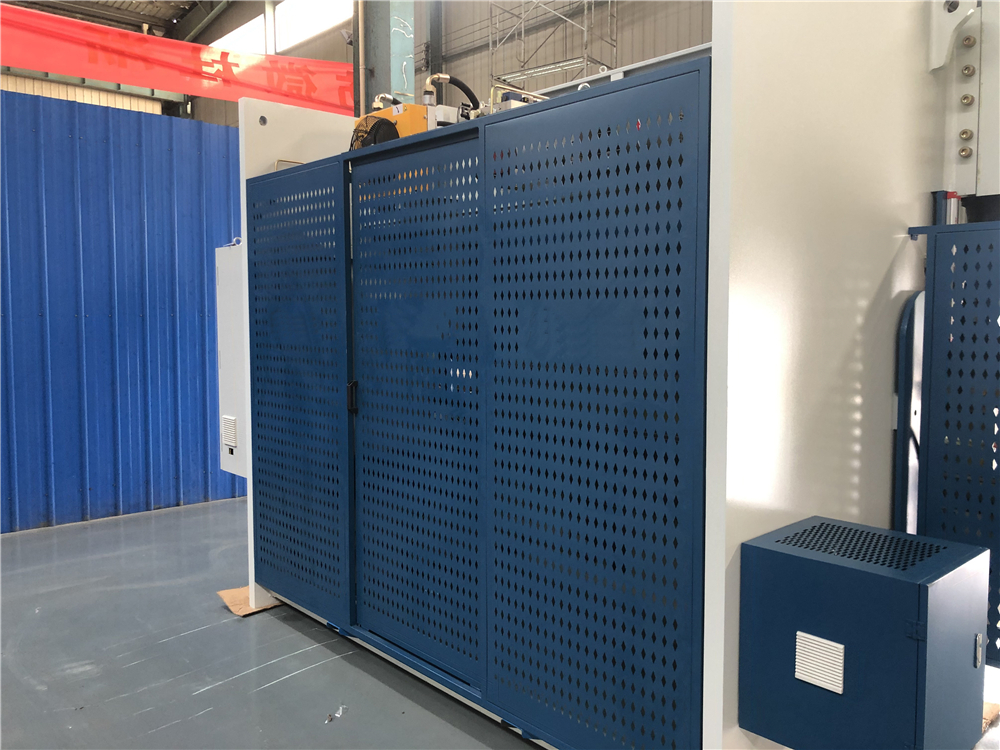

Back Fence
Movable Door. Power off when open the door

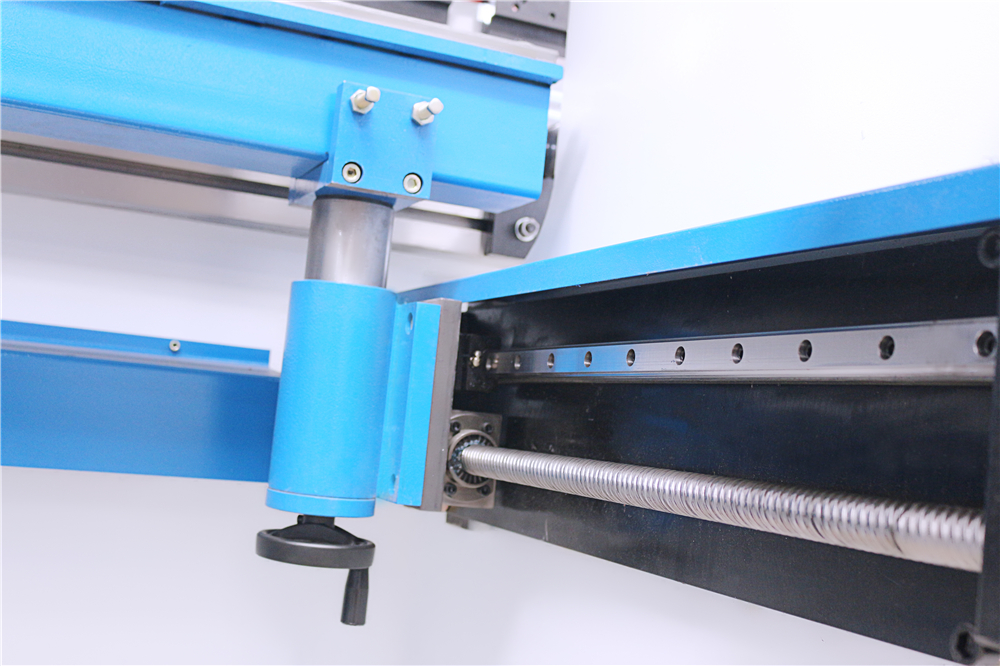

Hiwin Linear Guider and ball screw
Taiwan Brand. High Accuracy

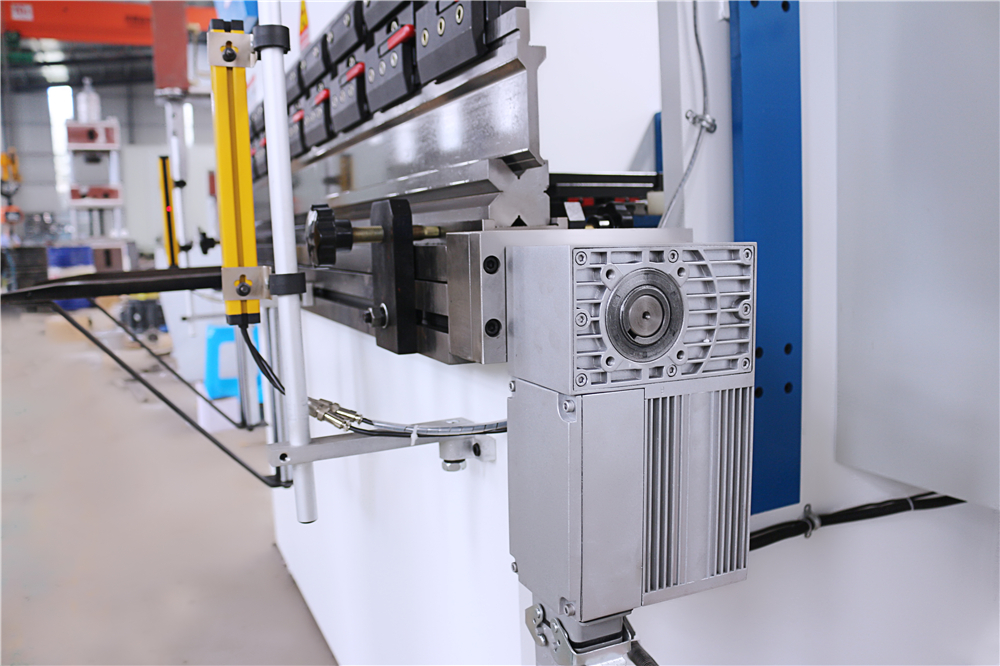

Backgauge
Controlled by servo motor. X axis

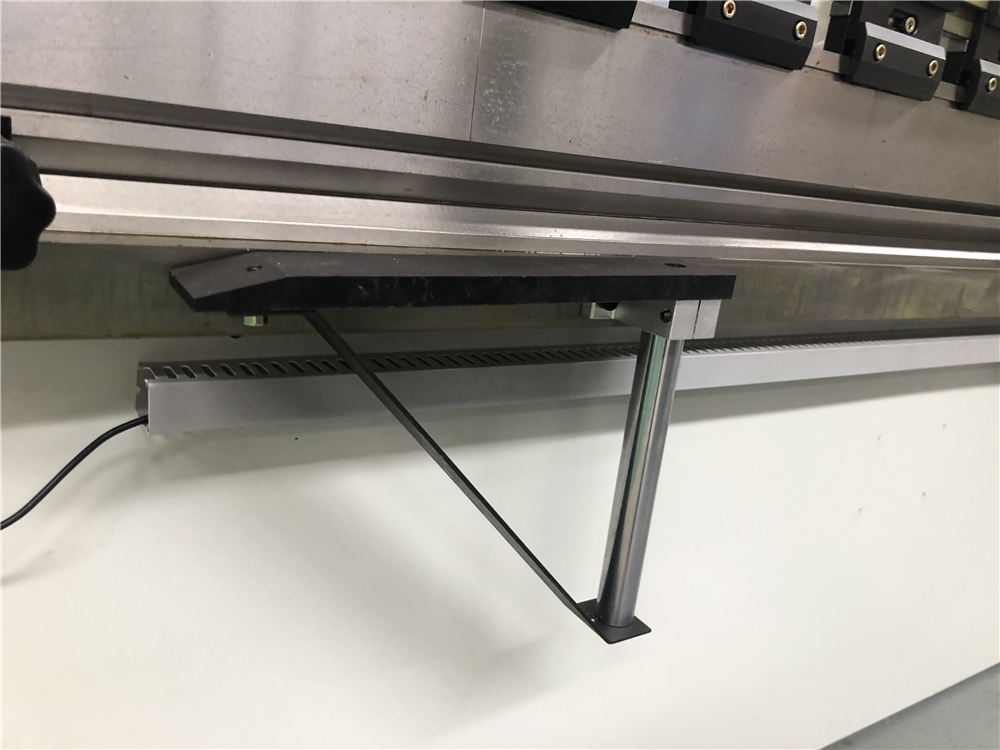

Front Supportors
2 Movable arms for plate

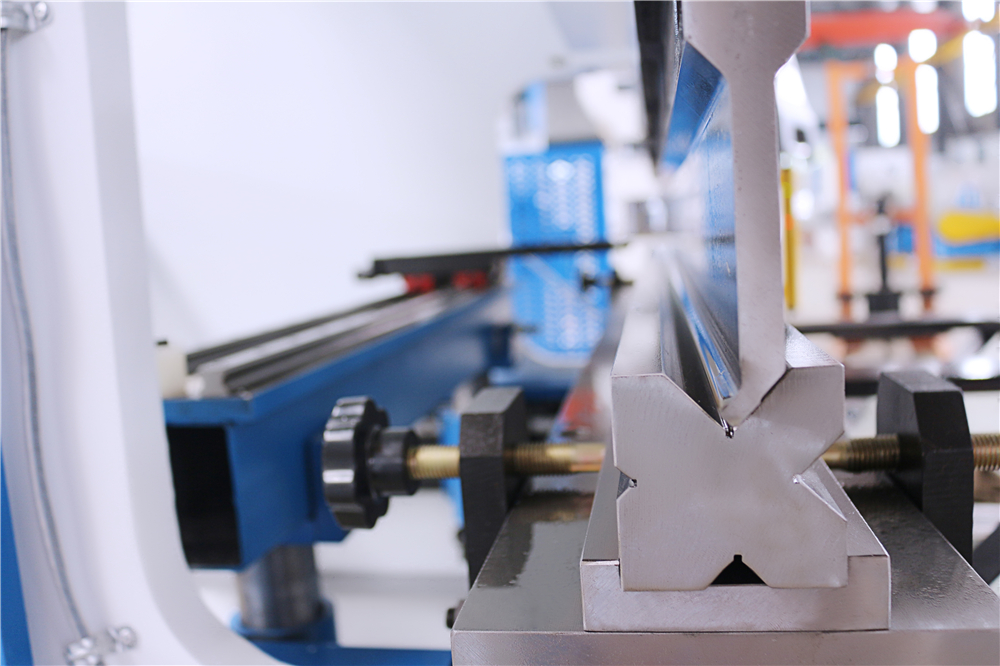

Standard Toolings
*Cr12MoV material ,HRC>55
*Standard Segmented in to 835mm length each
*one piece segmented for small part
*Left and Right side with L shape cut
*Optional AMADA type Toolings
Optional Parts

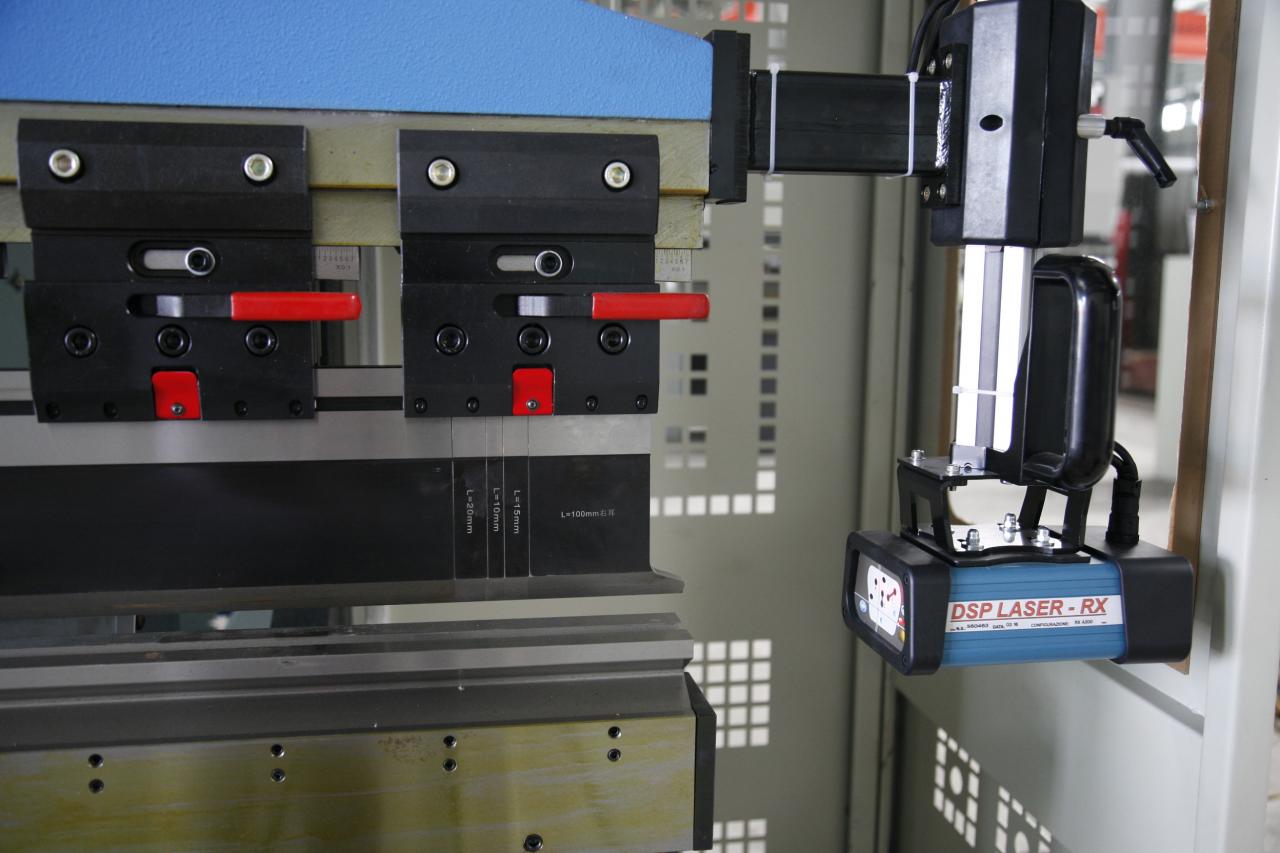

Laser Protection Device
For CE Standard use. Keep safety of finger

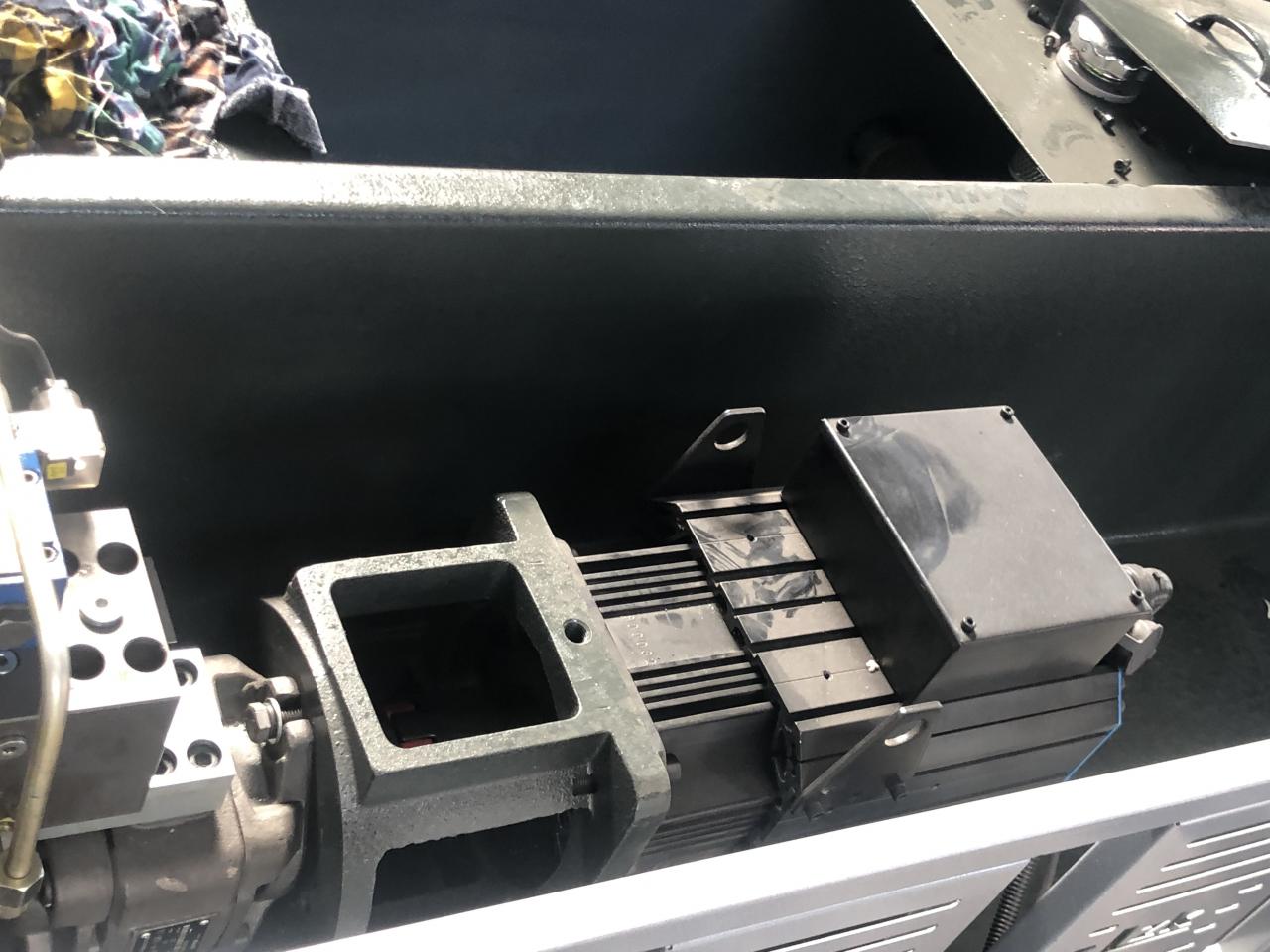

Servo Main Motor
Fast Speed. No Noise when machine works. Need less hydraulic oil.

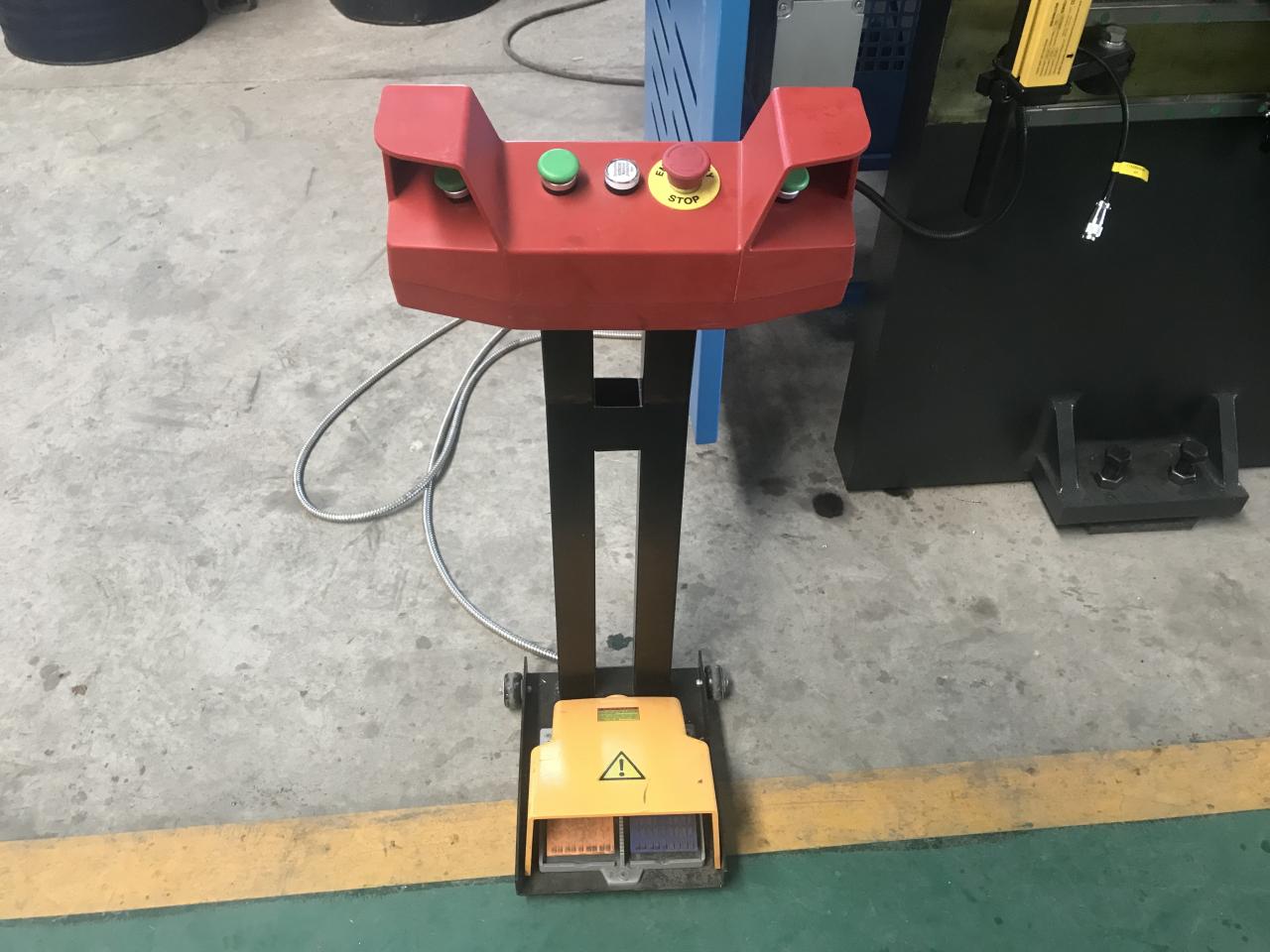

Two Hands Start Foot Switch
For CE Standard, keep safety.
Details
- Slider Stroke (mm): 120 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 200 mm
- Machine Type: Synchronized
- Length of Working Table (mm): 1600 mm
- Width of Working Table (mm): 180 mm
- Dimension: 2200*1750*2000
- Condition: New
- Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum, Brass
- Automation: Automatic
- Extra Services: End Forming
- Year: 2020
- Weight (KG): 6600
- Motor Power (kw): 5.5 kw
- Key Selling Points: Easy to Operate
- Warranty: 1 Year
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works , Energy & Mining, Advertising Company
- Showroom Location: Egypt, Germany, Philippines, Kenya, South Africa
- Certification: ce
- After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: Egypt, Germany, Viet Nam, Philippines, Bangladesh, South Africa, Uzbekistan
- Nominal Pressure (kN): 1000 kN
