Product Description
Product Application
Shearing machine is a kind of shearing equipment that is widely used in machining. It can cut steel plate materials of various thicknesses. The products are widely used in aviation, light industry, metallurgy, chemical industry, construction, shipping, automobile, electric power, electrical appliances, decoration and other industries to provide the special machinery and complete equipment needed.
Specifications
| Shearing Capability(mm) | Number of Stroke (min-1) | Back Gauge (mm) | Shearing Angle(°) | Throat Depth (mm) | Motor Power (KW) | Net Weight (kg) | Dimension (LxWxH)(mm) |
| 4x2000 | 16-25 | 20-600 | 0.5-2.0 | 100 | 4 | 3200 | 2750x1500x1600 |
| 4x2500 | 16-25 | 20-600 | 0.5-2.0 | 100 | 5.5 | 4000 | 3300x1500x1700 |
| 4x3200 | 16-25 | 20-600 | 0.5-2.0 | 100 | 5.5 | 6000 | 4000x1600x1900 |
| 4x4000 | 16-25 | 20-600 | 0.5-2.0 | 100 | 7.5 | 7600 | 4800x1650x2000 |
| 6x2500 | 10-25 | 20-600 | 0.5-2.0 | 100 | 7.5 | 5800 | 3200x1650x2000 |
| 6x3200 | 10-25 | 20-600 | 0.5-2.0 | 100 | 7.5 | 7000 | 3900x1650x2000 |
| 6x4000 | 10-25 | 20-600 | 0.5-2.0 | 100 | 7.5 | 9000 | 4750x1800x2200 |
| 6x5000 | 8-20 | 20-900 | 0.5-1.5 | 100 | 7.5 | 13000 | 5730x2250x2210 |
| 6x6000 | 8-20 | 20-900 | 0.5-1.5 | 100 | 11 | 16000 | 6730x2250x2300 |
| 6x9000 | 4-6 | 20-900 | 0.5-2.0 | 100 | 11 | 38000 | 9800x2700x2660 |
| 8x2500 | 10-25 | 20-600 | 0.5-2.0 | 100 | 11 | 6000 | 3200x1700x2280 |
| 8x3200 | 10-25 | 20-600 | 0.5-2.0 | 100 | 11 | 8300 | 3900x1750x2280 |
| 8x4000 | 10-25 | 20-600 | 0.5-2.0 | 100 | 11 | 9500 | 4750x1800x2200 |
| 10x2500 | 10-25 | 20-600 | 0.5-2.0 | 100 | 15 | 8500 | 3200x1800x2200 |
| 10x3200 | 10-25 | 20-600 | 0.5-2.0 | 100 | 15 | 9500 | 3900x1850x2200 |
| 10x4000 | 10-25 | 20-600 | 0.5-2.0 | 100 | 15 | 11000 | 4800x1900x2280 |
| 12x2500 | 6-20 | 20-900 | 0.5-2.5 | 250 | 18.5 | 10500 | 3710x2200x2200 |
| 12x3200 | 6-20 | 20-900 | 0.5-2.5 | 250 | 18.5 | 12000 | 3900x2200x2200 |
| 12x4000 | 6-20 | 20-900 | 0.5-2.5 | 250 | 18.5 | 15800 | 4850x2280x2450 |
| 16x2500 | 5-15 | 20-900 | 0.5-2.5 | 250 | 22 | 12500 | 3400x2280x2280 |
| 16x3200 | 5-15 | 20-900 | 0.5-2.5 | 250 | 22 | 14500 | 4150x2280x2280 |
| 16x4000 | 5-15 | 20-900 | 0.5-2.5 | 250 | 22 | 17800 | 4850x2280x2450 |
| 20x2500 | 5-15 | 20-900 | 0.5-3.0 | 250 | 30 | 13000 | 3200x2855x2200 |
| 20x3200 | 5-15 | 20-900 | 0.5-3.0 | 250 | 30 | 16100 | 3900x2855x2300 |
| 20x4000 | 4-15 | 20-900 | 0.5-3.0 | 250 | 37 | 23000 | 4760x2855x2420 |
| 25x2500 | 4-15 | 20-900 | 0.5-3.5 | 250 | 37 | 22700 | 3200x2900x2500 |
| 25x3200 | 4-15 | 20-900 | 0.5-3.5 | 250 | 37 | 27200 | 3900x2900x2700 |
| 25x4000 | 4-15 | 20-900 | 0.5-3.5 | 250 | 45 | 31500 | 4700x2900x2900 |
| 30x2500 | 4-10 | 20-1000 | 1.0-3.5 | 250 | 30 | 22700 | 3400x2900x2700 |
| 30x3200 | 3-10 | 20-1000 | 1.0-3.5 | 250 | 37 | 27200 | 4200x2900x3200 |

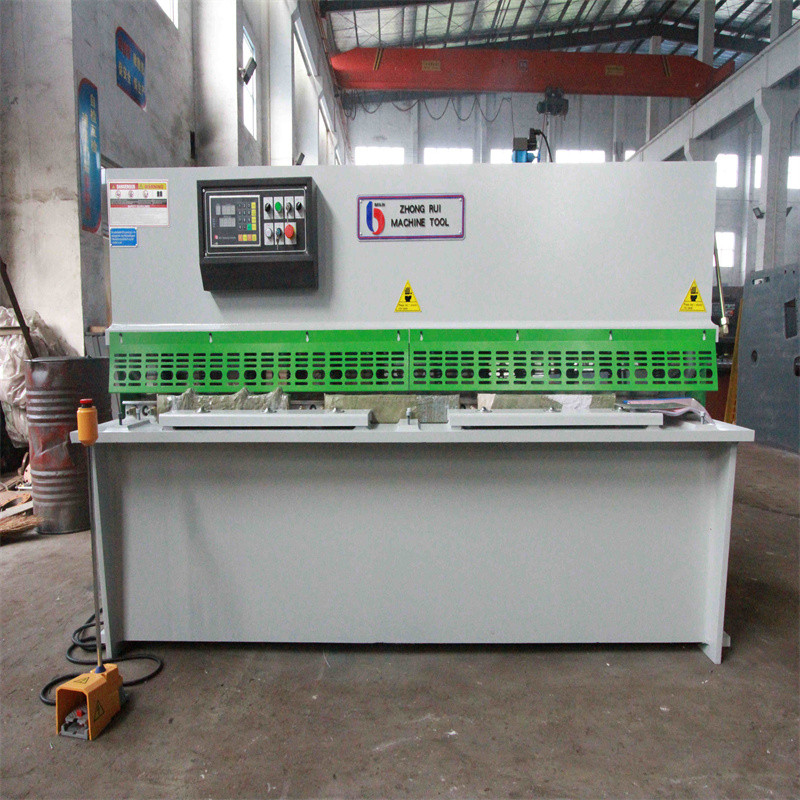

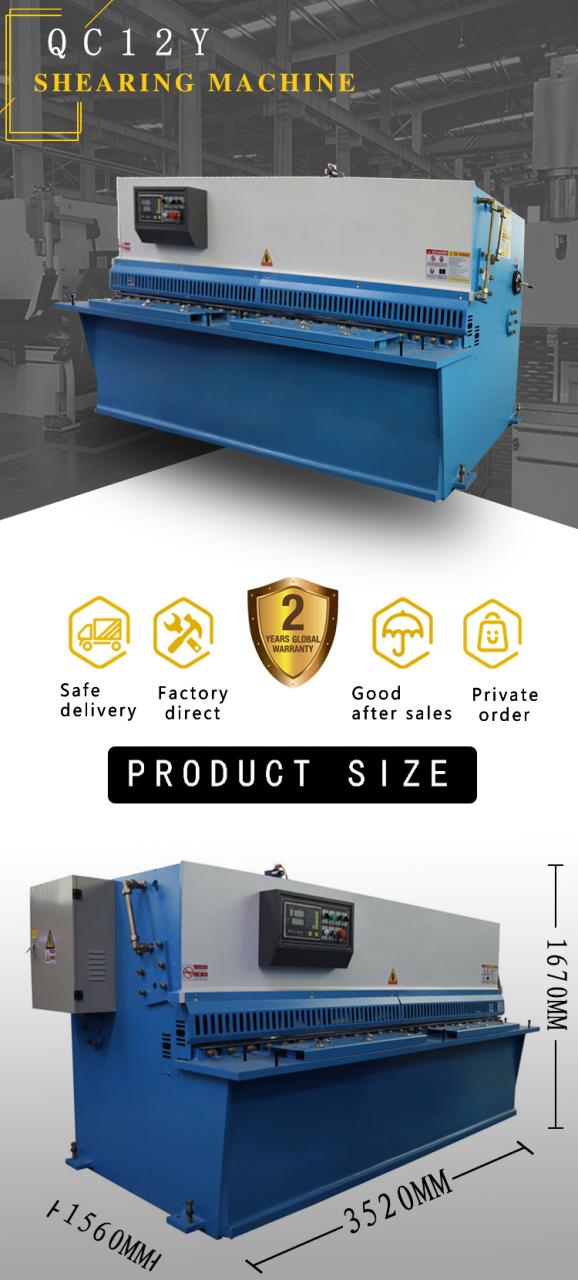

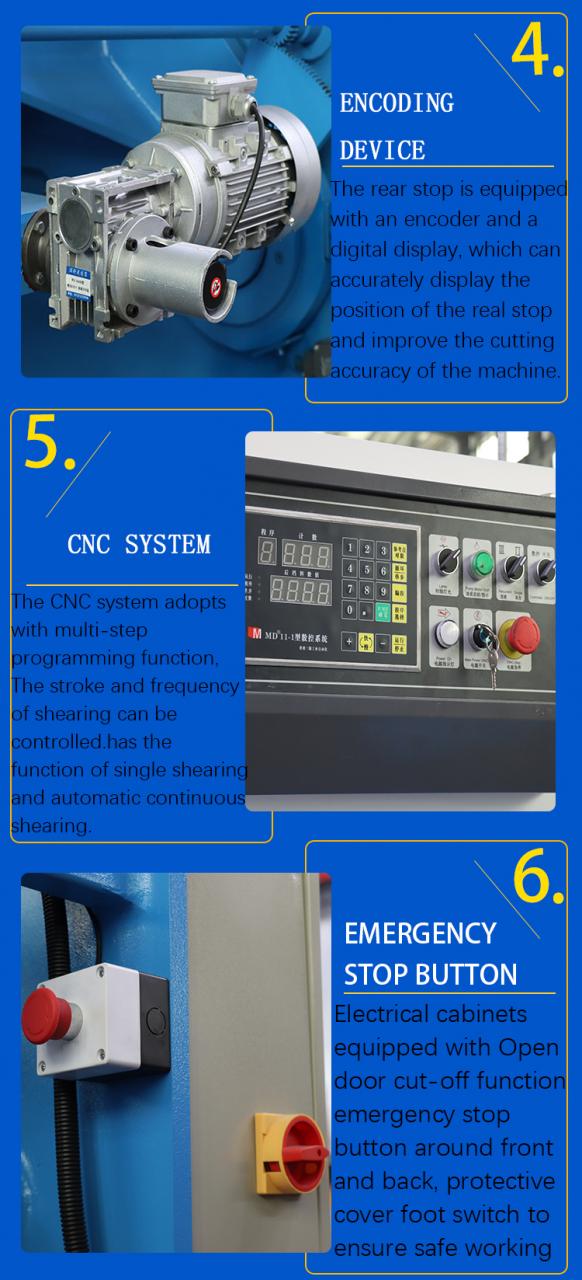

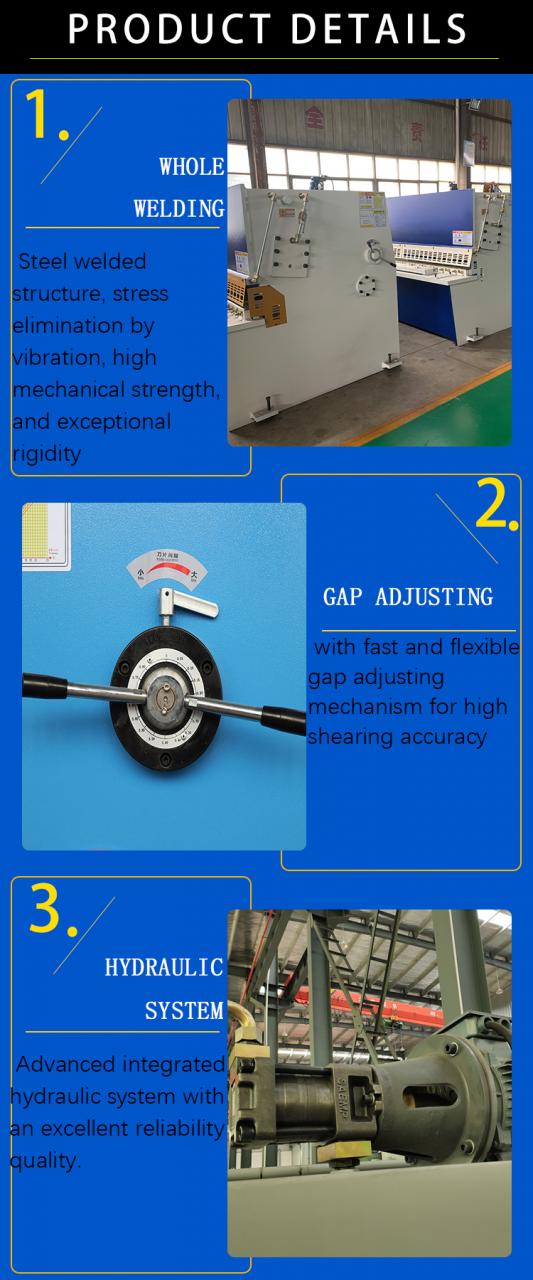

Detailed Images
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order , 70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
3. When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case. Contact Us Contact us for more factory price.shipping and discounts.
Details
- Max. Cutting Width (mm): 2500 mm
- Max. Cutting Thickness (mm): 4 mm
- Automatic Level: Fully Automatic
- Shearing Angle: 1°30'
- Blade Length (mm): 2600 mm
- Backgauge Travel (mm): 1 - 480 mm
- Throat Depth (mm): 230 mm
- Condition: New
- Brand Name: RAYMAX
- Power (kW): 5.5 kW
- Weight (KG): 7000 KG
- Voltage: Customer's Requirement
- Dimension(L*W*H): 3120*1450*1550mm
- Year: 2021
- Warranty: 2 years
- Key Selling Points: Multifunctional
- Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Retail
- Showroom Location: Egypt, Canada, Turkey, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Bearing, Motor
- Name: Hydraulic Swing Beam Shearing Machine
- Product name: Metal Steel Cutting Machine
- Application: Industrial Metal Cutting
- Keyword: Metal Steel Cnc Cutting Machine
- Cutting material: Metal .alloy Metal .aluminum
- Color: Customizable
- Control system: E21S
- Usage: Cutting Sheet Sheet
- Machine type: Cutting Machine Shearing Machine
- Cutting mode: Cold Cutting
- After-sales Service Provided: Free spare parts, Online support, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts
- Certification: CE ISO
