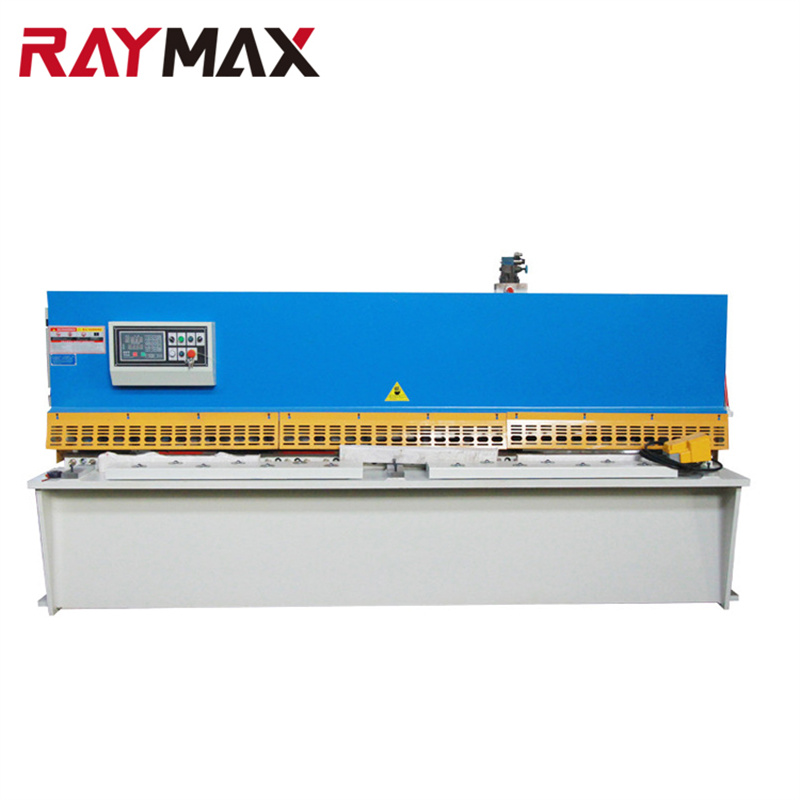

The main performance characteristics:
1. Sheet plate welded structure is adopted with hydraulic transmission and accumulator return, typical of an easy operation reliable performance and nice appearance .
2. Indication by indicator is prompt for adjustment of blade clearance. for a handy and prompt adjustment .
3. Alignment device with lighting and control device for shearing stroke are set. with a handy and prompt adjustment .
4. Rolling material support ball is provided. to minimize fish tail with sheet bar and to reduce frictional resistance.

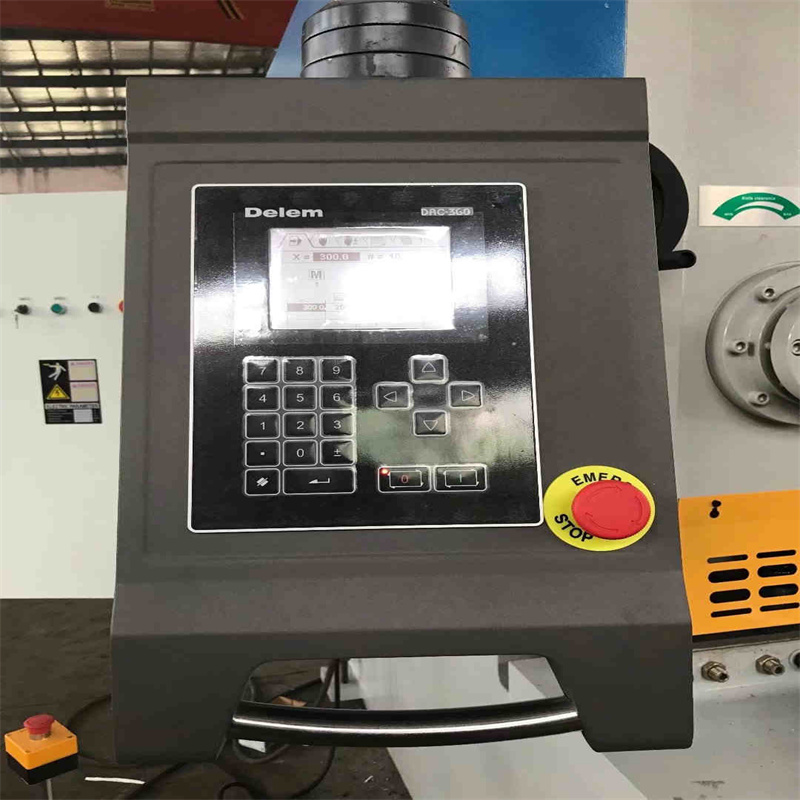

5. The rear stopper is fitted with electric adjustment and manual adjustment devices. and digital display device is available for display of size of stopper and times of shearing.
Application:
Hydraulic shearing machine is the sheet metal industry under the cutting tool, Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.
| Parameters Type | Shearing Width | Strokes | Backstroke Range | Shearing Angle | Working table height | Motor power |
| mm | Time/min | mm | (°) | mm | KW | |
| Q11Y6*2500 | 2500 | 16~35 | 20~600 | 30'-1°30' | 800 | 7.5 |
| Q11Y6*3200 | 3200 | 14~35 | 20~600 | 30'-1°30' | 800 | 7.5 |
| Q11Y6*4000 | 4000 | 10~30 | 20~600 | 30'-1°30' | 800 | 7.5 |
| Q11Y6*5000 | 5000 | 10~30 | 20~800 | 30'-1°30' | 900 | 11 |
| Q11Y6*6000 | 6000 | 8~5 | 20~800 | 30'-1°30' | 1000 | 11 |
| Q11Y8*2500 | 2500 | 14~30 | 20~600 | 30'-2° | 800 | 11 |
| Q11Y8*3200 | 3200 | 12~30 | 20~600 | 30'-2° | 850 | 11 |
| Q11Y8*4000 | 4000 | 10~25 | 20~600 | 30'-2° | 900 | 11 |
| Q11Y8*5000 | 5000 | 10~25 | 20~800 | 30'-2° | 1000 | 15 |
| Q11Y8*6000 | 6000 | 8~20 | 20~800 | 30'-2° | 1050 | 15 |
| Q11Y12*2500 | 2500 | 12~25 | 20~800 | 30'-2° | 840 | 15 |
| Q11Y12*3200 | 3200 | 12~25 | 20~800 | 30'-2° | 900 | 15 |
| Q11Y12*4000 | 400 | 8~20 | 20~800 | 30'-2° | 940 | 15 |
| Q11Y12*5000 | 5000 | 8~20 | 20~1000 | 30'-2° | 1000 | 22 |
| Q11Y12*6000 | 6000 | 6~20 | 20~1000 | 30'-2° | 1060 | 30 |
| Q11Y16*2500 | 2500 | 12~20 | 20~800 | 30'-1°30' | 840 | 22 |
| Q11Y16*3200 | 3200 | 12~20 | 20~800 | 30'-1°30' | 900 | 22 |
| Q11Y16*4000 | 4000 | 8~15 | 20~800 | 30'-1°30' | 940 | 22 |
| Q11Y16*5000 | 5000 | 8~15 | 20~1000 | 30'-1°30' | 1000 | 30 |
| Q11Y16*6000 | 6000 | 8~15 | 20~1000 | 30'-1°30' | 1100 | 37 |
| Q11Y20*2500 | 2500 | 10~20 | 20~800 | 30'-3° | 900 | 30 |
| Q11Y20*3200 | 3200 | 10~20 | 20~800 | 30'-3° | 950 | 30 |
| Q11Y20*4000 | 4000 | 8~15 | 20~800 | 30'-3° | 1100 | 30 |
| Q11Y20*5000 | 5000 | 8~15 | 20~1000 | 30'-3° | 1100 | 37 |
| Q11Y20*6000 | 6000 | 6~15 | 20~1000 | 30'-3° | 1200 | 37 |
Details
Max. Cutting Width (mm): 6000 mm
Max. Cutting Thickness (mm): 20 mm
Automatic Level: Semi-automatic
Shearing Angle: 30
Blade Length (mm): 2500 mm
Backgauge Travel (mm): 20 - 1000 mm
Throat Depth (mm): 1000 mm
Condition: New
Power (kW): 37 kW
Weight (KG): 5000 KG
Voltage: Customizable
Dimension(L*W*H): customizable
Warranty: 1 Year
Key Selling Points: High-accuracy
Applicable Industries: Building Material Shops, Machinery Repair Shops, Construction works
Marketing Type: Hot Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC, Gearbox
Application: Sheet Metal Industry cutting shearing
Keyword: Shearing Machine
Color: Customizable
Cutting material: Metal .alloy Metal .aluminum
Key words:
Shearing Bending Machine
Name: Small Steel Shearing and Bending Machine
After-sales Service Provided: Field installation, commissioning and training
After Warranty Service: Video technical support, Online support
Local Service Location: India, South Africa
Certification: ce,iso
