Product Paramenters
| Model | Metal fiber laser cutting machine |
| Working Area | 1500*3000mm |
| Laser Power | 500W/1000W/1500W/2000W Raycus |
| Laser Wave Length | 1064nm |
| Working Table | Saw tooth |
| Maximum Idle Running Speed | 1200mm/s |
| Position Accuracy | ±0.05mm/m |
| Position Speed | 20m/min |
| Minimum Line Width | ± 0.02mm |
| Cutting Thickness | ≤6mm |
| Software and Control System | NC Editor (Optional Cypcut) |
| Position Type | Red dot |
| Power Consumption | ≤12KW |
| Working Voltage | 220V-380V/50-60Hz |
| Auxiliary Gas | oxygen, nitrogen, air |
| Air Proportional Valves | For power 1000W and higher |
| Working life of fiber module | More than 100000 hours |
| Fiber laser cutting head | WEIHONG or Raytools |
| Software | Compatible with various formats |
| Computer | Yes |
| Water cooling system | S&A industry chiller |
| Motor | Japan Yasakawa two 850W Y motors 850W X motor |
| Driver | Yasakawa 1000W |
| Reducer | Shimpo/ ASG From Japan |
| Liner guider system | Taiwan HIWIN |
| Rack gear | YYC |
| Electric component | Schneider made in France |
| Weight | 3200Kg |
Product Description

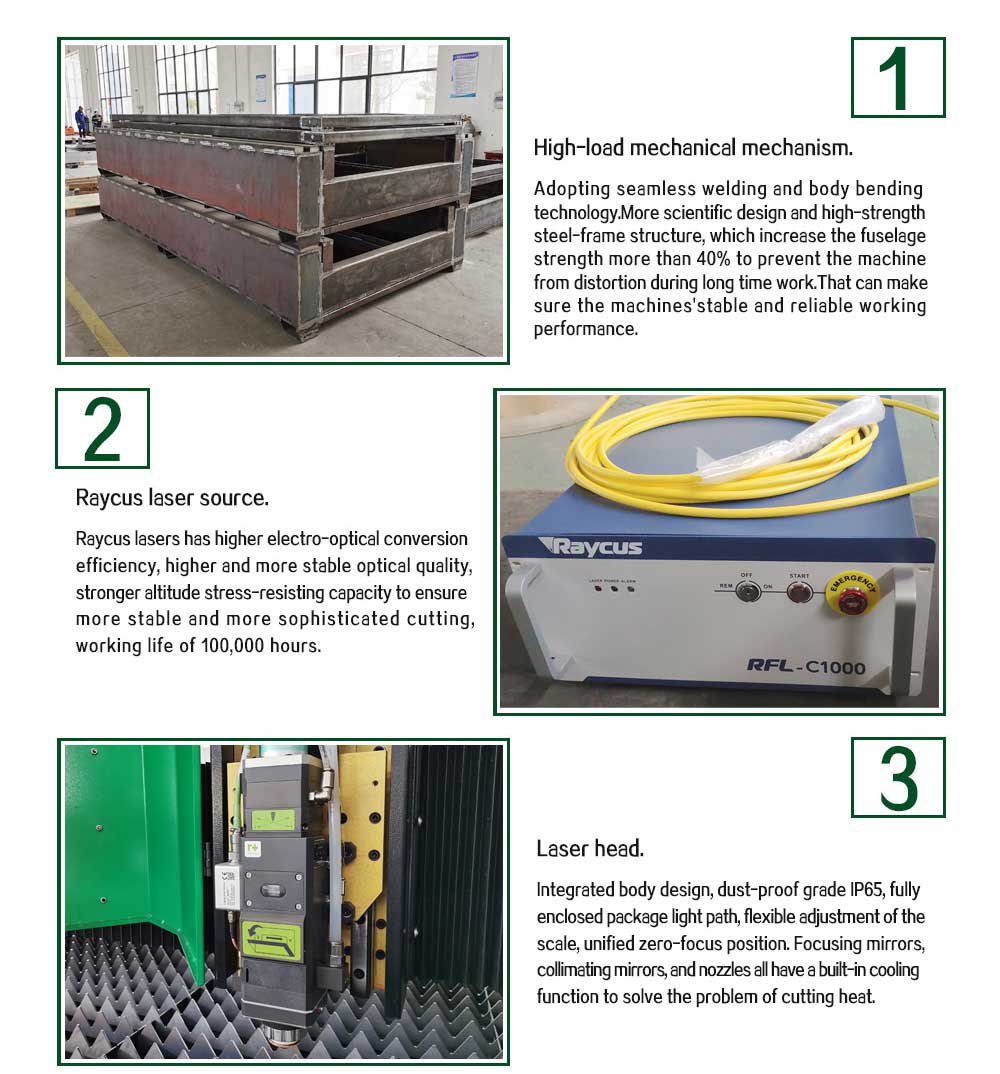

1. High-load mechanical mechanism.Adopting seamless welding and body bending technology.More scientific design and high-strength steel-frame structure, which increase more than 40% fuselage strength to prevent the machine from distortion during long time work.That can make sure the machine stable and reliable working performance.
2. Raycus brand laser source working lifetime over 100,000 hours.The industry's best quality fiber optic manufacturer,microfiber beam 0.001mm.

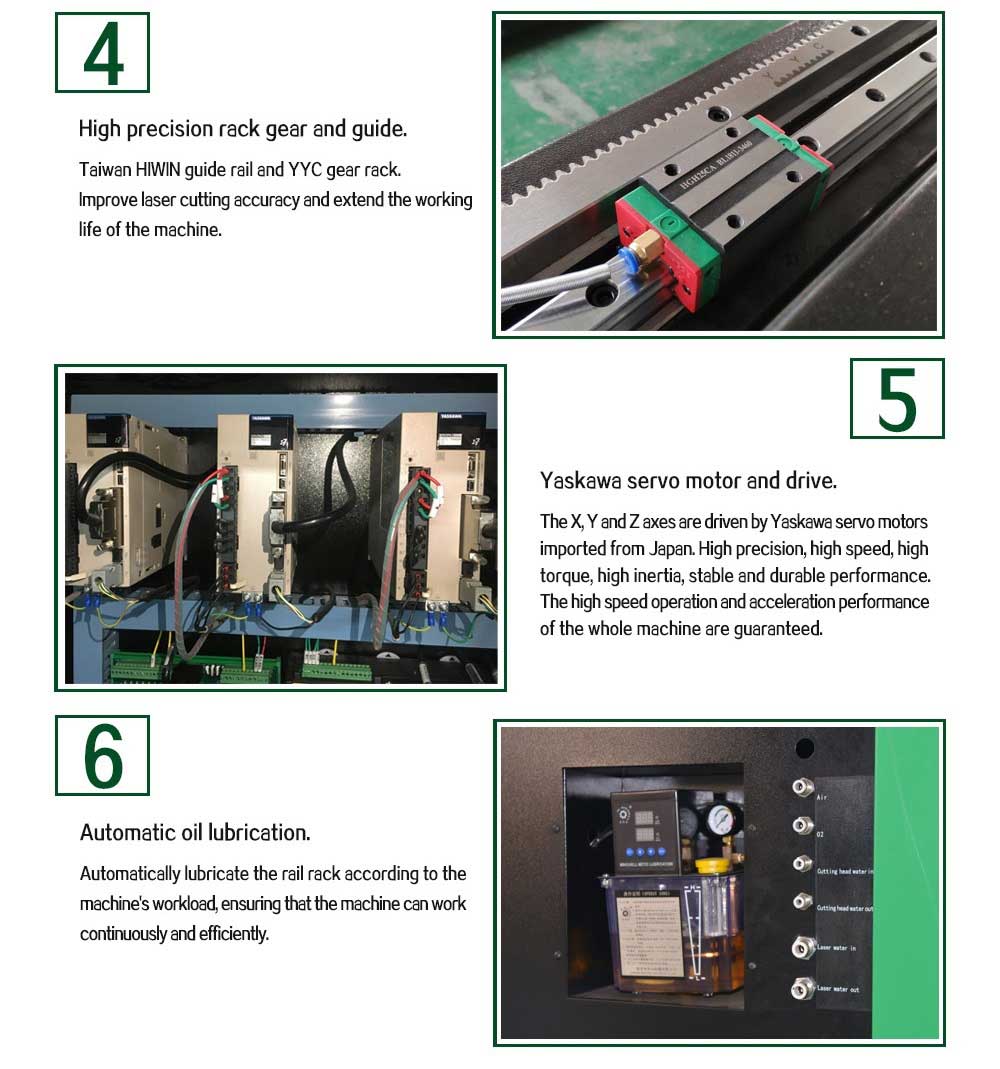

3.Taiwan Hiwin high-strength linear guide and imported high precision YYC rack.That ensure the laser machine continuously work for a long time working but deformed. Improve laser cutting accuracy and extend the machine lifetime.
4. High precision drive motor.The X / Y/Z axis uses a high-precision Yaskawa servo motor and drive. Improve response speed and cutting accuracy.
5. Adopt high-precision ASG geared motor imported from Japan.
6. The rail and rack automatic oil lubrication system can set the oiling interval and the amount of oil per load according to the working conditions of the machine.
7. Auto partitioned exhausted system.The smoke gas generated by the cutting can be completely eliminated.
8. S&A Industrial chiller.
9. Weihong/Cypcut professional cutting system.

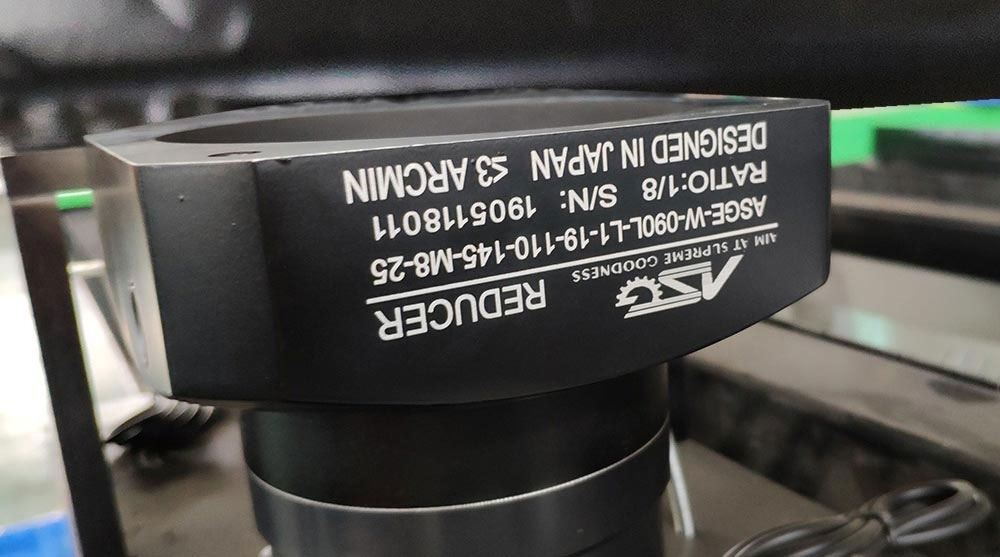

High-precision ASG geared motor imported from Japan.
Reducer can protect the fiber laser cutting machine laser head, and work longer.

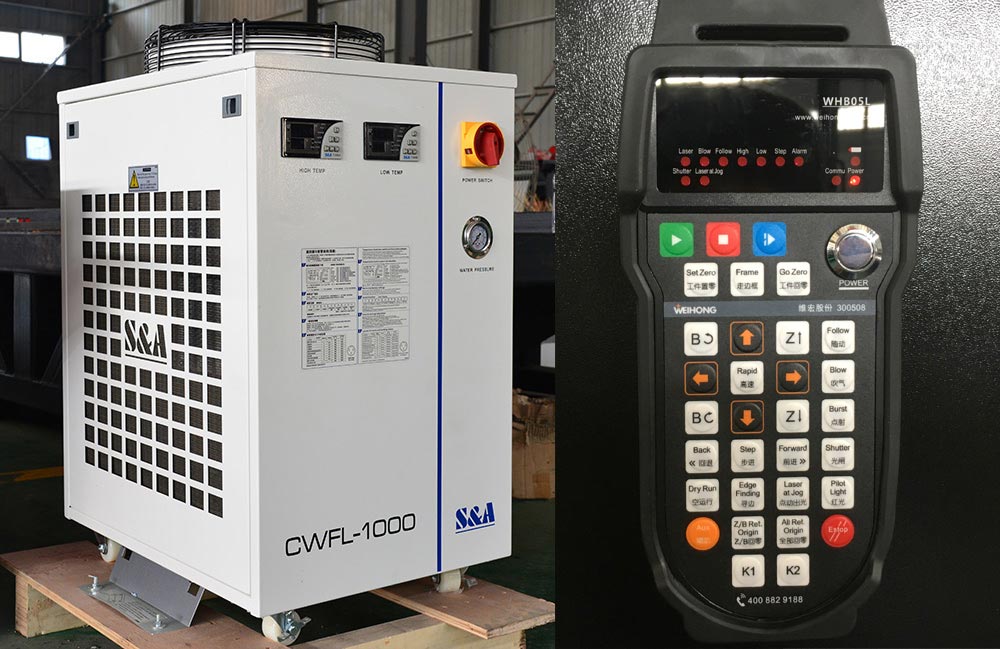

S&A Water cooling control system and DSP.
The fiber laser and laser head even working at high temperature can be cooled quickly to ensure that the laser machine has stable power, high efficient and fast operation.

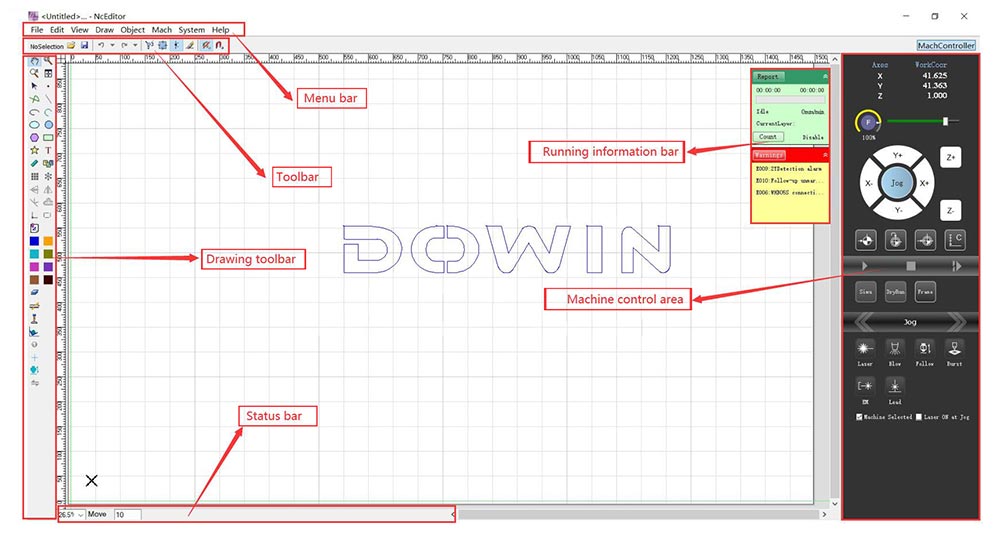

Weihong/Cypcut professional cutting system.
The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning.

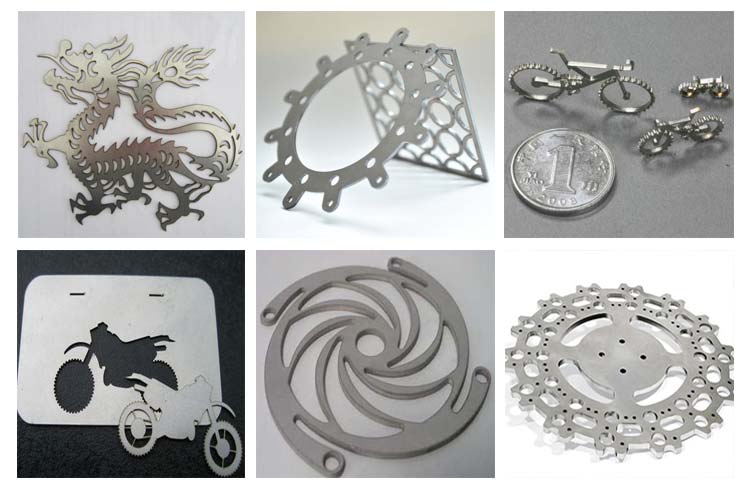

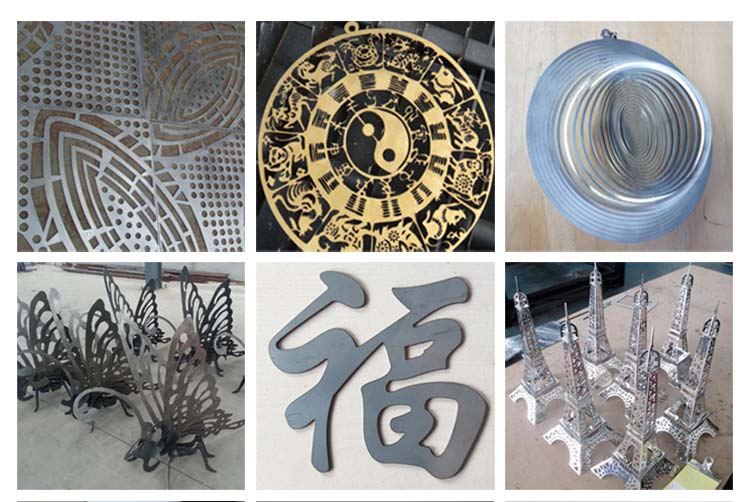

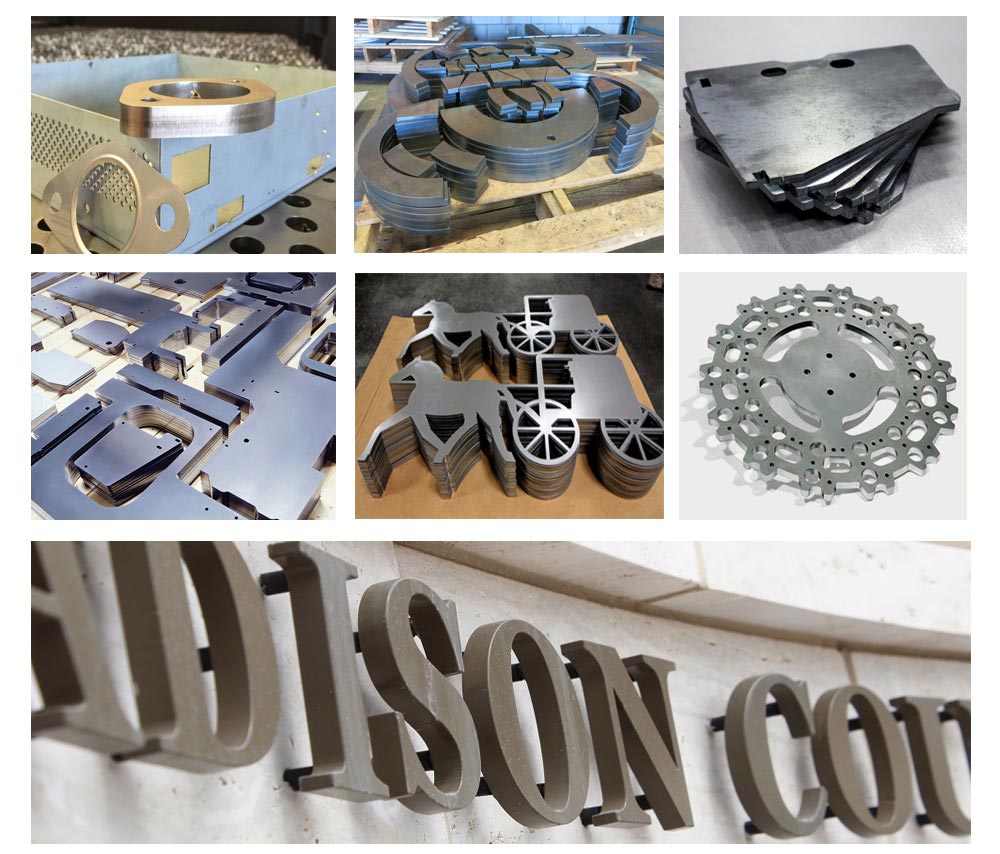

Application & Sample
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries:
Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Service
1. Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2. After-Sales Service:
*Within 7 days since your local customs clearance:if the machine has any problems,we will change it free.
*Exceed 7 days since your local customs clearance but within warranty period if the machine parts have any problems,we can change the old machine parts to new ones free,but you should pay all the shipping cost.
*
Exceed one year warranty period if the machine parts have any problems,we can offer new machine parts with cost price and you also should pay all the shipping cost.
*We offer 24 hours technical support by call,email.
*Our technician can give you remote guide online(Skype/MSN/What's app/viber/Tel/Etc) if you have any question.
*Machine has been adjusted before delivery,operation disk is included in the delivery.If there is any other questions,pls kindly tell me.
*We have manual instruction and CD (Guiding Videos) for software Installation,operation and machine's using and maintenance.
3. RAYMAX supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation.
*Training for normatively turning on/off operation of the machine.
*Instruction of technical parameters, as well as their setting ranges.
*Basic daily cleaning and maintenance for the machine.
*Solutions for common hardware problems.
*Training for other questions and technical suggestions during daily production.
4. Training can be processed in the following ways:
*Workers of customers can come to our factory get the most professional hand-by-hand training.
*We can send engineers to customers' country and do training for workers in customers' target factory.However,tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer,Skype and other instant communication softwares.
FAQ
Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
Q: How to distinguish laser tubes with different powers and applications?
1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W,50W , 60W or 80W.
Q: What are the applications for laser tubes with different powers? For example, what is the maximum thickness of Acrylic that laser machine can cut?
40W laser tube 5mm Acrylic
50W laser tube 6mm Acrylic
60W laser tube 10mm Acrylic
80W laser tube 15mm Acrylic
100W laser tube 18mm Acrylic
130W laser tube 20mm Acrylic
150W laser tube 25mm Acrylic
We have also document telling what cutting /engraving speed for different materials.
Q: In general, how long is the service life of a laser tube?
A: Generally, a laser tube's service life can reach 5000 hours to 10000 hours depending on the specific usage. For example, if it works 8 hours per day, the detailed data is as follows:
1. If you set the power at 20-30% of the total power, the service life is about 1-2 years.
2. If you set the power at 40-50% of the total power, the service life is about 1 year.
3. If you set the power at 70-80% of the total power, the service life is about 6-8 months.
Q: How can I tell the power of a laser tube has been exhausted?
A: The beam color of a new laser tube in operation is purple. When the power is gradually depleted, the color will become white.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
Q: What's the guarantee, in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free, if the problems are caused by quality problem under "normal use".
Q: How's the payment? How long is the delivery time?
Western Union(WU),Telegraphic Transfer(T/T) to our official company bank account or pay Via alibbaba trade assurance order. For standard machines, it would be 3-5days; For non-standard machines and customized machines according to client's specific requirements, it would be 7-15 days.
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500mm*3000mm
- Cutting Speed: 0-40000mm/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: Depends on your material
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: WEIHONG
- Place of Origin: China
- Laser Source Brand: Raycus
- Laser Head Brand: Raytools
- Servo Motor Brand: Yaskawa
- Guiderail Brand: HIWIN
- Control System Brand: WEIHONG
- Weight (KG): 3200 KG
- Key Selling Points: Automatic
- Optical Lens Brand: Wavelength
- Warranty: 3 years
- Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Energy & Mining, Other, Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 3 months
- Core Components: Engine
- Mode of Operation: continuous wave
- Configuration: gantry type
- Products handled: Sheet Metal and Tube
- Feature: Water-cooled
- Product name: 1000w fiber laser cutting machine
- Keyword: Fiber Laser Cutting Machine
- Laser power: 500W / 1000W / 2000W / 3000W/4000W
- Function: Cutting Metal Materials
- Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
- Type: Fiber Lasr Cutting
- Laser source: Raycus IPG
- Laser head: Raytools Laser Head
- Working area: 3000*1500mm
- Control system: Cypcut Control System
