Product Description
Front Sheet Supporter (Option)
Two types of front supporters for selection makes the production more conveniently to reduce workload and increase work efficiency.

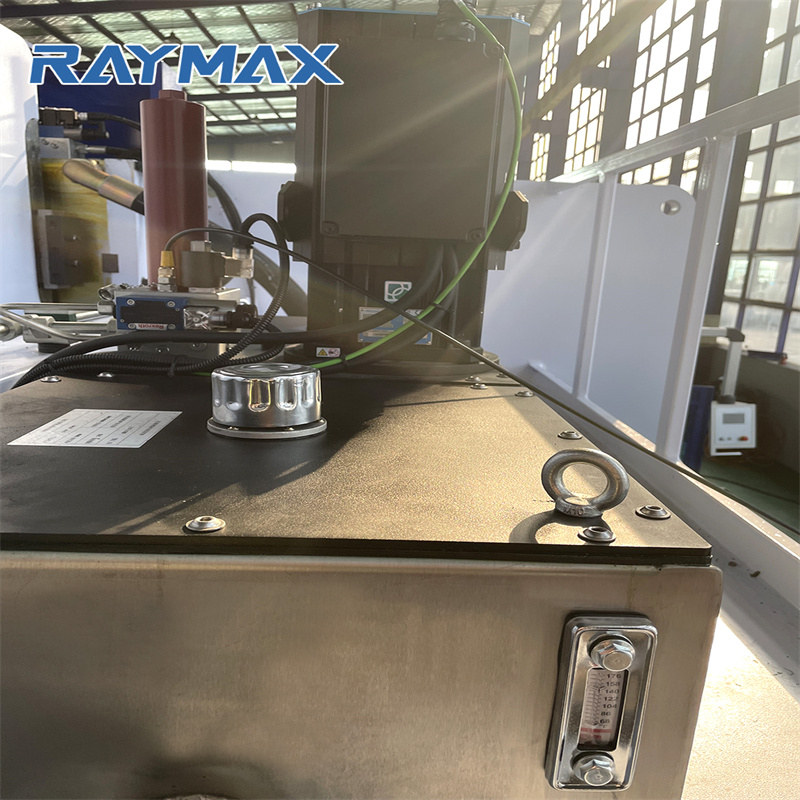

Hydraulic System
The integrated hydraulic system adopts the integrated one, which helps to reduce piping connection, eliminates the work stability, and beautifies the machine appearance. The inner engaged gear pump manufactured by a famous Germany or Japanese company is used to reduce the system noise and extend the service life.
DA66T System
2D touch screen graphic simulation; 3D visualization in production mode; 17" TFT color display; Memory capacity 1 GB; USB interfacing
Safety Curtain (Option)
Safety protection. If finger or other object enters into the tooling zone during machine running, it will send out alarms and the machine will stop automatically.
Machine Paremeters
| SN | Item | Unit | Press Brake Price |
| 1 | Bending Length | KN | 300 |
| 2 | Column Distance | mm | 700 |
| 3 | Throat Depth | mm | 300 |
| 4 | Stroke of Ram | mm | 165 |
| 5 | Table Height | mm | 780 |
| 6 | Table Width | mm | 50 |
| 7 | Main Motor Power | KW | 4 |
| 8 | Oil Tank Capacity | L | 160 |
| 9 | Dimension | mm | 1300*1100*2245 |
FAQ
1. Our product is life-time warranty from B/L Date. Parts damaged during 14 months from B/L date will be replaced on the cost of the SELLER. But the carriage fee is borne by the buyer.
2. Seller provides the service for the buyer forever. Buyer can contact us by Skype, WhatsApp, Email and Telephone at any time. Weprovide 24h on-line service.
3. Buyer need mounting service and training abroad, all costs will be charged: visa, round flight tickets, boarding & lodging,labor charge of one engineer 150 USD PER DAY. After receiving all the cost, seller will send engineer to Buyer’s site.
4. Buyer need send 1-2 persons to Seller’s company for training. Training fee was borne by Seller. The flight ticket and the boarding & lodging expense should be borne by Buyer.
Details
- Slider Stroke (mm): 120 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 300 mm
- Machine Type: Synchronized
- Length of Working Table (mm): 1050
- Width of Working Table (mm): 50 mm
- Dimension: 1300*1100*2245
- Condition: New
- Material / Metal Processed: Stainless Steel, ALLOY, Carbon steel, Aluminum
- Automation: Automatic
- Extra Services: End Forming
- Year: 2020.01
- Weight (KG): 500
- Motor Power (kw): 4 kw
- Key Selling Points: High-accuracy
- Warranty: 1 Year
- Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining
- Showroom Location: Egypt, Turkey, Viet Nam, Brazil, Peru, Indonesia, UAE, Uzbekistan, Malaysia
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: More than 5 years
- Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
- Name: Hydraulic Press Brake
- Bending length: 1050 mm
- Color: Customized
- Control system: DA41 DA56 DA66 Option
- CNC or not: CNC BendingMachine
- Column Distance: 700 mm
- Throat Depth: 300 mm
- Stroke of Ram: 165 mm
- Table Height: 780 mm
- Closed Height: 420 mm
- Nominal Pressure (kN): 300
- Certification: ce
- After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
