A punch machine is a stamping press. Stamping production is mainly for plates. Through the mold, it can make blanking, punching, forming, deep drawing, trimming, fine blanking, shaping, riveting and extrusion parts, etc., which are widely used in various fields. For example, we use switch sockets, cups, cupboards, dishes, computer cases, and even missile aircraft... There are a lot of accessories that can be produced through molds with a punch.

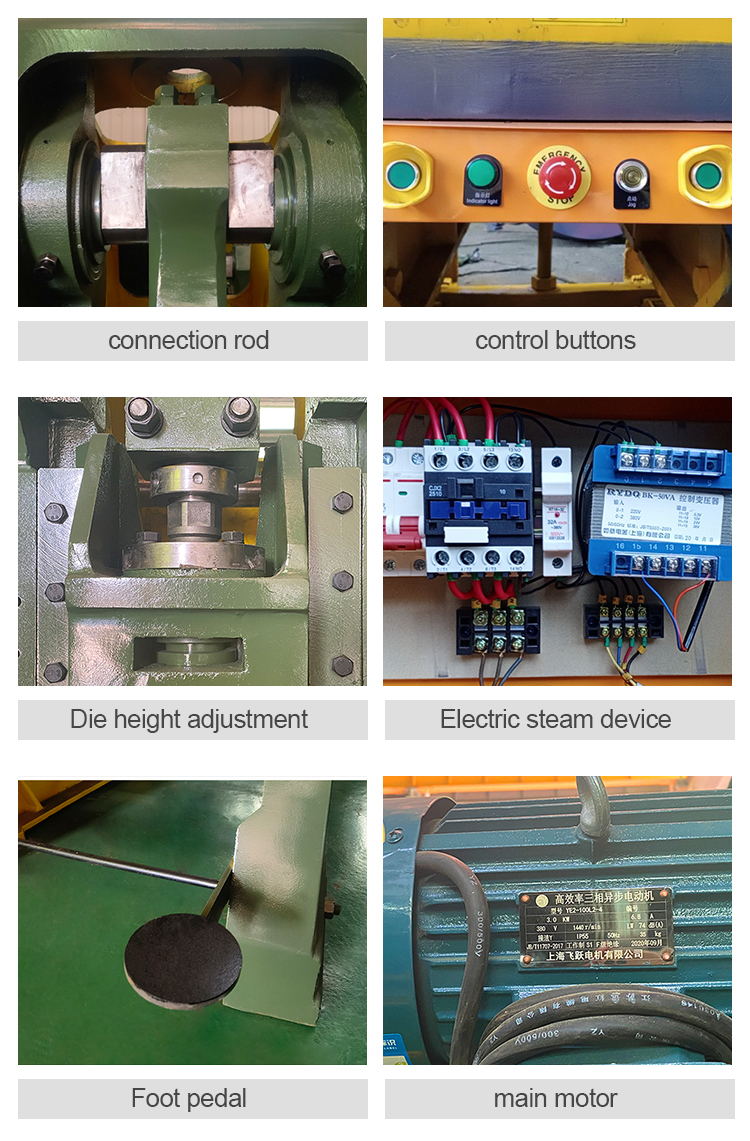

Details Images
Specification
| Item | J23-10T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T | J23-100T | J23-125T |
| Nominal Pressure | 100KN | 160KN | 250KN | 400KN | 630KN | 800KN | 1000KN | 1250KN |
| Slide stroke (Times/min) | 145 | 140 | 70 | 55 | 50 | 45 | 45 | 38 |
| Slide strokes | 50mm | 60mm | 70mm | 100mm | 110mm | 115mm | 130mm | 150mm |
| Max closing height | 150mm | 170mm | 200mm | 300mm | 330mm | 380mm | 380mm | 500mm |
| Die height adjustment | 40mm | 40mm | 40mm | 70mm | 80mm | 80mm | 100mm | 100mm |
| Distance between slider center and machine | 130mm | 160mm | 180mm | 215mm | 230mm | 250mm | 280mm | 390mm |
| Workbench diameter(mm) | 240x360 | 300x480 | 320x525 | 400x650 | 440x700 | 480x750 | 540x840 | 720x1100 |
| Pole distance | 180mm | 220mm | 240mm | 300mm | 300mm | 300mm | 380mm | 550mm |
| Shank hole diameter | 30mm | 35mm | 40mm | 50mm | 60mm | 60mm | 60mm | 60mm |
| Shank hole depth | 50mm | 60mm | 60mm | 70mm | 70mm | 80mm | 80mm | 75mm |
| Pad thickness | 50mm | 50mm | 50mm | 75mm | 80mm | 95mm | 100mm | 130mm |
| Body tilting angle | 30° | 20° | 20° | 20° | 20° | 20° | 20° | 13° |
| Motor power | 1.5Kw | 1.5KW | 2.2KW | 3KW | 4KW | 7.5KW | 7.5KW | 11Kw |
| Weight | 450Kg | 750KG | 1500KG | 2500KG | 4000KG | 5000KG | 6000KG | 7000Kg |
Standard Execution
* JIS I accuracy.v
* Steel welded frame with high rigidity.
* Motor with inverter.
* Combined wet friction clutch.
* Rectangular hexahedron lengthened guide; OCP-315/400 with octahedral lengthened guide.
* Hydraulic overload protector.
* Lifting balance cylinder.
* Imported dual solenoid valve.
* Forced grease lubrication.
* Balance cylinder: manual oil lubrication.
* Integrated panel (elec.cam included).
* PLC control of international brand.
* Contactor and button of international brand.
* CE safety specifications
* Optional: air cushion, light curtain, automotive device. Company Profile
FAQ
1. who are we?
We are based in Anhui, China, start from 2012,sell to Mid East(25.00%),Western Europe(18.00%),Eastern Europe(17.50%), North America(15.30%),Southern Europe(12.30%),Africa(10.80%),South America(7.50%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Auto duct line,Press Brake,Laser Cutting Machine,Shear machine,Punch machine
4. why should you buy from us not from other suppliers?
We are manufacturer and trading company of metal sheet cutting, bending, shearing, punching, rolling machine tools with
professional technician team and complete factory fabrication solution.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken: English, Spanish, Japanese, Russian
Details
- CNC or Not: Normal
- Condition: New
- Machine Type: Punching Machine
- Power Source: Mechanical
- Place of Origin: Anhui, China
- Motor Power (kW): 1.5
- Model Number: J21S-16T
- Weight (T): 0.73
- Key Selling Points: Easy to Operate
- Warranty: 1 Year
- Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
- Showroom Location: None
- Marketing Type: New Product 2021
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor
- After-sales Service Provided: Online support
