Product Description

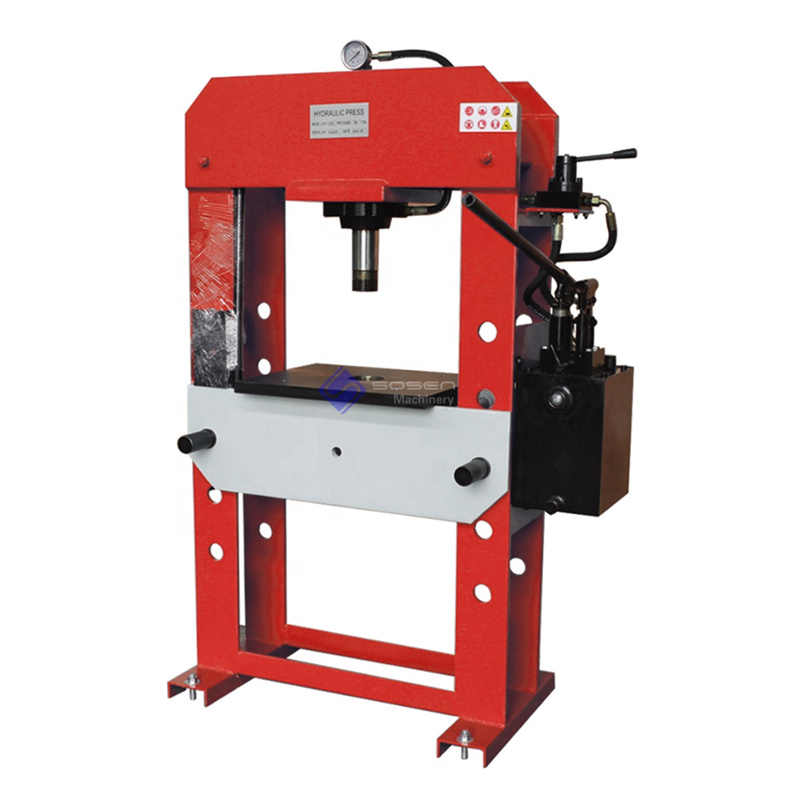

HP series hydraulic press are applied for assembling,disassemble, straightening, mouled pressing, tension, bending and punching works. It is one real multifunctional pressing machine.
The machine adopted Italy CNK and CBZ oil pump combination supply oil for saving 60% energy compared with the traditional hydraulic press. It is small volume, simple structure, light weight with high pressure. The movable worktable expand its opening height and convenient.
Technical Specifications
| MODEL | HP-10S | HP-20S | HP-30S | HP-40S | HP-50S |
| CAPACITY(KN) | 100 | 200 | 300 | 400 | 500 |
| PRESSURE(MPa) | 50 | 50 | 50 | 60 | 60 |
| TRAVEL (mm) | 180+450 | 200+450 | 200+450 | 250+450 | 250+450 |
| TABLE SIZE (mm) | 200*300 | 200*300 | 300*400 | 360*500 | 360*680 |
| DIMENSION(mm) | 500*350*1300 | 500*350*1300 | 550*400*1500 | 1000*550*1500 | 1000*600*1750 |
| WEITHT (KG) | 220 | 260 | 320 | 380 | 460 |
We would provide English Version working manual. If you have any questions during using and maintaining, our engineers who could speak very good english would answer you online or by calls. Machine warranty is 1 years. So if your machine has any unintentional damages,we would provide parts for free. 24Hours life time after sale service. Technician is available to go to your place for training and debugging after you received the machine, but this need you pay for all the cost for that.
FAQ
1. What to do when you don’t know which model hammer need to buy?
You only need to tell us your workpiece size,such as round steel diameter Or square steel size,if convenient,you can send us your product photos. We could provide you best model and suggestions on your requirement.
2. How to place order?
You can place order via alibaba trade system,of course,you can also place order directly to us,we would provide you proforma invoice with all the machine detail and your information on the invoice.You can transfer the deposit by the invoice to us directly.
3. What’s your MOQ?
We don’t have limit of your first order as example for testing and trial our machine.You can buy one set or more upon your require.
4. Do you have warranty of your product?
YES.
The product is under our firm’s warranty for 12 months after it is delivered. Any defect caused by human error, mishandling, foreseeable conditions will not be covered by this warranty. For oversea customer, we only provide the accessory for free within warranty period.
5. Do you have After-sale Serivce?
YES.
We provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not included) under warranty period.
6. Do you have optional hammer die for choose?
YES.
We have some kinds of optional hammer for customer choose according their work need.
Details
- Slide Stroke (mm): 270mm
- Machine Type: H Frame Hydraulic Press
- Ejector Force (kN): 300
- Return Force (kN): 150 kN
- System: Normal
- Condition: New
- Year: 2020
- Voltage: 220V
- Dimension(L*W*H): 550x400x1500mm
- Weight (T): 0.42 T
- Model Number: HP-30T
- Motor Power (kw): 2.2 kw
- Key Selling Points: Competitive Price
- Warranty: 1 Year
- Applicable Industries: Farms, Building Material Shops, Garment Shops, Retail, Home Use, Construction works
- Showroom Location: Indonesia, India, Mexico
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor, Pump, Pressure vessel
- Capacity: 300kn
- Pressure: 25MPA
- Travel: 270mm
- Table size: 300x400mm
- Dimension: 1160x550x1600mm
- Weight: 420kg
- Nominal Force (kN): 200
- After-sales Service Provided: Online support, Free spare parts, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts
- Local Service Location: Philippines, Indonesia, India, Malaysia, Chile
- Certification: ISO and CE
